UOTEK Industrial Grade USB RS-232 to CAN BUS Converter with Protocol Canbus RS232 USB 2.0 Adapter UT-8251A Connector

    UT-8251A is a high performance USB and RS-232 to CAN-bus communication protocol converter. The converter supports interconnection between USB and CAN-bus or RS-232 and CAN-bus; and supports power supply or USB power supply, which further extends the application range of this converter.

    UT-8251A converter provides configuration tools, users can flexibly set the interface parameters of UT-8251A converter. Industrial-grade high standard design; isolation between CAN communication interface and system, with certain anti-interference and anti-surge capability, widely used in industrial control and data communication system.

UT-8251A Details

UT-8251A Parameters



●  Supports bi-directional data transfer between CAN-bus and USB/RS-232

●  Support USB 2.0 protocol

●  1 CAN-bus communication interface, support 5Kbps-1Mbps baud rate

●  1 USB 2.0 interface (12Mbit)

●  1 RS-232 communication interface, support 300bps-250Kbps baud rate

●  Operating voltage: 12-36V DC/USB power supply

●  Operating current: ≤ 150mA@12V

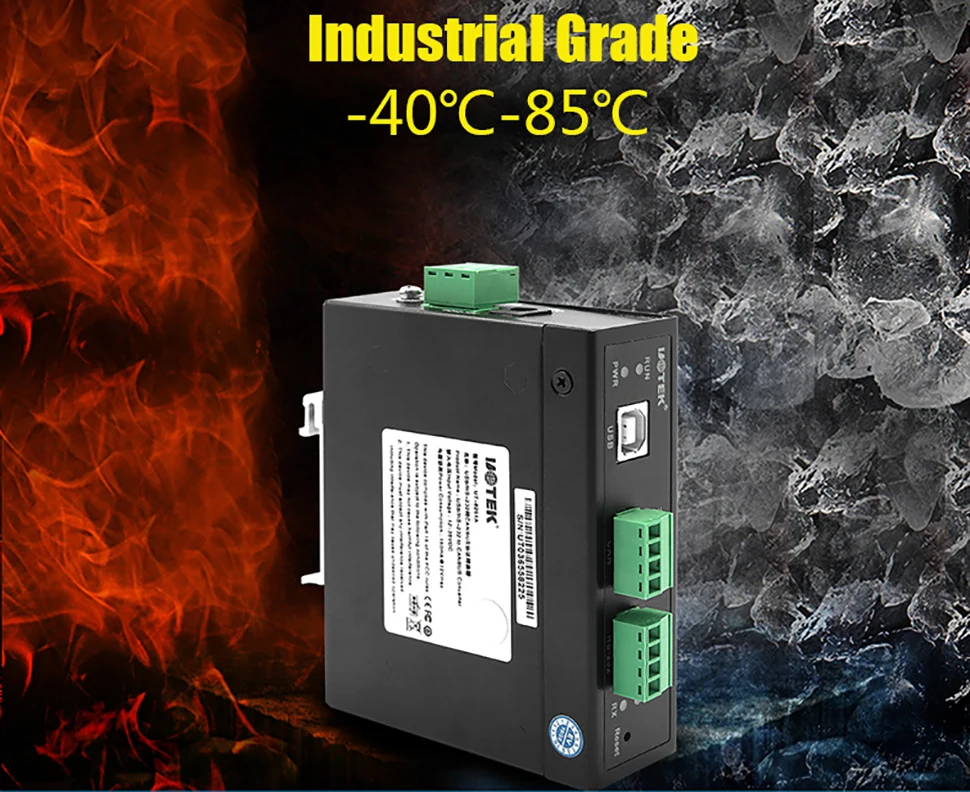

●  Operating temperature: -40 ~ 85 °C

●  Storage temperature: -40 ~ 85°C

●  Operating humidity: 5~95% (no condensing)

●  Storage humidity: 5~95% (no condensing)

●  Isolation voltage: 1000VDC

●  Electrostatic protection: air 8kV, contact 6kV

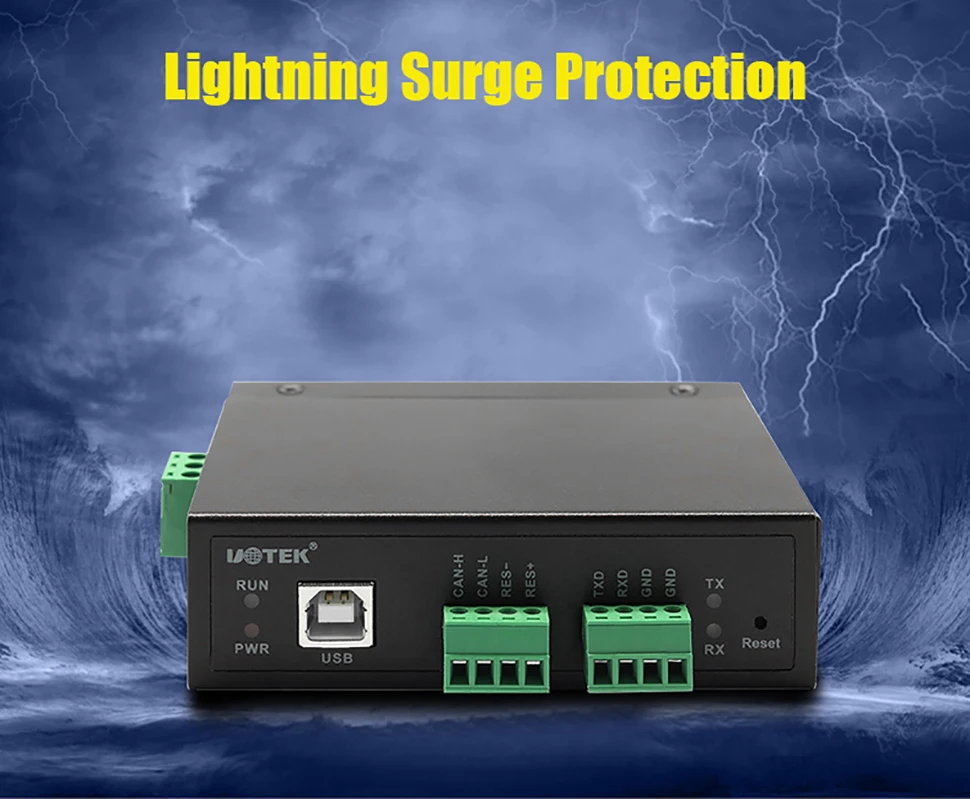

●  Surge protection: Power port: 1.2/50us common mode 2kV, differential mode 1kV CAN port：600W,   RS-232 port：600W

● Power adapter plug type: US standard / EU standard / UK standard

UT-8251A Application
