Notice: The picture does not represent the actual size of the machine, please refer to the actual size of the machine.

FDM 3D Printer
















Kobra Go

🔥Kobra 2
Kobra
Kobra Plus
🔥Kobra Max
Kobra Neo
Vyper


Printing Technology
FDM
FDM
FDM
FDM
FDM
FDM
FDM


Build Area
8.7" x 8.7" x 9.8"
8.7" x 8.7" x 9.8"
8.7" x 8.7" x 9.8"
11.8" x 11.8" x 13.8"
15.7'' x 15.7''x 17.71''
8.7" x 8.7" x 9.8"
9.6" x 9.6" x 10.2"


Materials
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU
PLA, ABS, PETG, TPU


Leveling Type
25-point auto leveling
LeviQ 2.0 auto leveling
25-point auto leveling
25-point auto leveling
25-point auto leveling
25-point auto leveling
25-point auto leveling


Printing Speed
＜100mm/s (Recommended 50-60)
＜250mm/s (Recommended 150)
＜180mm/s (recommended 80-100mm/s)
＜180mm/s (recommended 80-100mm/s)
＜180mm/s (recommended 80-100mm/s)
＜100mm/s (Recommended 50-60)
＜180mm/s (recommended 80-100mm/s)


Extruder Type:
Separated Drive Extruder
Direct Extrudert Double Gears
Integrated Direct Drive
Separated Drive Extruder
Separated Drive Extruder
Integrated Direct Drive
Separated Drive Extruder


Control Screen
2.4" LCD Screen & Control Knob
4.3" LCD Touch Screen
4.3" LCD Touch Screen
4.3" LCD Touch Screen
4.3" LCD Touch Screen
2.4" LCD Screen & Control Knob
4.3" LCD Touch Screen


Platform Material:
PEI spring steel
PEI spring steel
PEI spring steel
Carborundum Glass
Carborundum Glass
PEI spring steel
PEI spring steel


Pre-Installed
X
✓
✓
✓
✓
✓
✓





















Resin 3D Printer












Models

Photon Mono 2

🔥Photon M3 Max
Mono X 6Ks
🔥Photon Mono M5s
Photon Mono X2

Photon D2



LCD Type
6.6“ Mono LCD
13.6'' Mono LCD
9.1'' 6k LCD
10.1'' 12k LCD
9.1'' Mono LCD
DLP Tech


Build Area
6.5"x3.5"x5.6"
11.8”x11.7”x6.5”

7.7''x7.8''x4.8''


7.87x8.58x4.84

7.8"x7.7"x5"
6.5"x5.1"x2.9"


 Resolution
4096x2560(4K+)
6480x3600(7K)

5760x3600(6k）


11520x5120(12k)

4096x2560(4K+)
DLP 2560x1440



Printing Speed

60mm/h
60mm/h

60mm/h


70-105mm/h

60mm/h
MAX 60mm/h






Wash and Cure station:















Models


Wash&Cure 3.0

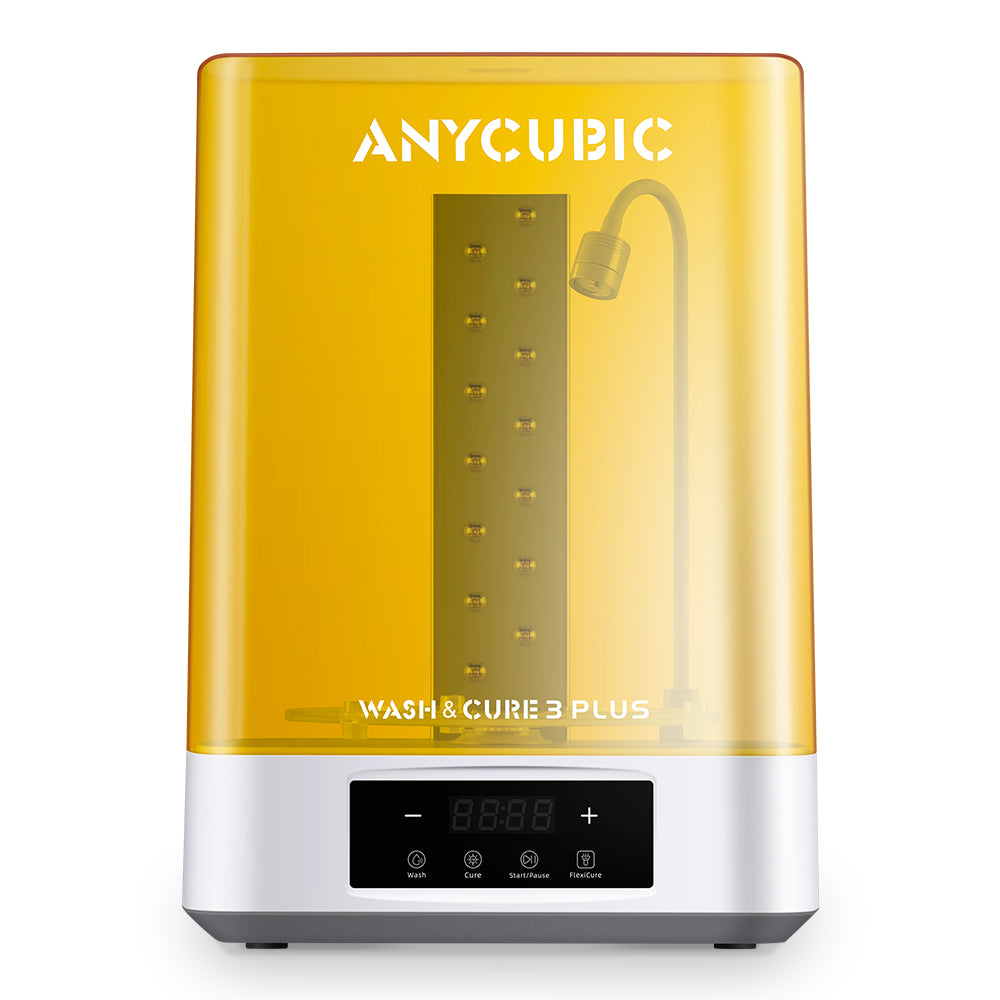

Wash&Cure 3 Plus

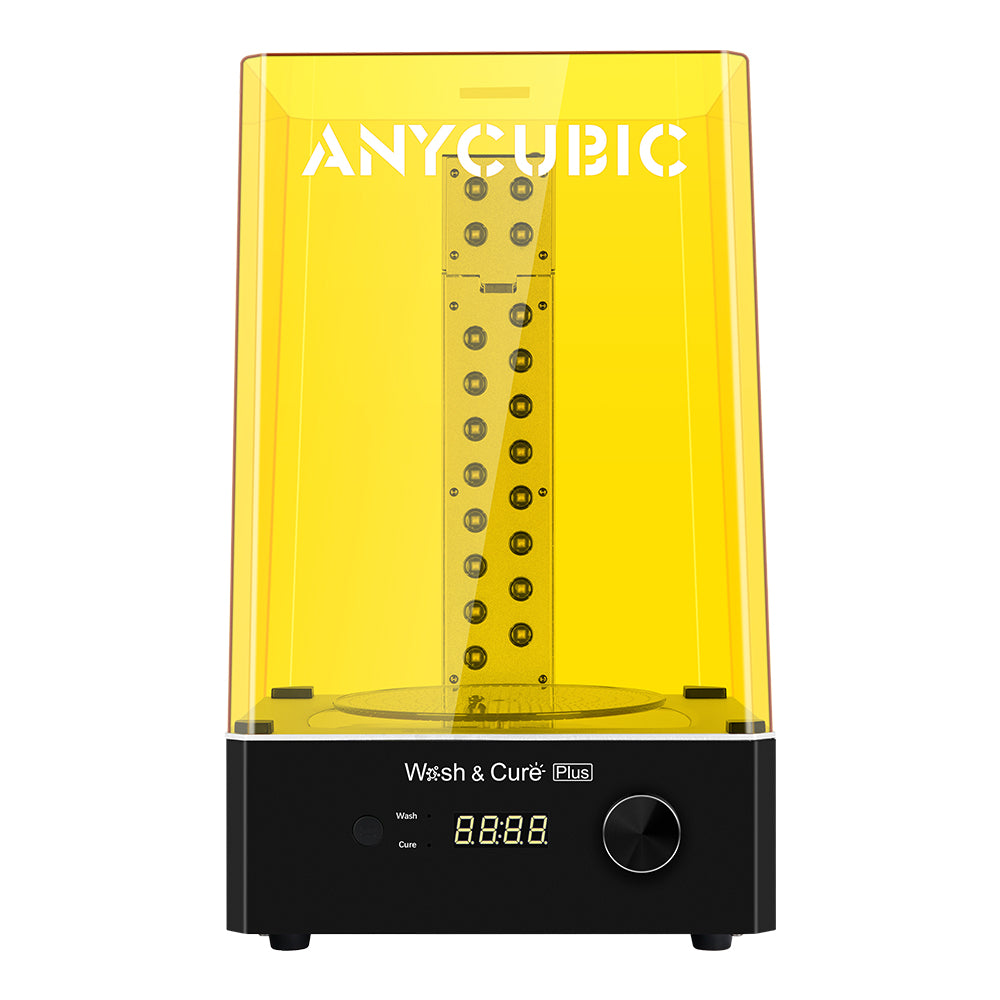

Wash&Cure Plus
Wash&Cure Max



Washing Size


6.49'' x 7.08'' x 3.9''

8.97''x5.03''x10.23''
7.55"x4.72"x11.41''
11.8’’ x 6.5’’ x 11.8’’




- ANYCUBIC Vyper -









 Vyper


Upgrade Auto Leveling: ANYCUBIC Vyper is one of the very few 3D printers that has auto leveling feature, the intelligent leveling system equipped with 16-point precise pressure strain gauge, which can adjust the uneven hotbed automatically, greatly simplifies your print preparation and improves your print success rate.


Large Printing Size: ANYCUBIC Vyper 3D Printer comes with a large build volume of 9.6"(L) x 9.6"(W) x 10.2"(H) / 24.5 x 24.5 x 26cm, which leaves enough space and freedom to fully realize your fantastic creativity.


Fast and Stable Printing: Compared with ordinary 3D printers, Vyper's max printing speed can reach 7.1 in/s / 18 cm/s, which save more time on waiting. High-precision double screw design makes printers run more stable operation and the patented Z-axis can avoid print layer marks, greatly improving the printing details and precision.


Durable and Removable Magnetic Platform: ANYCUBIC Vyper's platform adopts a special coating combined with spring steel, you can remove the models easily with your bare hands simply by taking off the entire platform and then bend it. it can remain flat for decades, beside it's rust-proof and completely maintenance-free.Widely compatible with PLA/ABS/PETG/TPU filaments.


Intelligent Resume Printing Function: Vyper 3D Printer supports automatically resume printing when Power off or the filament is insufficient or breakage, the sensor will pause printing to save time and avoiding material waste. More functions like double fan two-way heat dissipation, 4.3" LCD screen, Fast assemble, which greatly improved printing experience




Tech Specs




Machine Weight
10kg
Machine Dimensions
516x508x457mm(HWD)
Print Resolution
±0.1mm
Printing Dimensions
260x245x245mm(HWD)
Positioning Accuracy
X/Y 0.0125mm; Z 0.002mm
Extruder Number
Single
Nozzle Size
0.4mm
Hotbed Temperature
≤230F/110℃
Printing Speed
≤180mm/s (recommended 80mm/s)
Ambient Operating Temperature
8°C - 40°C
Operational Nozzle Temperature
≤260°C
Operational Hot Bed Temperature
≤110°C
Input Voltage
100V/240V AC, 60/50Hz
Output Voltage
24V/14.6A (350W)
Printing Material
PLA/ABS/PETG/TPU/Wood
Input Formats
.STL, .OBJ, .AMF
Output Formats
GCode
Connection Mode
Trans-flash Card; USB cable(expert users only)











- ANYCUBIC Kobra Neo -








Kobra Neo


90% Pre-installed Make It Easy: Anycubic Kobra Neo is a 90% Pre-installed 3D Printer, which make it possible to set up within 10 minutes. It can print perfectly right out of the box and this would make any beginner to be a great printer enthusiast, which is more suitable for beginners than other DIY 3D Printers.


Direct Drive Extruder Make It Precise Control: The Direct Drive Extruder realizes smooth feeding and discharging of flaments and compatible with more flexible filament such as TPU/PLA/ABS/PETG. It is more lighter, features less inertia and more precise printing, can restore the form of the model to the greatest extent.


PEI Spring Steel Platform Make It Easy Removal & Cost Saving: Compared with other FDM 3d printers, double-sided magnetic PEI spring steel platform is more durable and lasts longer, saving a lot of maintenance costs. You can remove the model easily.


25-Point Auto Leveling Make It Smart: Simple operation brings precise detection and fast leveling, helps you from the tedious manual leveling greatly.


34.4% Larger Creation Dimension Make It Large: Compared to the last generation Anycubic Mega S, the printing volume of Anycubic Kobra Neo has increased by 34.4% to reach 12.1 liters. The printing dimension is 250x 220x 220mm, equivalent to the size of a standard Size 5 soccer ball


More Function: ①Make It Fast: Anycubic Kobra Neo 3d prints at a recommended typical speed of 50-60mm/s and reaches 100mm/s at its highest, which will save much time; ②Make It Smart: The standard power outage resuming sensor and the optional filament run-out sensor reduces filament waste and save time by avoiding the printing failure caused by the power outage and lack of filament.


Customer Services: ANYCUBIC FDM 3d printers come with one-year warranty(The print head with 3 months, the heated bed with 6 months) and lifetime technical support. If you have any question on Anycubic Kobra Neo 3d printer, just click "Ask a question" through our page, we will fast respond within 24 hours




Tech Specs




Machine Weight
7.4kg
Machine Dimensions
490x445x443mm(HWD)
Printing Dimensions
250x220x220mm(HWD)
Nozzle Temperature
≤500F/260℃
Nozzle Size
ø 0.4mm (replaceable)
Hotbed Temperature
≤230F/110℃
Average Print Speed
≤100mm/s(Max.)
≤60mm/s(Typ.)
Zaxis
Single threaded rod
Control Panel
2.4" LCD screen
Leveling
Anycubic LeviQ
25-point precise leveling
Printing Material
PLA/ABS/PETG/TPU
Filament run-out detection
Optional
Extruder Type
Direct extruder
Printing Platform
PEI-coated metal sheet
220x220mm
Memory Card Slot
SD Card









- ANYCUBIC Kobra -







Kobra


Modular Design & Easy Assembly: ANYCUBIC KOBRA is an all-in-one frame 3D printer, can minimize the shaking to improve the print quality. The modular design allows the printer to be assembled only in 10 minutes


Intelligent Auto Leveling 3d printer: ANYCUBIC KOBRA captured with the Self-developed Anycubic LeviQ Leveling Function equipped with 25-point precise leveling up, which can compensate the unevenness of the heated bed automatically, to achieve easy, fast and precise leveling, providing you with a more intelligent printing experience.


Ultra Smooth Printing: Direct drive extruder provides greater conveying force and preciser filament control. Compatible with PLA/ABS/PETG/TPU flexible materials. It can reduce jitter in filament transmission and ensure printing precision.


Removable Magnetic Platform: The models can be removed by bending the spring magnetic platform gently after printing. The platform can withstand high-intensity printing and is corrosion free, saving you a lot of maintenance cost.


Fast Printing & Large Printing Size: ANYCUBIC KOBRA 3D Printer maximum printing speed is 180mm/s, Average speed is 80mm/s, 167% faster than industry standard, enable you save more time on waiting. Large build volume of 8.7x8.7x9.84in / 220x220x250mm, which has enough space and freedom to realize your fantastic creativity.


More Function: ①ANYCUBIC KOBRA is equipped with 4.3-inch LCD touch screen, which brings sensitive response and brighter display, offering better using experience; ②All ANYCUBIC 3D printers backed with lifetime technical support and 24 hours professional customer service.


Tech Specs



Machine Weight
7kg
Machine Dimensions
486x486x430mm(HWD)
Printing Platform
220x220mm
Printing Dimensions
250x200x200mm(HWD)
Printing Speed
80-100mm/s
Average Printing Speed
50-80mm/s
Nozzle Size
ø 0.4 mm (replaceable)
Nozzle Temperature
≤500F/260℃
Hotbed Temperature
≤230F/110℃
Extruder Type
Integrated short-range extruder
Z-axis
Single threaded rod
Material Break Detection
Optional
Anycubic LeviQ
Smart leveling, 25-point precise leveling
Printing Platform
PEI spring steel
Control Panel
4.3 inch LCD touch screen
Printing Material
PLA/ABS/PETG/TPU













- ANYCUBIC Kobra Plus -












 Kobra Plus

Machine Leveling: 25-point auto leveling
Extruder Type: Separated Bowden
Print Resolution: ±0.1mm
Positioning Accuracy: X/Y 0.0125mm Z 0.002mm
Nozzle Diameter: ø 0.4 mm (Replaceable)
Filament Dimensions: ø 1.75 mm
Support Filaments: PLA / ABS / PETG / TPU
Platform Material: Carborundum Glass
Z Axis: Double Threaded Rod





Slicing Software: Cura
Input Formats: .STL, .OBJ, .AMF; Output Formats: GCode
Connection Mode: MicroSD card
Material Break Detection: Support
Typical Speed: 100 mm/s
Build Volume: 13.8 x 11.8 x 11.8 in. / 350 x 300 x 300 mm
Machine Size: 23.8 x 22.0 x 21.5 in. / 605 x 560 x 546 mm
Heated bed Temperature: ≤ 194 °F / 90 °C, Nozzle temperature: ≤ 500 °F / 260 °C
















ANYCUBIC Kobra 2





Kobra 2


【Save Time with 5X Faster Printing】Anycubic Kobra 2 upgraded 3D Printer prints the same-sized model at a recommended speed, saving you up to 70% of printing time. The Maximum Print Speed is 250mm/s, Recommended Print speed is 150mm/s, Accelerated Speed is 2500mm/s².


【Fast and Precise Leveling】Brand new upgraded LeviQ 2.0 Automatic Leveling System in combination with tailored modular realize smart offset to the Z-axis without manual adjustment. Z-Offset can be customed to cater to various printing needs.


【Efficient and Precise Filament Delivery】Dual-geared extrusion structure accurately controls material delivery. Upgraded extruder power reaches up to 60 watts, quickly melts the filament in an enhanced flowability.


【Rapid Cooling and Fast Printing】With an optimized dissipation design, the cooling fan reaches up to 7,000rpm. This ensures rapid cooling down of the models and a fast printing experience.


【Stable Printing with Double Z-axis Threaded Rod】The Z-axis adopts a double-threaded rod structure, lessening the lifting resistance while printing. It flattens the building platform and reduces the printing layers, bringing excellent printing results even at a faster speed.


【Easy Modular Assembly】Assemble Anycubic Kobra 2 with ease in just 10 minutes with only 5 pieces to put together.


【Smarter Printing Experience】The 4.3-inch full-colored and sensitive LCD Touchscreen with comprehensive functions and settings offers a better printing experience.


【Excellent Customer Service】 Each Anycubic Kobra 2 3D Printer comes with a one-year warranty (with the print head warrantied for 3 months and the heated bed for 6 months), and lifetime technical support. If you have any questions you can reach us




Tech Specs




Machine Weight
8.4kg
Machine Dimensions
19.1x173x171in/
486*440*435mm(HWD)
Printing Volume
3.2gal./12.1L
Printing Dimensions
9.8x8.7x8.7in./
250x220x220mm(HWD)
Nozzle Temperature
≤500F/260℃
Nozzle Size
ø 0.4mm (replaceable)
Hotbed Temperature
≤230F/110℃
Printing Speed
9.8in./s or 250mm/s(Max.)
 5.9in./s or 150mm/s(Typ)
Zaxis
Double-Threaded Rod
Control Panel
4.3" LCD Touch-Control Screen
Printing Material
PLA/ABS/PETG/TPU
Power Button
Power-Loss Recovery
Data Input
MicroSD Card












 - ANYCUBIC Kobra Max -






Kobra Max


Large Build Size: ANYCUBIC KOBRA MAX 3D Printer comes with a large build volume of 17.7 x 15.7 x 15.7 in. / 45 x 40 x 40 cm, which is enough for daily and household using, providing you larger printing space and more choices of creation.


Self-developed Anycubic LeviQ Leveling Function: Anycubic upgrade auto leveling function with a 25-point smart and precise calibration. It can compensate the heated bed unevenness automatically. Leveling and printing can be completed with one button, simple operation and brings you greater printing experience.


Stronger Construction & Higher Precision: ANYCUBIC KOBRA MAX 3D Printer is equipped with double thread Z-axis moving construction. It can minimize the shaking, does not lose steps and more model details can be restored.


Filament Runout Detection: Equipped with a filament runout sensor, it can monitor the supply of filament intelligently. If your printer runs out of filament, it will stop automatically without losing your printing progress.


100% Satisfaction Service: ANYCUBIC is one of the best 3d printer brands, which provide the best 3d printers for every customer. We also provide the lifetime technical support and 24 hours professional customer service



Tech Specs



Machine Weight
16kg
Machine Dimensions
715x720x665mm(HWD)
Printing Volume
19.02 gal./72.0L
Printing Dimensions
17.7x15.7x15.7in./
450x400x400mm(HWD)
Nozzle Temperature
≤500F/260℃
Nozzle Size
ø 0.4mm
Hotbed Temperature
≤194F/90℃
Average Print Speed
80-100mm/s
Zaxis
Double threaded rod
Control Panel
4.3" LCD touch screen
Leveling
Smart auto-leveling
Automatically compensate the hot bed unevenness
Printing Material
PLA/ABS/PETG/TPU
Filament run-out detection
Support
Extruder Type
Bowden extruder













- ANYCUBIC Kobra 2 Neo -













Tech Specs

Machine Weight
7.3kg
Machine Dimensions
19.1x17.3x17.3in./
485*440*440mm(HWD)
Printing Volume
3.2gal./12.1L
Printing Dimensions
9.8x8.7x8.7in./
250x220x220mm(HWD)
Nozzle
≤500℉/260°C
ø 0.4mm (replaceable)
Hotbed Temperature
≤230℉/110°C
Printing Speed
250mm/s(Max.)
 150mm/s(Typ.)
Z-axis
Threaded rod x 1
Y-axis
Rail x 1
Belt Tensioner
Adjustable Button
Filament Detection
Optional
Machine Leveling
New Anycubic LeviQ 2.0 Automatic Leveling System (25-point)
Printing Platform
PEl Magnetic Spring Steel
8.7x8.7in./220x220mm
Extruder
Integrated Direct
Cooling Fan RPM
7000rpm/min
Control Panel
2.4" LCD Knob-Control
Printing Material
PLA/ABS/PETG/TPU
Data Input
MicroSD Card














 - ANYCUBIC Kobra 2 Pro -









Kobra 2 Pro:



【10X Boost in Speed】Compared to mainstream FDM 3D printers, the printing speed is increased by 10 times. The maximum printing speed up to 500mm/s. Recommended print speed is 300mm/s.


【High Power Powerful Computing】Equipped with a high-performance Cortex-A7 1.2Ghz processor, providing abundant computing power for faster calculation and command execution, which results in 10x faster printing.


【Brand New Structure】By utilizing an optimized direct extruder and a movement structure in the extrusion system and cooling system, it can effectively and precisely deliver the filament, quickly melt and cool to form, and run smoothly to reduce layer lines.


【Smooth and Detailed】One-click vibration compensation, by detecting the resonance frequency of the X/Y axis, smart adjustments are made to motion control, effectively eliminating resonance vertical lines and bracket lines, ensuring printing accuracy and stability.


【LeviQ 2.0 Auto Leveling Smart Z-Offset】By designing a unique module, it can intelligently compensate for Z-axis offset, while also supporting custom Z-axis compensation values, meeting the needs of different users and usage environments.


















Tech Specs

Machine Weight
8.4kg
Machine Dimensions
19.1x17.1x18.2in./
486x435x463mm(HWD)
Printing Volume
3.2gal./12.1L
Printing Dimensions
9.8x8.7x8.7in./
250x220x220mm(HWD)
Nozzle
≤500℉/260°C
ø 0.4mm (replaceable)
Hotbed Temperature
≤230℉/110°C
Printing Speed
500mm/s(Max.)
 300mm/s(Typ.)
Z-axis
Double Threaded Rod
X/Y axis
Double Metal Spindle
X/Y axis Belt Tensioner
Included
Filament Detection
Default
Machine Leveling
New Anycubic LeviQ 2.0 Automatic Leveling System (25-point)
Printing Platform
PEl Magnetic Spring Steel
8.7x8.7in./220x220mm
Extruder
Direct Extruder + Double Gears
Cooling Fan RPM
7000rpm/min
Control Panel
4.3" LCD Touch-Control Screen
Motherboard
32-bit Silent Motherboard
Power Supply
400W
Printing Material
PLA/ABS/PETG/TPU
Data Input
USB Port x 3












- Photon Mono 2 -









Photon Mono 2


【6.6'' 4K+ Monochrome LCD】ANYCUBIC Photon Mono 2 adopts a 6.6inch 4k+ monochrome LCD screen with a HD resolution of 4096*2560, which can better restore 3d printing models and present more subtle details. The ultra-large scratch-resistant screen protector helps to prevent screen scratches and resin penetration. With up to 95% light transmittance, it can fully protect the LCD screen while ensuring printing accuracy.


【Larger Print Volume】ANYCUBIC Photon Mono 2 resin 3d printer has a printing size of 143x89x165 mm/5.6” x 3.5” x 6.5”, 20% larger than Photon Mono 4K, the exposure time of single-layer printing is shortened to 1.5s-3s, greatly saving your time and improving printing efficiency. Photon Mono 2 providing users with more space and freedom to create freely.


【Upgraded LighTurbo Matrix】The upgraded LighTurbo matrix adopts a high-precision texturing optical lens, provides a stable and uniform parallel light source, thus effectively reducing the layer lines and eliminating grid lines. Therefore, Photon Mono 2 resin 3d printer can make the model details more vivid and make the model surface delicate and smooth.


【Photon Workshop Slicer 3.0】Anycubic's newly self-developed Photon Workshop 3.0 slicing software will be included with the purchased Photon Mono 2 resin printer, which is free to use permanently. It has enhanced and upgraded core features such as slicing, punching, support adding, shells extracting and model arrangement. It also adds various features , such as model repair, significantly improving the slicing efficiency and printing success rate.


【Laser-engraved Build Plate】Mono 2 is equipped with a laser engraved platform, which has excellent flatness that can increase model adhesion, making the 3d model hard to drop and warp. When printing on Photon Mono 2 using different resins, it’s recommended to match the corresponding printing parameters, helping you experience a higher printing success rate.





Tech Specs



Machine Weight
4kg/8.8lb.
Machine Dimensions
15.4x9.01x9.25in./
390x229x235mm(HWD)
Printing Volume
2.09L/73.5oz.
Printing Dimensions
6.5x3.5x5.6in./
165x89x143mm(HWD)
Printing Speed
≤50mm/hr
Machine Leveling
4-point manual leveling
Light Source
Parallel matrix upgrade light source
Z Axis
Single liner with 10 μm accuracy
Resin Vat
Unibody design with scale lines
Exposure Screen
6.6" monochrome
4,096x2,560px
 2,000 hours lifespan
Build Platform
Laser engraving aluminum alloy
Control Panel
2.8" TFT touch-control
Removable Cover
Effectively blocks UV radiation
Screen Protector
Replaceable anti-scratch film
Power Supply
48W rated power
Data Input
USB Type-A 2.0
















- Photon Mono X2 -




𝐇𝐢𝐠𝐡𝐞𝐫 𝐏𝐫𝐢𝐧𝐭𝐢𝐧𝐠 𝐀𝐜𝐜𝐮𝐫𝐚𝐜𝐲| ANYCUBIC Photon Mono X 2 is equipped with a 9.1'' 4K+ large mono LCD screen with a resolution of 4096 x 2560, and a single pixel is able to reach 48μm, which is 4% higher than Photon Mono X, offering 3D printing enthusiasts a greater level of detail printing.
𝐔𝐩𝐠𝐫𝐚𝐝𝐞𝐝 𝐋𝐢𝐠𝐡𝐭 𝐒𝐨𝐮𝐫𝐜𝐞| Photon Mono X2 resin 3d printer adopts Anycubic LighTurbo matrix light source, which can project the UV light both parallel and perpendicular to the LCD screen, providing a much more uniform light exposure, thus improving the quality of printed model.
𝐒𝐭𝐚𝐛𝐥𝐞 𝐏𝐫𝐢𝐧𝐭𝐢𝐧𝐠 𝐒𝐭𝐫𝐮𝐜𝐭𝐮𝐫𝐞| The use of dual linear guides on the 3d machine Z-axis can effectively reduce the risk of layer shifting. Plus with POM clearance nut combined with a vibration absorption structure to ensure z-axis operation accuracy and eliminate layer lines, making the appearance of the model more smooth.
𝐆𝐫𝐞𝐚𝐭 𝐒𝐥𝐢𝐜𝐞𝐫 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲| Anycubic Photon Mono X2 works well on Photon Workshop, CHITUBOX, Lychee etc, slicing software, and the wide compatibility respects your preferences (Please note: Anycubic Cloud service is not supported for Photon Mono X2)
𝐋𝐚𝐬𝐞𝐫 𝐄𝐧𝐠𝐫𝐚𝐯𝐞𝐝 𝐏𝐥𝐚𝐭𝐟𝐨𝐫𝐦| The 3d printing platform of Photon Mono X2 has a textured checkerboard pattern that greatly improves adhesion and print success rate, easy to remove 3d models. Anti-scratch flim can protect the LCD screen from resin leakage damage, save the unexpected costs.



Tech Specs



Machine Weight
15.6lb./7kg
Machine Dimensions
16.4x11.4x10.2in./
417x290x260mm(HWD)
Printing Volume
162oz./4.8L
Printing Dimensions
7.8x7.7x5in./
200x196x122mm(HWD)
Printing Speed
≤60mm/hr. or 2.36in./hr.
Machine Leveling
4-point manual leveling
Light Source
≤27,320 lux power density
Z Axis
Double liners with 10 μm accrace
Resin Vat
Unibody design with scale lines
Exposure Screen
9.1" mono
4K+Resolution



 2,000 hours typical    lifespan
Build Platform
Laser engraved aluminum alloy
Control Panel
3.5" TFT touch-control
Removable Cover
Effectively blocks 99.95% of UV radiation
Protection Film
Replaceable anti-scratch film
Power Supply
100W rated power
Data Input
USB Type-A 2.0










- Photon Mono X 6K -





Photon Mono X 6k

Protect What Matters--In order to better protect its premium screen, Anycubic Photon Mono X 6K added a dedicated and replaceable anti-scratch film above the screen itself, making that expensive screen much more durable than its rivals.
6K Vivid Details--With 5,760 x 3,600 px resolution, Anycubic Photon Mono X 6K's screen has a total number of over 20 million pixels, which is 125% higher than Anycubic Photon Mono X and its rivals' 4K resolution screen. High resolution brings vivid details to your 3D models.
Sharp Edges and Corners--Adopting an industry-leading screen with 350:1 contrast ratio, 75% higher than Anycubic Photon X and its rivals' 200:1, Anycubic Photon Mono X 6K provides your 3D models with extremely sharp and clear edges and corners.
Print, One Step Ahead--With an impressive print speed at ≤ 80 mm/hr. / 3.15 in./hr., Photon Mono X can print a typical 12cm / 4.7in. model in 1.5 hours, which takes 4.5 hours less than Photon's 6 hours, and 1.5 hours less than its rivals' 3 hours. Fast printing saves your time wasted on waiting.
High Light Transmittance--Anycubic Photon Mono X 6K is equipped with an industry leading screen with 6% light transmittance, which is 200% higher than Anycubic Photon Mono X and its rivals' 2%. High light transmittance makes quick forming possible.


Specs:
● Exposure screen: 9.25’’ monochrome
● Printing volume: 199.1 oz. / 1.6 gal. / 5.9 L
● Light transmittance: 6%
● Contrast ratio: 350:1
● Light source: Parallel matrix (LED x 40)
● Power density: 5,000 - 6,500 μw/cm² / 34,150 - 44,395 lux
● Printing accuracy: 5,760 x 3,600 px (6K)
● Horizontal resolution: 34 μm
● Printing speed: Max 80mm/h
● Control panel: 3.5’’ TFT touch-control
● Data input: USB-A 2.0 / LAN
● Power supply: 120W
● Screen area: 38.22 in² / 248.75 cm²
● Machine dimensions: 18.7 x 11.4 x 10.6 in. / 475 x 290 x 270 mm (HWD)
● Machine weight: 24.3 lb. / 11 kg





- Photon Mono X 6Ks -








Photon Mono X6ks


【9.1 inch 6K Screen】ANYCUBIC Photon Mono X 6Ks resin printer uses a 9.1” 6K mono screen with a HD resolution of 5760*3600 and a high contrast ratio of 380:1, bringing sharper and delicate details. Comes with a high light transmittance anti-scratch film protector, effectively protecting the screen from wearing and scratches while ensuring printing accuracy. One free extra piece included for easy replacement.


【Upgraded LighTurbo Matrix】The upgraded Anycubic LighTurbo matrix light source and high-precision textured optical lens provide a stable and even parallel light source, effectively removing optical layers and grid lines to create a smooth and delicate model surface. The max printing speed reaches 60 mm/h, completing your 3d printing models even sooner.


【Stable Printing Sturcture】Photon Mono X 6Ks 3d resin printer adopts dual-linear Z-axis rail and highly wear-resistant POM anti-backlash nuts, restraining the Z-axis' stability to the micron level, effectively eliminating printing layers and ensuring printing details. Laser-engraved platform has better adhesion than sandblasting ones, greatly reducing fall-offs and warping-ups, bringing you an even better success rate.


【Large Printing Dimension】The printing size of ANYCUBIC Photon Mono X 6Ks resin 3d printer is 195.84X122.4X200mm, so you can print small models in one batch to improve the printing efficiency. And the max printing volume is up to 4.76L, making it even more convenient for printing large-sized models.


【Upgraded Slicer software】Anycubic Photon Workshop 3.0 brings you an even better slicing experience in punching, supporting, shelling and layout arranging. Simplified UI interface makes slicing easier. The new model repairing function also helps boost the printing success rate. Free to use permanently







Tech Specs



Machine Weight
8.5kg/18.7lb.
Machine Dimensions
417x290x260mm/
16.4x11.4x10.2 in.(HWD)
Printing Volume
4.76L/161oz.
Printing Dimensions
200x195.84x122.4mm/
7.8x7.7x4.8 in. (HWD)
Machine Leveling
4-point manual leveling
Printing Speed
15-60mm/h
Removable Cover
Effectively block UV radiation
Resin Tank
Unibody design with scale lines
Zaxis
Dual-linear Z-axis, 10μm precision
Printing Platform
Laser-engraved aluminum platform
Large Film Protector
Replaceable anti-scratch film
Exposure Screen
9.1" monochrome screen
6K (5,760 x 3,600 pixels) resolution
380:1 Contrast Ratio
6.5% light transmission
2,000 hours lifespan
Light Source
Upgraded Anycubic LighTurbo
Matrix light source
Control Panel
3.5-inch TFT touch control
Data Input
USB Type-A 2.0
Power Supply
80W rated power
Power Button
On/off switch











- Photon M3 -






【Details Above Everything 】Photon M3 features 4K+ ultra-high resolution and a high contrast ratio of 400:1 for more vivid details and sharper model edges, giving you great print quality.
【Larger Print Volume】The Photon M3 is equipped with a 7.6-inch LCD screen with a print volume of 163x 102 x 180 mm, 30% larger than the common 6.66" 3D printer.
【Faster Print Speed】Max print speed is 50mm/h, 25% faster than competing products' 40mm/h.It only takes 2.5 hours to print a 12cm model, saving printing time even better.
【Higher Printing Success Rate】Photon M3 is equipped with a Laser-engraved platform, which has stronger adhesion than ordinary platforms, greatly improving the success rate of printing and making printing easier.
【Warranty and Service】We provide a one-year warranty for M3 printers, and have a professional technical team and customer service to answer any questions about the use of the machine, please feel free to communicate with us


Technical Specifications
● LCD screen: 7.6 inches monochrome screen
● Printing accuracy: 4,096 x 2,560 pixels
● Printing volume: 2.99 l / 101.19 oz
● Light transmittance: 4%
● Contrast ratio: 400:1
● Light source: parallel matrix light source
● Printing platform: laser-engraved aluminum alloy platform
● Printing speed: ≤ 50 mm /1.97 inches per hour
● Control panel: 2.8-inch resistance touch screen
● Data input: USB-A 2.0 interface
● Rated power: 55W
● Print size: 180 x 163 x 102 mm / 7.1 x 6.4 x 4.0 inches
● Machine size: 425 x 269 x 256 mm / 16.7 x 10.6 x 10.1 inches. (HLW)
● Machine weight: 7 kg / 15.4 LBS








- Photon M3 Max -






Photon M3 MAX


Extraordinary Printing Size, Anycubic Photon M3 Max with a 11.7'' x 6.5'' x 11.81'' building size, which is the largest one of Anycubic resin 3d printer so far. The practical printing volume can meet the printing needs of your large-scale models, while achieving batch printing and improving production efficiency.




Well-defined Print Details. comes with a 13.6’’ 7K HD Mono Screen, Photon m3 max achieves the large size printing while maintaining the precision of the model. Coupled with the Z-axis rail of the ball screw, and the high contrast ratio of 450:1, it can better reproduce the details, making your model more different.




Fast Printing Speed. The ANYCUBIC Photon M3 max mono screen is composed of 84 LED lights neatly arranged, providing a powerful matrix light source that shortens the printing time of each layer to 3 seconds, and can achieve fast printing of up to 60mm/h.




Automatic ​Resin Feeding, Anycubic Auto Resin Filler can intelligently replenish resin and stop replenishing, reducing printing failures caused by insufficient resin, making your time more free.




Upgraded Function. Photon M3 Max adopts laser engraving 3D printing platform, which has better platform adhesion than brushed platform and improves success rate. At the same time, anti-scratch film can reduce the screen damage caused by resin leakage and save the high cost of replacing the screen




Tech Specs



Machine Weight
21kg/46.3lb.
Machine Dimensions
23.5x15.7x16.1in./
596x400x408mm(HWD)
Printing Volume
14.7L/498.5oz.
Printing Dimensions
11.8x11.7x6.5in./
300x298x164mm(HWD)
Printing Speed
≤60mm/hr
Machine Leveling
4-point manual leveling
Light Source
Parallel matrix (LED lights x 84)
Z Axis
Double guide rails
Resin Vat
One-piece design with scale lines
Smart Resin Filling
Intelligent resin filling and stopping
Exposure Screen
13.6" monochrome
6,480 x 3,600px (7k)
450:1 contrast ratio
2,000 hours lifespan
Build Platform
Laser engraving platform
Control Panel
4.3" resistive touch-control
Removable Cover
Blocks 99.95% of uv radiation
Screen Protector
Replaceable anti-scratch film
Power Supply
120W rated power
Data Input
USB Type-A 2.0










- Photon Mono M5 -








About this item


【10.1’’ 12K High Resolution】Abycubic Photon Mono M5 boasts a 10.1-inch monochrome LCD screen with 11520*5120 resolution, bringing model details to life with near-microscopic precision. Additionally, the impressive contrast ratio of 480:1, ensuring that the edges well-defined


【Anycubic APP】With the Anycubic APP, users can achieve online slicing, one-click printing, and monitor printing progress from their smartphones. The APP also supports OTA online upgrades, enabling to unlock new features anytime, anywhere. And the practical help center allows to view tutorials at any time to enhance printing experience


【Upgraded Slicer Software】Anycubic Photon Workshop 3.1 offers an improved slicing experience in punching, supporting, shelling, and layout arranging. The new support algorithm reduces damage to the model surface, making support and bottom valve removal easier. In additional, the software allows for one-click repair of damaged models and significantly improves slicing speed, resulting in a more user-friendly experience


【Stable print structure】Photon Mono M5 Adopts a high-stability and precision dual linear rails lead screw Z axis, combined with a high-wear-resistant POM clearance nut, to ensure the precise operation of the Z-axis micron-level without shaking, effectively eliminating the layer grain and displaying the beauty of details


【Improve print success rate】Using the laser-engraving process for the printing platform, allows the build plate to have a better flatness than the sandblasting platforms, which can effectively enhance the adhesion of the model, reduce the situation of the printing model falling off and warping, and greatly improve the printing success rate





Tech Specs

Machine Weight
19lb./8.6kg
Machine Dimensions
18.11x10.63x11.41in./
460*270*290mm(HWD)
Printing Volume
190oz./5.4L
Printing Dimensions
7.87x8.58x4.84in./
200x218x123mm(HWD)
Printing Speed
20-50mm/hr. or 0.78-1.97in./hr.
Machine Leveling
4-point manual leveling
Light Source
LED matrix UV light source
Z Axis
Double liners with 10 μm
Resin Vat
Unibody design with scale lines
Exposure Screen
10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance


Build Platform
Laser engraving aluminum alloy
Control Panel
4.3" TFT touch-control
Removable Cover
Effectively blocks UV radiation
Oversized Protection Film
Replaceable anti-scratch film
Power Supply
100W rated power
Data Input
USB Type-A 2.0、WIFI
















- Photon Mono M5s -



【12K Exquisite Details】Anycubic Photon Mono M5s has a 10.1 inch 12K monochrome LCD screen with a resolution of 11520*5120, achieving an X accuracy of 19 microns. It can print with exceptional detail, as fine as a human hair. The contrast ratio is 480:1, making models have sharp edges and distinct contours.


【Leveling-Free】Anycubic pioneered the consumer grade leveling free resin 3D printer. During printing, the mechanical sensor on the cantilever arm detects the fit between the printing platform and the floating leveling module and automatically adjusts it based on the detection results. This eliminates the risk of leveling failure, improves printing success rate


【3X Faster Printing】Photon Mono M5s uses high-speed resin to achieve an average printing speed of 105mm/h*, and is equipped with a high-speed release film, which reduces the release force and increases the speed while ensuring a high printing success rate


【Intelligent and Efficient】Prior to printing, auto device check and resin detection are utilized to check exposure screen, mechanical detection module and motor operation status and the amount of resin whether meet the needs to help start printing smoothly. In additional, printing status detection can report and analyze common bottoming-out printing failures, improving printing efficiency.


【Upgraded Slicer Software】The new "Intelligent Mode" in Anycubic Photon workshop 3.1 can match exposure parameters according to model details and dimensions. And the new support algorithm further improve the printing stability and success rate, realizing one-click repair of damaged models, improve the speed of both punching and slicing


Tech Specs



Machine Weight
19.6lb./8.9kg
Machine Dimensions
18.11x10.63x11.41in./
460*270*290mm(HWD)
Printing Volume
190oz./5.4L
Printing Dimensions
7.87x8.58x4.84in./
200x218x123mm(HWD)
Average Printing Speed
With high speed resin - 105mm/hr. or 4.13 in./hr.
With general resin - 70mm/hr. or 2.76 in./hr.
Machine Leveling
Leveling-free
Light Source
LED matrix UV light source
Z Axis
Double liners with 10 μm
Resin Vat
Unibody design with scale lines
Exposure Screen
10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance
2,000 hours typical lifespan
Build Platform
Laser engraving aluminum alloy
Control Panel
4.3" TFT touch-control
Removable Cover
Effectively blocks UV radiation
Oversized Protection Film
Replaceable anti-scratch film
Power Supply
100W rated power
Data Input
USB Type-A 2.0, WIFI








- Photon Mono 4K -






[High-speed 3D Resin Printer]: ANYCUBIC Photon MONO 4K 3D printer is upgraded with 4k monochrome LCD with 35um XY pixels, is one of the greatest accuracies in 3D printing field. The 7% high light transmittance could absorb higher curing UV power for faster printing and curing speed, the single-layer exposure and curing time is as low as 1.5s. The printing speed can reach up to maximum 50mm/h. 2.5X faster than original 2k printer.
[4K High Resolution & Higher Accuracy]: This newly high resolution 3840x2400 MONO 4K resin printer has smaller pixel and sawtooth texture, to print more delicate and smooth surface; and MONO 4K uses a high contrast ratio more than 350:1 monochrome screen, which makes the image in the exposure areas more accurate and produce highly-detailed prints with clearer and sharper edges and corners, thus improving the quality and success rate of printing, also greatly reducing the residue in resin vat.
[6.23" Large Screen & Larger Print Size]: The Photon Mono 4K is equipped with a decent 6.23" screen, which is 29% larger than the Anycubic Photon’s 5.5” in screen area. It can also print up to 6.5x5.2x3.1in at a time, which offers your creations more possibilities.
[Adjustable Power & Universal Compatibility]: With 30%-100% light power regulation, Anycubic Photon Mono 4K supports not only ordinary 405nm UV resins, but also special resins, making it compatible to more materials and environments. In addition, adjusting the light power appropriately can extend the lifespan of both the screen and light significantly.
[Improved LCD Protection]: Compared to all other mono series LCD printers in the market, for many LCD screen problems, Our MONO 4K screen printer has added a replaceable anti-scratch film between the protective film and the screen itself to improve the protection for screen, and comes with one-piece extra protective film for replacement

Specifications
● Exposure screen: 6.23’’ monochrome
● Printing dimensions: 6.5 x 5.2 x 3.1 in. / 165 x 132 x 80 mm (HWD)
● Light transmittance: 7%
● Contrast ratio: 400:1
● Light source: Parallel matrix (LED x 15)
● Power density: 3,500 - 4,000 μw/cm²/23,905 - 27,320 lux
● Printing accuracy: 3,840 x 2,400 px (4K)
● Suggested layer thickness: 0.01 - 0.15 mm
● Horizontal resolution: 35 μm
● Printing speed: ≤ 50 mm/hr. / 1.97 in./hr.
● Control panel: 2.8’’ TFT touch-control
● Data input: USB-A 2.0
● Power supply: 45W
● Software: Photon Workshop
● Machine dimensions: 15.1 x 8.9 x 8.7 in./383 x 227 x 222 mm (HWD)
● Machine weight: 9.4 lb./4.3 kg




 - Wash and cure 2.0 -







Wash&Cure 2.0



Newest Upgraded and More Convenient: Newest Wash and Cure machine added lens to UV lamp beads, the light source intensity distribution is more uniform, and the surface of the model is smoother. With the 360° automatic rotating curing table and added bottom reflector, the bottom curing has no dead ends, so that the entire model is cured more thoroughly


2-In-1 Wash and Cure Station: Dual functions of cleaning and curing can not only remove most of the chemicals, settle scrubbing and mess issues, but also seriously streamline the whole post-processing. It's a professional solution to the messy clean up job of your fabulous prints and also helps reduce the clutter on your desk. 1-60min time adjustable, customize knob cleaning and curing time. Each layer of the 3D printer model can be better cleaned and cured according to your DIY needs


Widely Compatibility: The ANYCUBIC wash and cure machine is a great addition to most type of regular resin printer, Compatible with most LCD/DLP/SLA 3D printers such as QIDI Shadow, NOVA, Mars series and other regular resin printers with similar build volume size as it does for photon series, this Wash & Cure machine has opened up a whole new world of 3d printing for you and greatly enhance your workflow


Effective and Diverse Washing Modes: There is a propeller in the bottom of wash cure station, when work, it spins the solution like a little tornado and changes spin direction halfway through the wash , which creates the perfect flow to clean every inch of the print. 2 modes of Cleaning: 1. Basket washing, Remove the model and put it into the basket for direct cleaning; 2. Suspension washing, Directly hang the print platform on the basket or cleaning stand to clean, reducing exposure to resin. The max washing size is 4.72"x2.91"x6.49" 120x74x165mm


Anti-UV Light Hood: The transparent cover of this wash cure machine can block up to 99.95% of ultraviolet rays with a wavelength of 405nm, thus able to be effective in high resin solidification rate; and this wash and curing box adopts sealed cleaning, which effectively prevents the cleaning agent from splashing and volatilization, and provides more safety


Technical Specifications
● Machine properties: Wash and Cure
● Control method: Digital tube, LED indicator, Control knob
● Rated power: 25W
● Input voltage: AC110/220V 50/60Hz
● UV lights: 405nm
● Time selection:1-60min
● Machine size: 225mm(L) *235mm(W) *365mm(H)
● Washing size: 120mm(L) *74mm(W) *165mm(H)
● Curing size: 140mm(D) *165mm(H)
● Weight: 3.7kg















 - Wash and cure Plus -

Wash&Cure Plus



【2-In-1 Wash and Cure Station】 Dual functions of cleaning and curing can not only remove most of the chemicals, settle scrubbing and mess issues, but also seriously streamline the whole post-processing; A professional solution to the messy clean up job of your fabulous prints


【Largest Wash Cure Station】It has a large washing volume of 192mm(L) x 120mm(W) x 290mm(H) and curing volume of 190mm(D) x 245mm(H), so you can wash cure models printed by large resin printers such as Photon Mono X, which can dramatically simplify messy post-processing


【Real 360° Curing】The 360°auto-rotating curing platform, equipped with L-shape strip light and reflective mirror sticker, enables the wash and cure machine to realize a real thorough curing; Prominently, its L-shaped strip light make the top UV lamp adjustable, solving the problem of model top part curinguspension washing, directly hang the print platform on the basket or cleaning stand to clean, reducing exposure to resin


Two Washing Modes】 A. Basket washing, remove the model and put it into the basket for direct cleaning; B. Suspension washing, directly hang the print platform on the basket or cleaning stand to clean, reducing exposure to resin


【Anti-UV Light Hood】The transparent cover of this wash cure machine can block up to 99.95% of ultraviolet rays with a wavelength of 405nm, thus able to be effective in high resin solidification rate; and adopts enclosed washing busket to prevent liquid splashing and volatilization


Technical Specifications
● Machine: Wash and Cure
● Control method: Digital tube, LED indicator, Control knob
● Rated power: 40W
● Input voltage: AC110/240V 50/60Hz
● UV lights: 405nm
● Time selection: 1-60min
● Machine size: 290mm(L)*270mm(W)*479mm(H)
● Basket washing size: 192mm(L)*120mm(W)*290mm(H)
● Hanging cleaning size: 192mm(L)*120mm(W)*235mm(H)
● Curing size: 190mm(D)*245mm(H)
● Weight: ~6.5kg
