Product Details
Features

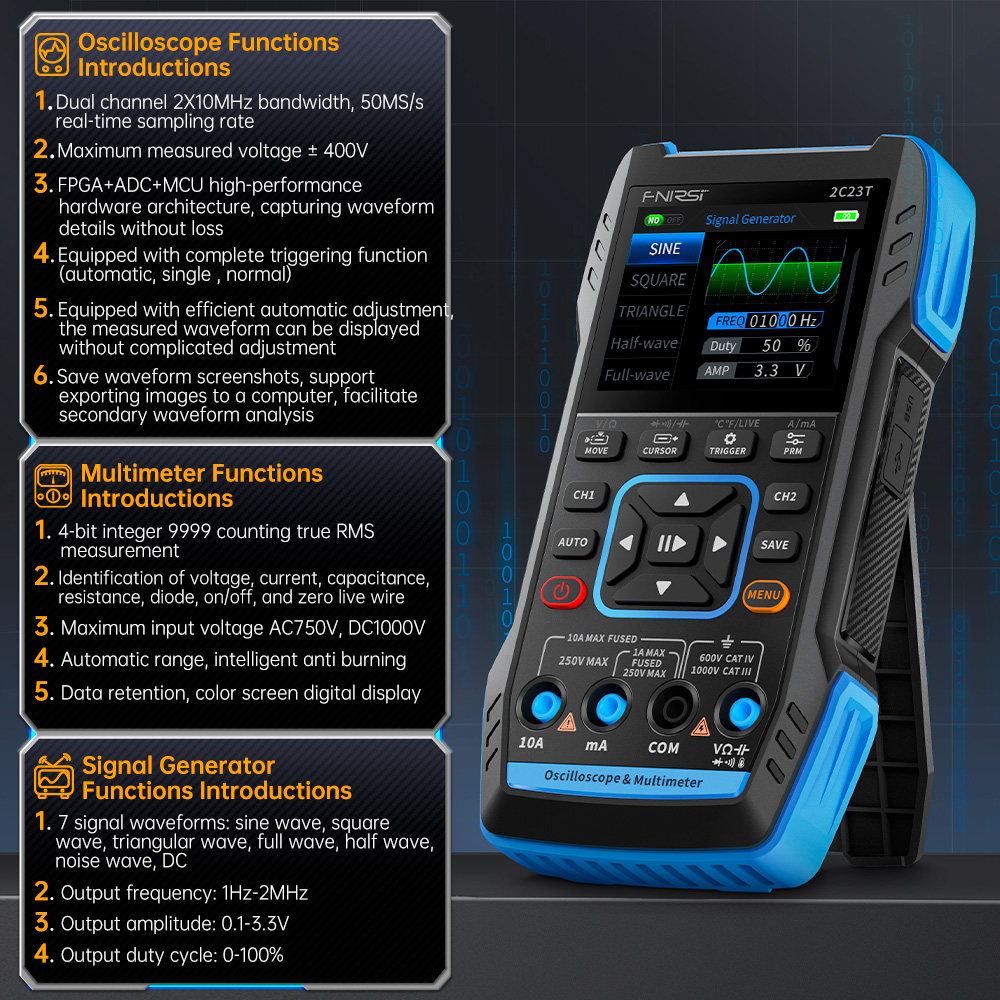

1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator

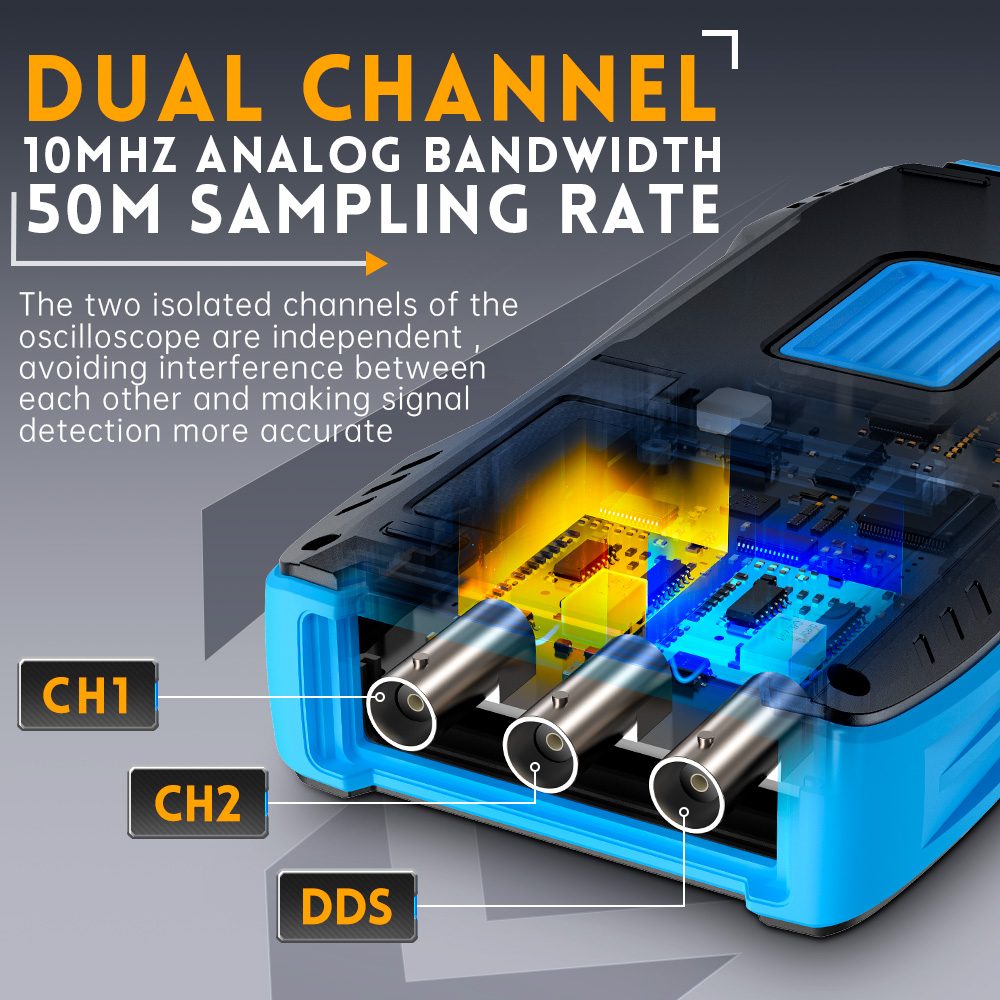

2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms

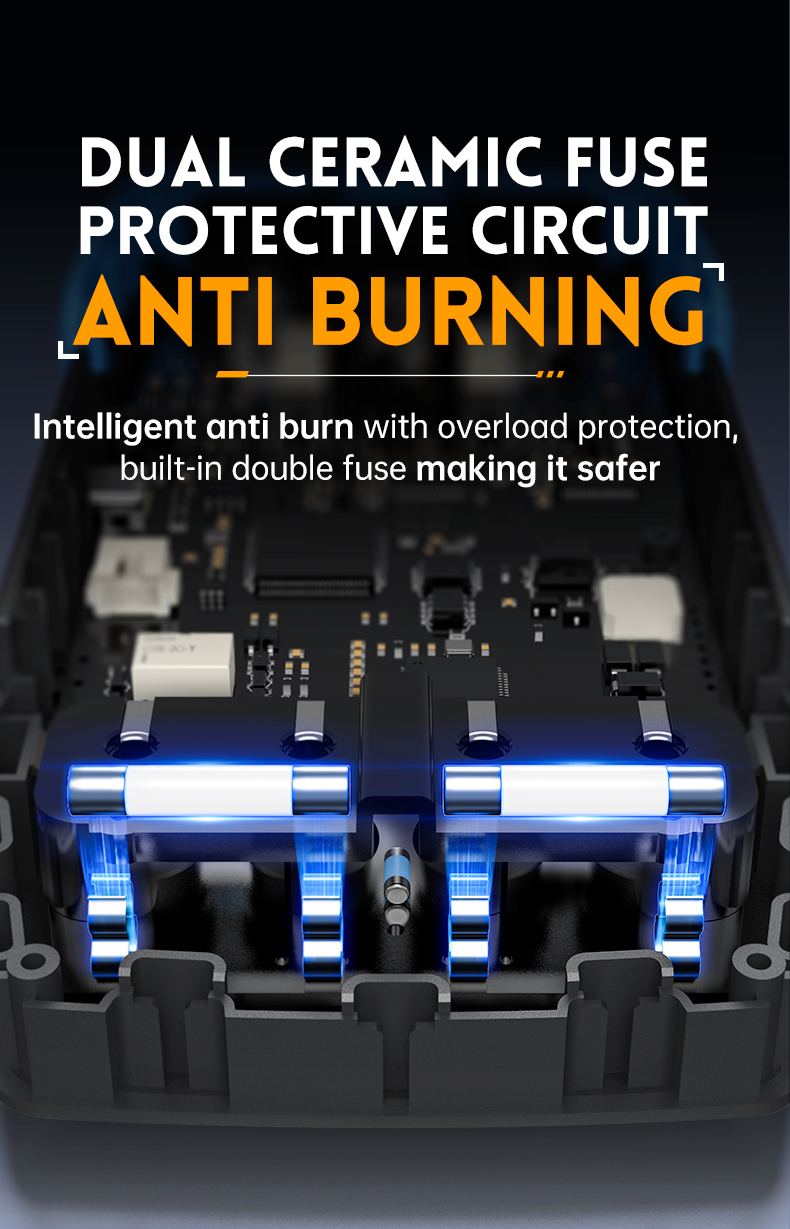

5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator
2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms
5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
Overview
Model: 2C23T

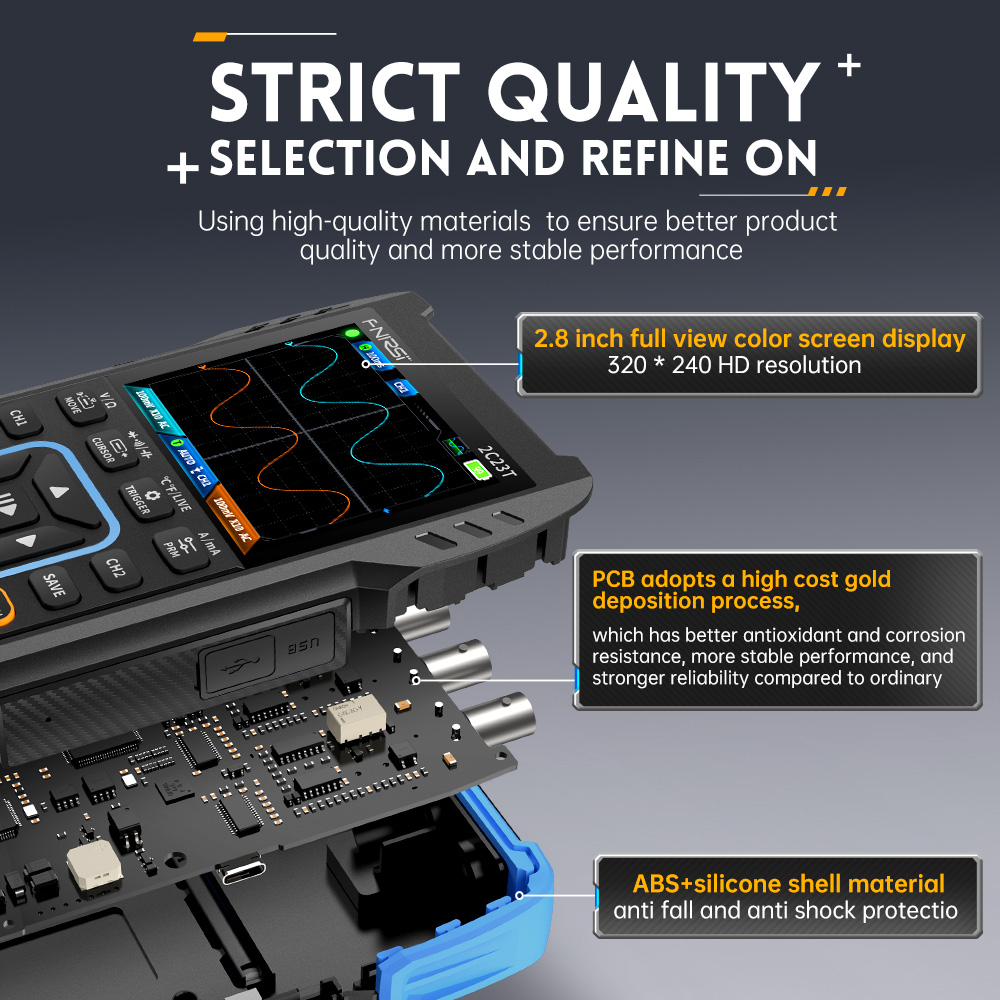

Screen: 2.8-inch true color screen
Resolution: 320 * 240

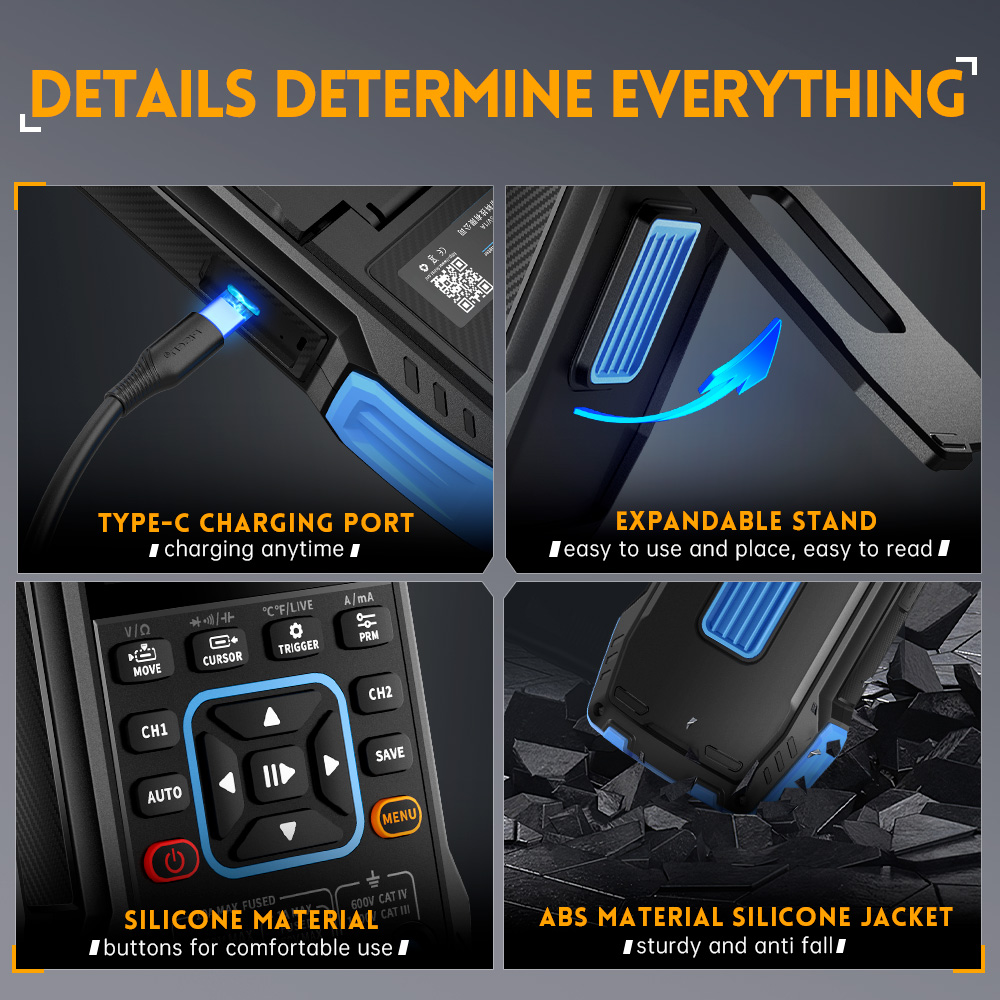

Charging: TYPE-C (5V/1A)

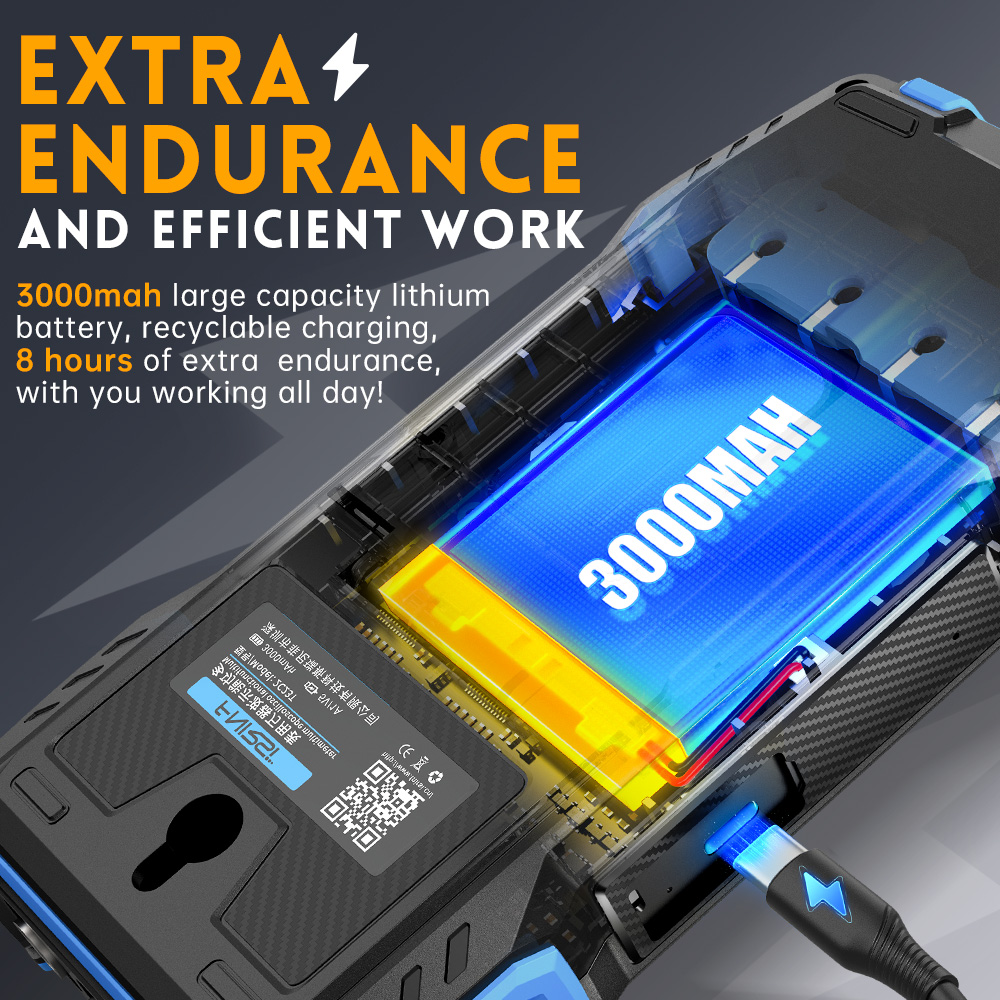

Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Model: 2C23T
Screen: 2.8-inch true color screen
Resolution: 320 * 240
Charging: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Multimeter specifications
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √

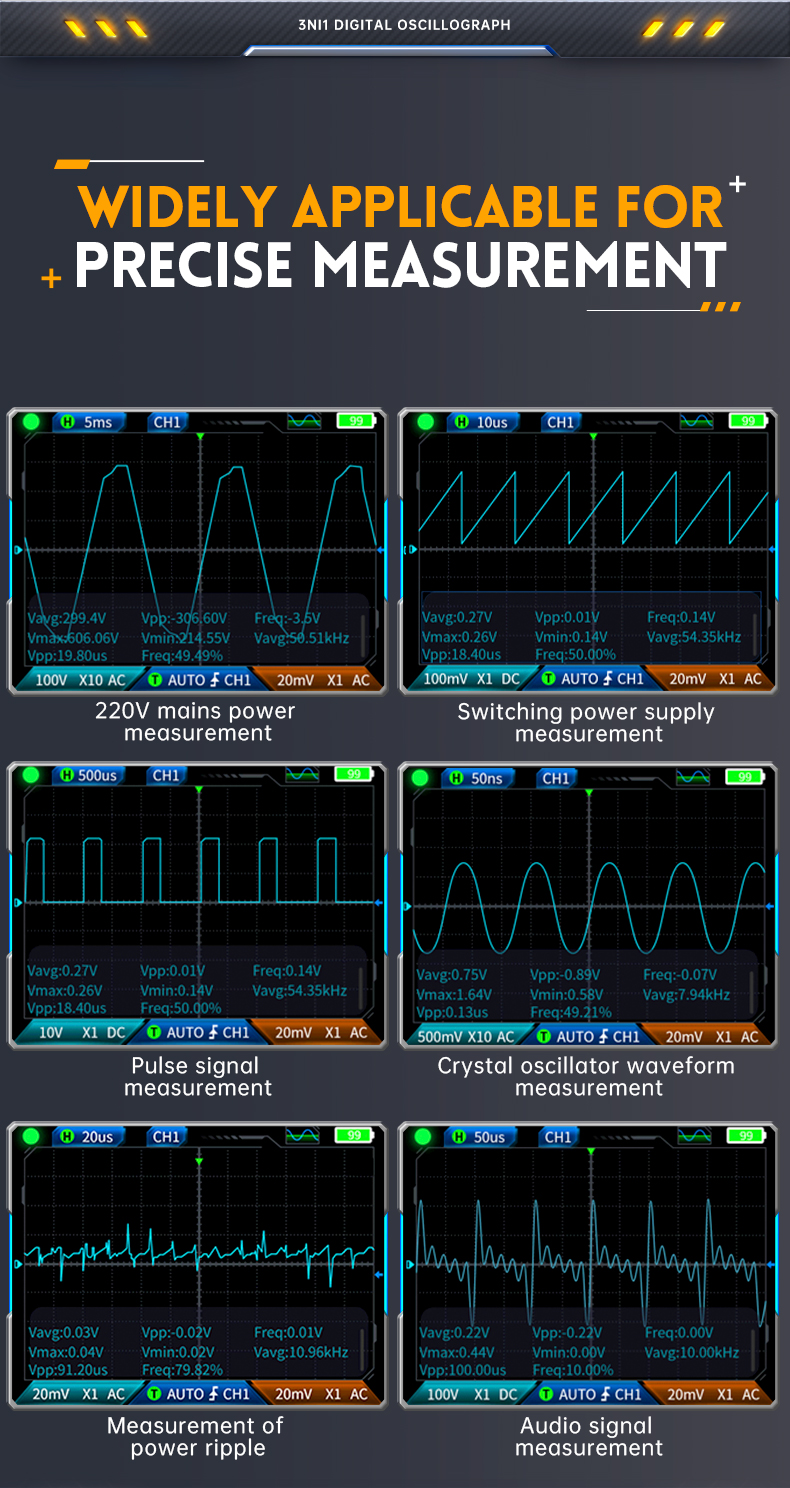

Oscilloscope Specifications
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support

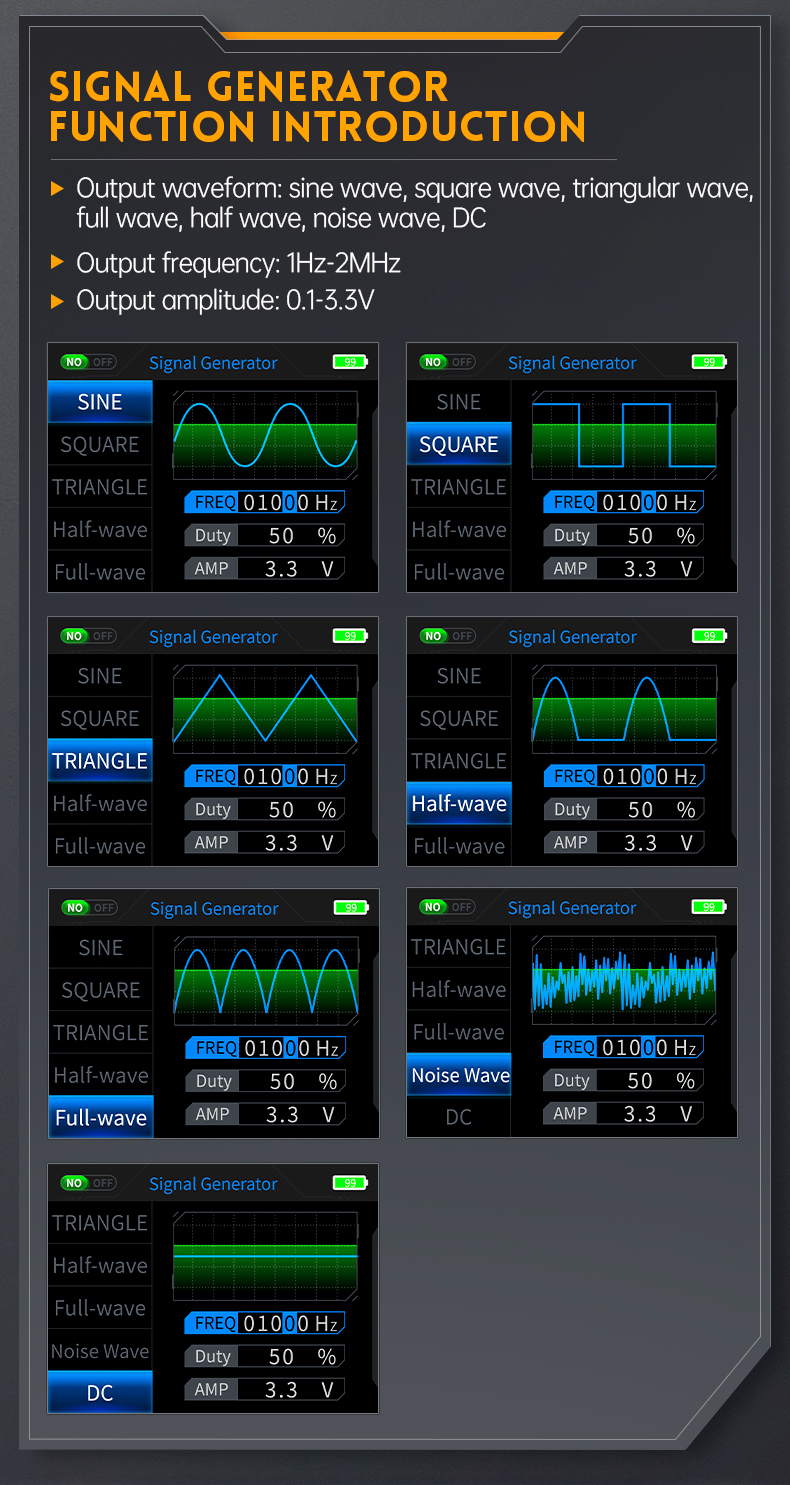

Function Signal Generator Specifications
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3

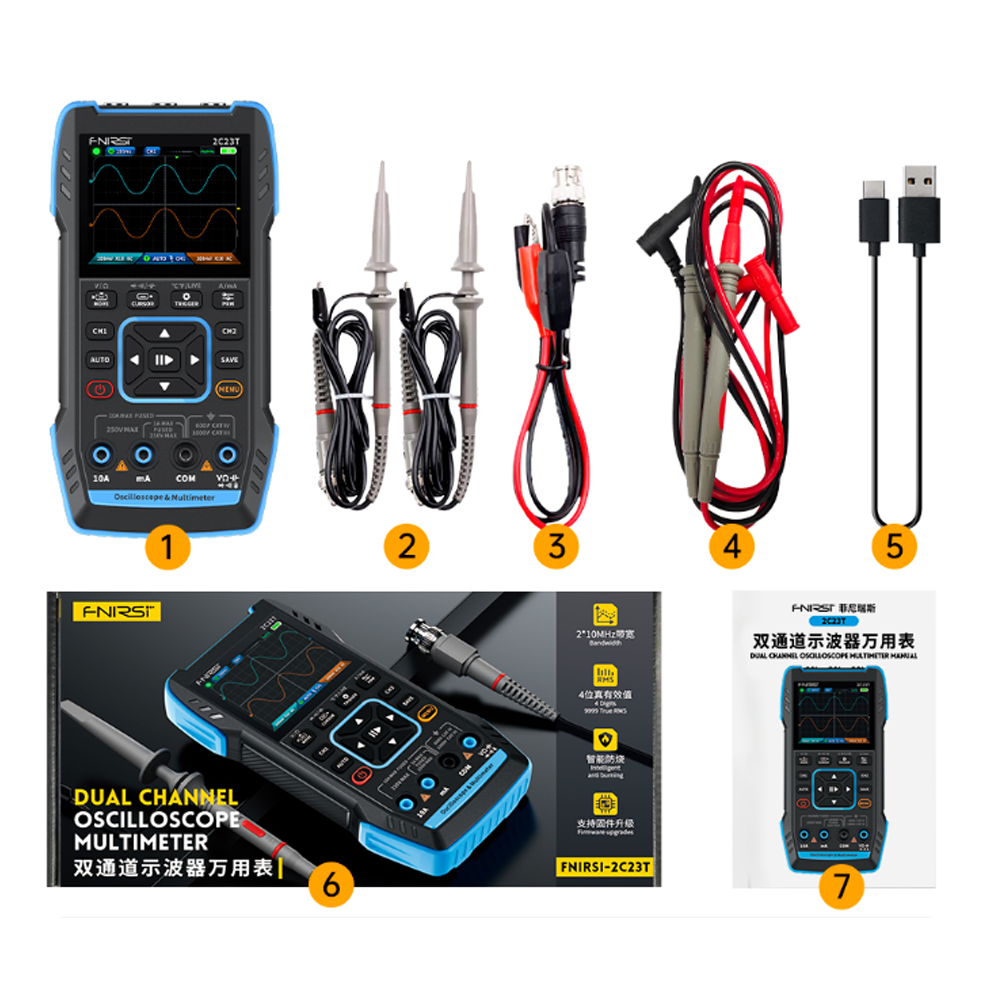

Standard version List
1 x Main unit
1 x Instruction Manual
1 x Probe
1 x Alligator Clip Probe
1 x Multimeter Pen Cable
1 x Type-C charging cable
1 x Main unit
1 x Instruction Manual
1 x Probe
1 x Alligator Clip Probe
1 x Multimeter Pen Cable
1 x Type-C charging cable
Upgrade List
1 x Main unit
1 x Instruction Manual
1 x Probe
2 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable
1 x Main unit
1 x Instruction Manual
1 x Probe
2 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable
