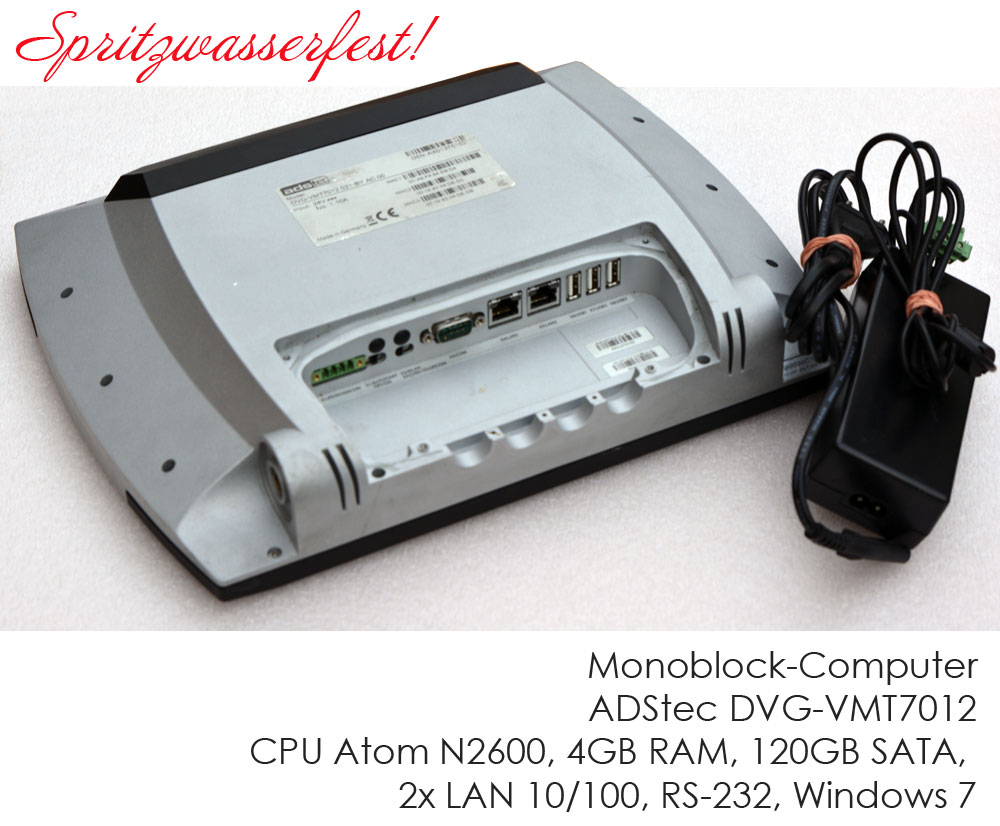

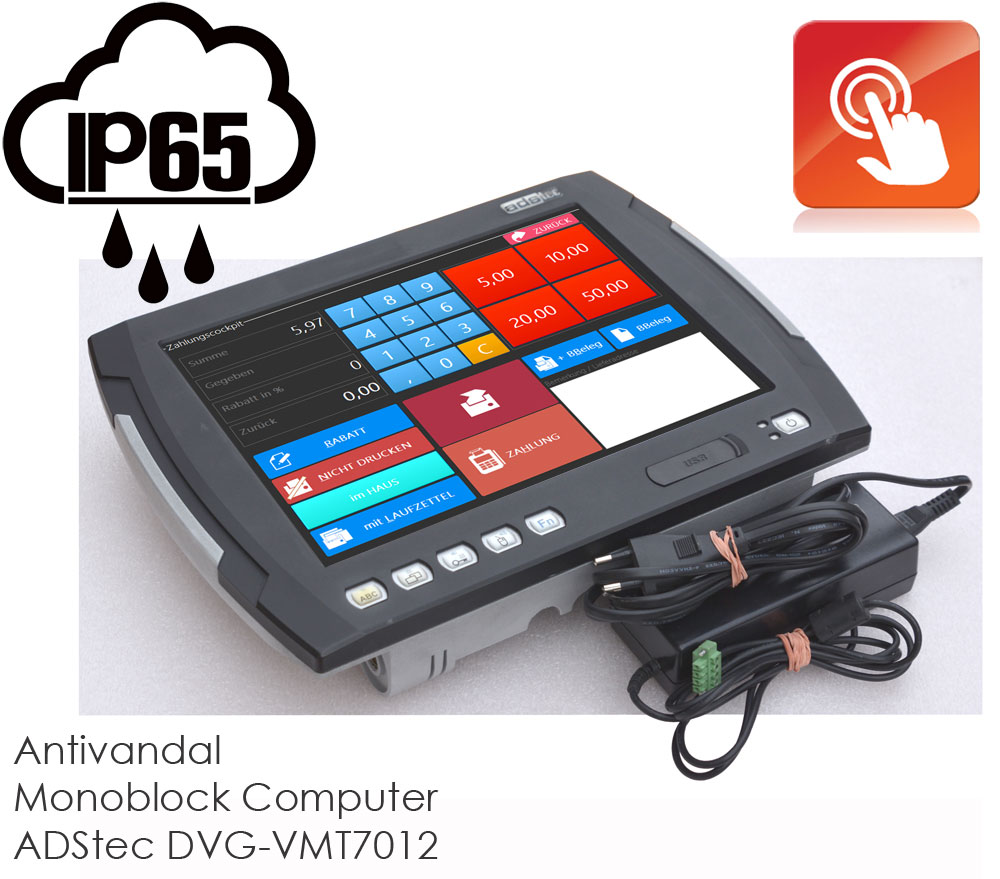

AdStec DVG -VMT7012 Terminal PC with touchscreen and SSD
DVG-VMT 7012 Moniblock Computer with 12 "(30cm) 1024x768 PX Display, 120 GB SSD, processor: 1.6 GHz Intel Atom N2600 (Dual Core); Connections: 2x gigabit Ethernet, 2x RS-232 (1x of these internal), 4x USB, WAM RAM, WLAN module 2.4 GHz/ 5 GHz, 1x USB 2.0 in front panel, 3x USB 2.0, operating system: Windows 7 32 bit

    Technical data
Model: ADS TEC DVG-VMT7012
Processor: 1.6 GHz Intel Atom N2600
Connection: 2x Ethernet, 1x RS-232, 4x USB
RAM: 4 GB RAM
Display: TFT 12 "(30cm), XGA 1024x768px
Hard drive: 120 GB Sata
Voltage supply: 100-240V power supply inclusive



Designed for use in vehicles, in a closed and very stable magnesium housing, waterproof according to IP65 standard fulfilled and well protects against external influences.
For minimizing influences through vibrations, the use of movable components and susceptible plug connections is dispensed with.
The operation of the devices is very easy thanks to intuitive touchscreens.



Interfaces:
2x Com (RS-232 behind, outside, 1x internally)
3 x USB 2.0 behind
1 x USB 2.0 in front panel (deactivable)
-
Dimensions:
(W x H x D) 338 x 261 x 62 mm
Weight: approx. 3.3 kg
Vibration: din EN 60068-2-6
Shock: din EN 60068-2-27
Moisture: 10 to 85 % not condensing
-
Network and radio connections
Network card: 2x 100/1000 Mbit/s Gigabit-Ethernet adapter
Wireless LAN, WLAN 802.11a/b/g/n
-

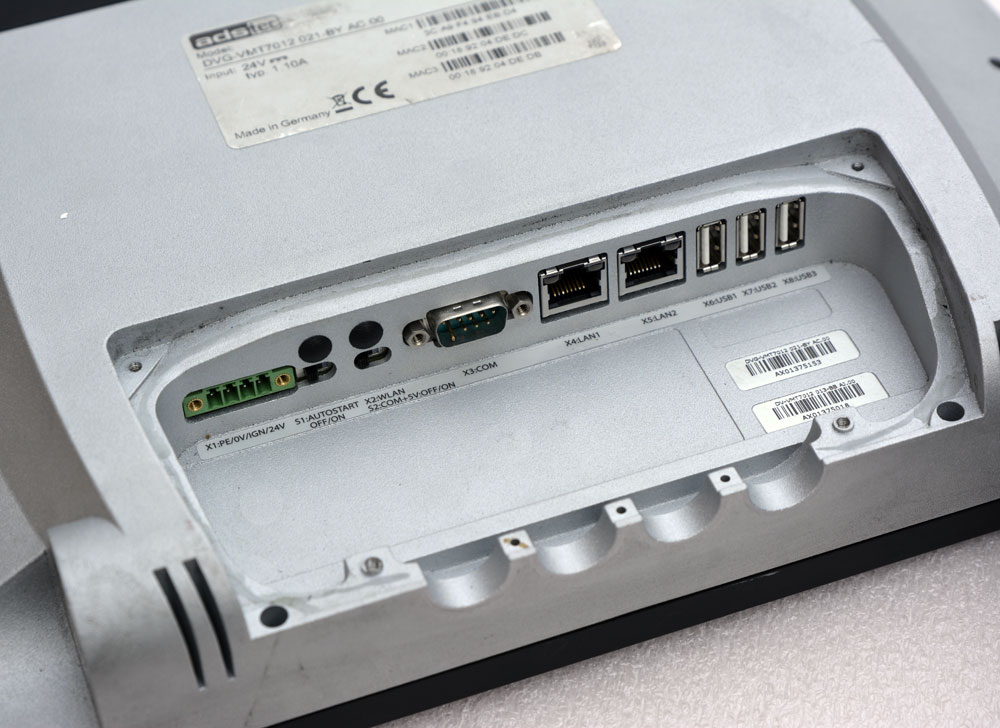

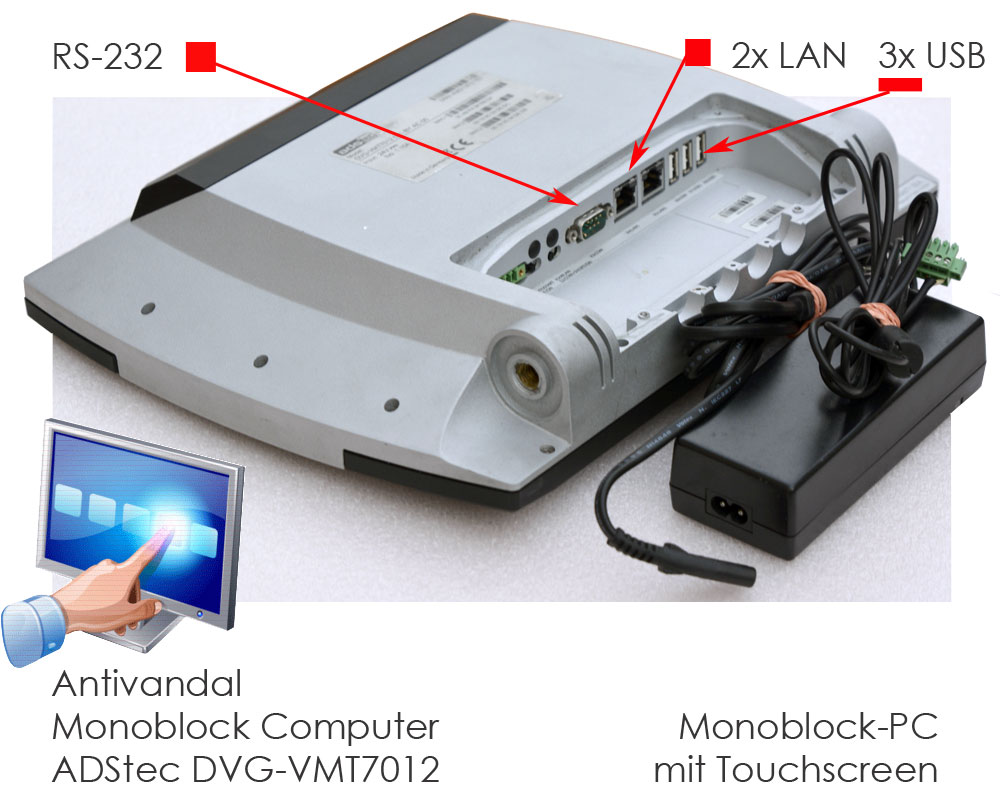

Interfaces / connections / slots
Interfaces in front: 1x USB 2.0
Interfaces in the back: 3x USB 2.0, RS-232 (Com 1)
Audio: Sound edition via two internal lush speakers
-
Operating system: Windows 7
