Product Details
Features:
The device can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

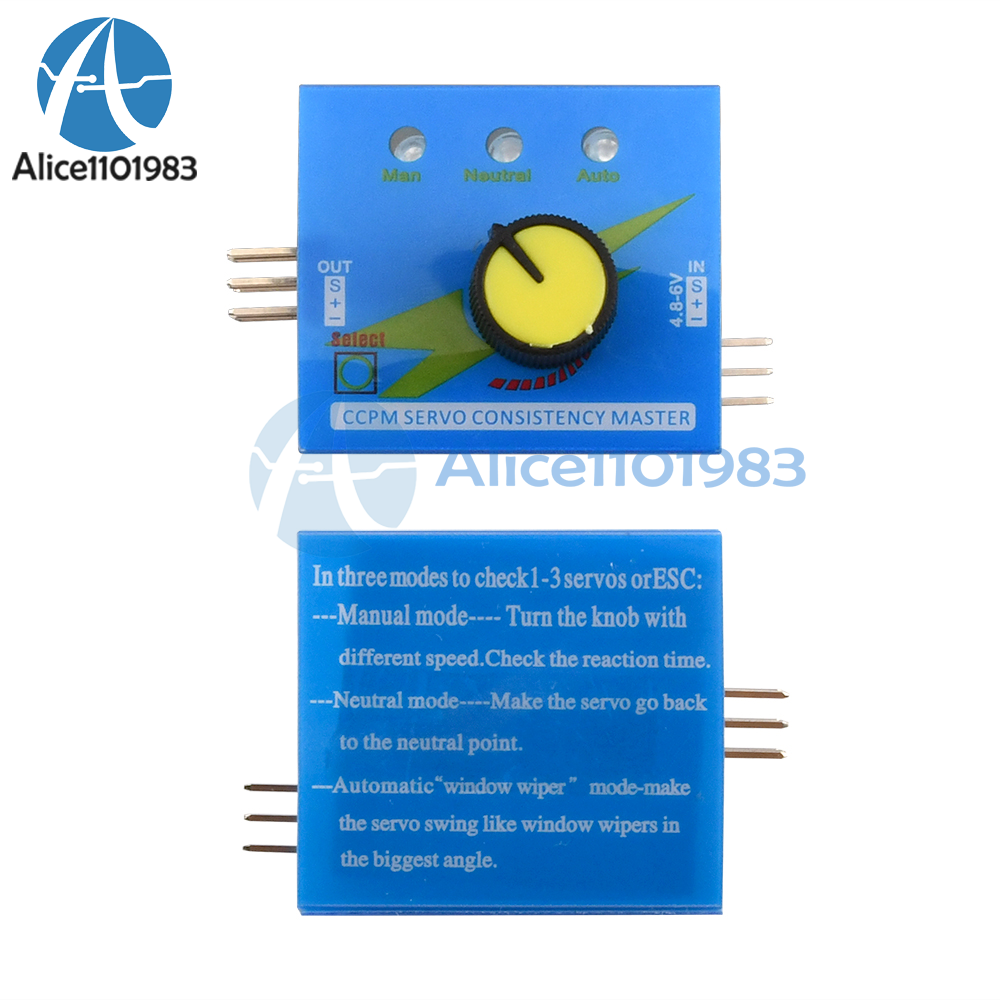

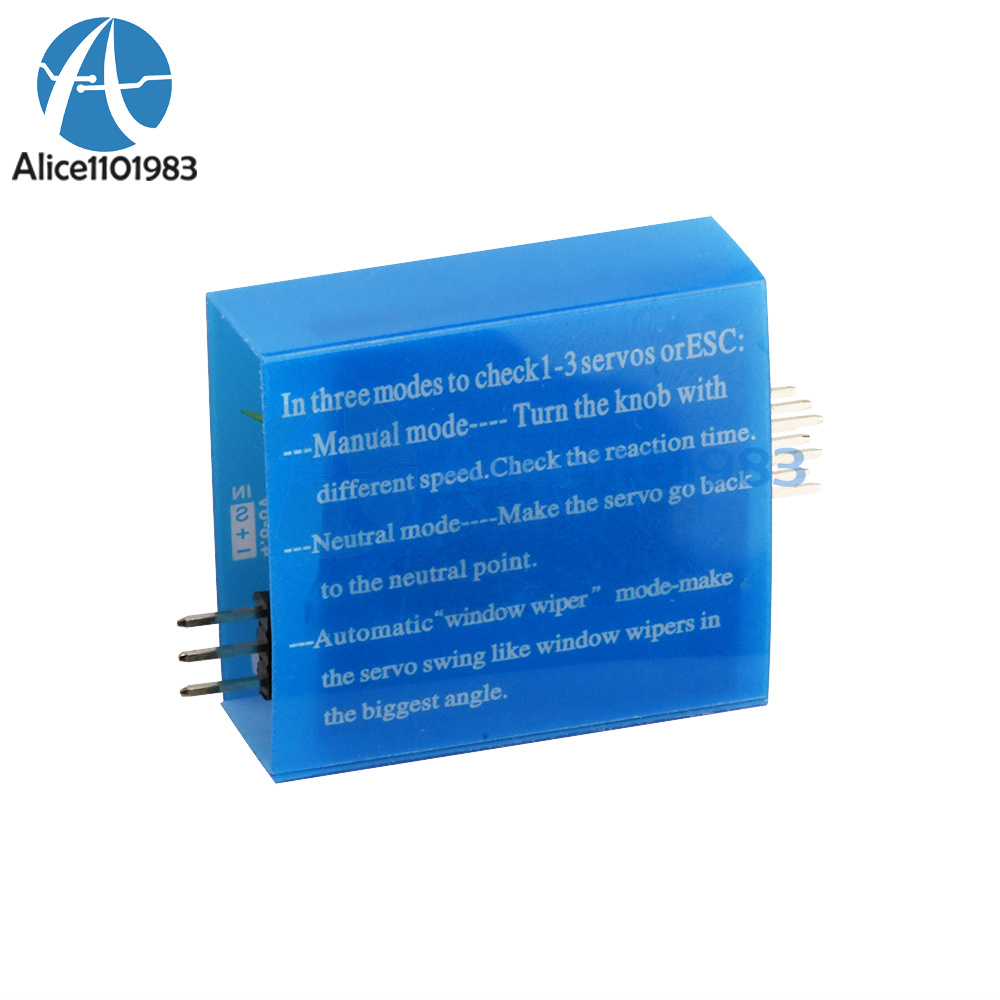

There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
Specification:
-Type: CCPM Servo Tester, ESC or Servo tester
-Output: ≤15mA (5.0)
-Voltage Consumption: DC4.8-6V
-Output Signal: 1.5ms±0.5ms
-Size: 48 x 42 x 17mm/1.89'' x 1.65 x 0.67''(Approx.)
-Color: Blue
Package Includes:
1 x Servo Tester
