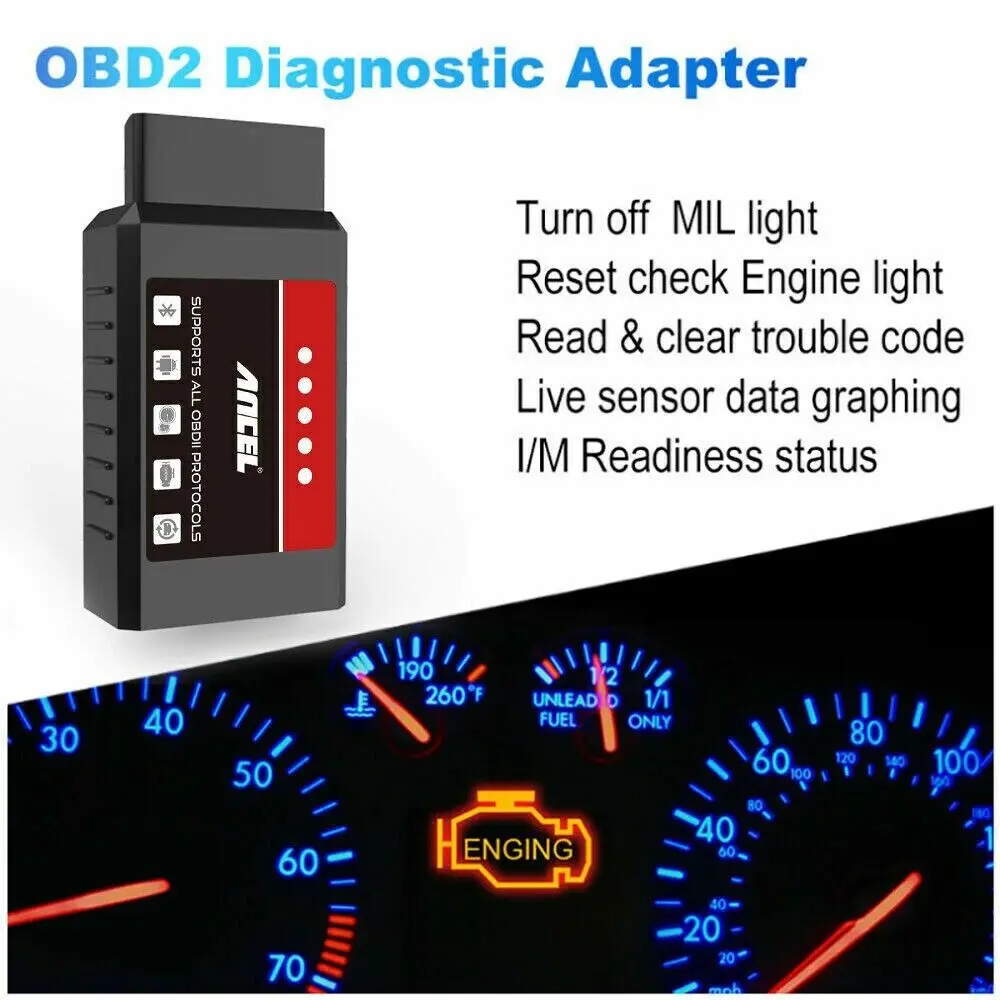

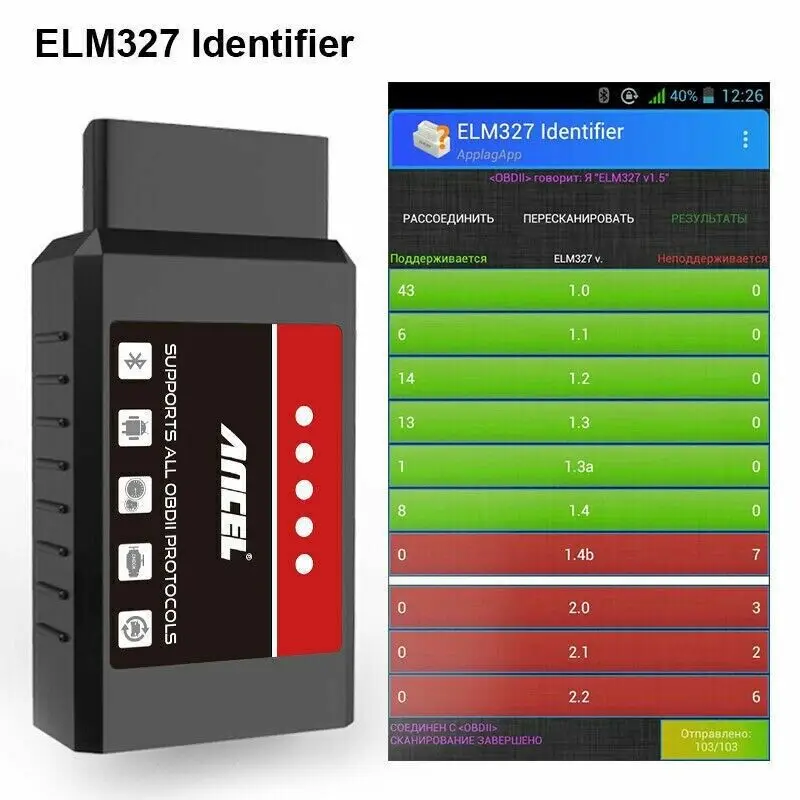

ANCEL ELM327 V1.5 Car Code Reader PIC18F25K80 Chip OBDII Diagnostic Tool PK ICAR2 OBDSCAN Scanner For iPhone/Android Please select the correct version according to your mobile phone system 1. Bluetooth ELM327 only supports Android system, PC. * If you have an iphone, please buy Wifi ELM327.
Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.
Features:

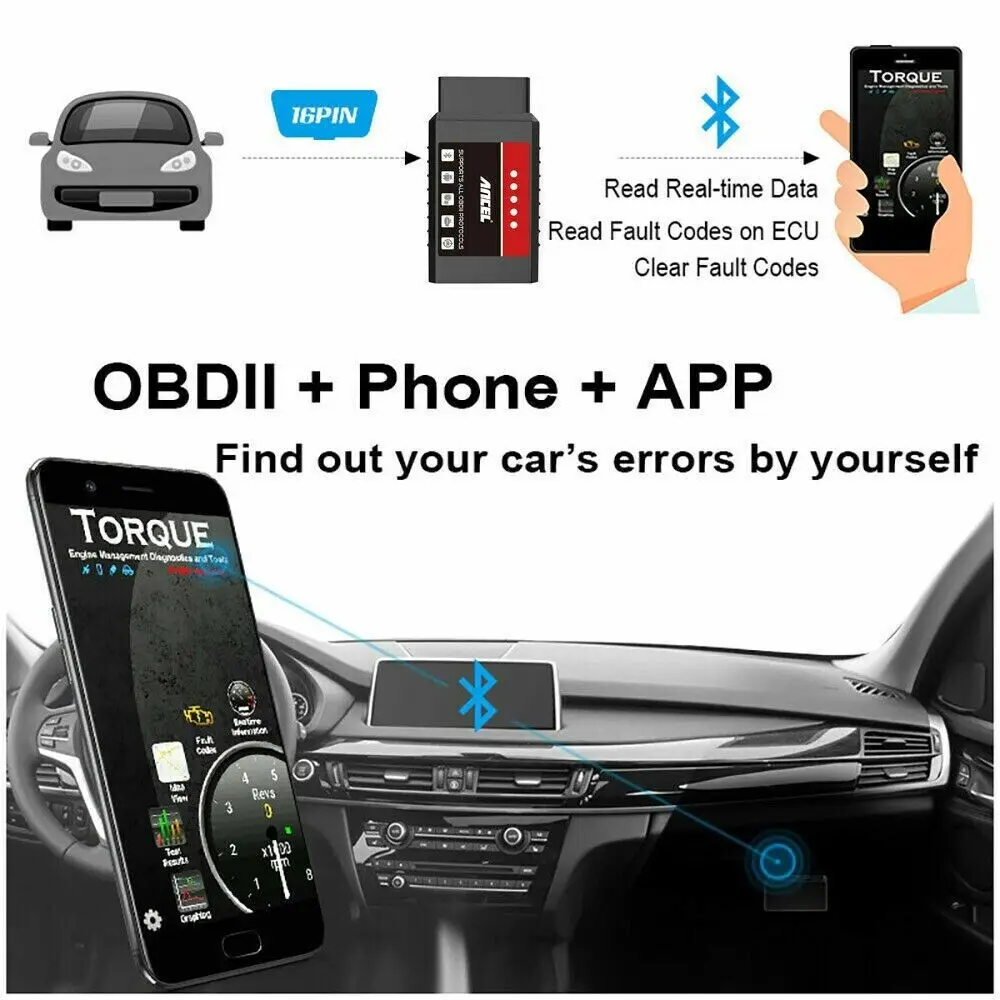

Main Functions: With proper software installed in the host device, you may have following parameters read out from your vehicle:
Compatible for: United States 1996-now European Union 2001-now Asian 2005-now
This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine: For USA Car brand, after 1996; Supported cars: If your vehicle does not fall into any of the above categories, look under the hood and try to locate a label that explicitly states that the vehicle was designed to comply with OBD-2 legislation.
Hardware requirements: For Android/for IOS devices (for iphone, ipad e.g.)/for PC
* Your vehicle may not support all of the above parameters. How many parameters you can get depends on the vehicle manufacturer's implementation. Supported Protocols: 1. SAE J1850 PWM (41.6Kbaud) 3. ISO9141-2 (5 baud init,10.4Kbaud)

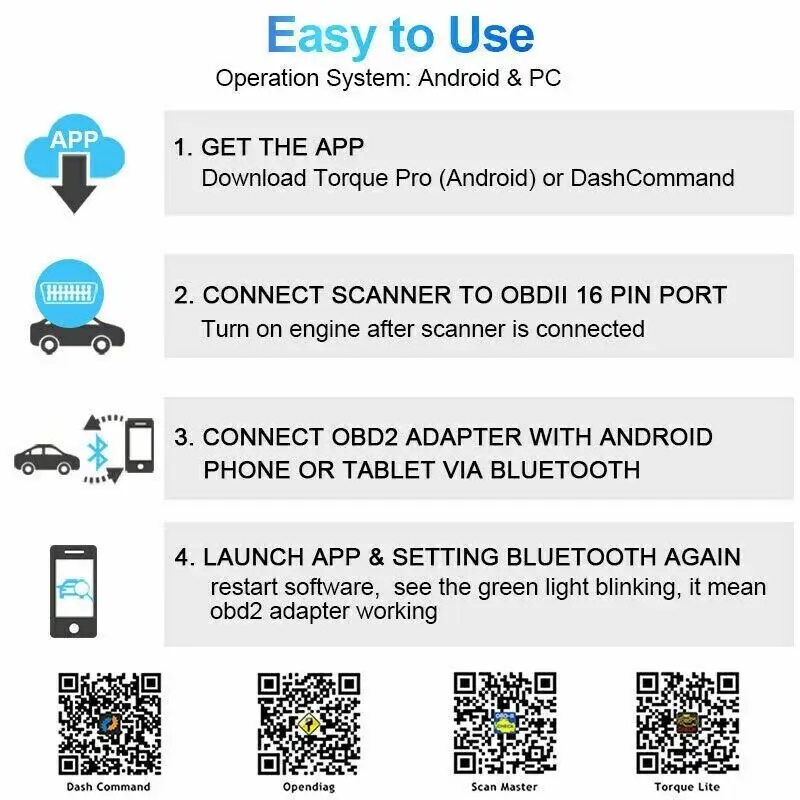

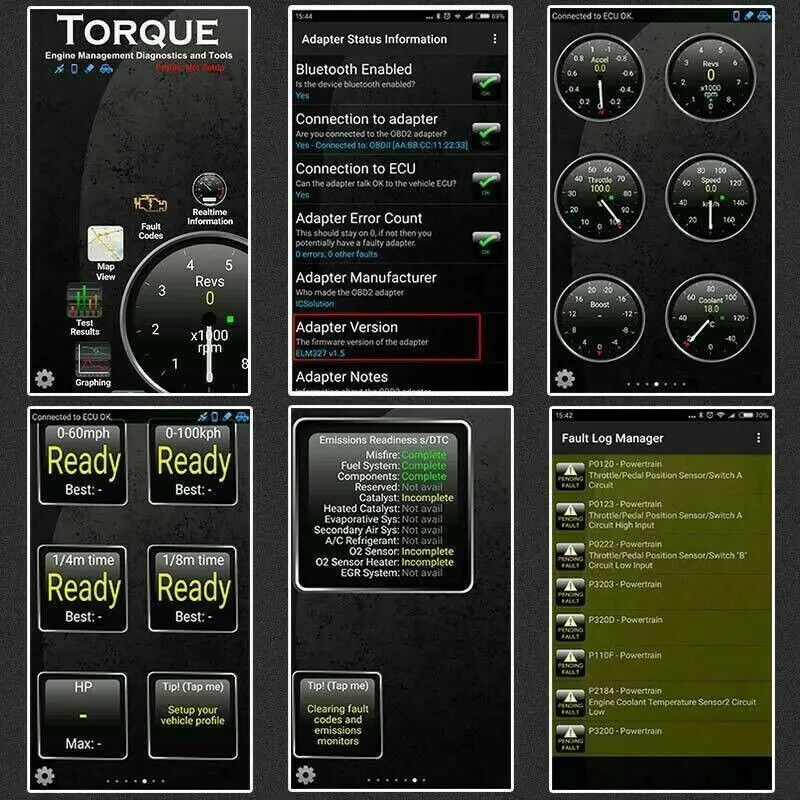

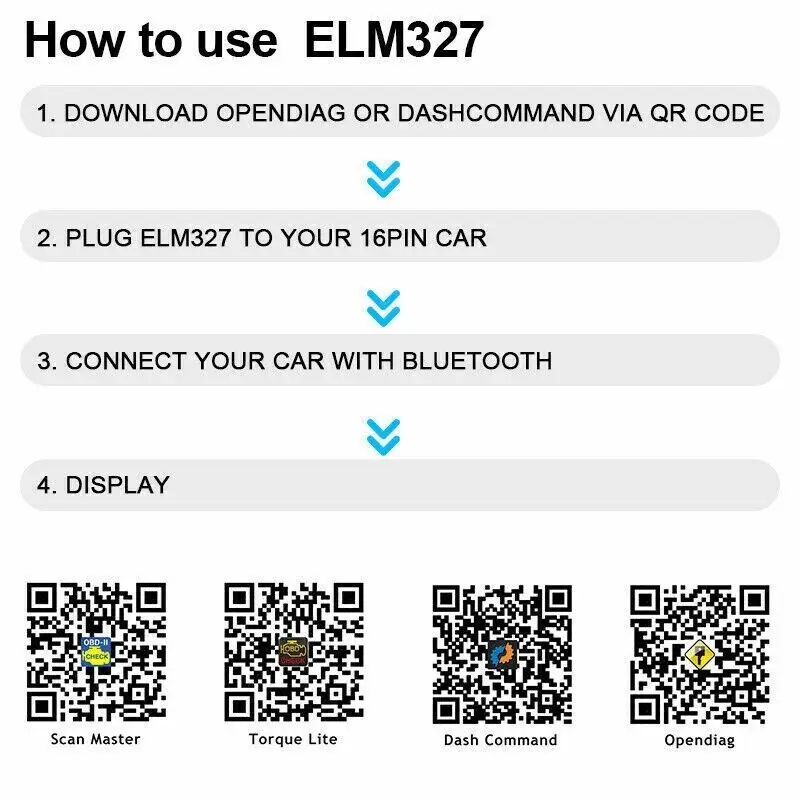

Software Requirements: All ELM327 based software. IOS system software in Apple store: Car Scanner / OBD Auto Doctor / OBD Car Doctor / EOBD Faciles / Rev / FUZZYCar/ DashComand / SpeedPORT / Nova Scan ... Attention: For iOS base software are not included, you must buy from Phone Store! Android system software： Torque pro / Mini OBD2 / OBD Car Doctor / DashComand ... Windows system: Scanmaster- ELM / PCMSCAN... Technical Specifications: SSID: WiFiOBD |
