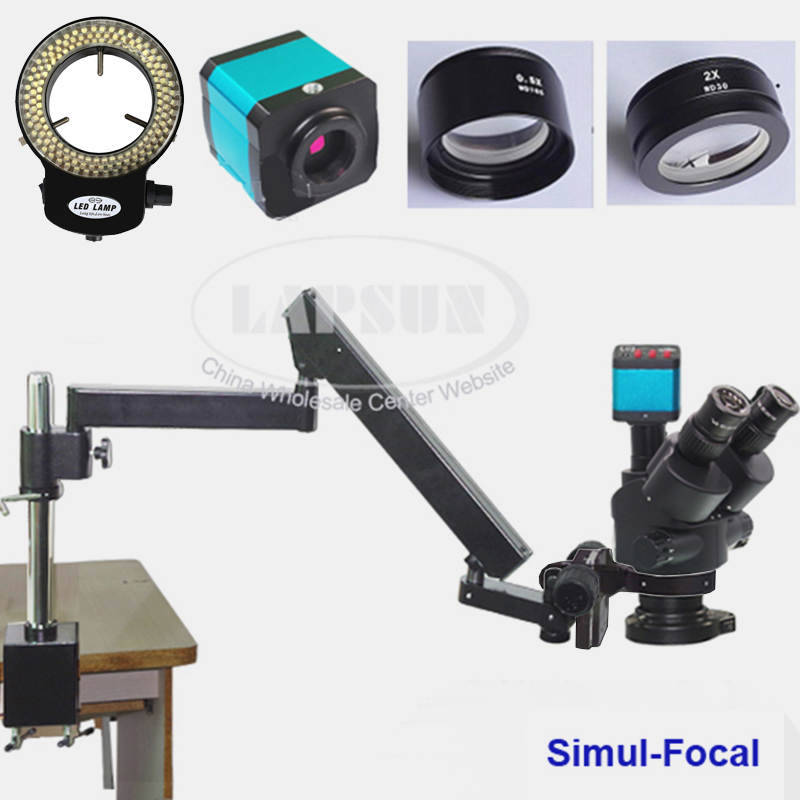

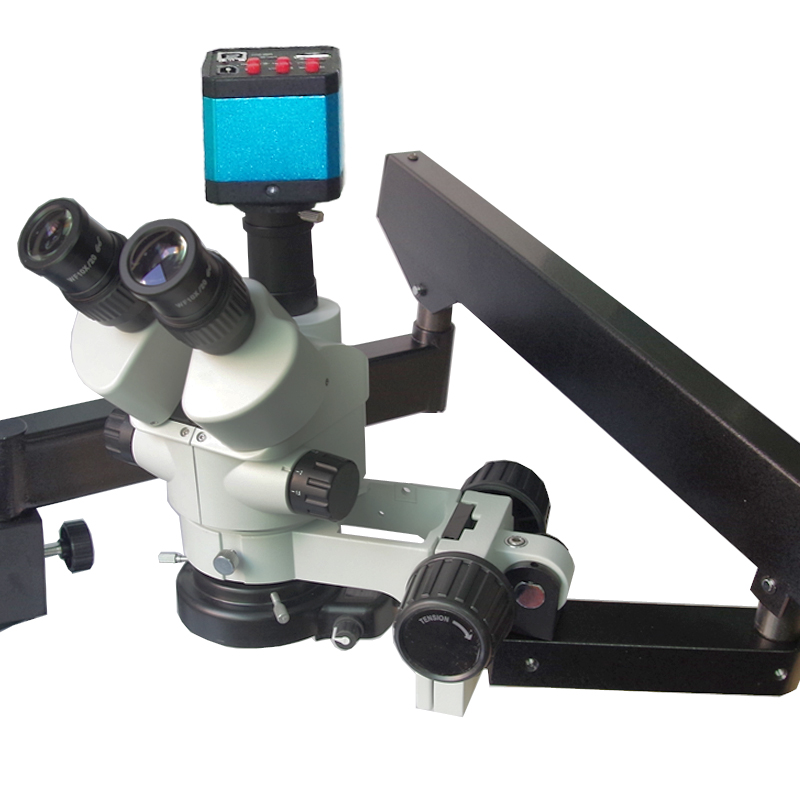

3.5X-90X Simul-focal Trinocular Articulating Arm Pillar Clamp 56-LED Zoom Stereo Microscope+14MP HDMI camera




Key Feature:

  • Simul-focal
  • 3.5X-90X zoom magnification power with crisp sharp images
  • Super widefield high-eyepoint optics
  • widefield of view
  • 4" (100mm) working distance
  • Sturdy all-metal pillar stand
  • Powerful 56-LED ring light with dimmer
This stereo microscope has a 56-LED ring light that offers super widefield optics and 3.5X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Feature:

  • An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
  • 3.5X-90X super wide zoom magnification power
  • Bright cool light 56-LED illumination system
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Binocular head with 45 degree inclined 360 degree swiveling eye tubes
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Dual eye tubes with adjustable diopters
  • Large working distance
  • Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included

Specification:

  • Head: 360 degree rotatable 45 degree inclined binocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
  • Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
  • Working Distance: 4" (100mm)
  • Illumination: 58-LED Ring Light
  • Power Input: 110-240V, 50-60HZ, Automatic Switching
  • Accessories: Paired eye-caps

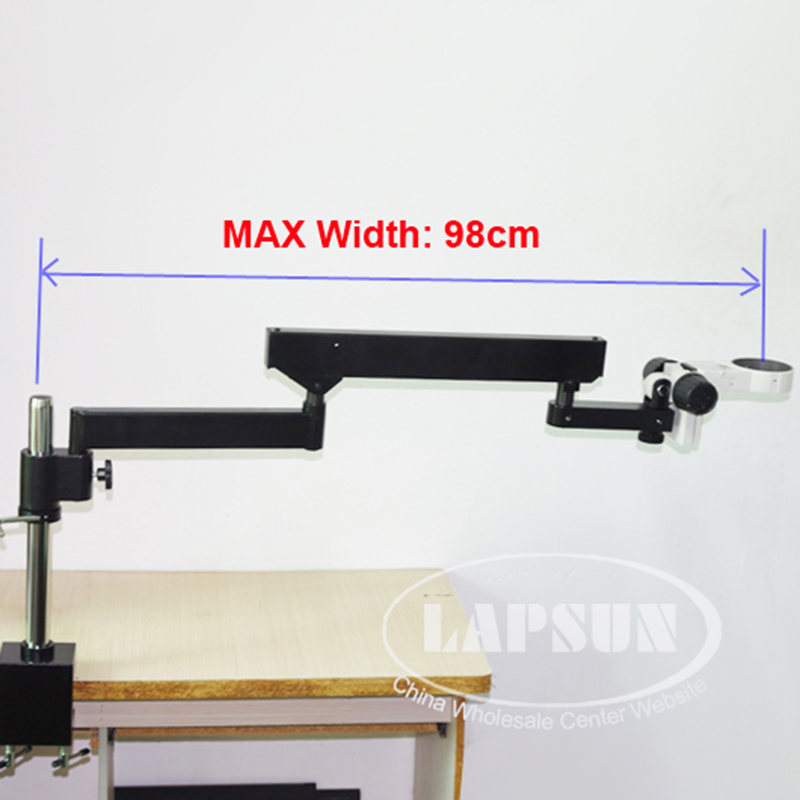

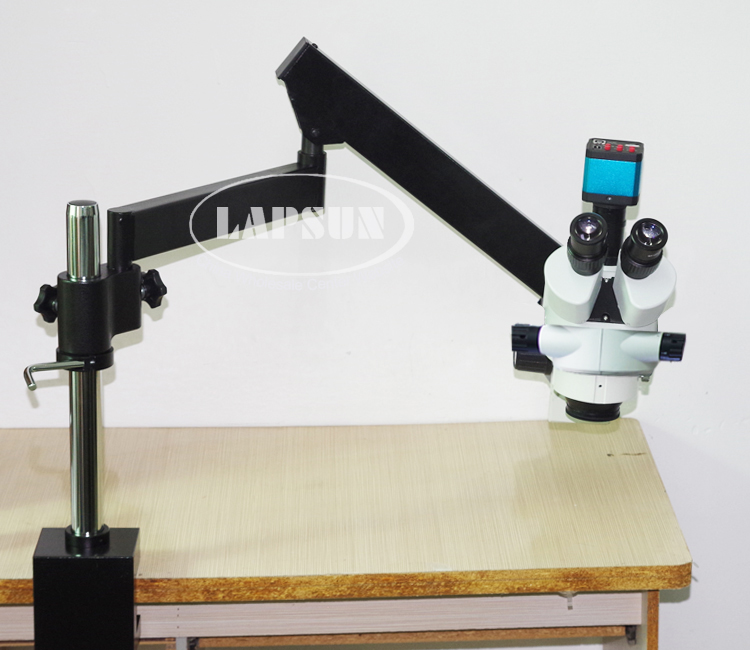

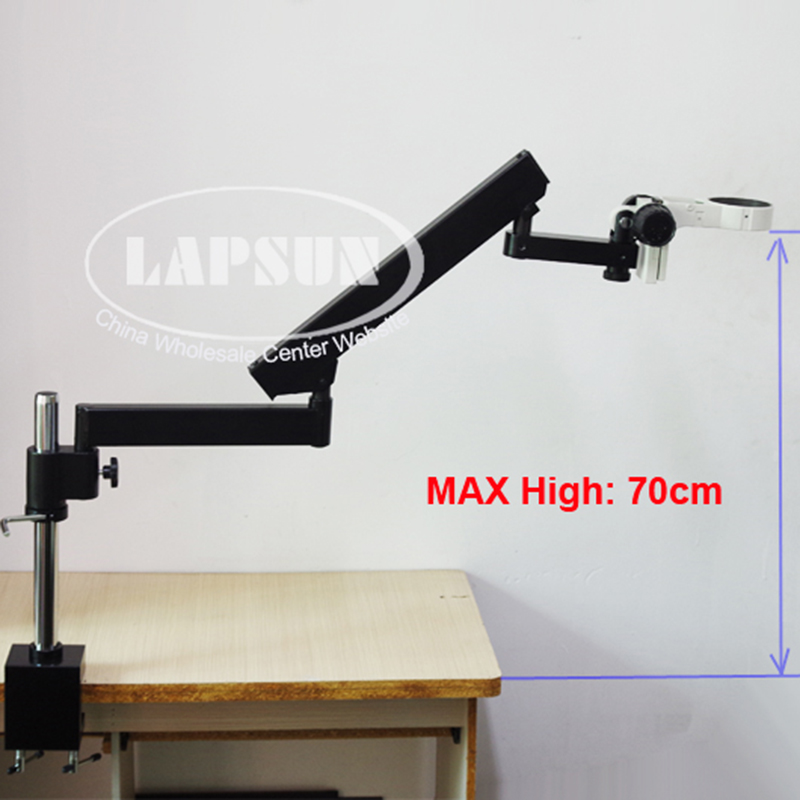

Long Arm Heavy Stand:

  • This stand has a Three Arms system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
  • Item size: see the 1th picture
  • Weight: 10Kg

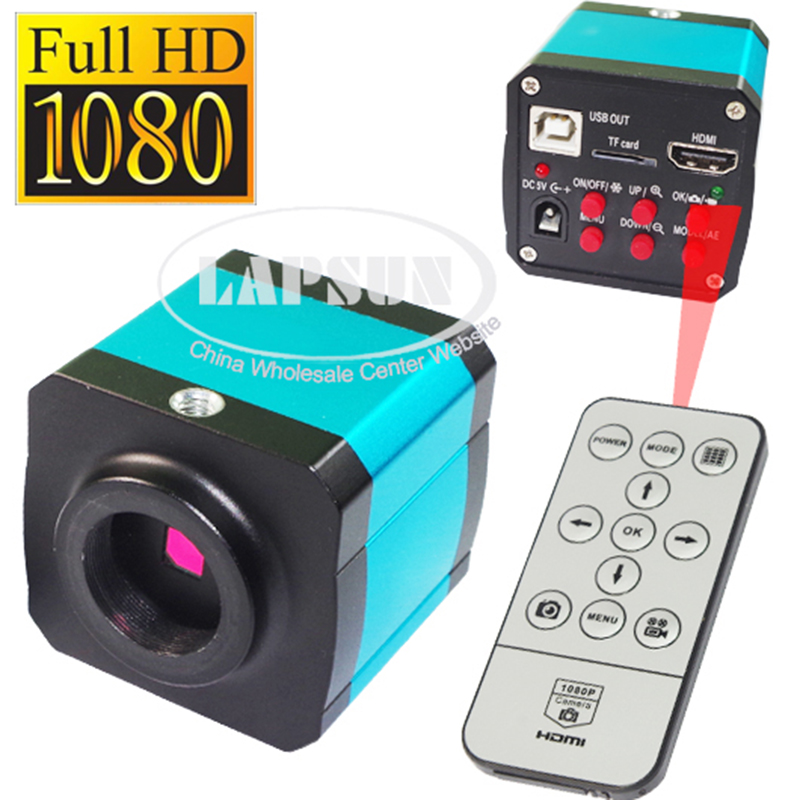

Microscope Camera:

  • High Quality, High Resolution, Clear Images
  • Japan CMOS
  • Encode: H.264 (High Profile)
  • TF Card Video Recorder
  • 720P 1280*720@30FPS video recorder
  • Photo Model / Video Model

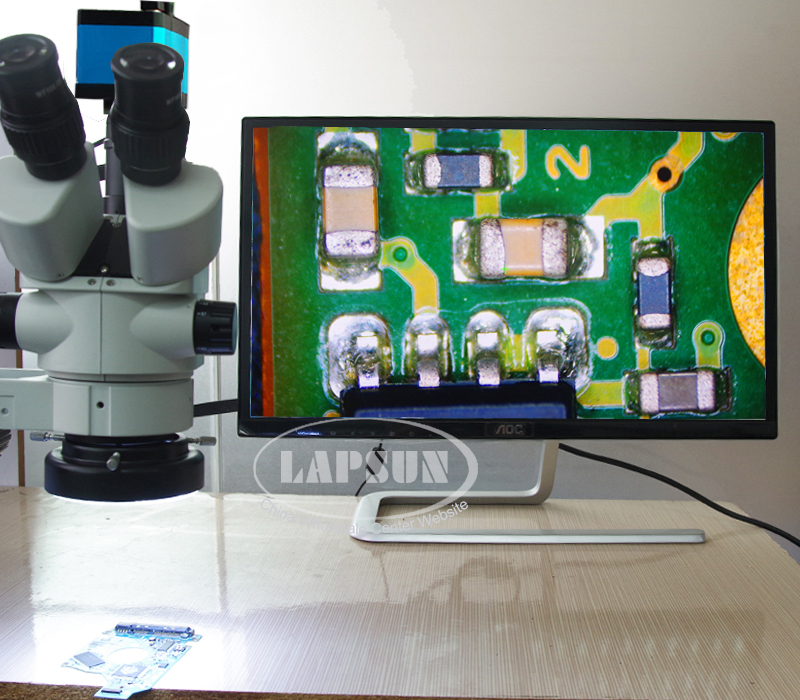

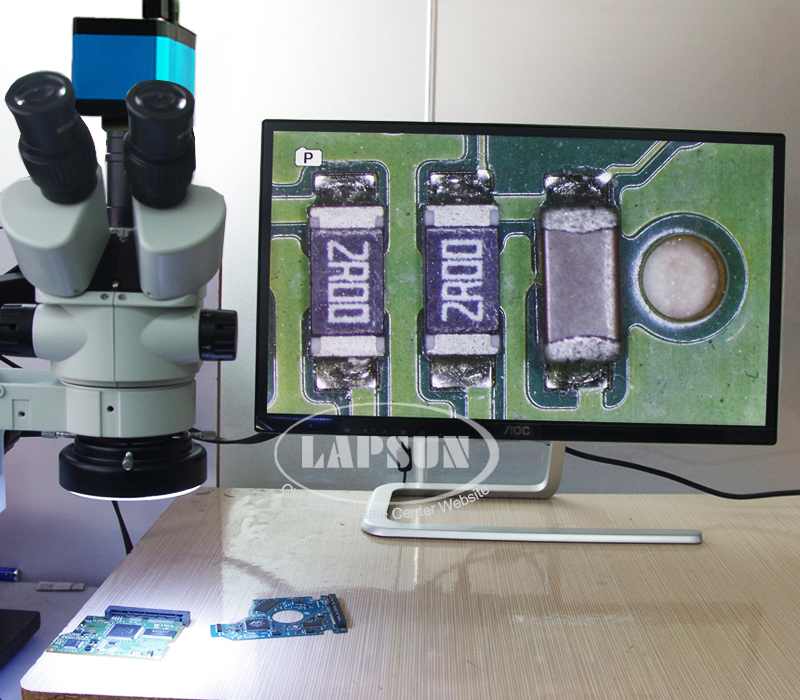

  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negativeļ¼ŒCompare function
  • Supply USB2.0, HDMI HD video, Two output ports
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
  • Model: Camera with HDMI USB2.0 two output
  • Sensor: 14.0MP,1/2.8 inch (720P for HDMI output, 14.0MP for TF Image resolution )
  • Image format: jpg
  • Image resolution: 4320 * 2432 (for TF Card), 1280 *720 (for USB)
  • Video format: AVI
  • Encode: H.264 (High Profile)
  • White Balance: Auto
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: Left/right,Up/Down
  • Freeze: Support
  • OSD: English/Chinese
  • Line: different color,4 horizontal line , 4 vertical line,any positions

Package including:

  • 1 x Simul-focal Trinocular Stereo Zoom Head
  • 1 x Pair of Super Widefield 10X Eyepieces
  • 1 x 14MP HDMI camera with adaptor
  • 1 x Binocular Zoom Microscope Head
  • 1 x 56-LED Ring Light with Adapter (12V)
  • 1 x Articulating Arm with a Clamp
  • 1 x Focusing Rack
  • 1 x C-mount Adapter
  • 1 x Pair of Eye-Guards
  • 1 x Pair of Clips
  • 1 x Dust Cover
  • 1 x SZM2.0X WD 30mm Auxiliary objective
  • 1 x SZM0.5X WD 165mm Auxiliary objective
