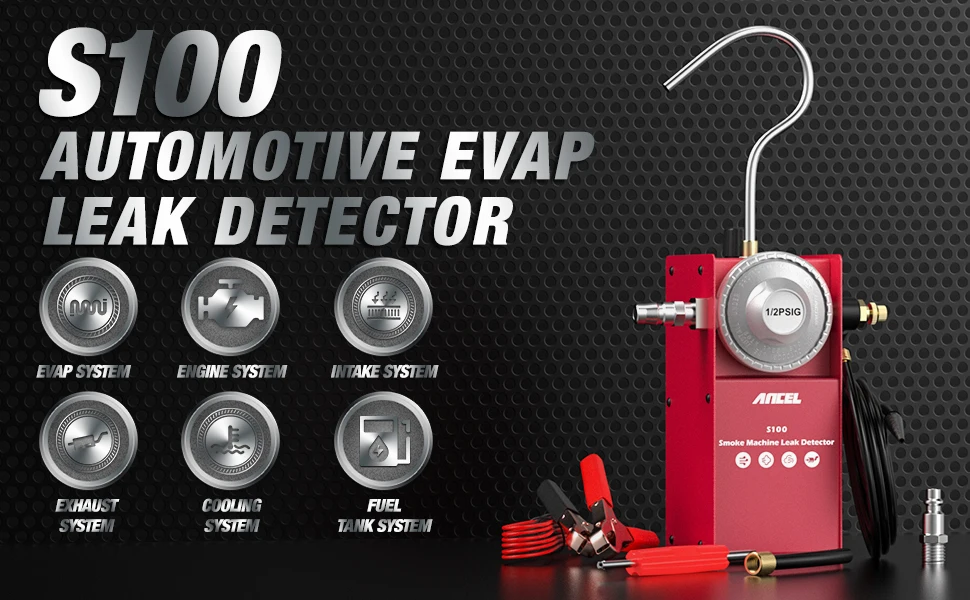

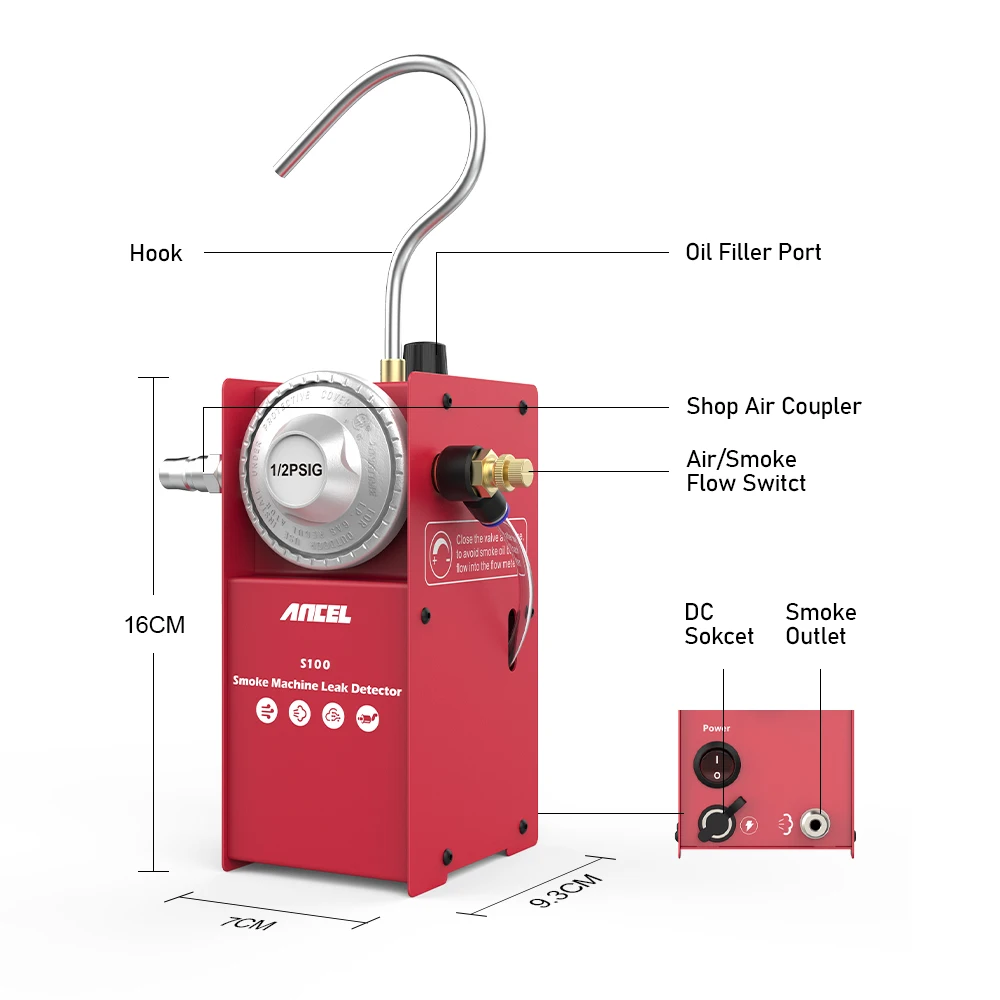

ANCEL S100

FULL SYSTEM DIAGNOSTICS, DON'T MISS ANY LEAKS.

EVAP SYSTEM TEST: Leakage in the fuel evaporation system causes fuel vapour to escape into the atmosphere, resulting in waste and pollution or unstable engine idling.

EXHAUST SYSTEM TEST: Uncleaned harmful gases escaping into the atmosphere or increasing the noise of the vehicle are the main disadvantage when leaks occur in the exhaust.

FUEL TANK SYSTEM TEST: If there are gaps in the fuel tank and pipes caused by improper installation or insufficient sealing of the fuel tank cap, it may cause leaks in the fuel tank system.

TEST OF VARIOUS PIPE CONNECTIONS: Smoke test of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.

CAR SEALING TEST: Poor sealing of the car can lead to many inconveniences, such as it is not warm and dusty, not soundproof, not waterproof, etc.

CRANKCASE SYSTEM TEST: Excessive pressure or corrosion of the crankcase is the main reason why the crankcase seal is damaged and oil leaks.

INTAKE SYSTEM TEST: A leak in the intake system will result in inadequate intake of the car engine, leading to low engine performance.

TURBO TEST: The leakage of coolant would cause the engine to indicate a high water temperature.

Note: S100 smoke leak detector need to connect air supply, our product do not includes.

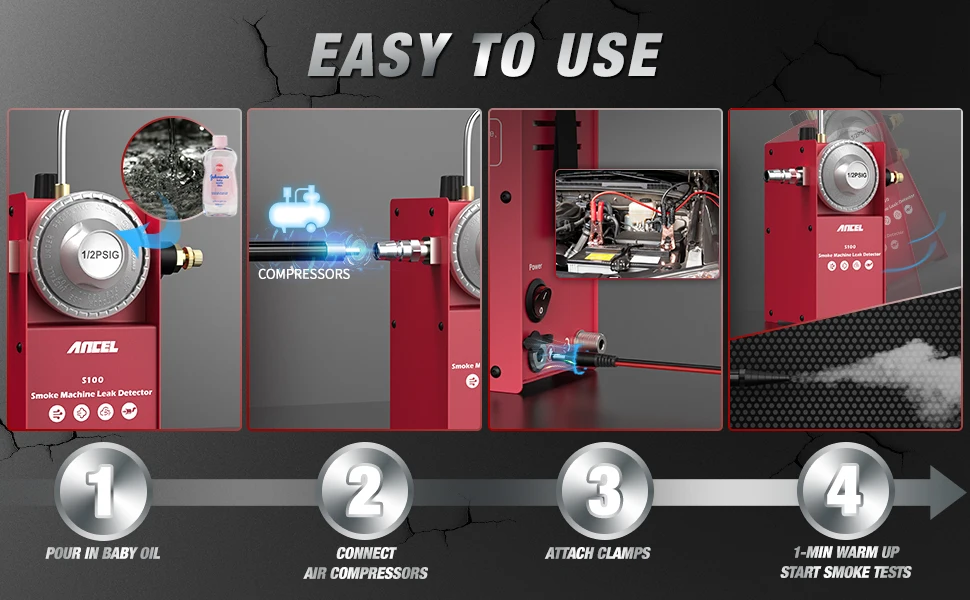

EASY TO USE

Notice: Maintenance technicians need a certain knowledge base of engine structure.

Step 1: Turn off the power to the car, remove the air filter and throttle connector. Note: If you need to test the EVAP system, you need to manually close the solenoid valve

Step 2: Pour baby oil between the max and min oil volume line, connect the power cord to the 12V car battery, choose the appropriate adapter cone to connect the smoke nozzle and the system.

Step 3: Press the air control switch, wait for 30 seconds, and listen for the squeaking sound to check whether there is a leak in the pipeline or not.

Step 4: Press the smoke control switch, when evident smoke is appearing from the smoke nozzle, reinsert the smoke nozzle into the adapter cone, visible smoke can help you pinpoint the location of the leak.

Step 5: Press the smoke and air control switch again to stop producing smoke and air, test is completed.

OVERHEAT & ANTI-FROST PROTECTION

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles, ATVS,light trucks and speedboats,Suitable for all car models.

Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20℃.

Wide Range Of Applications

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles, ATVS,light trucks and speedboats,Suitable for all car models.

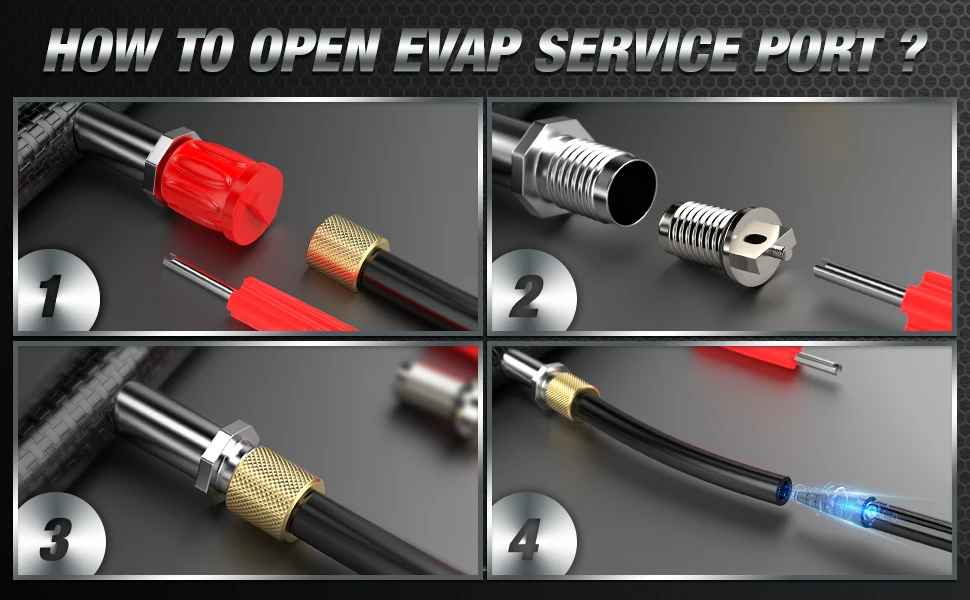

HOW TO OPEN EVAP SERWICE PORT ?

Caution：

1.When you use this ANCEL S100 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

Using tips

▶Cannot test air conditioning ducts
▶Do NOT use the unit on smoke-sensitive parts. Eg. Lamp housing.
▶The equipment is compatible with mineral oil-based baby oil like Johnson&Johnson Pink bottles.

Pure #5 white oil is the best choice if available.

▶Always conﬁrm Fluid level before use, if the ﬂuid level is low enough to the bottom of the ﬁllerport, it will need a reﬁll.
▶For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats. Suitable for all car models.

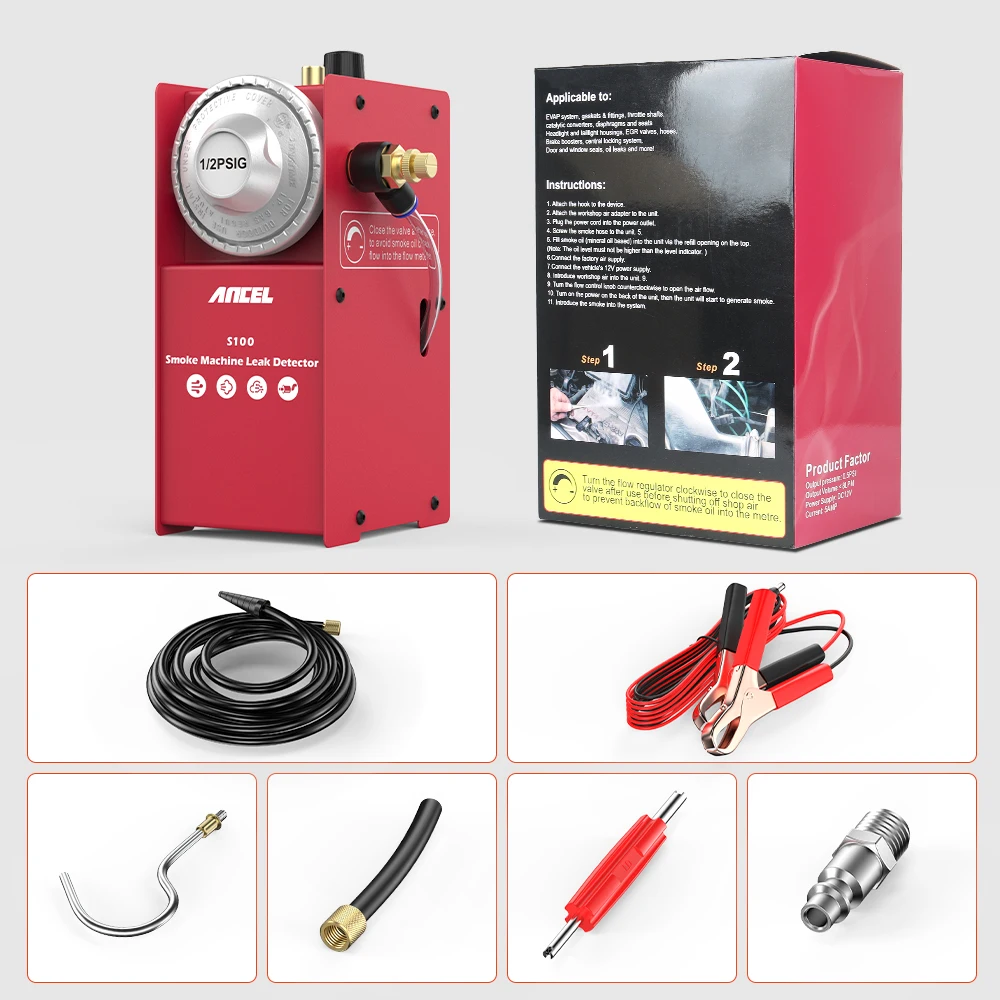

Product Package

1pc * ANCEL S100 Car Smoke Leak Detector Main Unit
1pc * Power Cord
1pc * Hook up
2pc * EVAP Kit
1pc * Smoke Delivery Hose
1pc *Air Adpt

ANCEL S200

ANCEL S200 Automotive Smoke Leak Detector Tool 12V EVAP Pipe Smoking Generator Pipe Leakage Analyzer Tester Car Diagnostic Tools

ANCEL S200 is a professional auto pipe leak tester. It will help us position leakage on any pipe system quickly and exactly,such as EVAP system,Intake system, exhaust system and so on. It helps technician and car user to solve problem quickly at one time, greatly eliminating repeated repairing work, significantly reducing diagnostic time.

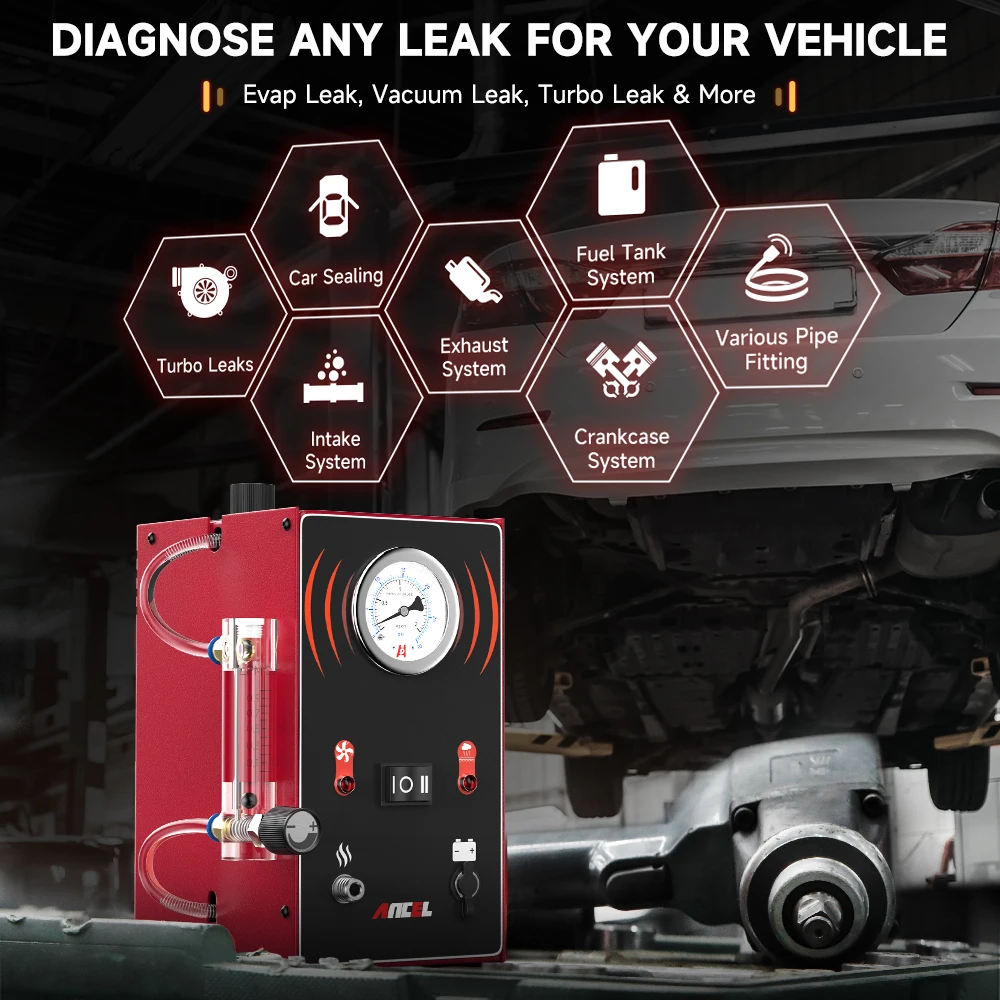

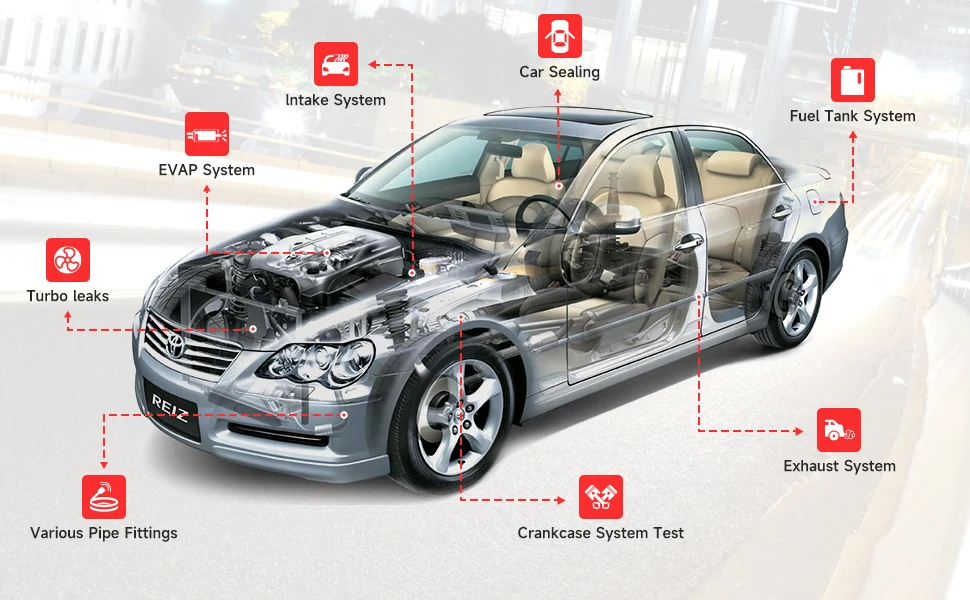

ANCEL S200 smoke leak detector supports multi-system testing

✔️ Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.

✔️Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.

✔️Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.

✔️ Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.

✔️ Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.

✔️EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.

✔️ Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.

✔️ Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc. Note: Not applicable to air conditioning system piping.

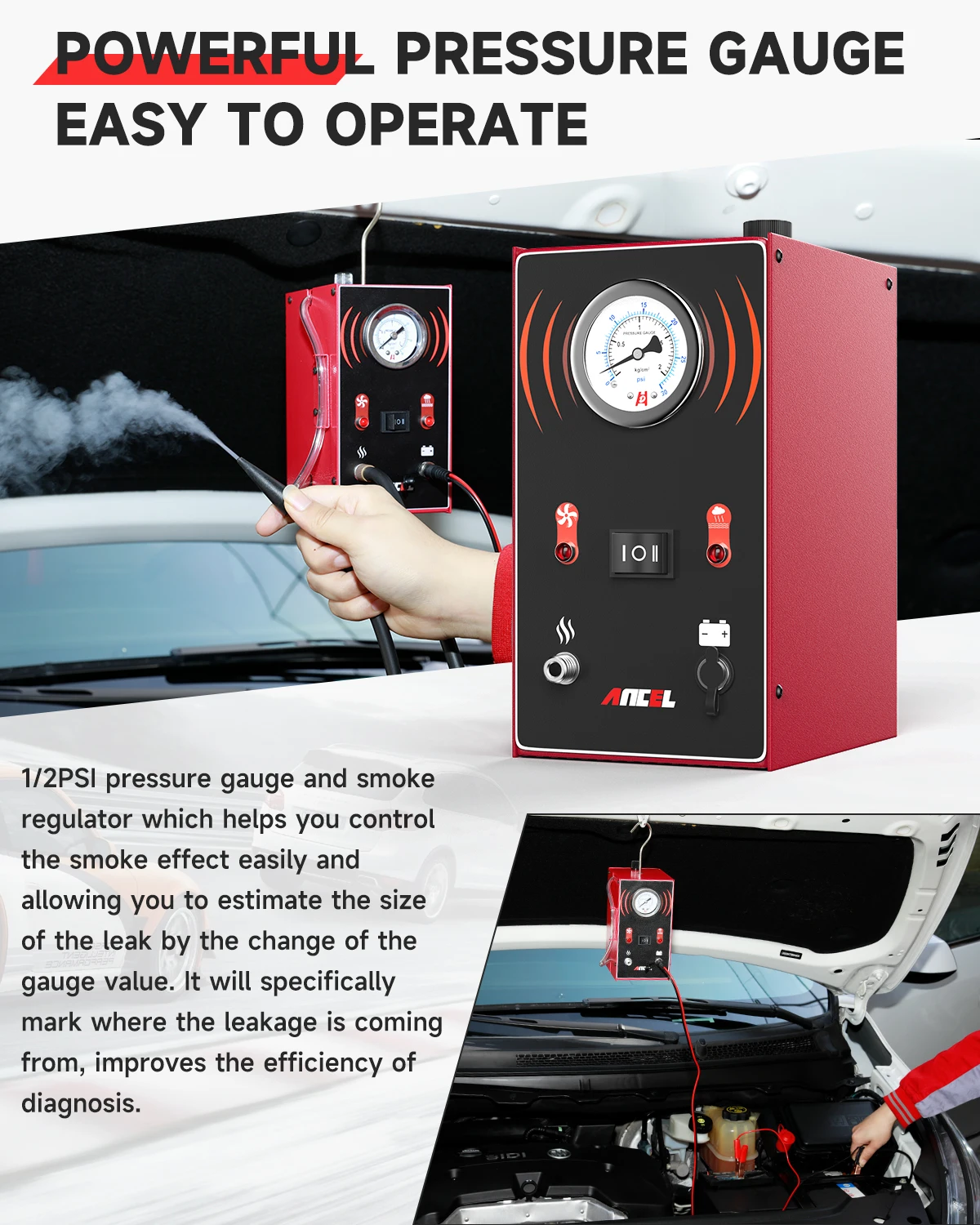

ABCEL S200 smoke leak detector has a powerful pressure guage, easy to operate

1/2psi pressure gauge and smoke regulator which helps you control the smoke effect easily and allowing you to estimate the size of the leak by the change of the gauge value.It will specifically mark where the leakage is coming from,improves the efficiency of diagnosis

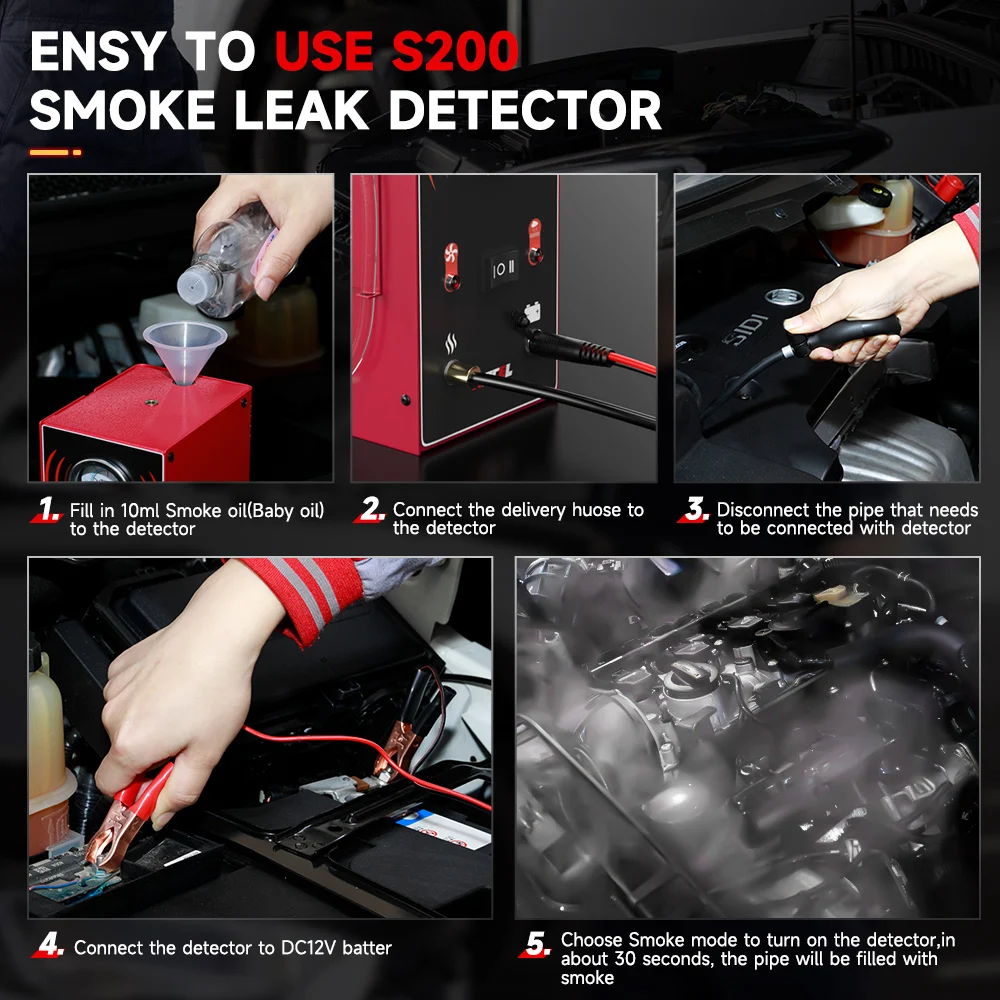

How to use it?

Step1: Fill in 20ml baby oil to the detector;
Step2: Disconnect the pipe that needs to be connect with the detector;
Step3: Connect detector with DC12V battery,device starts to work;
Step4: The pipe will be filled with smoke,check the leak points.

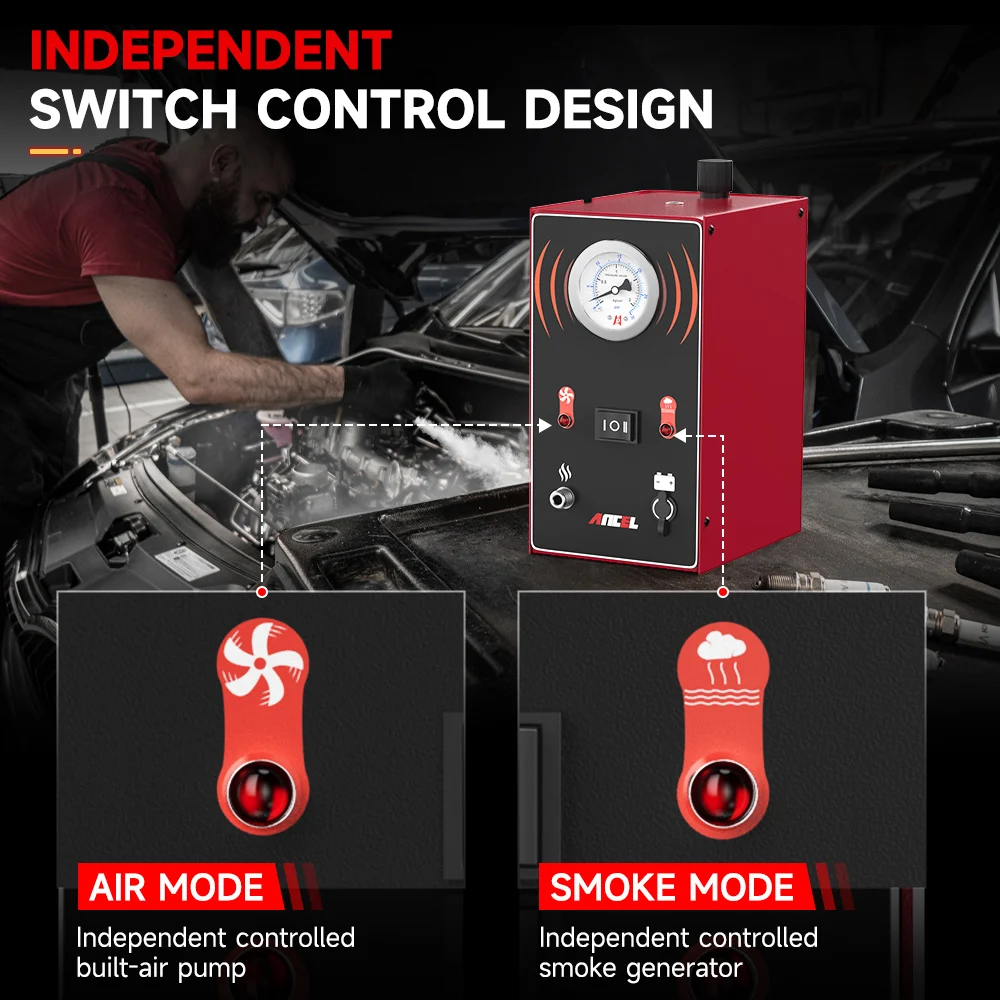

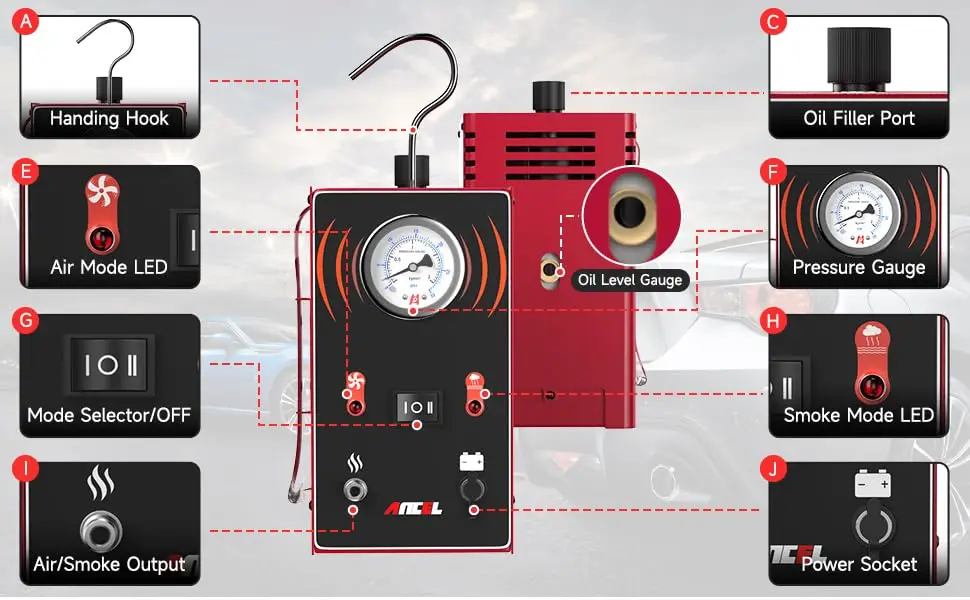

ANCEL S200 has two operating modes: air mode and smoke mode

Press the left button to ventilate the air and press the right button to start the smoke output.

Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.

How to judge leakage- through the pressure gauge

Quick vehicle leak diagnosis by pressure display

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

SMALL SMOCK MACHINES, EASY TO CARRY

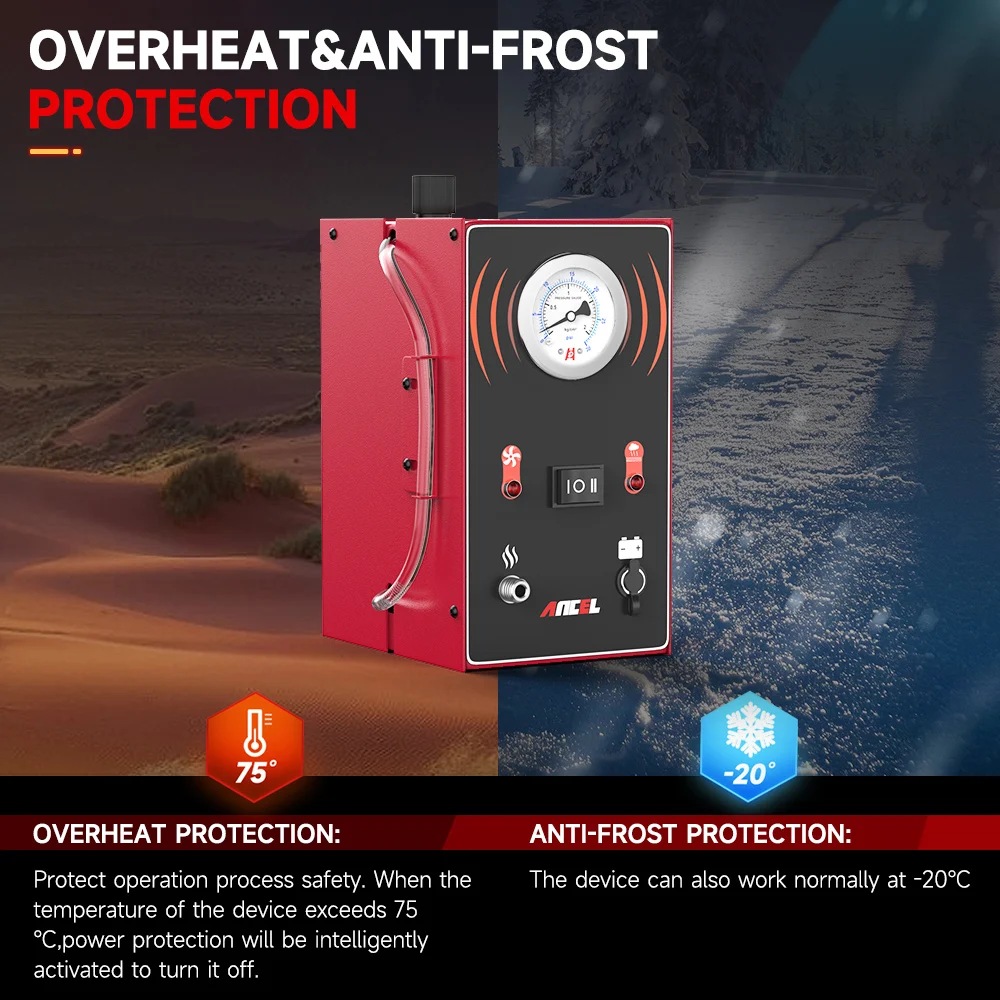

Overheat & Anti-frost Protection

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehicles, ATVS,light trucks and speedboats,Suitable for all car models.

Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20℃.

ANCEL S200 Car Smoke Leak Detector Features :

1. Pressure Output : 0.8-14.5psi ；The smoke can be produced quickly and diagnosed quickly, saving time.

2. Powerful and easy to operate： ANCEL S200 has a built-in air pump, press the left button to ventilate, press the right button to start the smoke output, It can be outputs lots of Smoke within 30 seconds after turning on， which ensures continuous output of a large amount of smoke. The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.

3.Wide range of applications： For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

4.Overheat & Anti-frost protection： The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

Specification

EVAP S200 vacuum leak tester can produce lots of smoke within 10s, help mechanic detect the leaks in pipe system.

LCD: (320*240 DPI) TFT color display
External power supply: 12V or 24V Powered by battery
Minimum working voltage: 9V
Maximum working voltage: 30V
Maximum measuring voltage: 100V
Minimum measuring voltage: 0.1V
Resistance measurement range: 1 ohm~200K ohm
Current measuring range: 0~18A

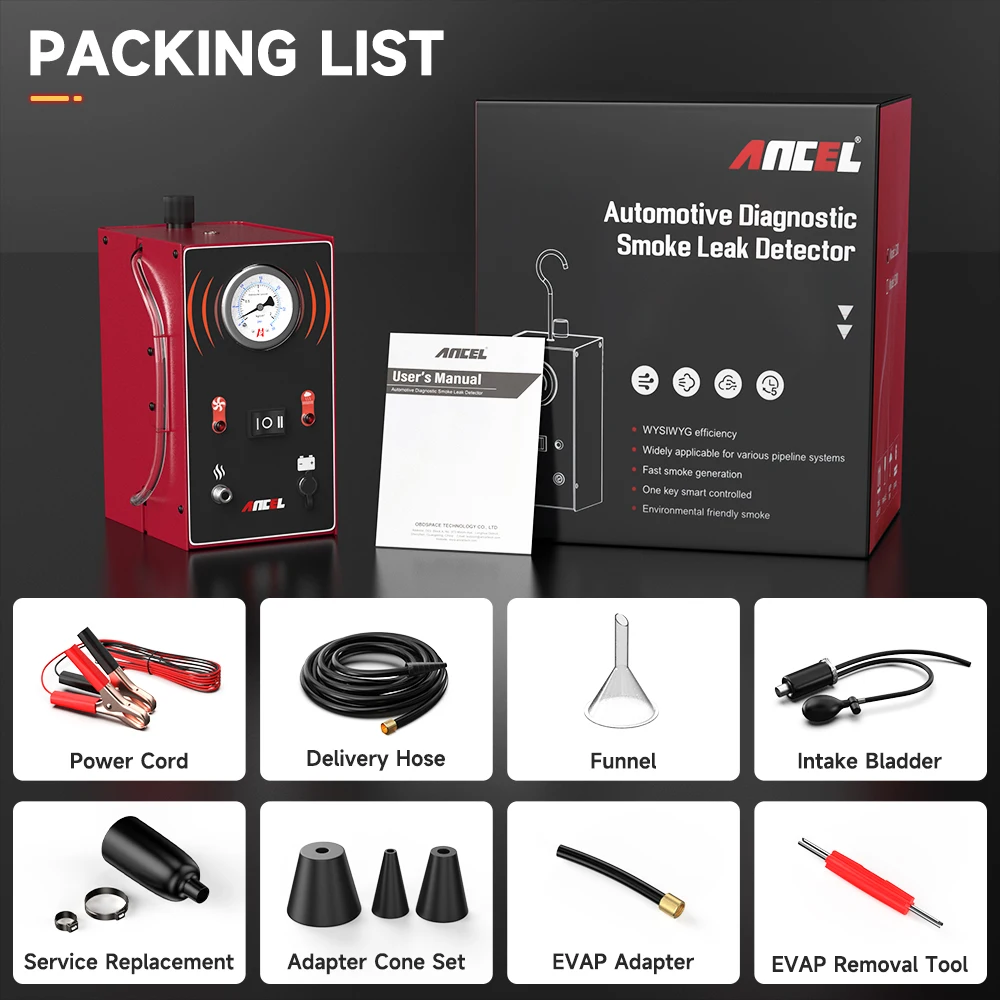

PACKIING LIST

1pc Power Cord
1pc DeliveryHose
1pc Funnel
1pc Intake Bladder
1pc Service Replacement
1pc Adapter Cone Set
1pc EVAP Adapter
1pc Removal Tool
1pc EVAP Removal Tool

ANCEL S300

2023 Ancel S300 Smoke Leak Detector for Car/Motorcycle/Boat/Truck EVAP Vacuum Leakage Diagnostic Tool EVAP Pipe Leakage Analyzer

Ancel S300 supports multi-system testing, especially EVAP system

EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test

Do You Bothered By The Following Problems?

More fuel consuming?
Faster idling speed?
Water Leaks?
Hard to find the leaks?

Upgraded S300 Automotive Smoke Machine

Fits All Lines and Hoses

How to use Ancel s300?

1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

2 kinds of modes: AIR model+Smoke mode

Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.

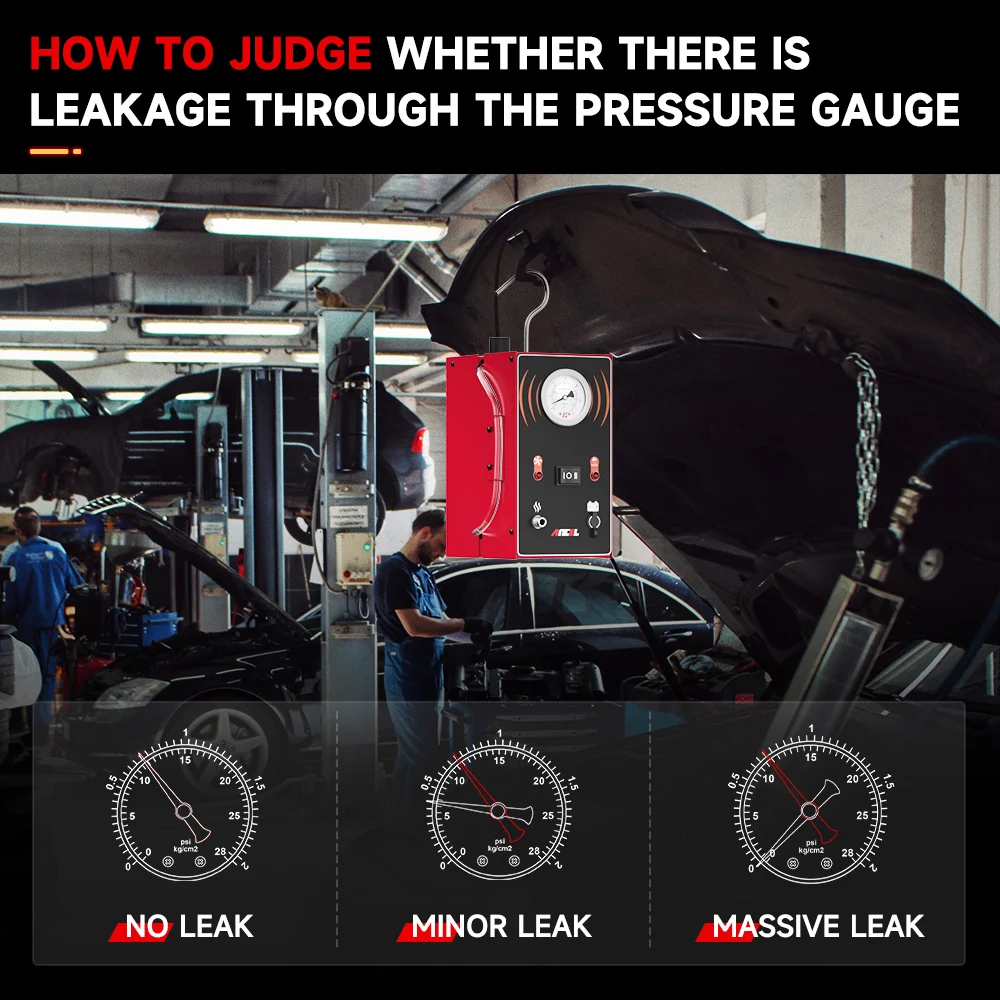

How to judge leakage- through the pressure gauge?

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

Adjustable Smoke Output Help To Pinpoint Leaks Quick

Adopt The Latest 5th Generation Technology

Overheat & Anti-frost Protection

Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20℃.

Easy To Detect an Air Leak Vehicle Cabin

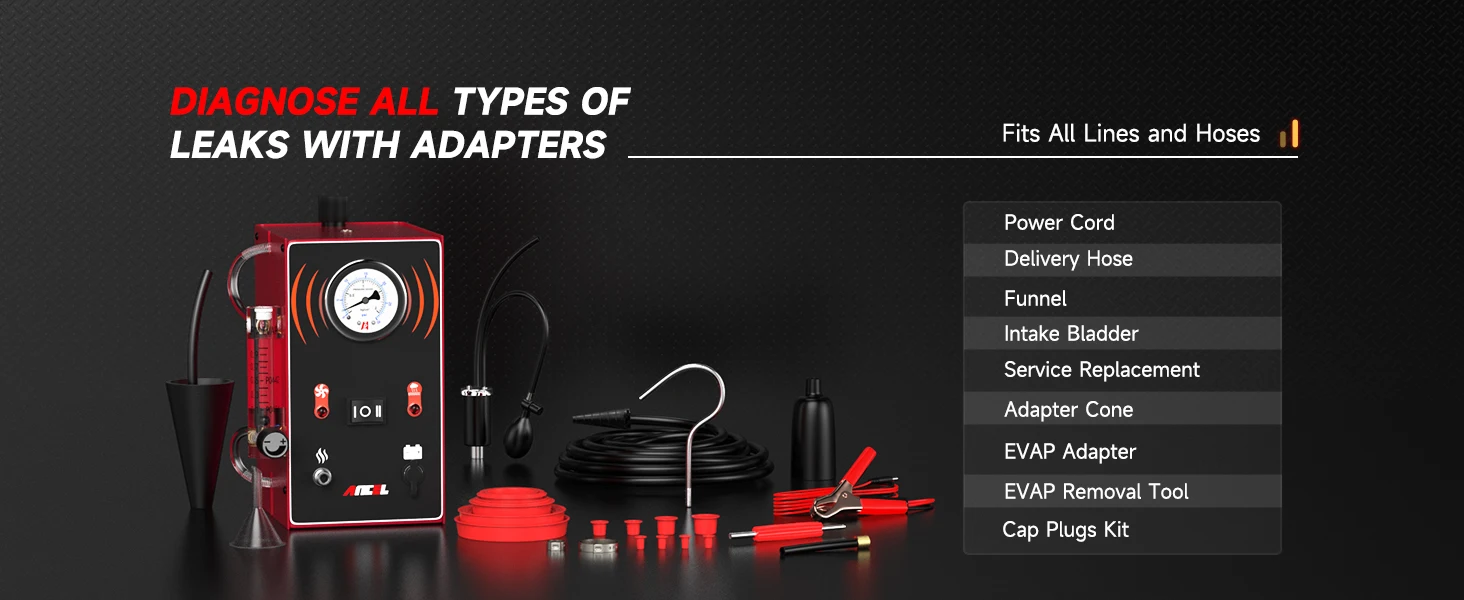

Diagnose All Types Of Leaks With Adapters

Power Cord
Delivery Hose
Funnel
Intake Bladder
Service Replacement
Adapter Cone
EVAP Adapter
EVAP Removal Tool
Cap Plugs Kit

Brand	ANCEL
Manufacturer Part Number	ANCEL S100/S200/S300 SMOKE TESTER
Type	EVAP Machine
Supported System	EVAP, Air Intake, Exhaust, Cooling System
OBD Interface	OBDII, EOBD, CAN, OBD
Vehicle Type	ATV, Heavy Duty/Commercial, Passenger Vehicle, Motorcycle
Warranty	5 Year
Item Type	Car Smoke Machines
Powerful Features	Built-in Air Pump
Output Pressure	＜1.2bar
Smoke Output Value	7l/min
