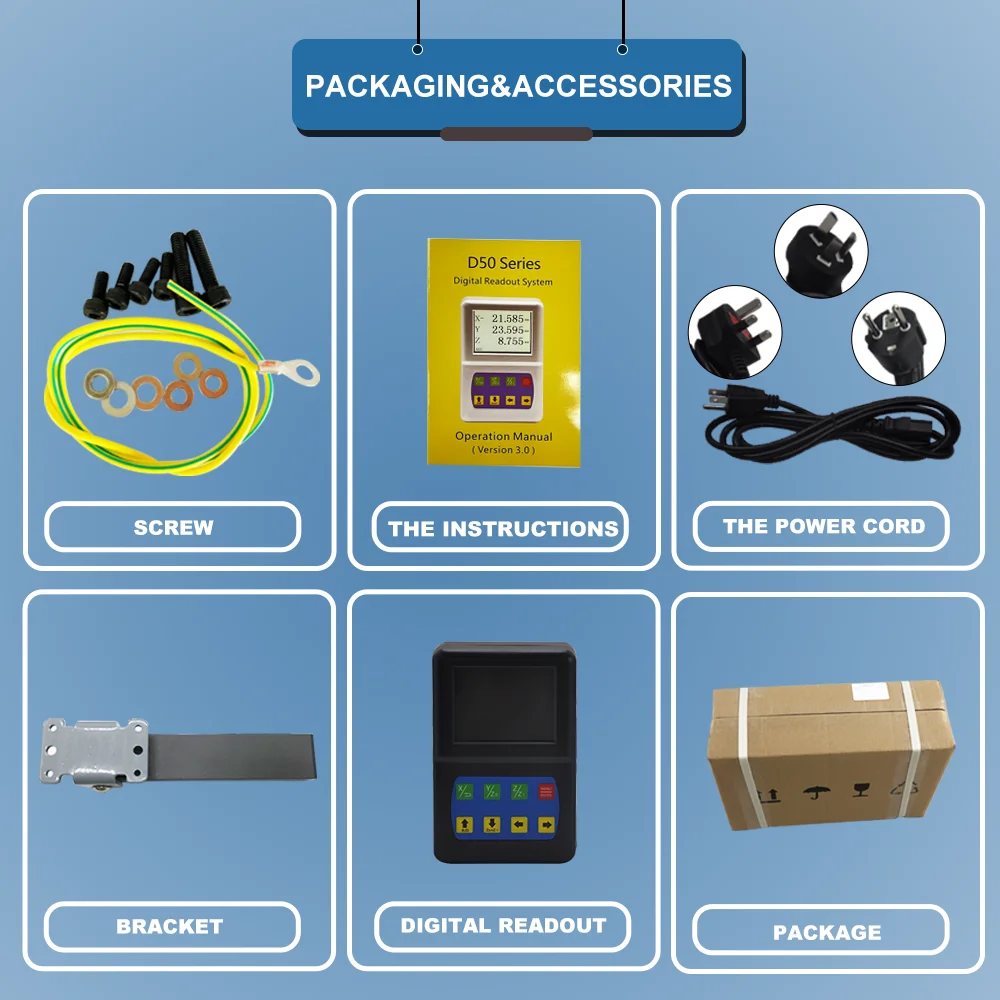

Order Include:


1pcs* 1/2/3 Axis Digital Readout DRO, or Linear Glass Scale

English User Manual

1pcs*  Mounting Bracket and Accessories



Features:

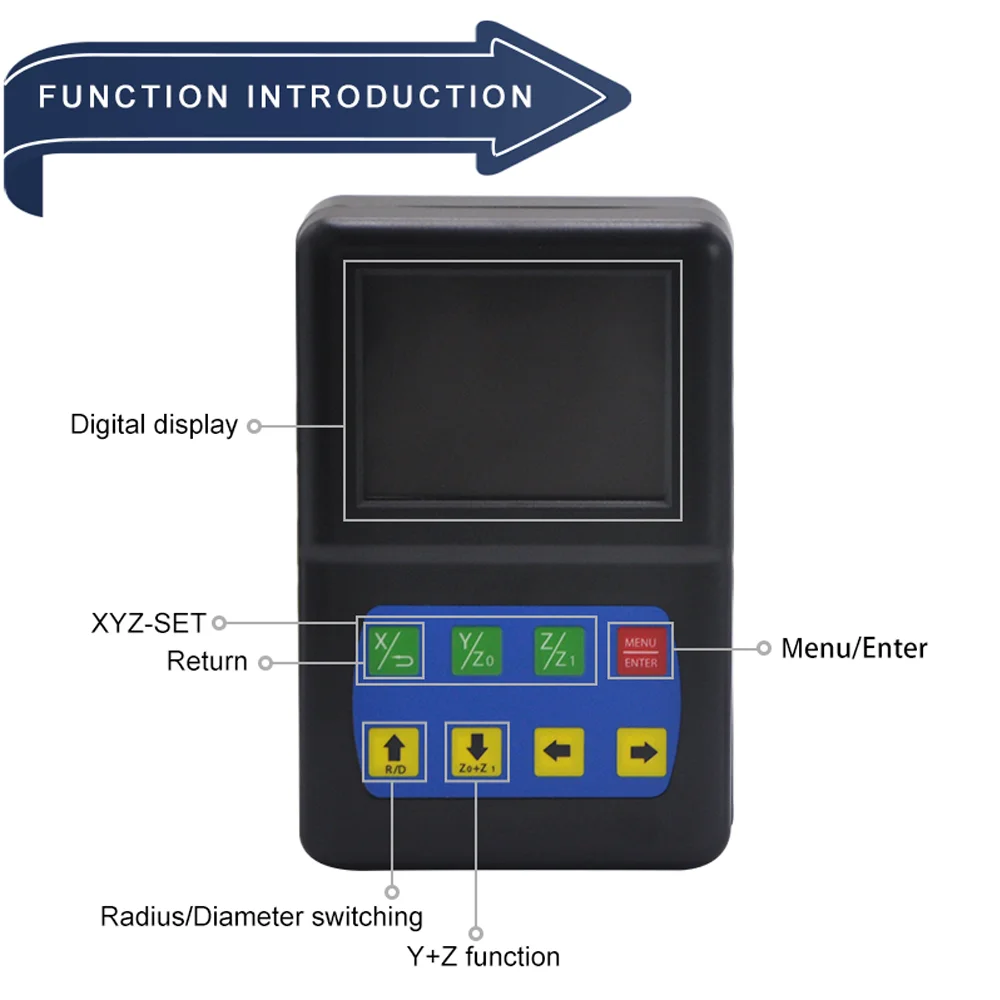

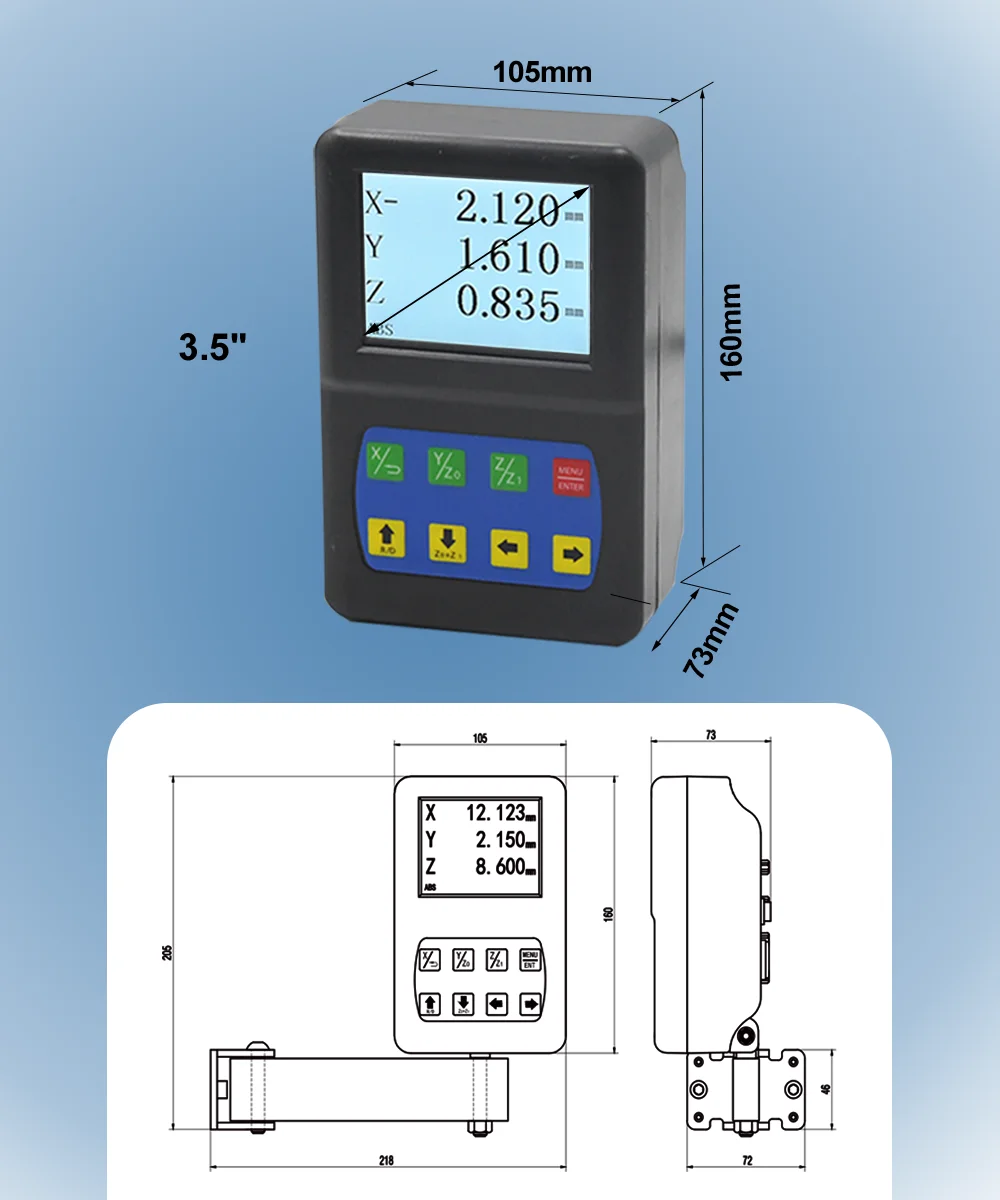

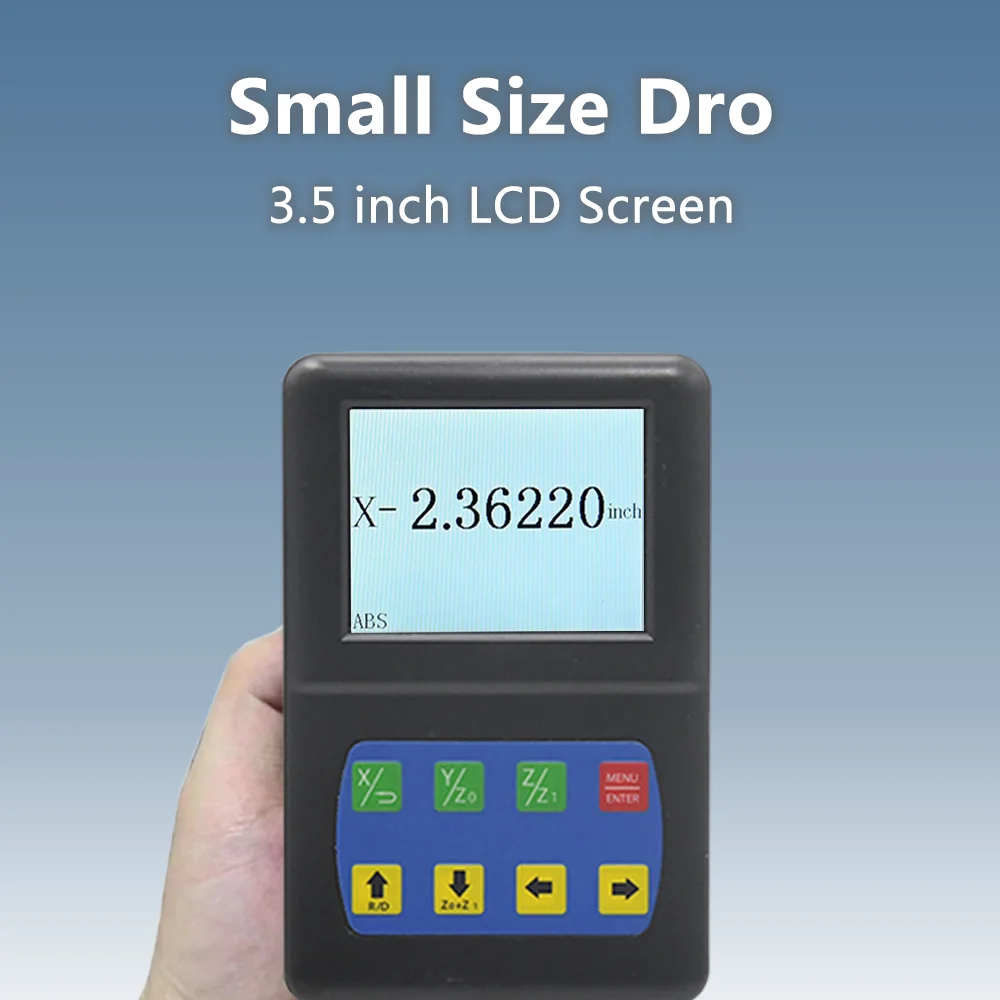

1.3.5" true color LCD screen,easy to recognizing.

2.Optional for RPM function and RS232 protocol.

3.High intergration makes the performance be stable.

4.Lathe mode with Z+Z1 and Diameter&Radius conversion,Milling mode with PLD and PCD Function.

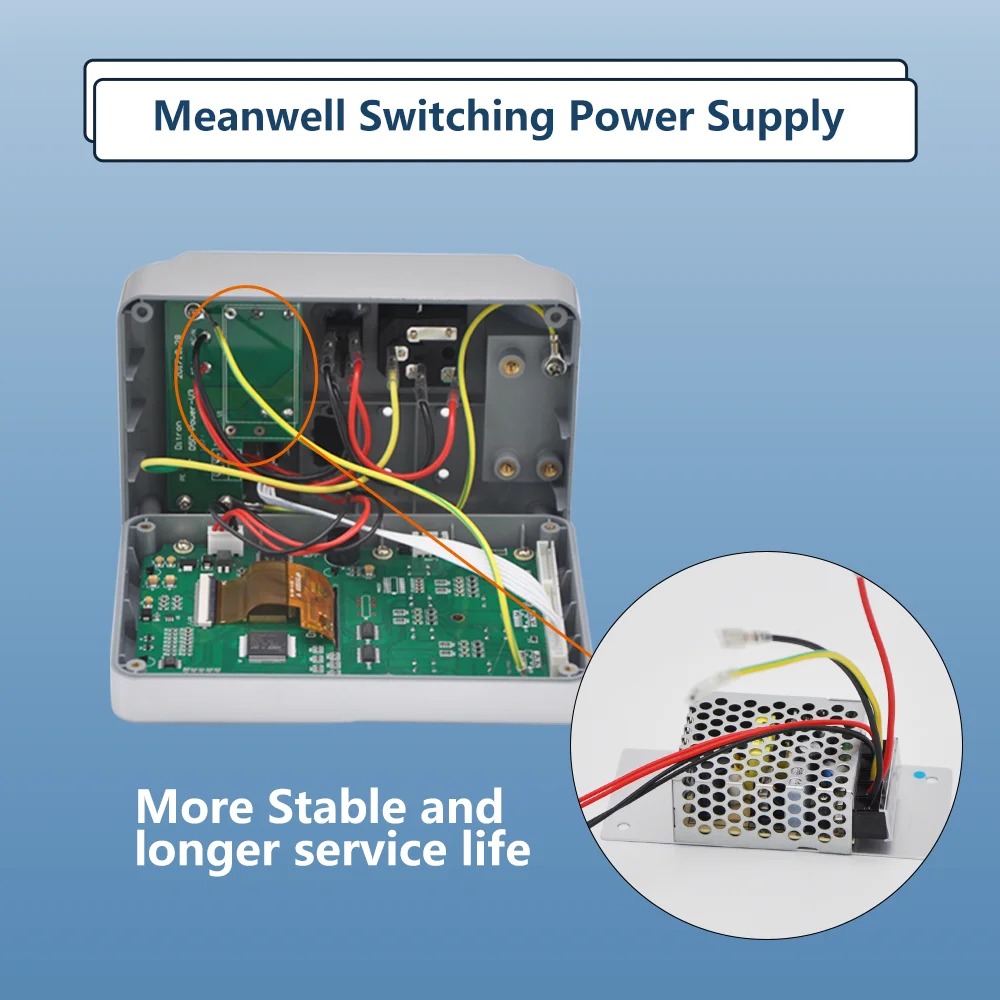

5.Smart checking of the inner data and power supply

6.Can connect with both linear scale and rorary encoder.

Functions:

1)Zeroing and Data Recovery

2)Value Inputting

3)Metric and Imperial Switching

4)Power off memory

5)Encoder Selection(Rotary or Linear)

6)Linear Compensation

7)Counting Direction Setting

8)ABS/INC Coordinate

9)200 sets of SDM Coordinates

10)REF

11)Centering

Special Function:

1)PLC Function

2)PCD Function

3)Radius/Diameter switching

4)Axis Summing

5)Digital Filtering Function

6)RS232 Interface    (Need order sepreatly ,Pls contact with Seller )

7)Rotational  Speed Measurement.

8)Linear Measuring Basing Rotary Encoder

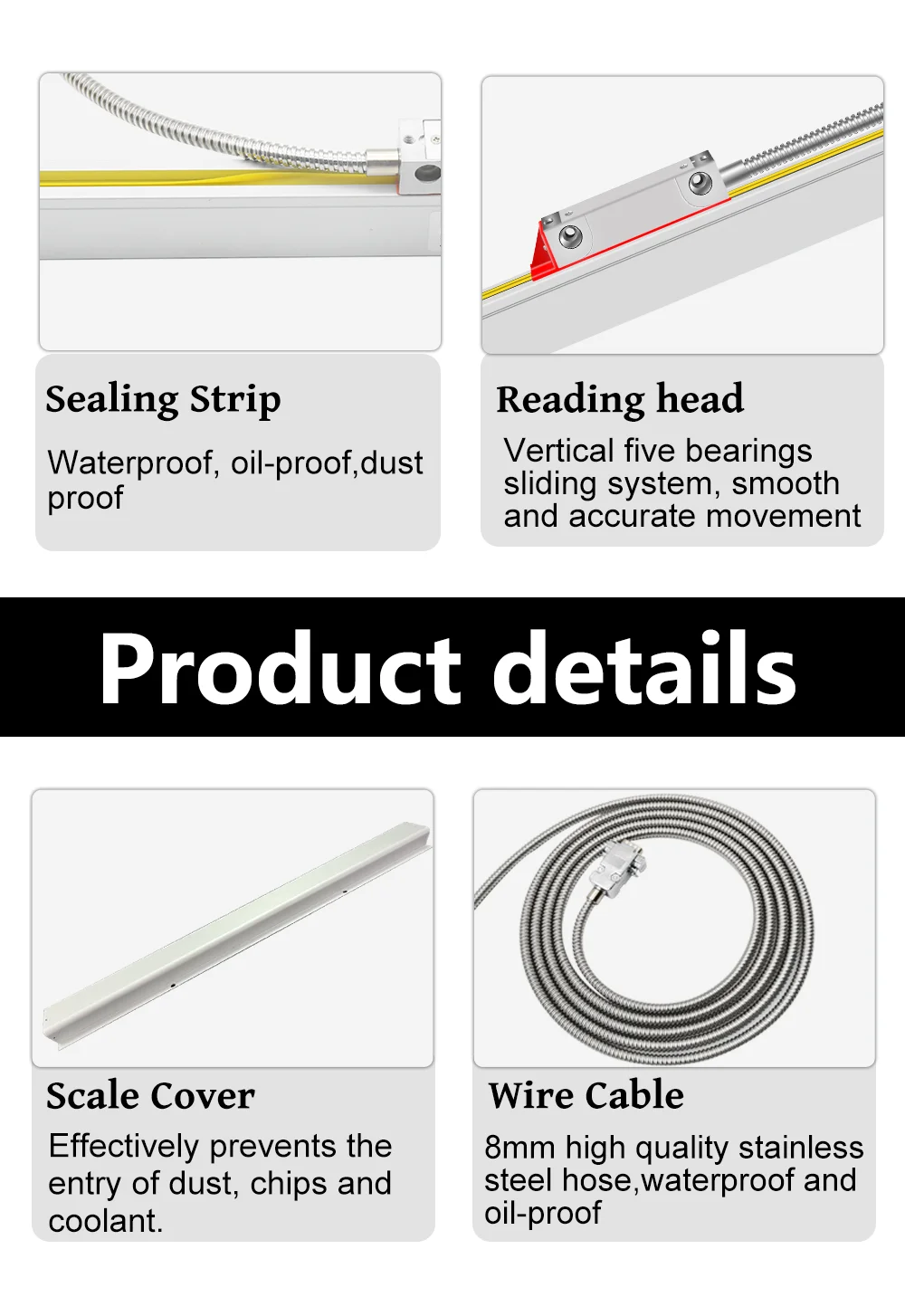

Linear Scale Information:

  1. Vertical five bearings sliding system, smooth and accurate movement

  2. Calibrated by Laserinterferometer,accuracy guaranteed.

  3. Full sealing structure,swarf and coolant proof.

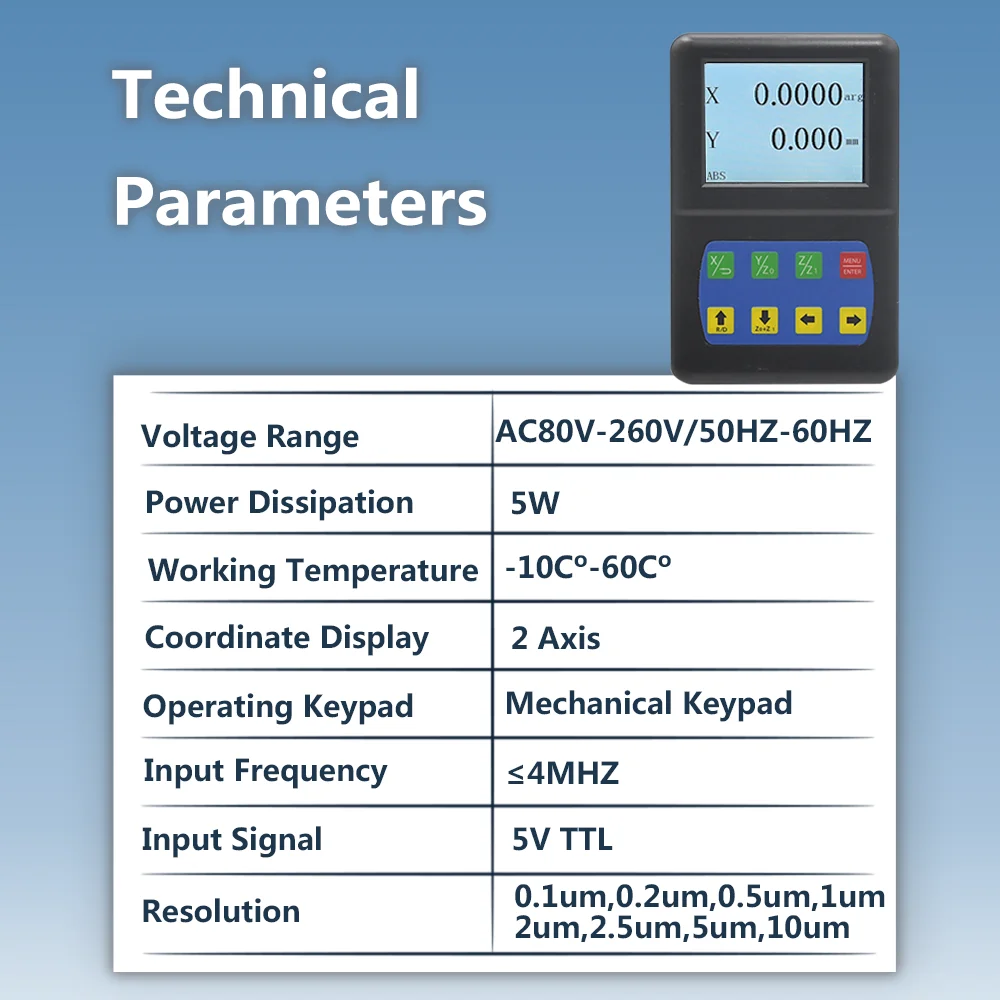

Technical Parameters:
