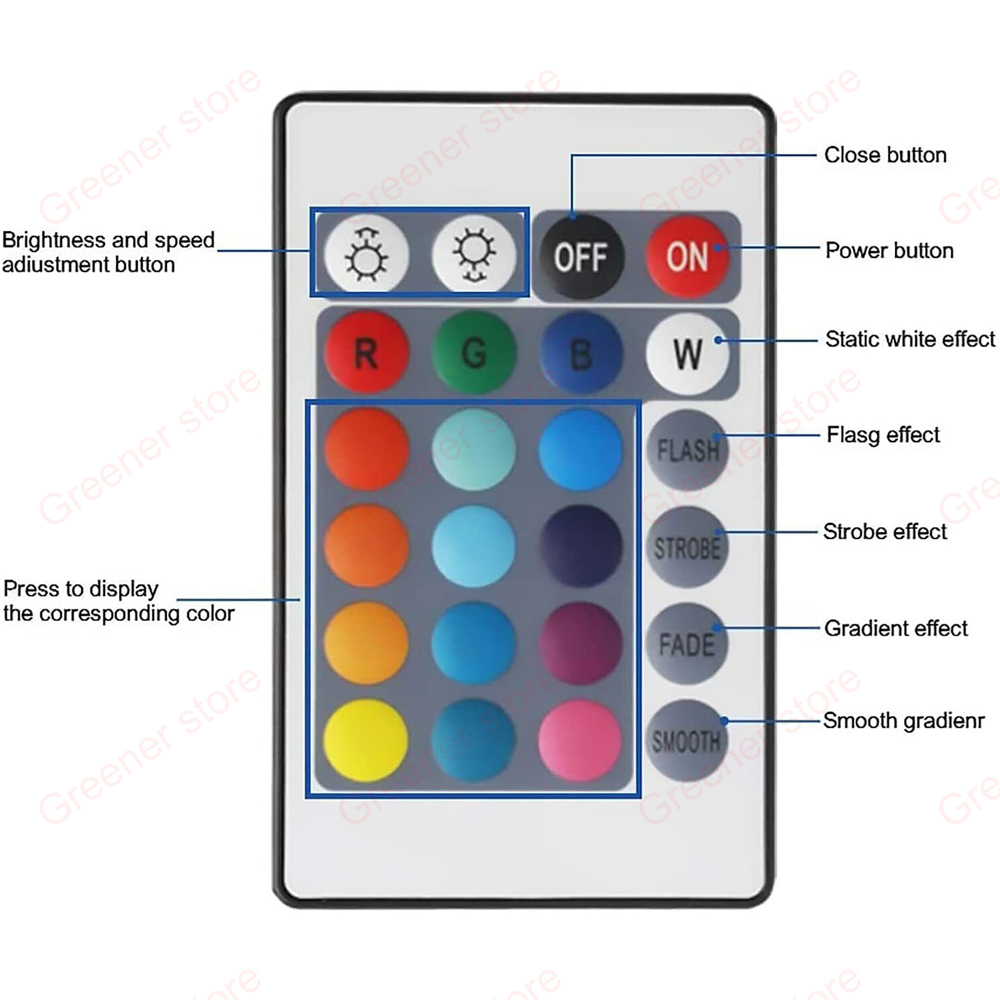

24Key Remote Controller Manual:
1. Material: GPG rigid plastics
2. Connection mode: Common Anode(+)
3. Input: 5-24V

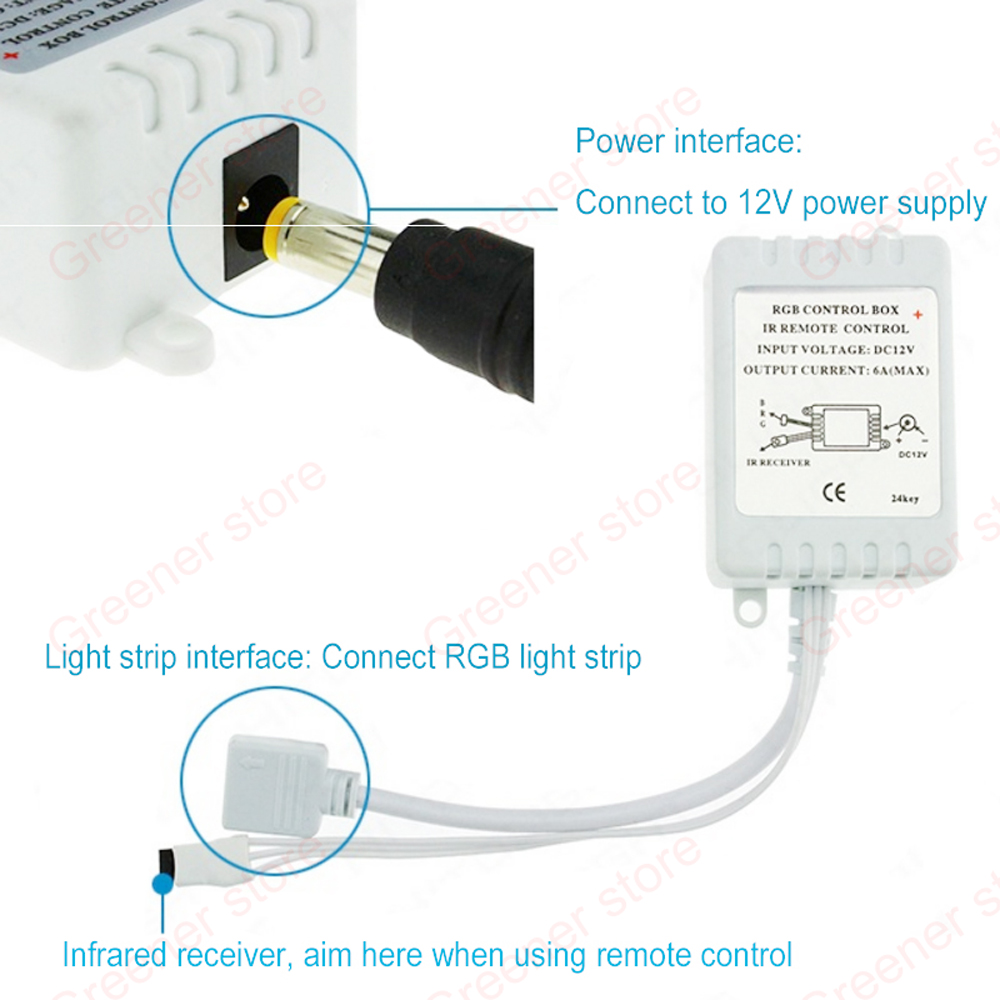

4. Connector: 4Pin connectors
5. Max load current: 6A
6. Working Temperature: -20-60°C
7. Type: 24Key Remote Controller
8. Static power consumption: <1W

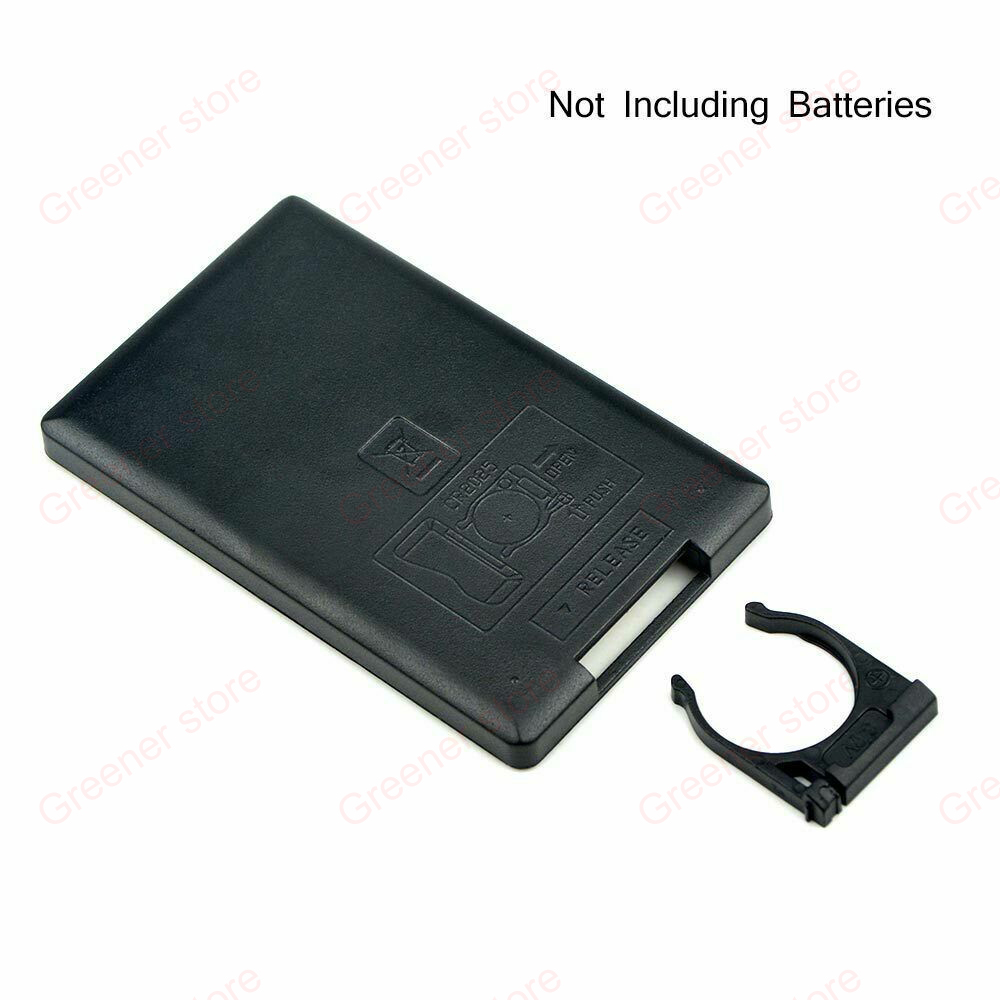

9. Remote controller battery 3V: 1xCR2025(not included)
Mode & Pattern:
16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change
16-classes Static Mode Dim Control
16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change
Control range: 10cm - 500cm RGB LED Strips
Support 5m or 10m SMD 5050 /3528/ 2835 LED Strips

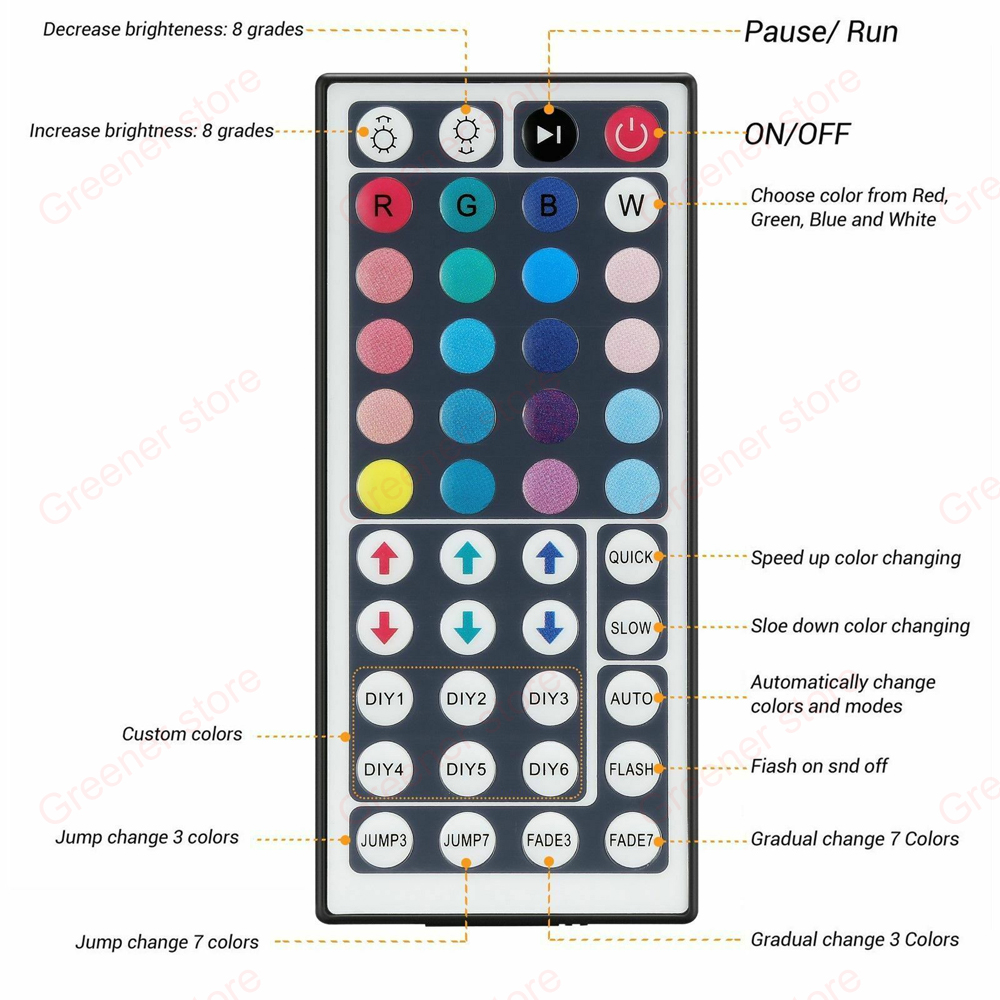

44Key Remote Controller Manual:
1. Material: GPG rigid plastics
2. Connection mode: Common Anode(+)
3. Input: 5-24V
4. Output: 5-24V
5. Max load current: 2A each color
6. Working Temperature: -20-60°C
7. Type: 44Key Remote Controller
8. Static power consumption: <1W
9. Remote controller battery 3V: 1xCR2025(not included)
Mode & Pattern:
Color:20 Colors
8 Light Pattern: Quick / Slow / Auto / Flash / 7 color fade change / 3 color fade change / 7 color jumpy change / 3 color jumpy change
R / G / B increase and decrease control
6 DIY keys
44 keys infrared controller which has 6 keys(DIY keys) for momories the colors what you preferred.
Control range: 10cm - 500cm RGB LED Strips
Support 5 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD 5050\3528 60LEDs / M LED Strips

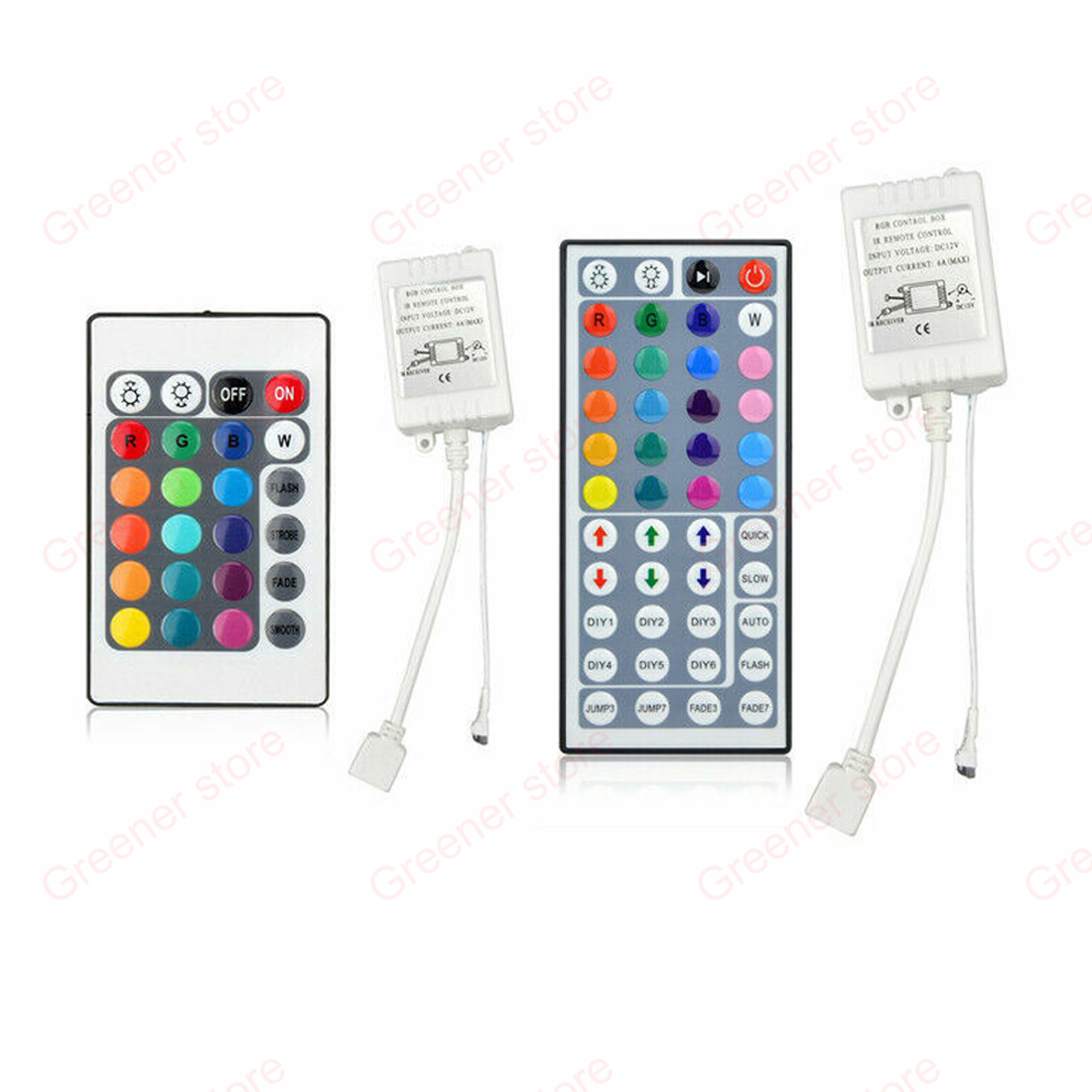

Packing Include:
1x IR 24keys or 44Keys Remoter ( NOT Include battery)
1x Controller Box
