Description:
TR16 is a kind of high precision current type battery capacity tester (also known as coulometer), which can test the voltage, current and capacity of battery to help users know the state of battery in time.
TR16 have memory function. It is suitable for mobile and portable equipments, e-bike, balance cars, cleaning machines, instruments, ups and so on.
TR16 is suitable for lithium batteries, lithium iron phosphate batteries, lead-acid batteries and nickel-metal hydride batteries which working voltage is from 8V to 80V.
Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.
Install:
First, open a round holes of 54.5mm on the panel of the equipment.
Then install the coulometer from the front of the panel.
Finally, tighten the bracket on the back.
As shown below:
Using steps:
1. Connect and check the current: Power on after complete the connection as shown, the screen should display capacity percentage. If the screen has no response, please check the connection. Then charge or discharge the battery, and check whether the display current is equal to the actual current. If the deviation is large please check the connection.
2. Capacity reset: On first use, the percentage and capacity are not the actual value, you should reset the capacity: discharge the battery totally and hold the"V/△" key for 3 seconds to set the capacity zero or charge the battery fully and hold the"%/△" key for 3 seconds to set the capacity full. And it doesn't need to do this again later, except replace the battery.
Color: black
Material: plastic
Specification: 0-50A/0-100A/0-350A
TR16 have memory function. It is suitable for mobile and portable equipments, e-bike, balance cars, cleaning machines, instruments, ups and so on.
TR16 is suitable for lithium batteries, lithium iron phosphate batteries, lead-acid batteries and nickel-metal hydride batteries which working voltage is from 8V to 80V.
Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.
Install:
First, open a round holes of 54.5mm on the panel of the equipment.
Then install the coulometer from the front of the panel.
Finally, tighten the bracket on the back.
As shown below:
Using steps:
1. Connect and check the current: Power on after complete the connection as shown, the screen should display capacity percentage. If the screen has no response, please check the connection. Then charge or discharge the battery, and check whether the display current is equal to the actual current. If the deviation is large please check the connection.
2. Capacity reset: On first use, the percentage and capacity are not the actual value, you should reset the capacity: discharge the battery totally and hold the"V/△" key for 3 seconds to set the capacity zero or charge the battery fully and hold the"%/△" key for 3 seconds to set the capacity full. And it doesn't need to do this again later, except replace the battery.
Color: black
Material: plastic
Specification: 0-50A/0-100A/0-350A
Cable Length:1m/5m/10m
Package includes:

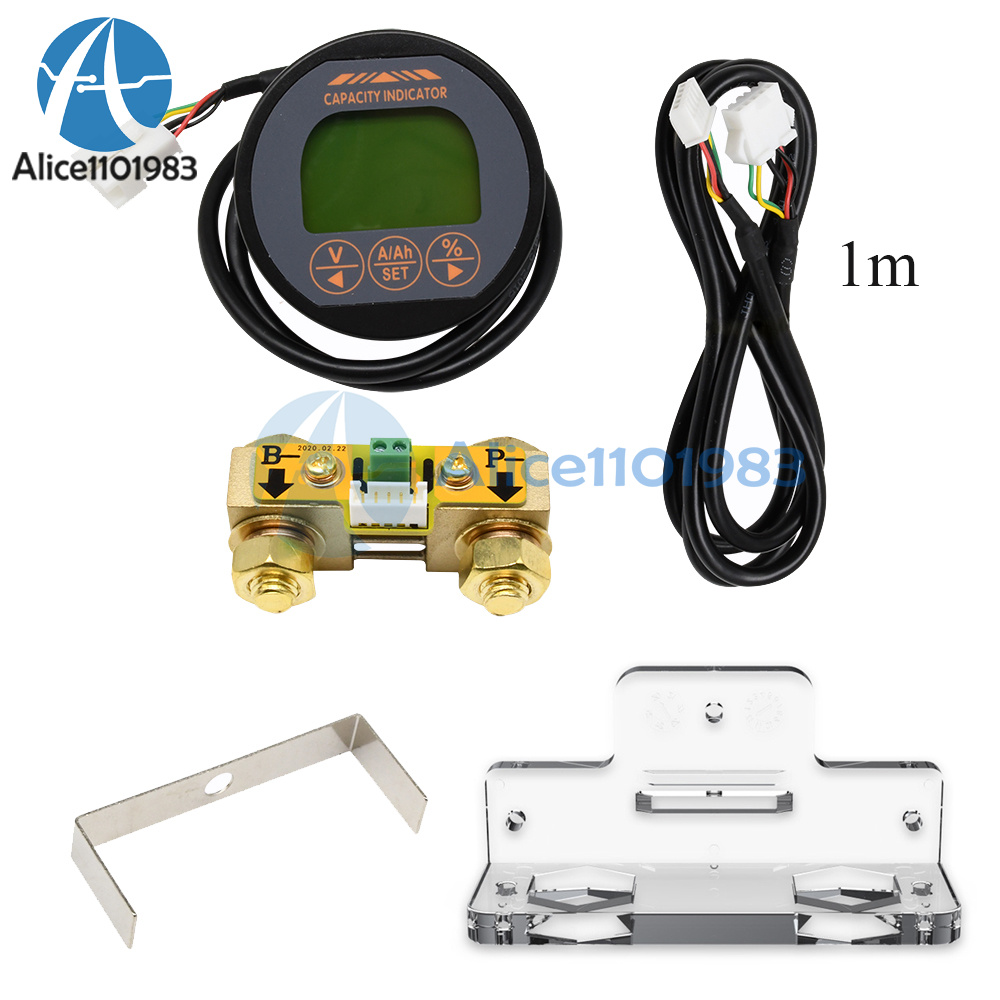

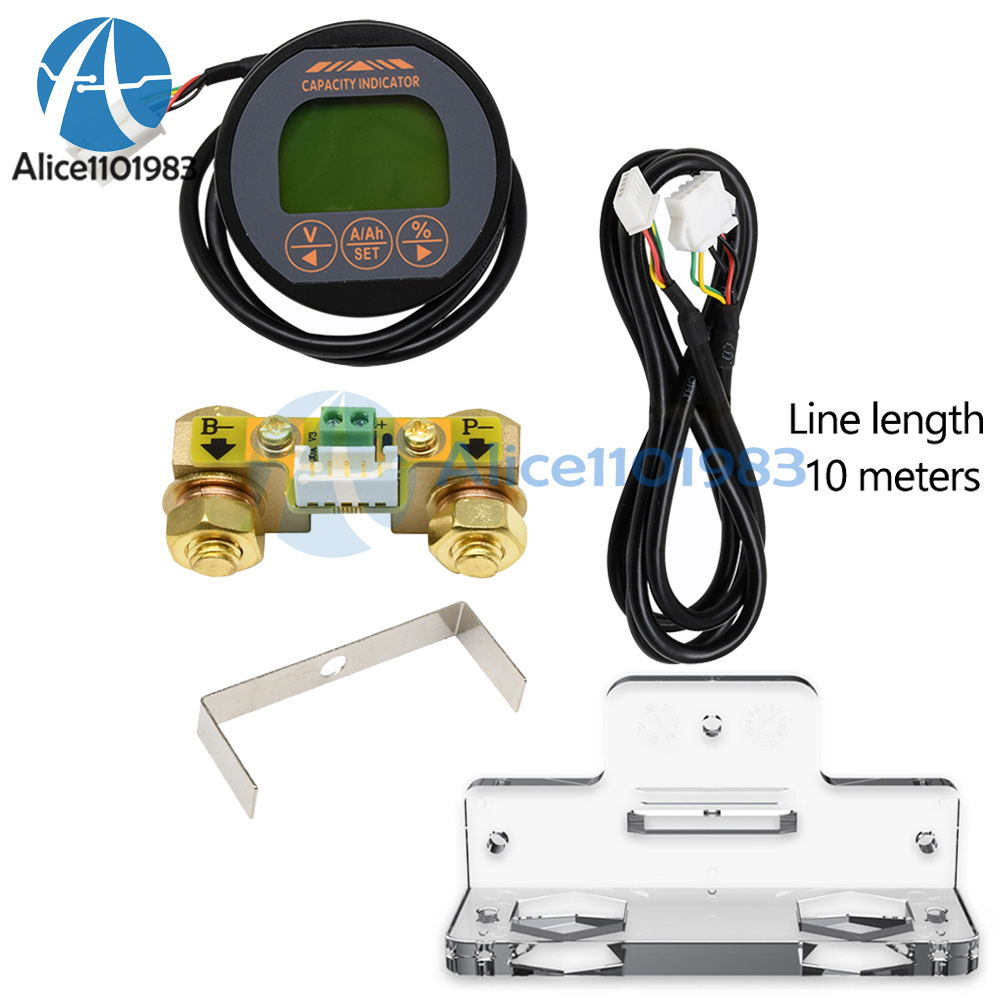

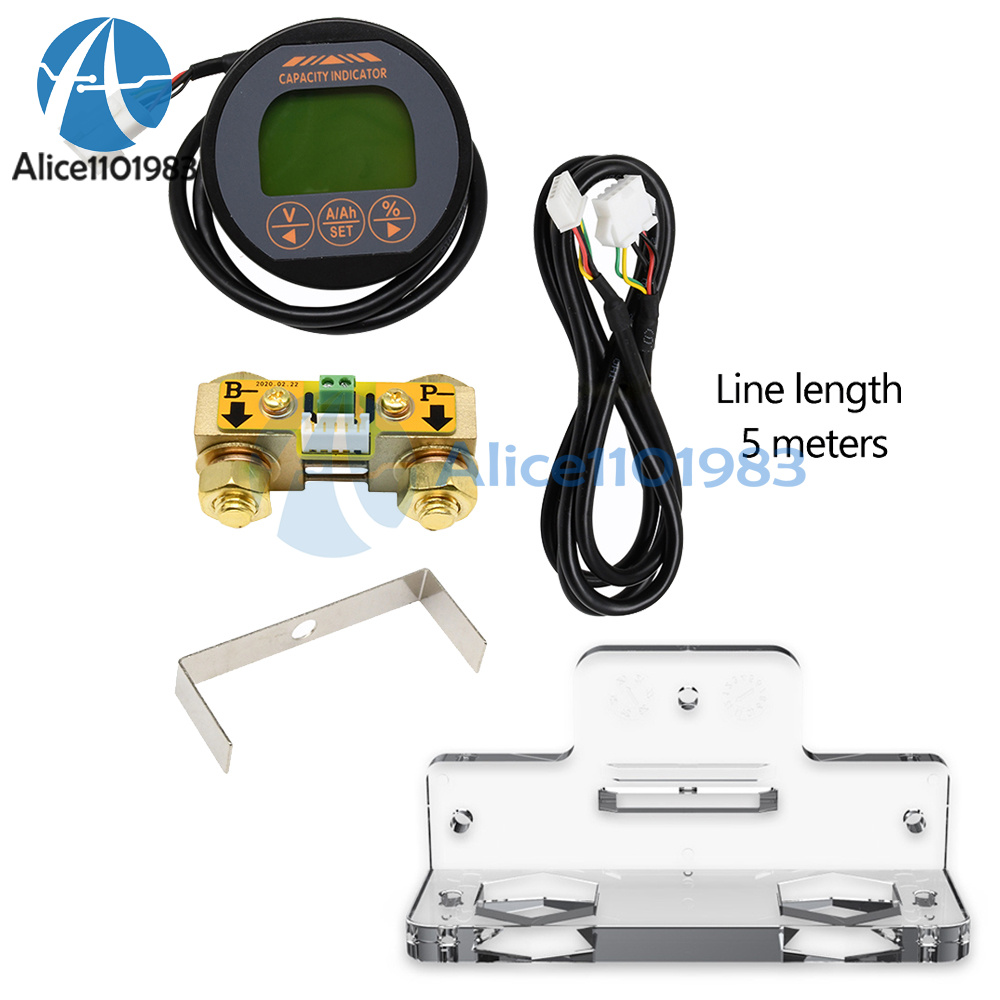

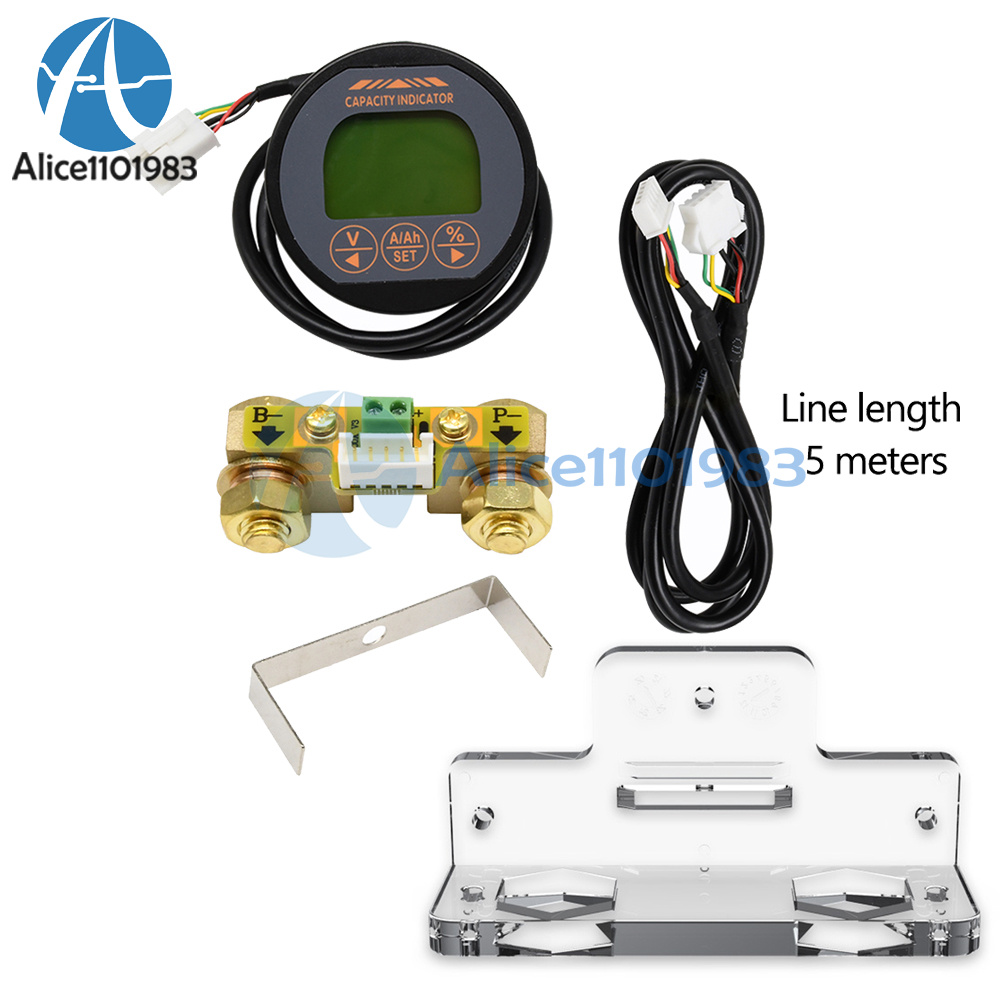

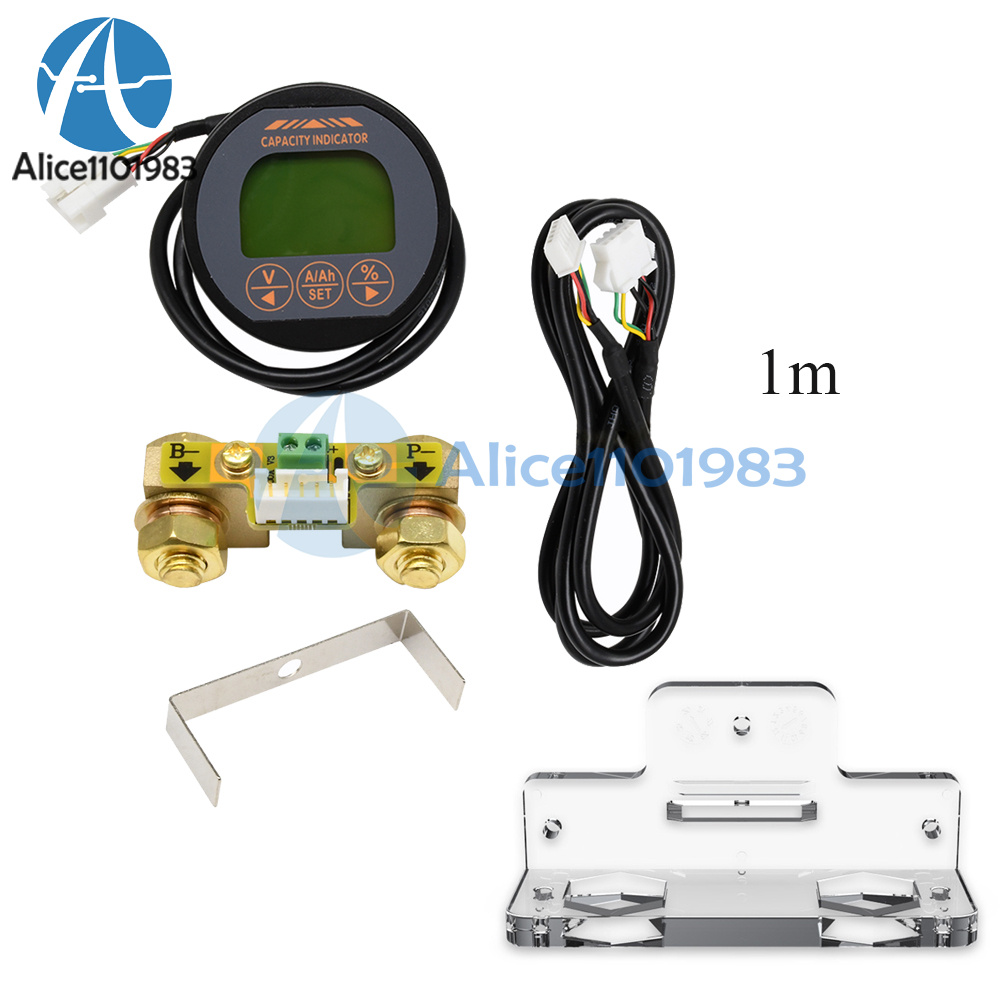

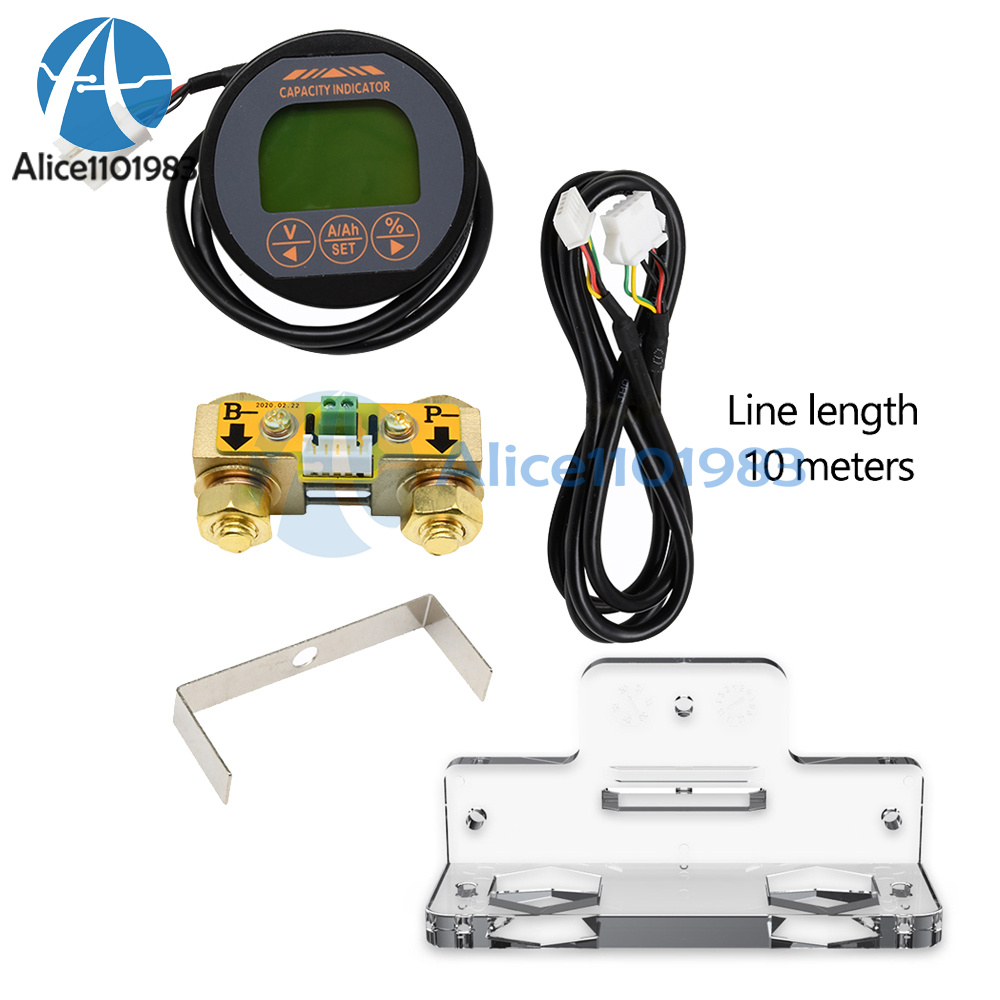

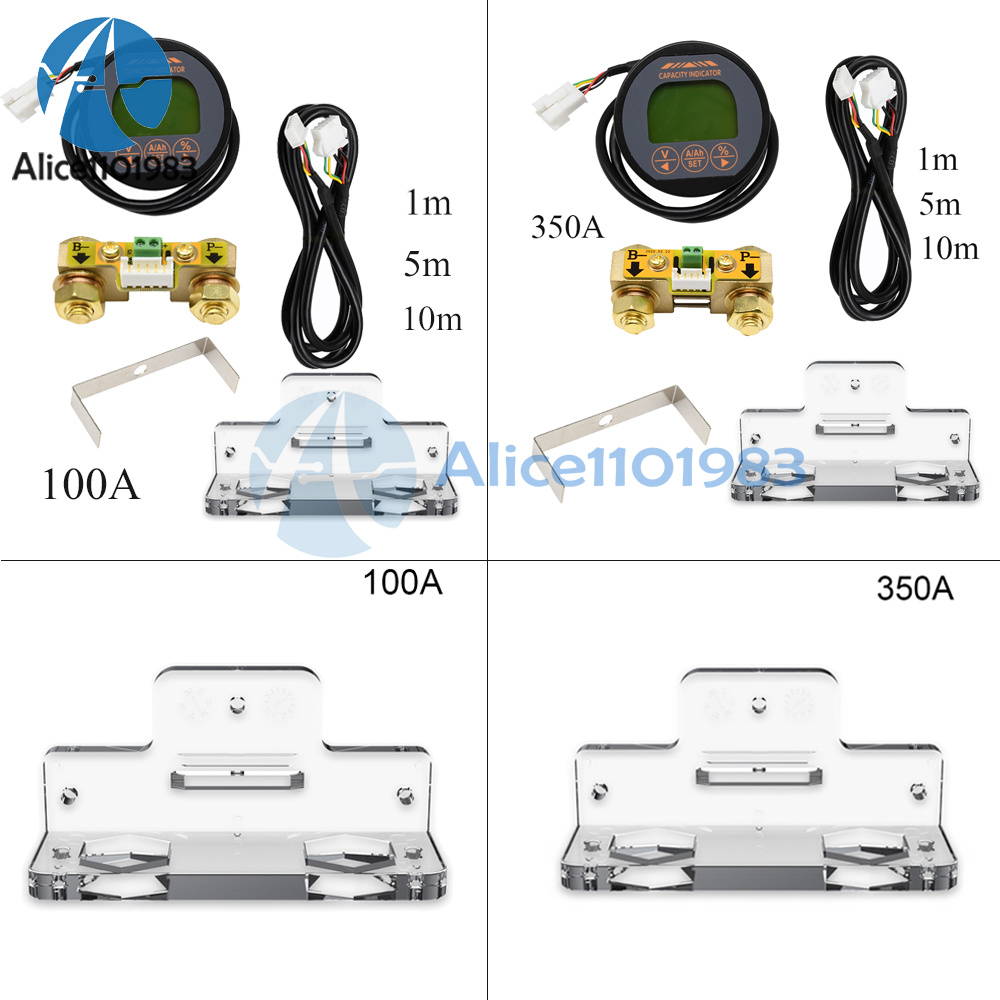

1 x 50/100/350A battery tester with 1m/5m/10m Cable
1 x Sampler
1 x Shielded wire
1 x 50/100/350A battery tester with 1m/5m/10m Cable
1 x Sampler
1 x Shielded wire

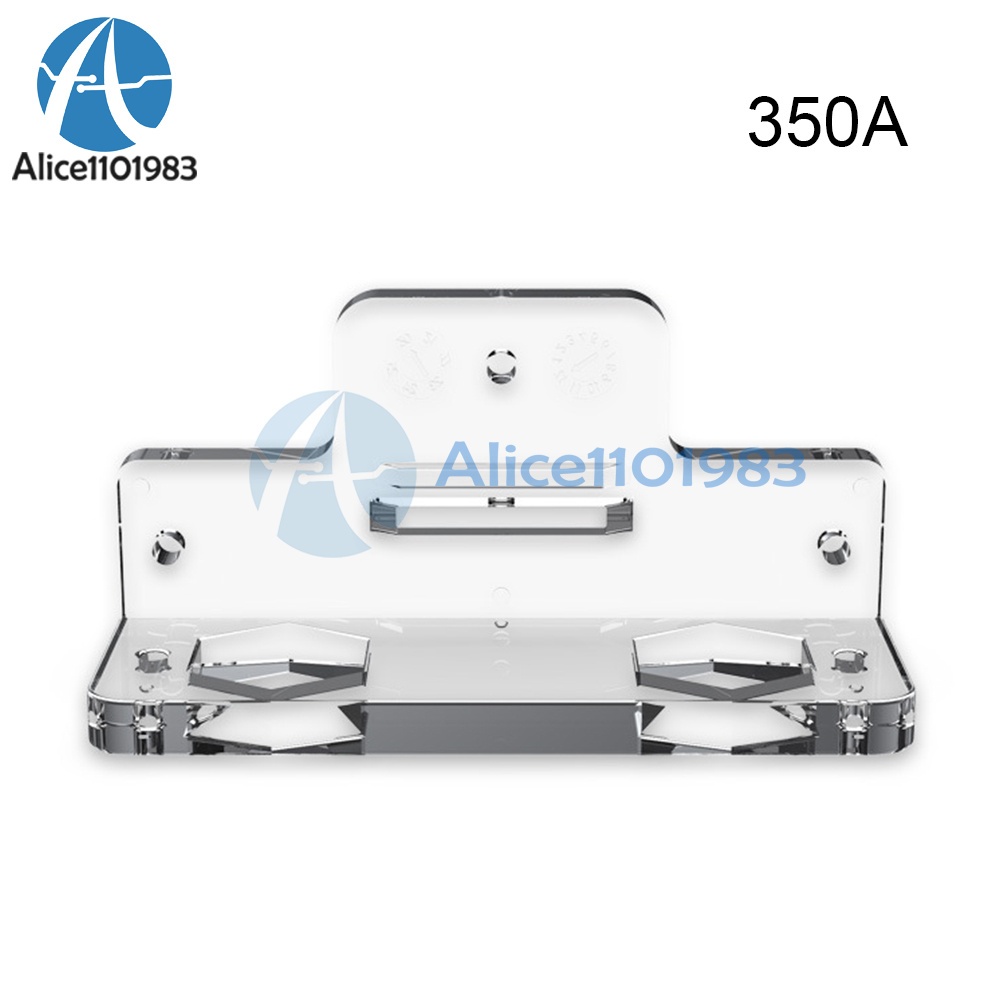

1* Clear Base Optional
Parameter | Min | Type | Max | Unit |
| Working vltage | 8.0 | 80.0 | V | |
| Working consumption | 10.0 | 12.0 | mA | |
| Standby consumption | 0.5 | 0.6 | mA | |
| Sleep consumption | 50 | 60 | uA | |
| Voltage accuracy | ± 1.0 | % | ||
| Current accuracy | ± 1.0 | % | ||
| Capacity accuracy | ± 1.0 | % | ||
| Backlight on current (50A) | 30.0 | 60.0 | mA | |
| Backlight on current (>50A) | 80.0 | 120.0 | mA | |
| Preset capacity value | 0.1 | 999 | Ah | |
| Current of 50A sampler | 0.0 | 50.0 | 75.0 | A |
| Current of 100A sampler | 0.0 | 100.0 | 150.0 | A |
| Current of 350A sampler | 0.0 | 350.0 | 400.0 | A |
| Temperature range | 0 | 20 | 35 | ℃ |
| Weight | g | |||
| Size | ø59*20 | mm |
