Overview
UT-8823F is a universal USB/RS-232 converter that does not require an external power supply, is compatible with USB and RS-232 standards, and can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic send/receive conversion and unique I/O circuitry that automatically controls the direction of data flow without any handshake signals (such as RTS, DTR, etc.) or jumper settings, plug and play, ensuring compatibility with all existing communication software and interface hardware.

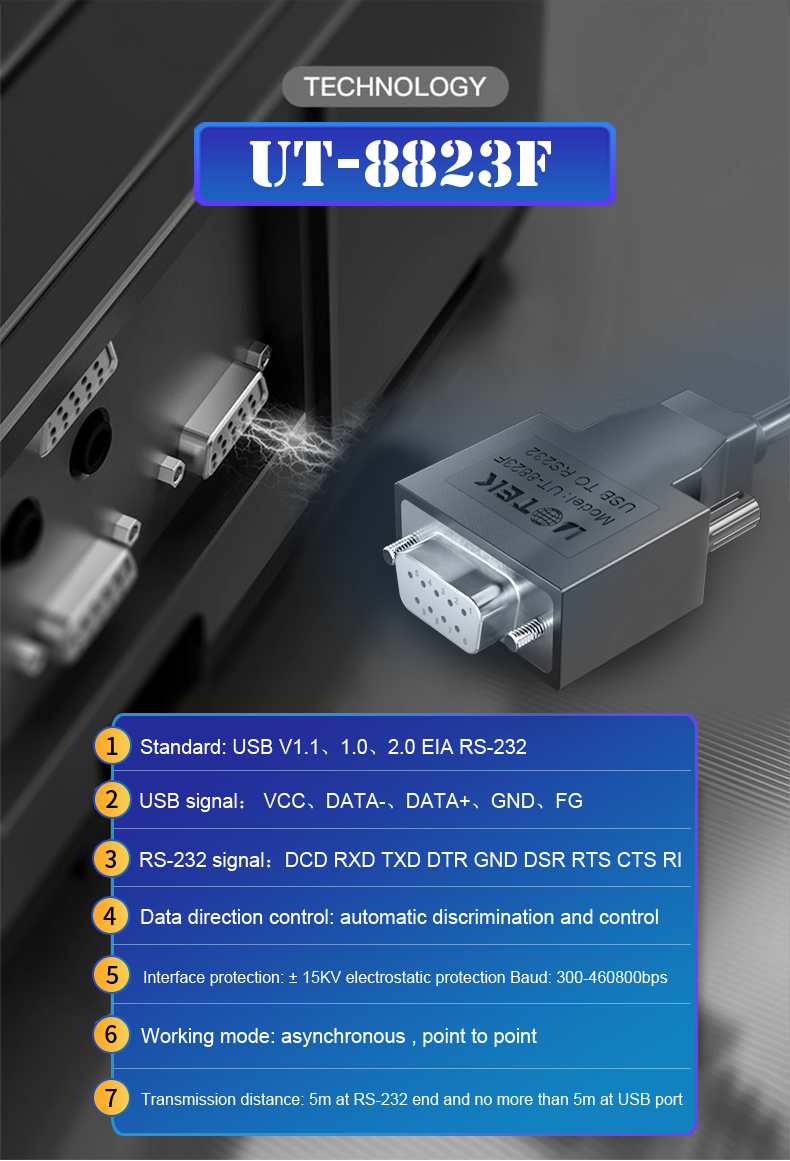

Parameter

1. Standards: Compliant with USB V1.1, 1.0, 2.0 standards and EIA RS-232 standard.

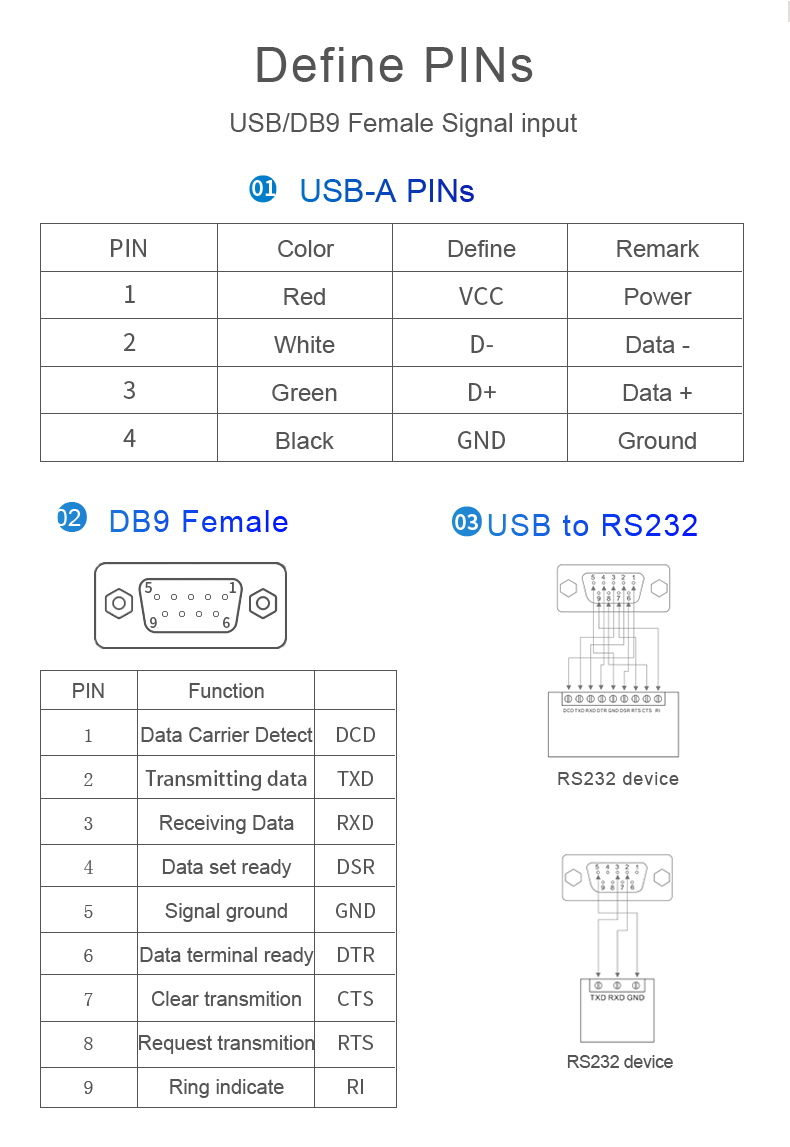

2. USB Signals: VCC, DATA-, DATA+, GND, FG.

3. RS-232 Signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI.

4. Working Mode: Asynchronous working, point-to-point working.

5. Direction Control: Uses automatic data flow control technology to automatically detect and control the direction of data transmission.

6. Baud Rate: 300-460800bps, automatically detects serial port signal rate.

7. Load Capacity: Supports point-to-point communication mode.

8. Transmission Distance: RS-232 end can reach up to 5 meters, USB end can reach up to 5 meters.

9. Interface Protection: ±15KV electrostatic protection.

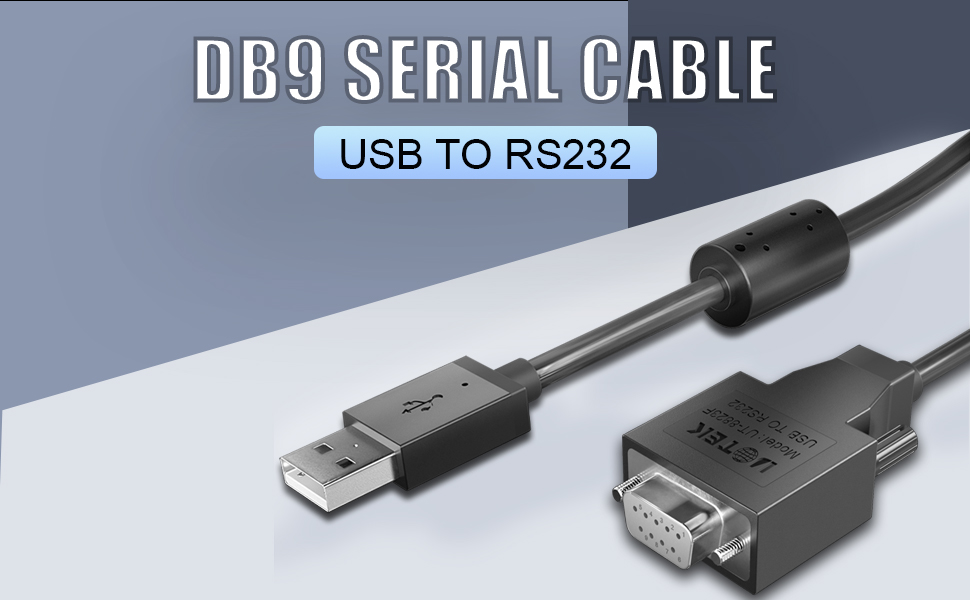

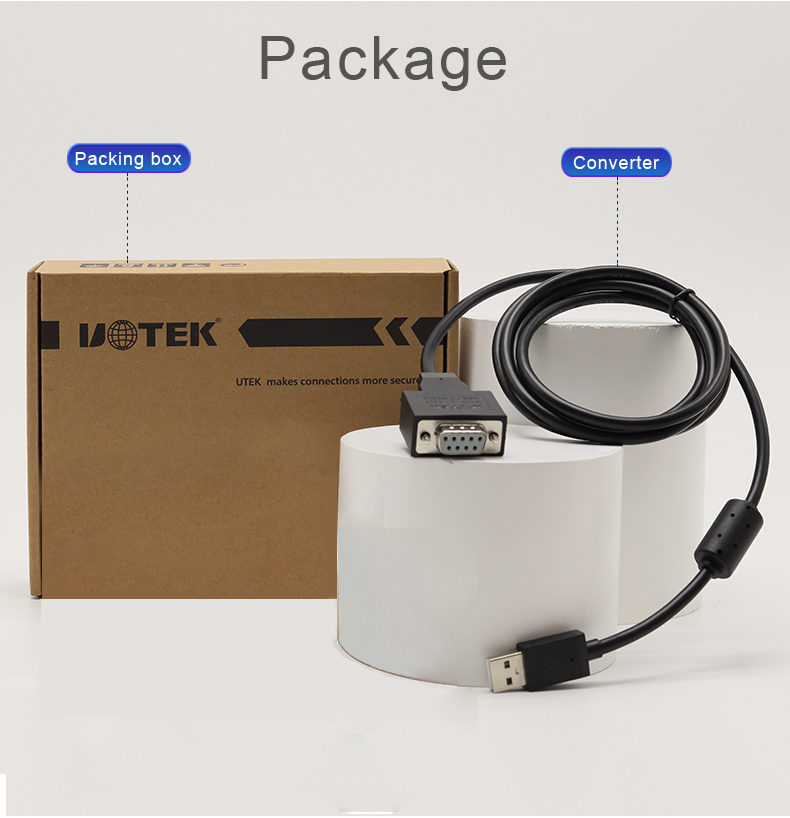

10. Interface Form: USB-A interface male head, connected to DB9 female head connector.

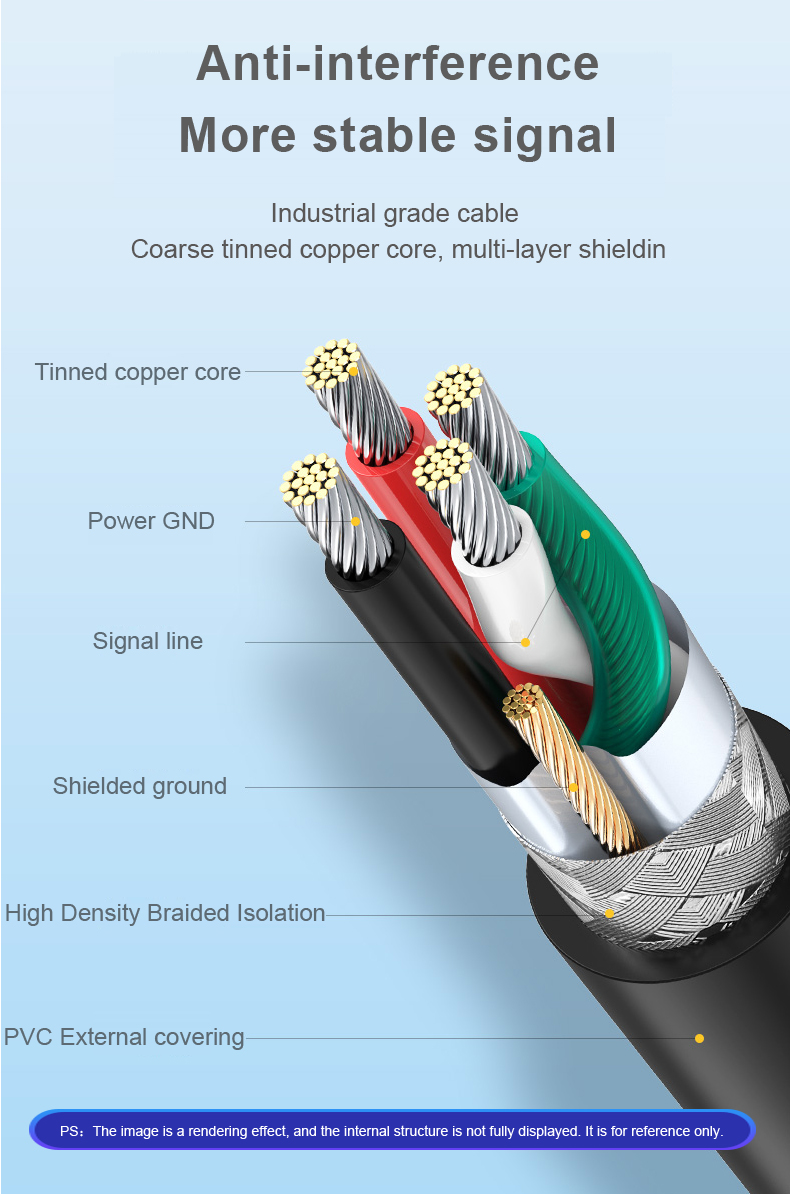

11. Transmission Medium: Twisted pair or shielded wire.

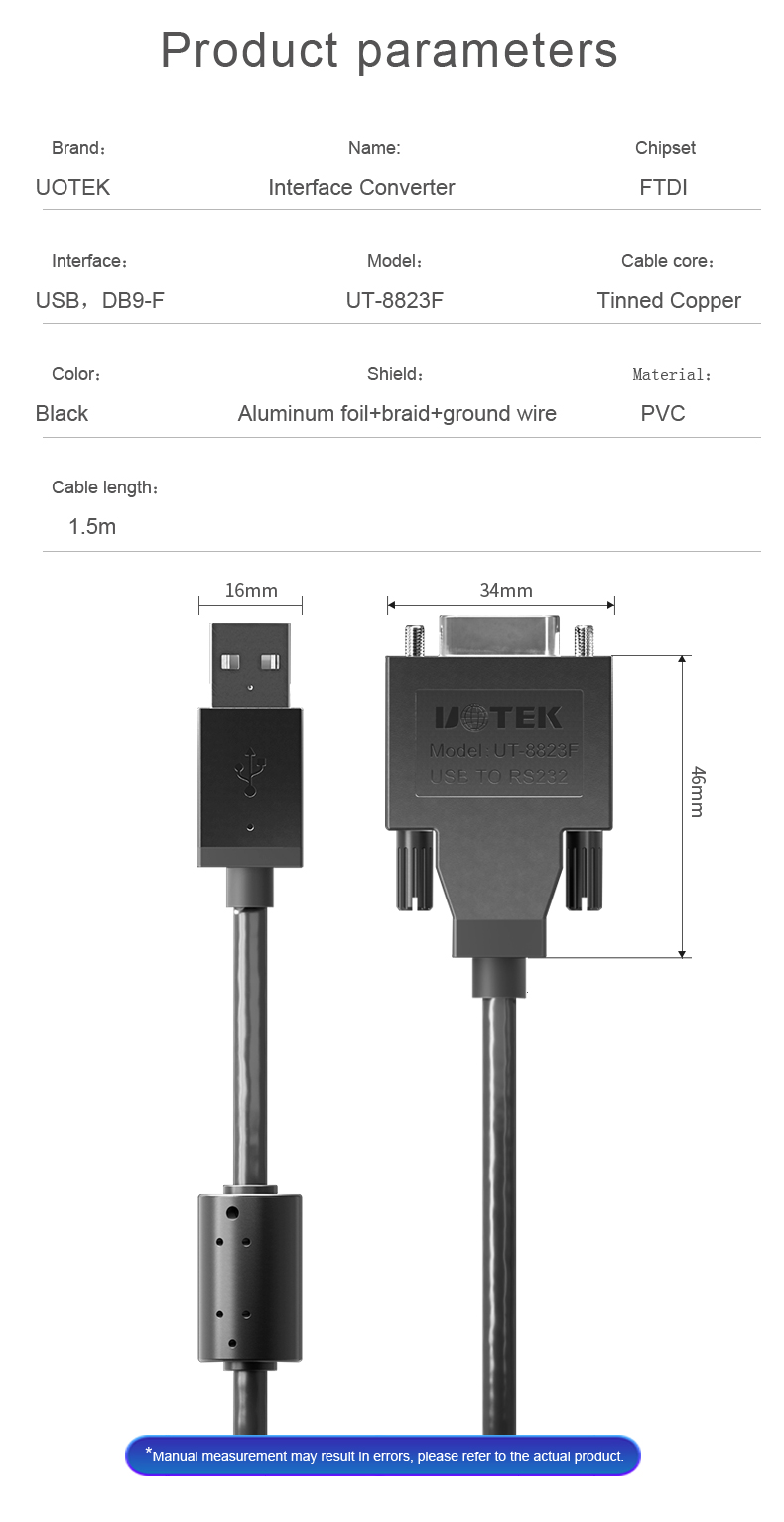

12. Dimensions: 153mm x 34mm x 16mm.

13. Operating Environment: -40°C to 85°C, relative humidity from 5% to 95%.

14. Compatibility: Supports Windows 95/98/2000/2008/XP/Vista/win7/8/8.1/10/11, MAC, Linux, etc.

UT-8232 Details
