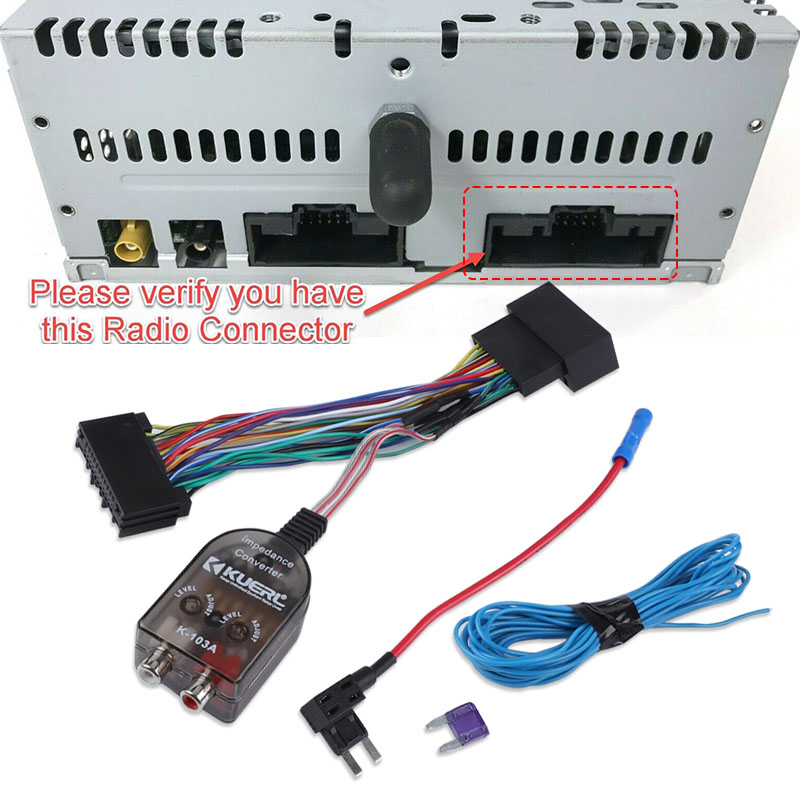

Installation:

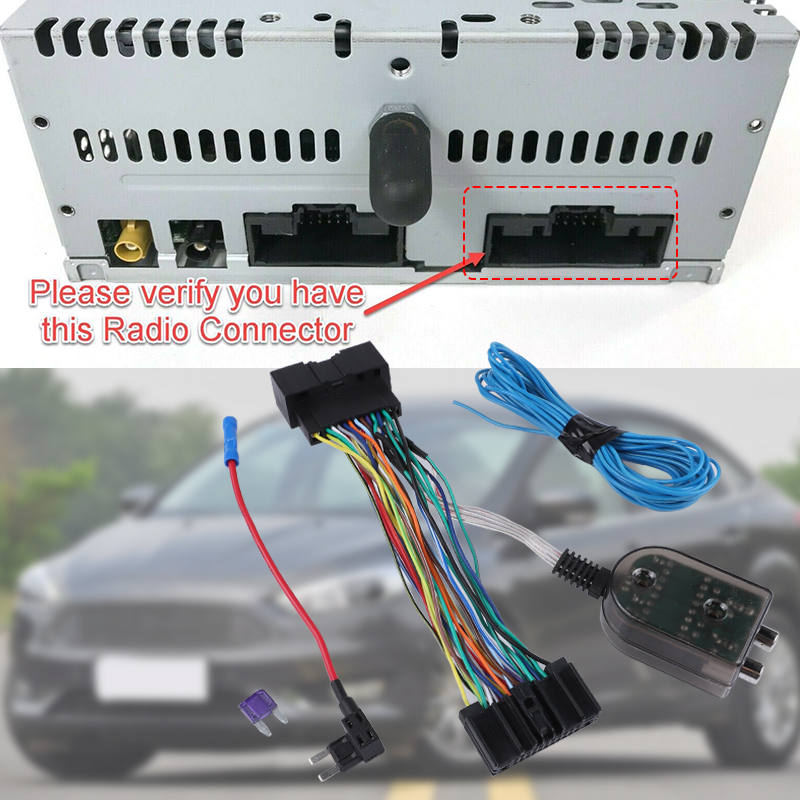

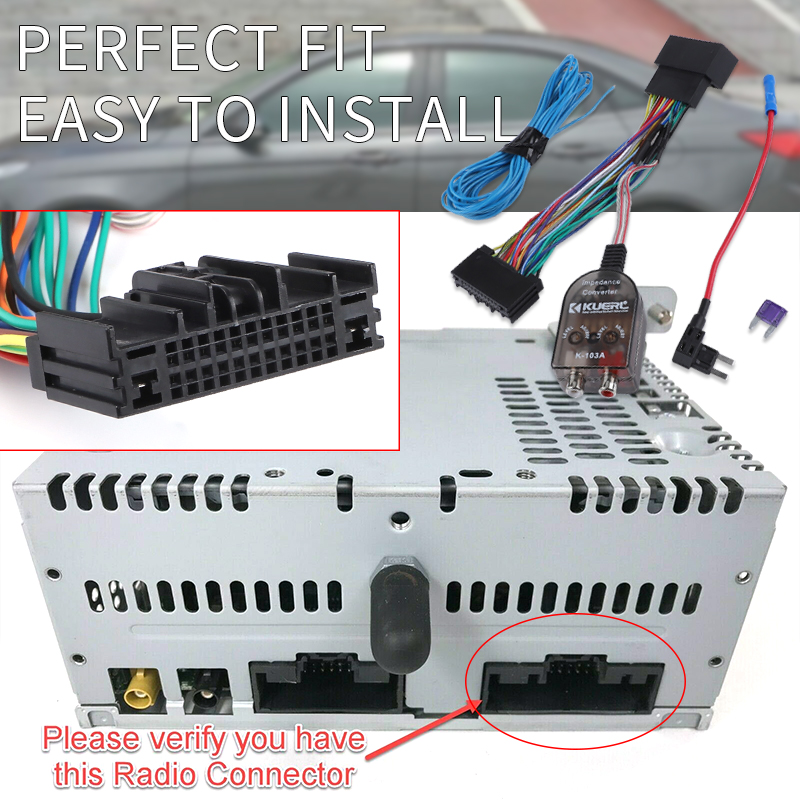

Remove your OEM factory radio
Unplug the OEM factory wiring and plug in this wire harness
Reinstall your OEM factory radio
What is it?

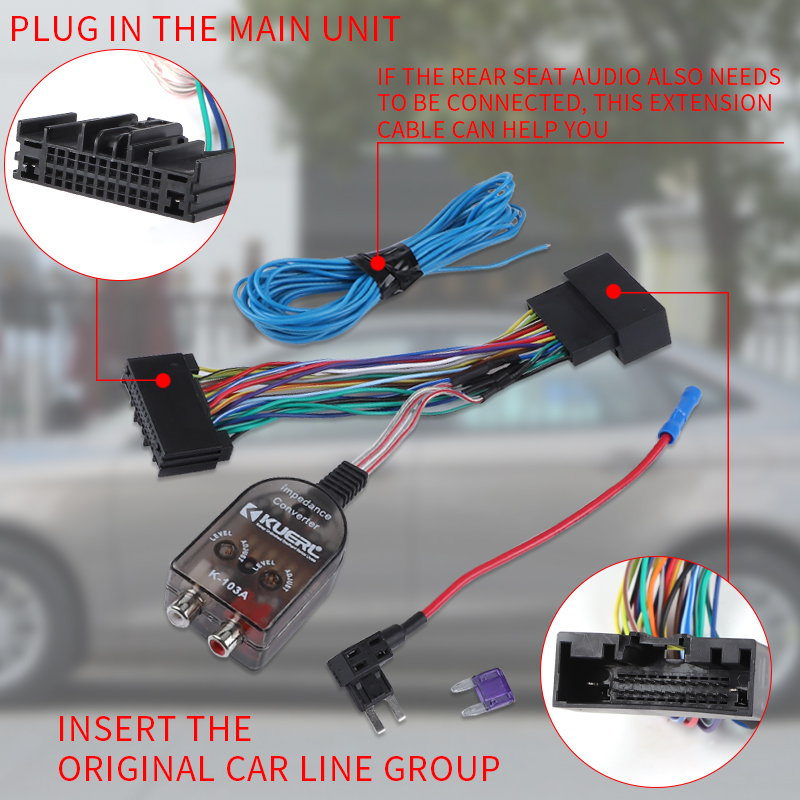

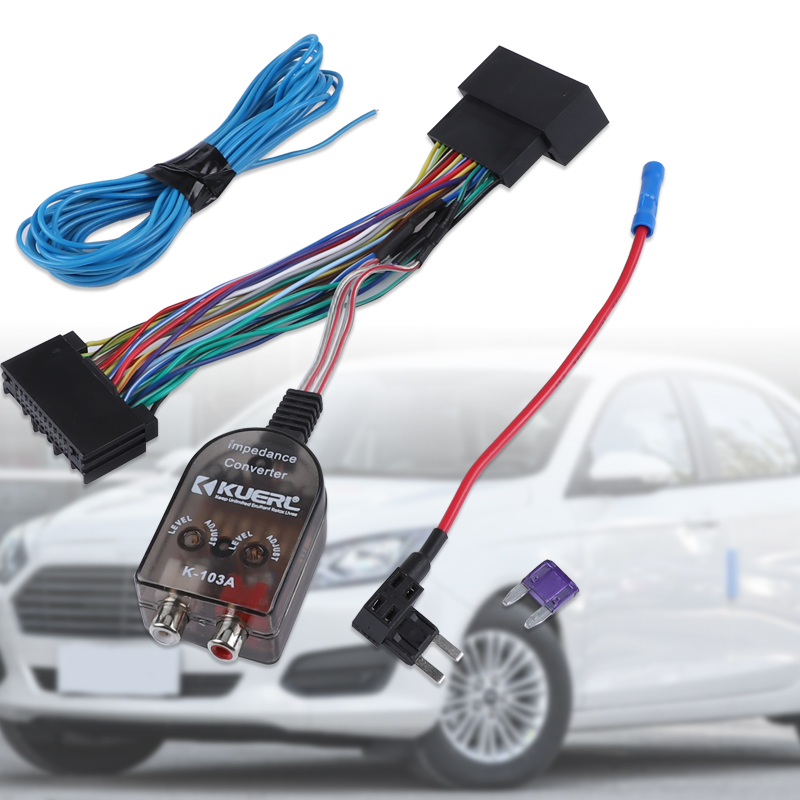

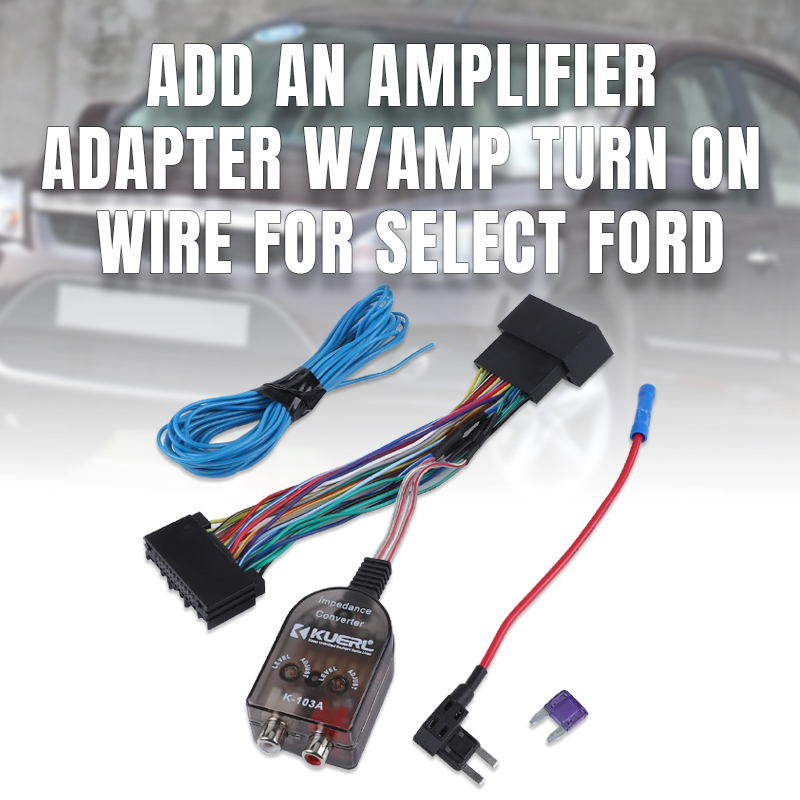

This wire harness provides a connection for one set of RCA cables to provide an audio signal to an external amplifier, as well as an add-a-circuit with remote wire for the remote amplifier turn on wire. This wire, along with a set of RCA cables, is run to your aftermarket amplifier. All that's left for you to do is connect the main power wire from your battery and ground. (Not included)

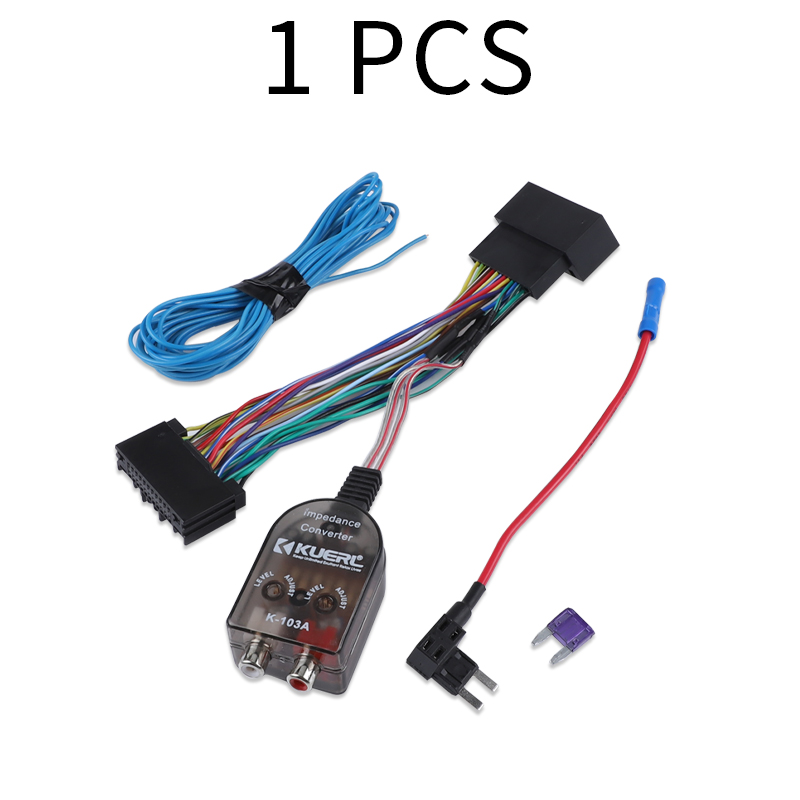

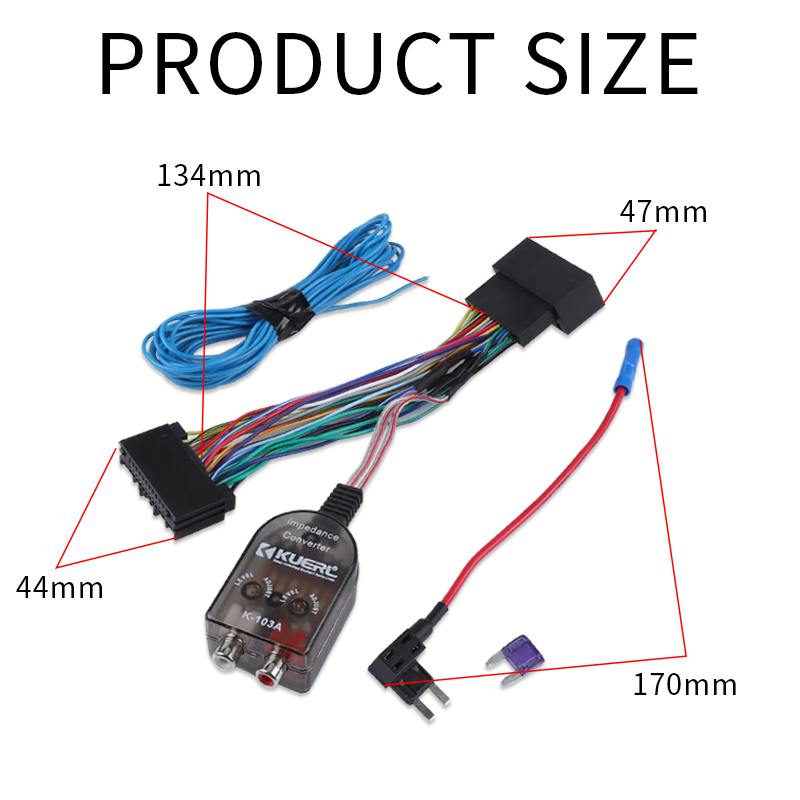

Inclues:
One (1) plug and play wire harness
One (1) Add-A-Circuit fuse tap
One (1) 3 amp fuse
Alternate Options:
Need additional parts for your installation?
Check out our other listings where RCA cables, bass knobs, and amps kits are included!
Compatibility Notes:

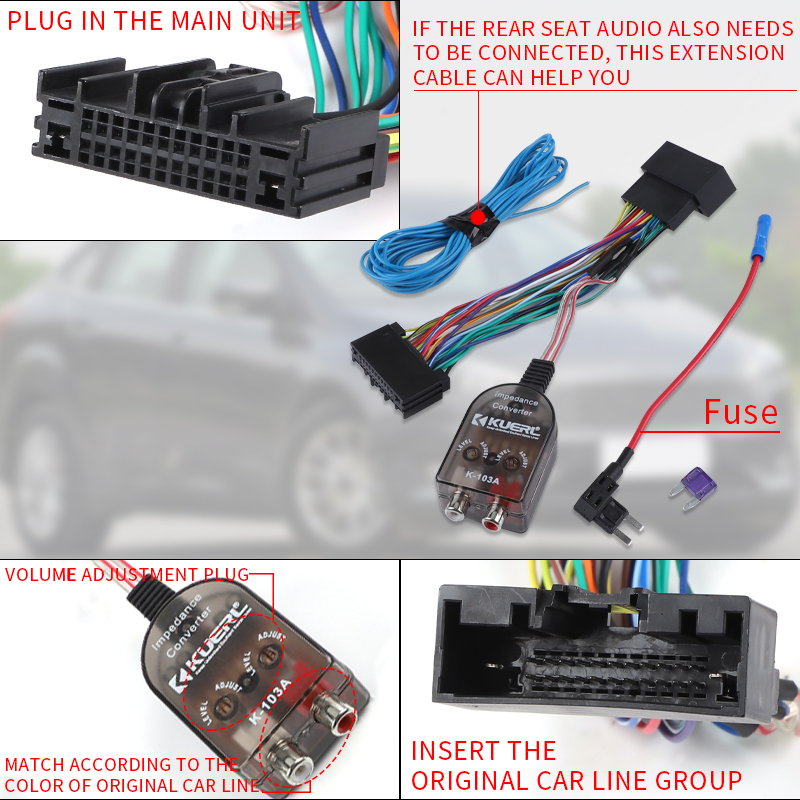

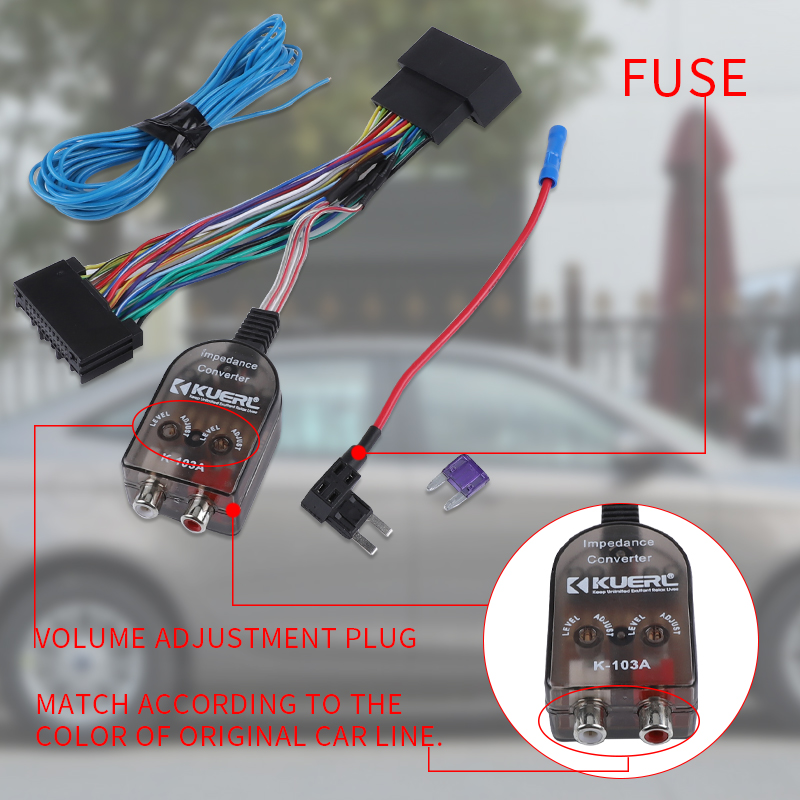

Audio volume to the amplifier can be adjusted by the dials on the harness. For easier access we recommend using an external volume knob. (Not included )
It is up to the installer to select which circuit to use with the Add-A-Circuit. The radio circuit is most common however any that turns on/off with the ignition could be used if deemed appropriate.
A variety of wire colors may be used for the remote wire coming off the harness. Regardless of color, rest assured it is for the remote turn on of an amplifier.

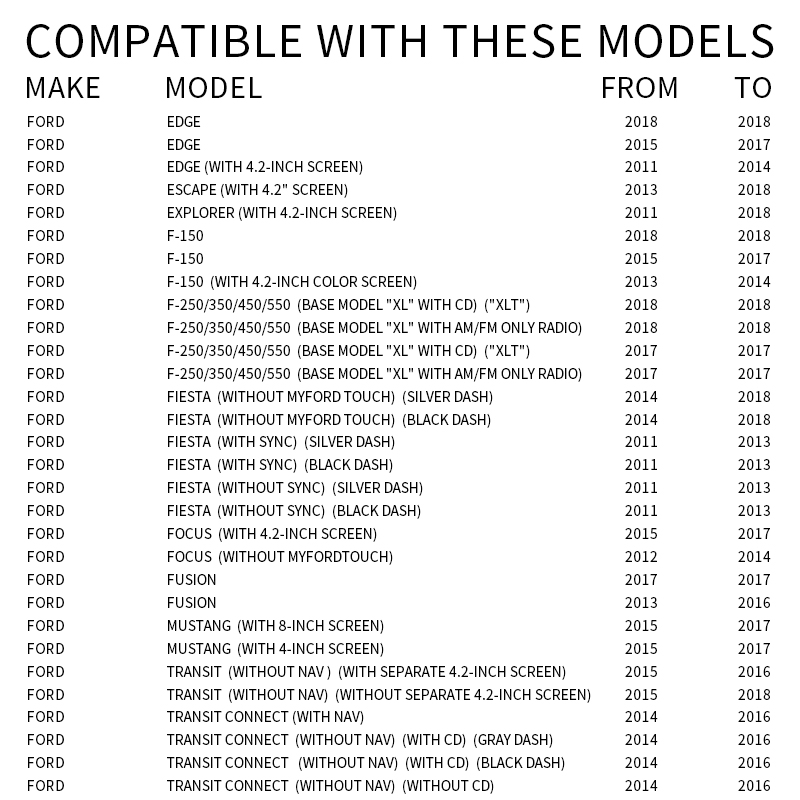

Compatible with these models
| MAKE | MODEL | From | To |
| Ford | Edge | 2018 | 2018 |
| Ford | Edge | 2015 | 2017 |
| Ford | Edge (with 4.2-inch screen) | 2011 | 2014 |
| Ford | Escape (with 4.2" screen) | 2013 | 2018 |
| Ford | Explorer (with 4.2-inch screen) | 2011 | 2018 |
| Ford | F-150 | 2018 | 2018 |
| Ford | F-150 | 2015 | 2017 |
| Ford | F-150 (with 4.2-inch color screen) | 2013 | 2014 |
| Ford | F-250/350/450/550 (base model "XL" with CD) ("XLT") | 2018 | 2018 |
| Ford | F-250/350/450/550 (base model "XL" with AM/FM only radio) | 2018 | 2018 |
| Ford | F-250/350/450/550 (base model "XL" with CD) ("XLT") | 2017 | 2017 |
| Ford | F-250/350/450/550 (base model "XL" with AM/FM only radio) | 2017 | 2017 |
| Ford | Fiesta (without MyFord Touch) (silver dash) | 2014 | 2018 |
| Ford | Fiesta (without MyFord Touch) (black dash) | 2014 | 2018 |
| Ford | Fiesta (with SYNC) (silver dash) | 2011 | 2013 |
| Ford | Fiesta (with SYNC) (black dash) | 2011 | 2013 |
| Ford | Fiesta (without SYNC) (silver dash) | 2011 | 2013 |
| Ford | Fiesta (without SYNC) (black dash) | 2011 | 2013 |
| Ford | Focus (with 4.2-inch screen) | 2015 | 2017 |
| Ford | Focus (without MyFordTouch) | 2012 | 2014 |
| Ford | Fusion | 2017 | 2017 |
| Ford | Fusion | 2013 | 2016 |
| Ford | Mustang (with 8-inch screen) | 2015 | 2017 |
| Ford | Mustang (with 4-inch screen) | 2015 | 2017 |
| Ford | Transit (without NAV ) (with separate 4.2-inch screen) | 2015 | 2016 |
| Ford | Transit (without NAV) (without separate 4.2-inch screen) | 2015 | 2018 |
| Ford | Transit Connect (with NAV) | 2014 | 2016 |
| Ford | Transit Connect (without NAV) (with cd) (gray dash) | 2014 | 2016 |
| Ford | Transit Connect (without NAV) (with cd) (black dash) | 2014 | 2016 |
| Ford | Transit Connect (without NAV) (without cd) | 2014 | 2016 |
Converter adjustment instructions:
After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.
Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.
Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.
Turn the remaining pot to the same position as the previously adjusted pot.
