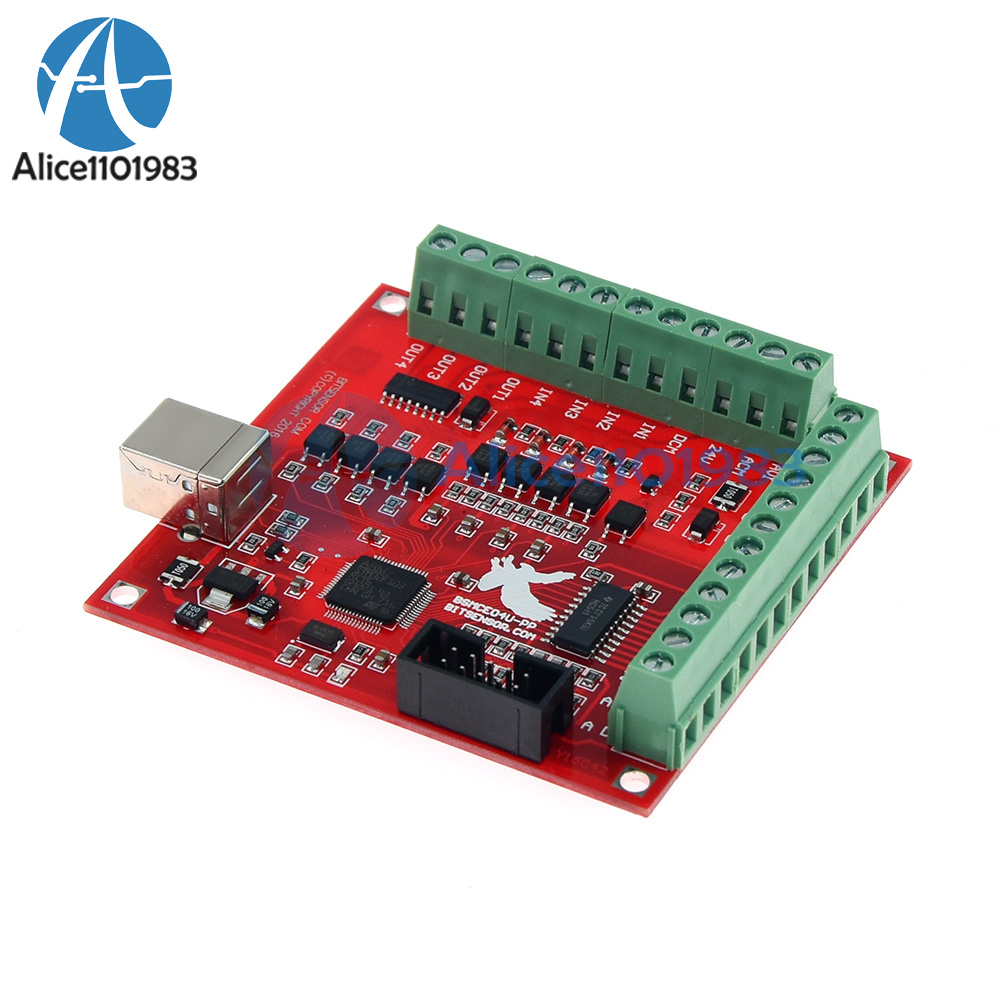

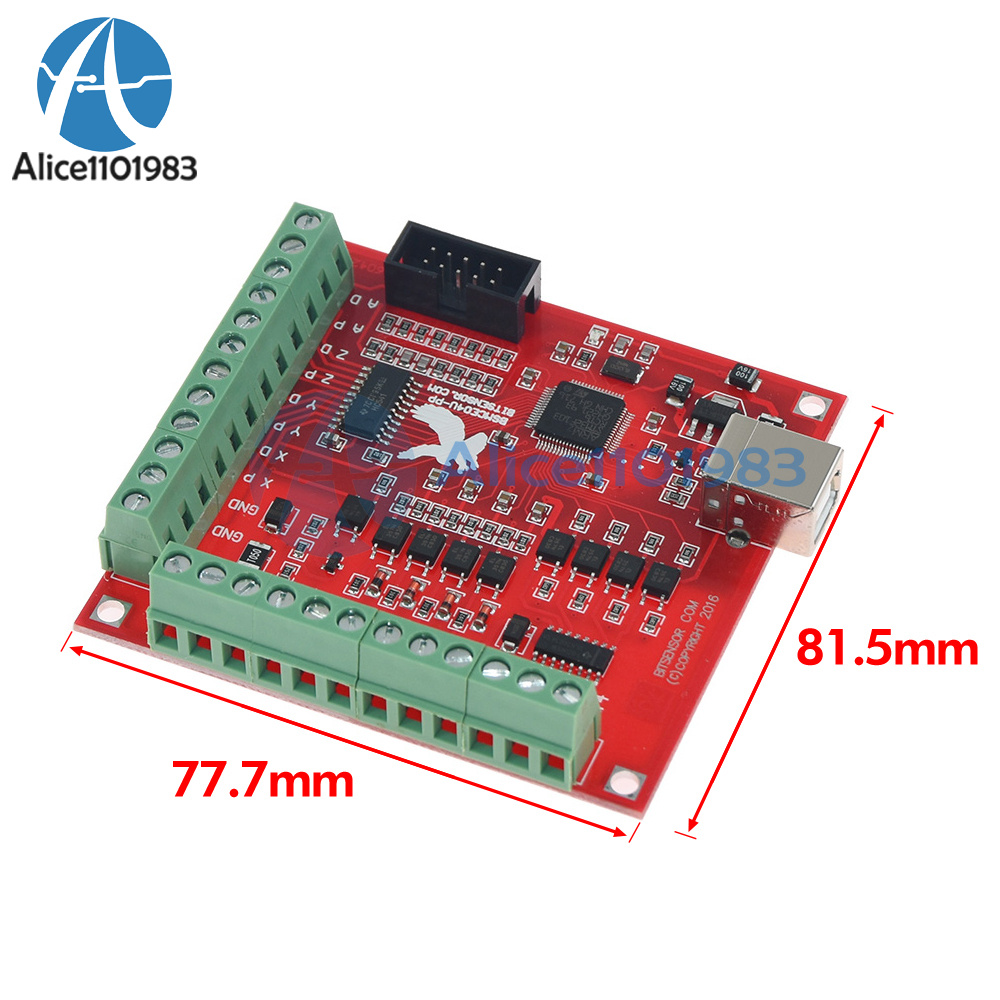

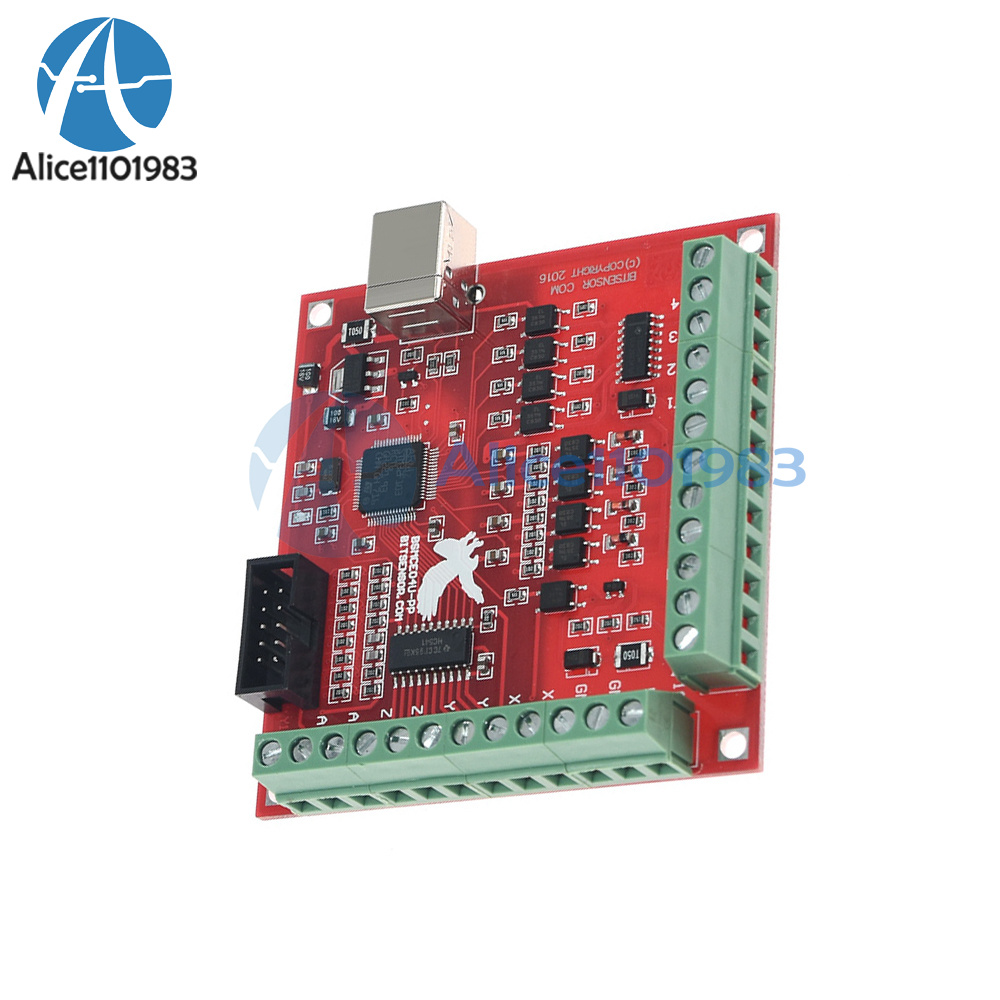

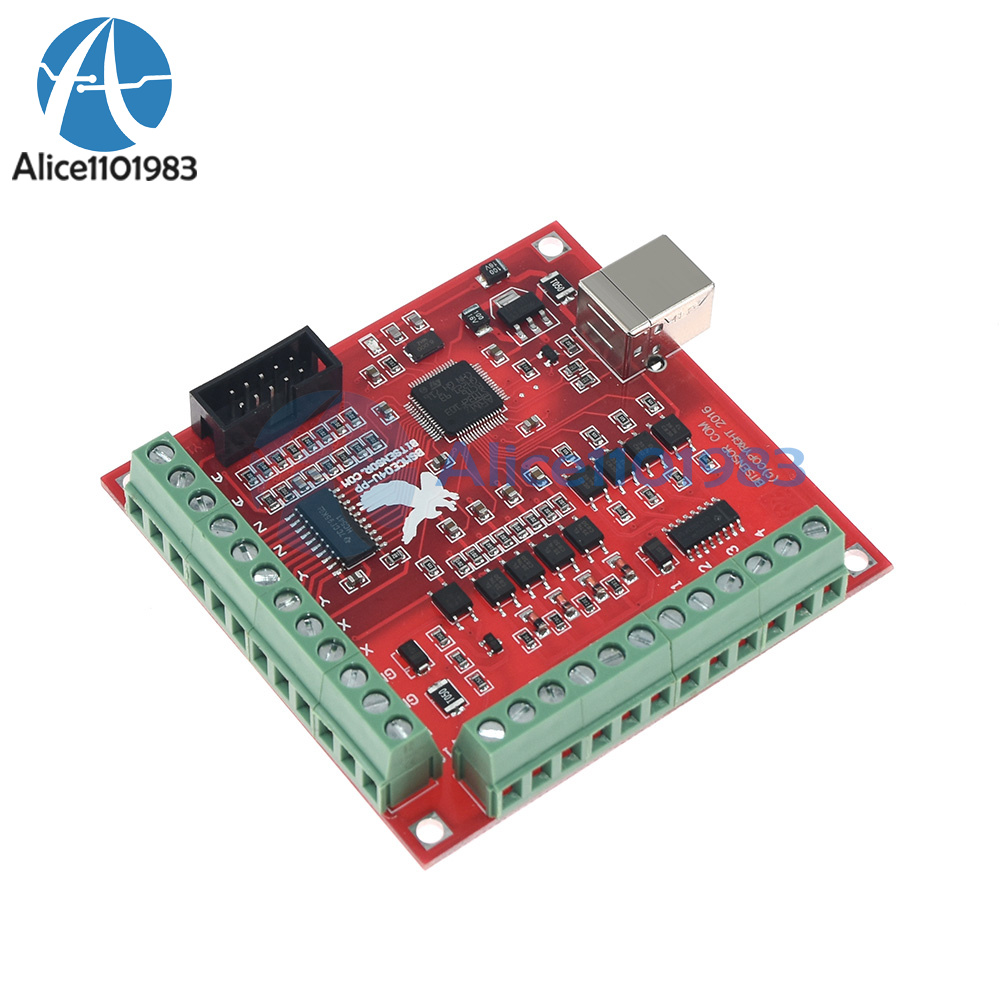

Product Details
2. The maximum step pulse frequency is 100KHz, suitable for servo or stepper motors;
3. Support automatic probe tool
4. Support emergency input
5. Support limit switch
6. Support connection with electronic handwheel
7. An external 24V DC power supply is required to isolate the USB and external ports to make the system more stable
8. With 0-10V output port, you can use mach3 software to control the speed of the spindle motor.
9.4 channels of universal input, can be connected to limit switch, emergency stop switch, probe switch, zero return and other devices
10.4 universal isolated relay drive output interfaces, which can drive 4 relays to control the spindle start, forward and reverse rotation, water pump and other equipment
11.1 Status LEDs to indicate on-board connection status
Machine tools are not toys! Improper operation will bring certain danger! ! !
The most common mistake for beginners is to run the G code rashly without mastering the properties of the machine tool, causing the spindle of the engraving machine to hit the engraving machine bracket.
Therefore, it is recommended that limit switches and emergency stop switches must be installed first.
If these protection switches are not installed, in an emergency, in addition to pressing the emergency stop to return (sometimes it is too late to press), turn off the motor power (sometimes it is too late to turn off),
In addition, the most convenient way to stop is:
Unplug the USB cable! As long as you unplug the USB cable, the machine will automatically stop

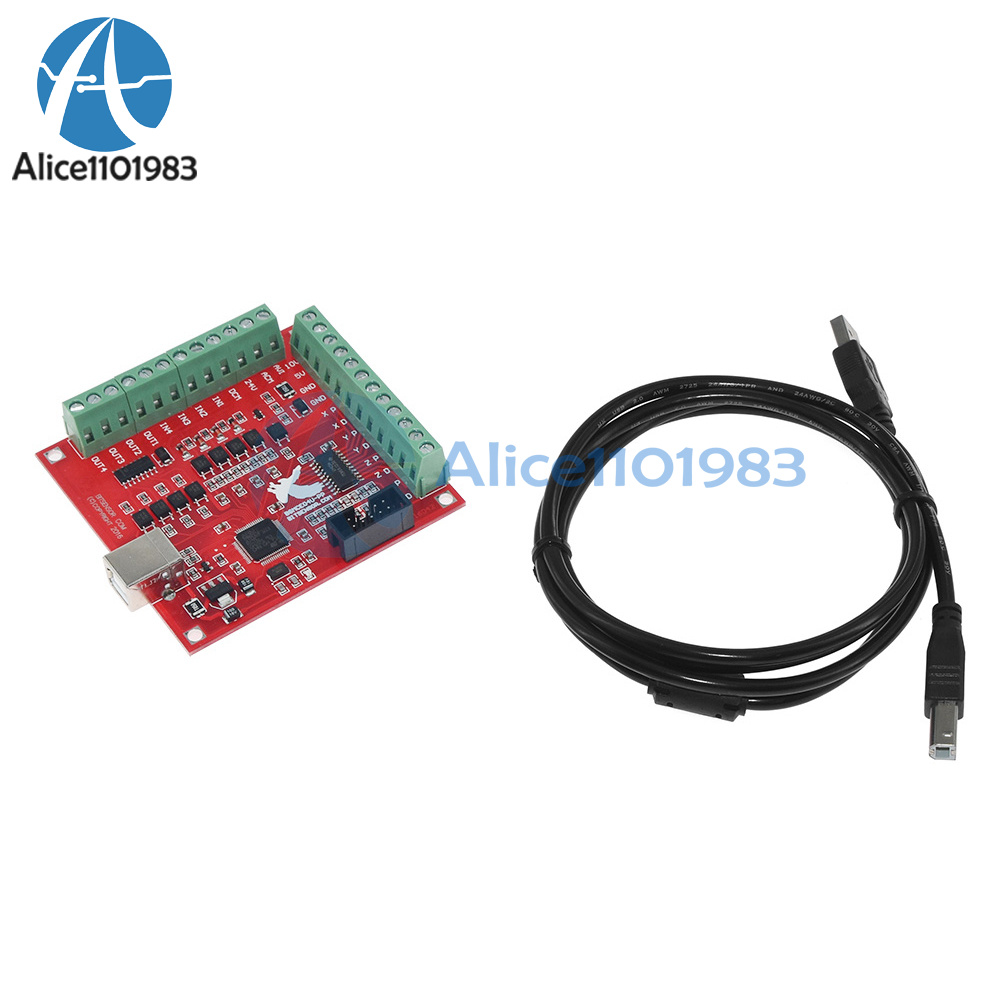

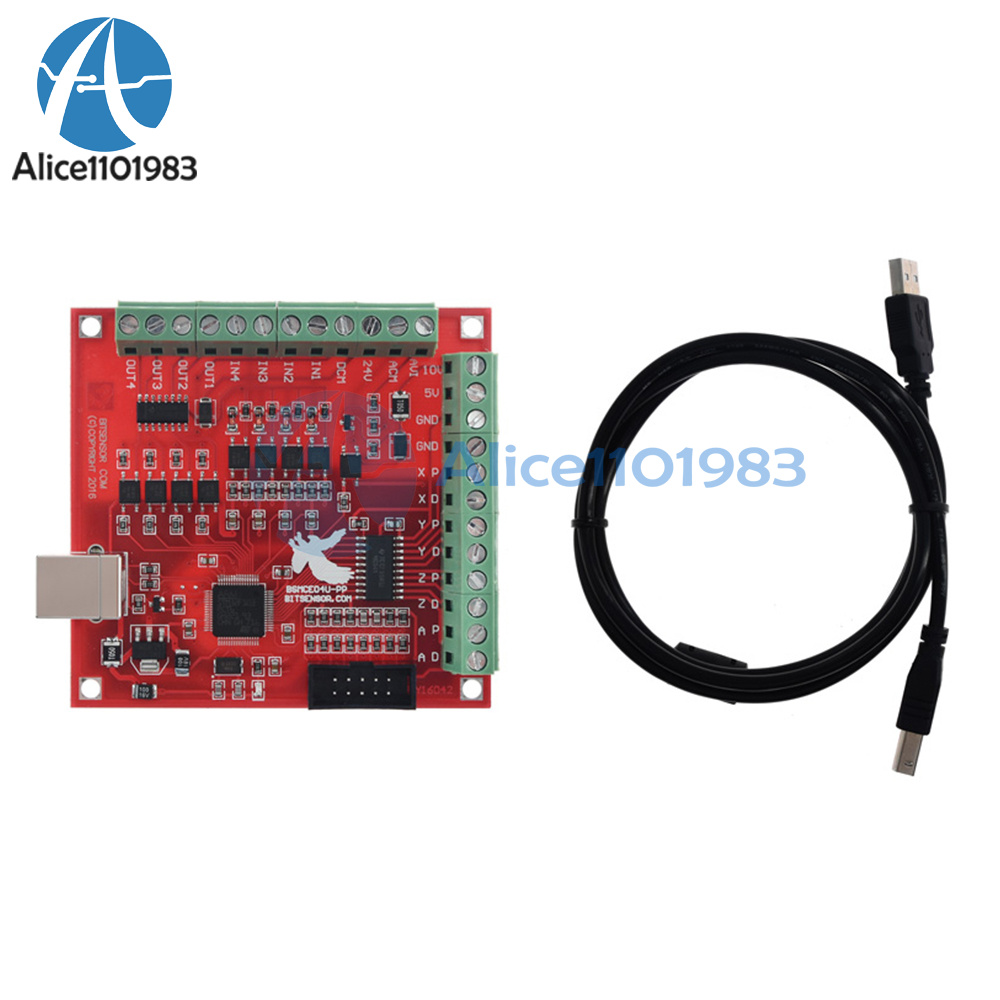

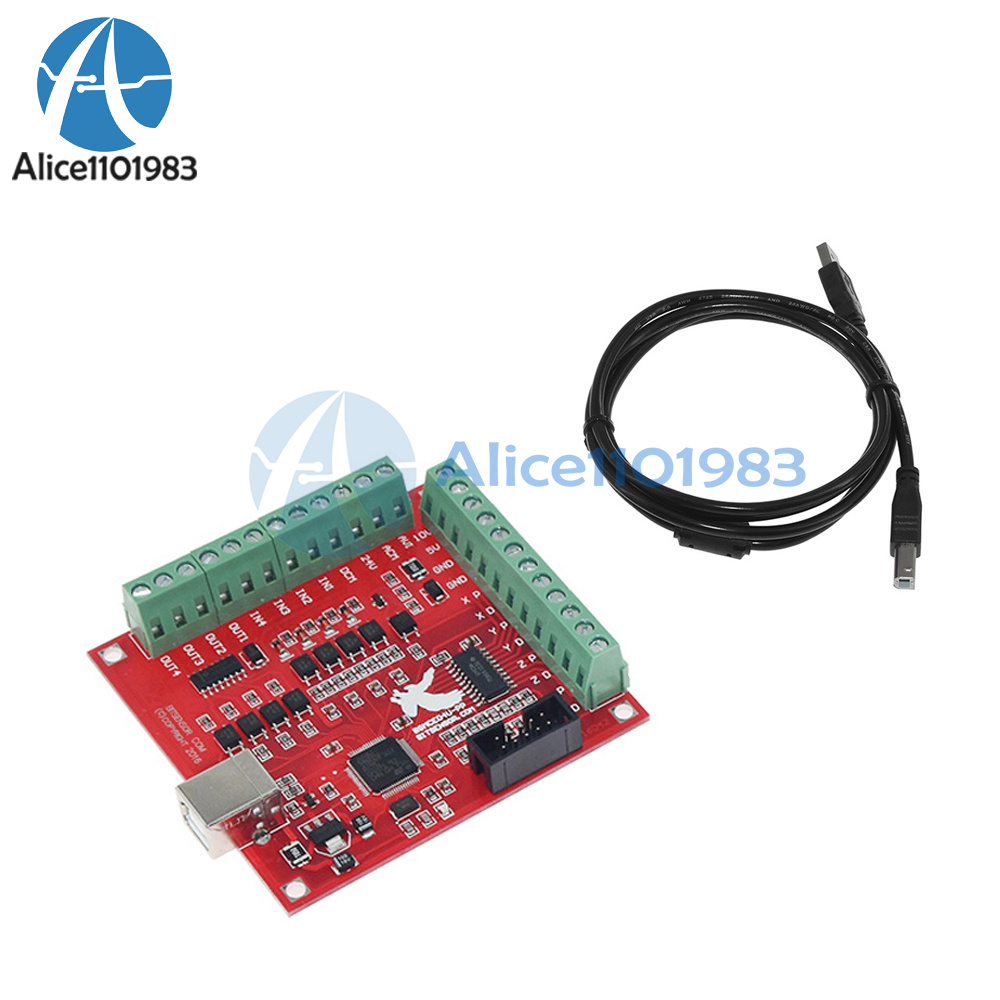

Controller card*1
USB cable*1"
