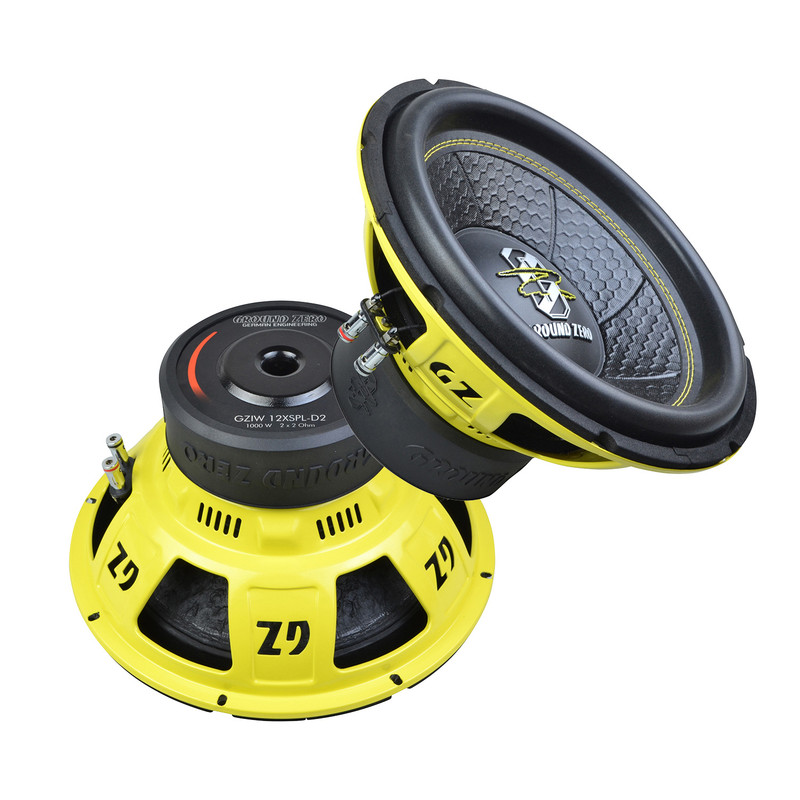

GZIW 12XSPL-D2
HIGH PERFORMANCE GERMAN ENGINEERED SUBWOOFER
1000 Watts SPL
12″ high quality SPL subwoofer with reinforced paper cone
- 12″ SPL subwoofer
- Klippel® optimized
- Reinforced paper cone with 3D honeycomb structure
- Long stroke compound surround
- Resonance free GZ steel basket
- 63 mm / 2.5″ copper voice coil
- 2-layer Polycot-Conex spider
- IMPP dust cap with 3D structure logo

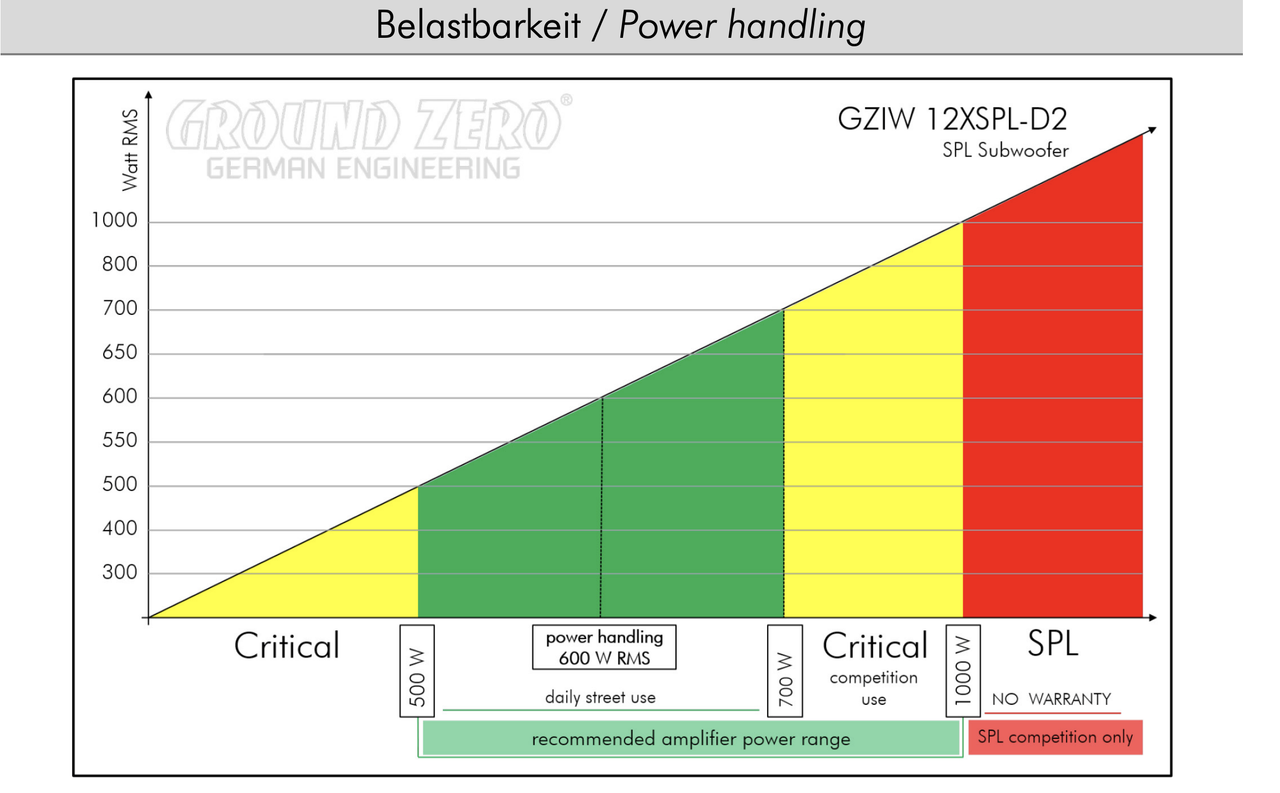

PERFORMANCE AND POWER CHARTS

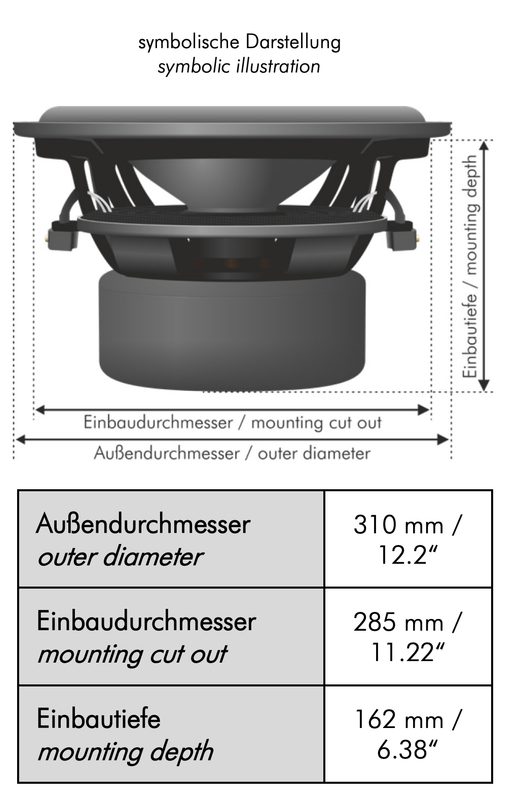

MOUNTING DIMENSIONS FOR INSTALLATION

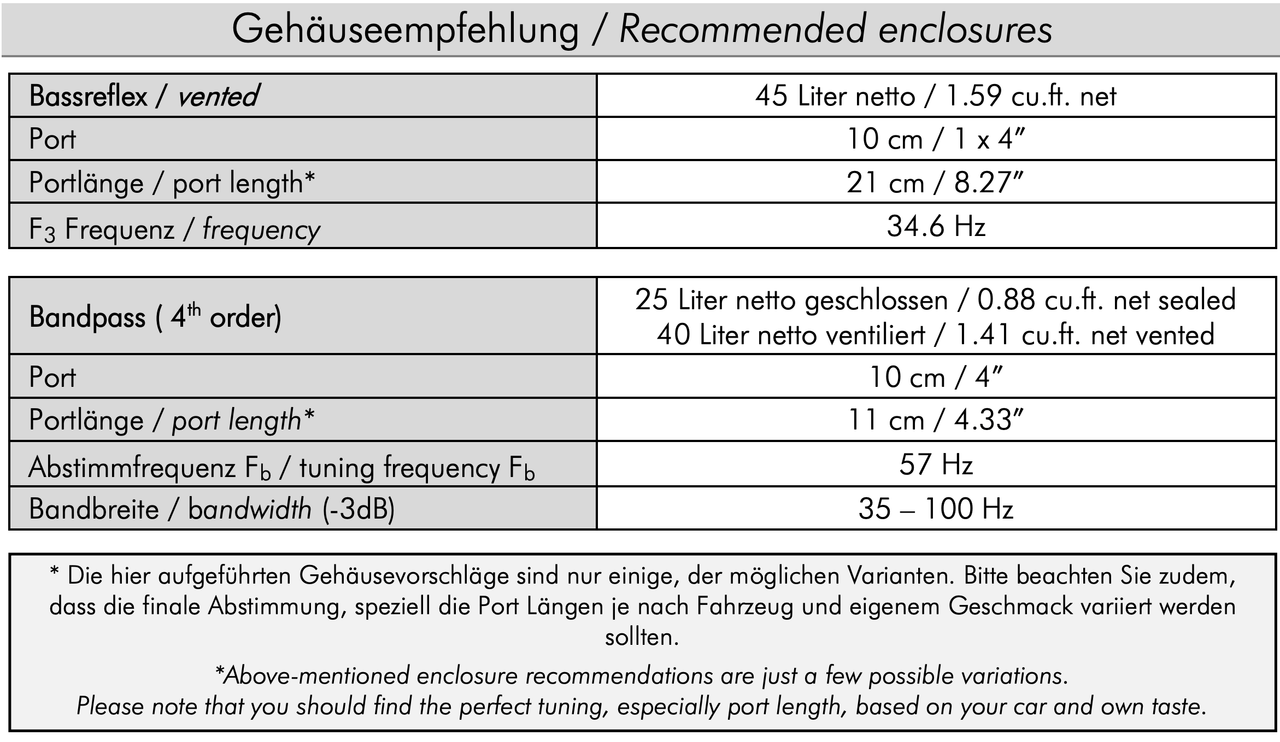

ENCLOSURE RECOMMENDATIONS
Specification
| Model |
High-Quality SPL subwoofer |
|---|---|
| Diameter |
30 cm / 12" |
| Power Handling (RMS/SPL.) |
600 / 1000 Watts |
| Impedance |
2x 2 Ohms |
| Power Recommendation | |
| Voice Coil |
63 mm / 2.5" Copper |
| Membran Layout | |
| Max. Excursion (Xmax) | |
| Mounting Ø | |
| Mounting Depth | |
| Resonance Frequency (Fs) | |
| Overall Qaulity (Qts) | |
| Equiv. Air Volume (Vas) |
40.4 L / 1.43 cu.ft. |
