There are 2 types of Mixer Shower below, please read the product information (function and package size, etc.) carefully before purchasing, any questions please contact us in time.

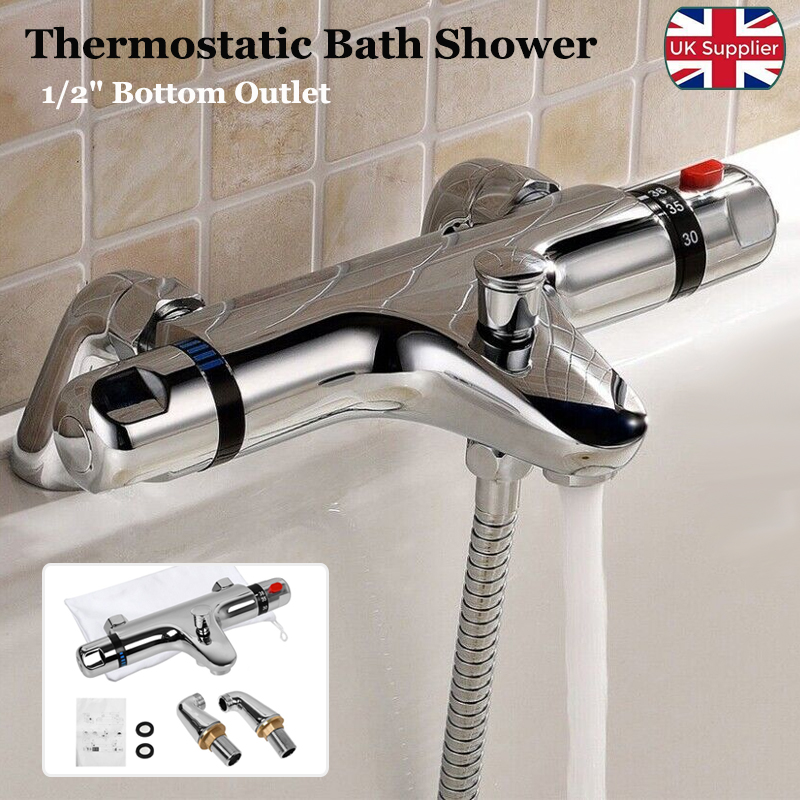

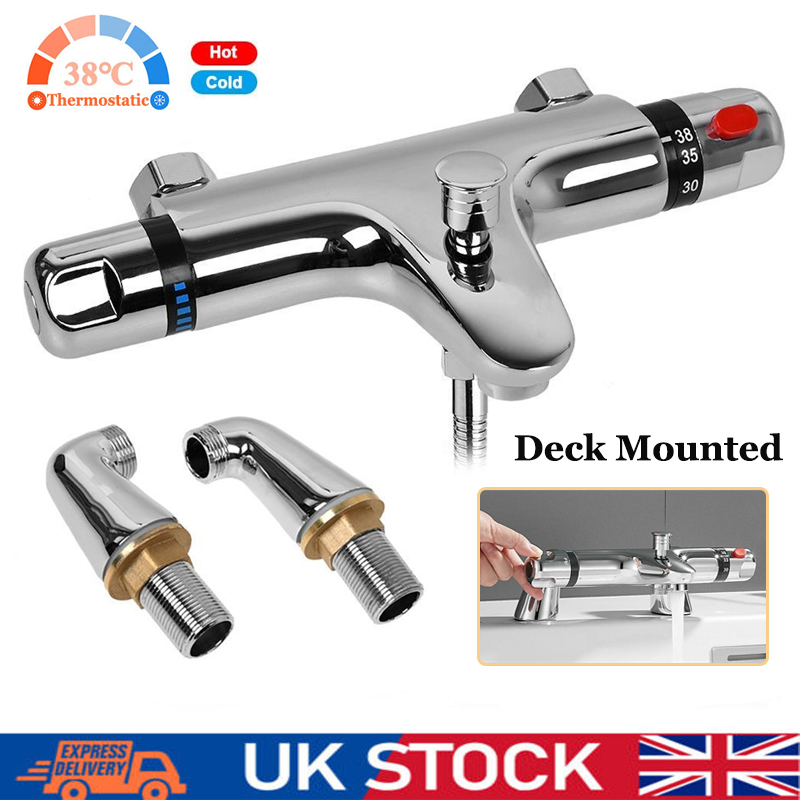

Type: Deck Mounted
Features:
- Premium material: This Thermostatic valve is made of durable solid brass construction, ceramic valve core, and chrome finished, Easy to Clean. resists tarnish and corrosion, long durability.
- Thermostatic Control: Compared with the ordinary shower, the thermostatic mixer valve can automatically balance the cold and hot water pressure to maintain water temperature stable in a quick time.
- Intelligent temperature: The range for the outlet water temperature is from 20 to 50°C, safety button temperature: 38°C; Don't worry about the sudden cold or hot water.
- Easy to Install: Come with 2 legs for deck mounted, you just need to mount on the deck, and connect the cold water pipe to the right and the hot water pipe to the left. The distance between the hot water inlet and cold water inlet is: 150mm.
- Flexible Control: Left Hand Knob controls water flow, and the right hand knob controls water temperature (with a safety lock at 38 °C). The lift knob controls bath or shower.
Specification:
- Material: Chrome-plated solid brass
- Installation: Deck Mounted, or Wall Mounted (S connectors NOT included, you need to purchase it by yourself)
- Left Control Knob: Controls the water flow
- Right Control Knob: Controls the water temperature
- Lift Knob: Controls Bath or Shower Way
- Outlet Water Temperature Range: 30-45°C
- Safety Button Temperature: 38°C
- Size of Inlet: G 3/4"
- Size of Outlet: G 1/2"
- Distance between hot water inlet and cold water inlet: 150mm
- Distance between 2 Deck Mounted Legs: 180mm
- Suitable for most plumbing systems
- Water Pressure: Minimum 0.5 bar, recommend 1 bar for best performance
What's included :
- 1x Deck Mounted Bath Shower Mixer Valve
- 2x Deck Mounted Legs
Type: Wall Mounted
Specification:
- Material: Solid brass
- Surface Process: High polished chrome finish
- Cold/Hot Water Control Type: Auto-thermostatic control
- Installation: Wall mounted
- Recommended pressure: 0.5MPa-10MPA.
- Cold water supply temperature range:5-29°C.
- Hot water supply temperature range:50-80°C.
- Adjustable temperature range: 20-50°C.
Water temperature requirements:
- Recommended maximum: = 65°C
- Minimum hot water temperature: = 55°C
- Maximum cold water temperature: = 25°C
Note:
- Valves operating outside these conditions cannot be guaranteed by the Scheme to operate as Type 2 valves.
- A stored water temperature of 60°C is considered sufficient to meet all normal requirements and will minimise the effects of scale in hard water areas.
The basic points of the thermostatic faucet:
- Install hot water pipes on the left and install cold water pipes on the right
- Clean the wall and mounting holes before installation
- Do not support the use of natural gas water heater, may lead to pressure can not keep up with normal use
- The main working principle is built-in probe, you can control the temperature within 38 safe temperature, if the temperature is too high, the probe will automatically sense the temperature, stop the water.
What's included :
- 1 x Thermostatic Bath Shower Mixer Valve

Kindly Reminder:
-- Please allow minor errors due to manual measurement. Thanks for your understanding.
-- Monitors are not calibrated same, item colour displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
-- If you have any problems or concerns, please contact us, we are always there.
-- If you have any questions please E-mail us, We will be happy to help you. (Provide the perfect solution)
-- If an item is defective or taking longer than usual to reach you, or you think that the product did not meet the expectations you requested, please do not leave a negative feedback. Send us a message through eBay and we will resolve the issue problem. Thanks for your understandings.
