Output: 700mA ± 20mA

Drive 1-10 pcs 3W LED

Supports PWM dimming

High level turn off the output

Low level Open the output

LED buck mode to ensure the total total voltage difference is lower than the input supply voltage (2-3V) .
Ultra-small size design (length 3.6cm * Width 2cm)

Constant output current, low ripple.
LED used to ensure the safety, stability, improving the LED light efficiency, reducing the lumen.

Overload, short circuit, overcurrent protection, to ensure the supply security.

Wide input voltage, VIN + is positive electrode input, VIN-negative electrode power supply input.

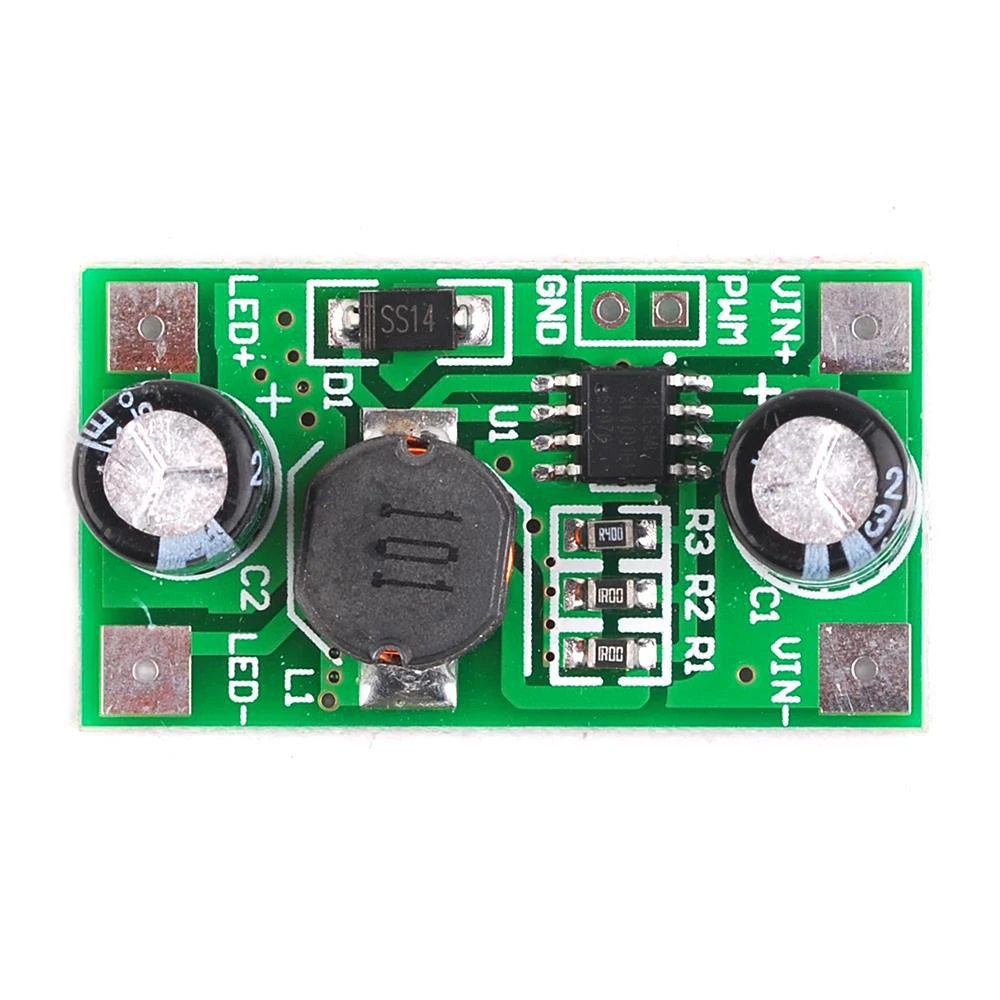

LED + LED anode connection, LED-LED cathode connection
