UOTEK Industrial Grade 4G LTE Router 4g To RS-232 RS-485 RJ45 WIFI UT-9101 RS232 RS485 Converter
As an industrial LTE router, UT-9101 is a DTU device based on the Qualcomm MDM9X07 platform. It supports 4G, WIFI, AP functions. It
provides a 10M/100M/1000M Ethernet port, auto-negotiation, automatically assigns IP addresses. PC can use 4G network function by this device after connecting with a network cable.
This DTU router provides RS232/485 port, which can be used as DTU transparent data transmission. Users can set the parameters through WEB configuration. With high industrial standard design and surge protection, this 4g LTE industrial router is widely used in industrial control, data communication system, and industrial automation.
UT-9101 Parameters
Supports IEE 802.11 b/g/n
1x RS-232/485 port, 1,200bps-115,200bps
transmission rate: 1x 10M/100M/1000M Ethernet port
Working temperature: 12-36V DC
Working current: ≤ 300mA@12V
Operating temperature: -40~+85℃
Storage temperature: -40~+85℃
Operating humidity: 5~95%(non-condensing)
Storage humidity: 5~95%(non-condensing)

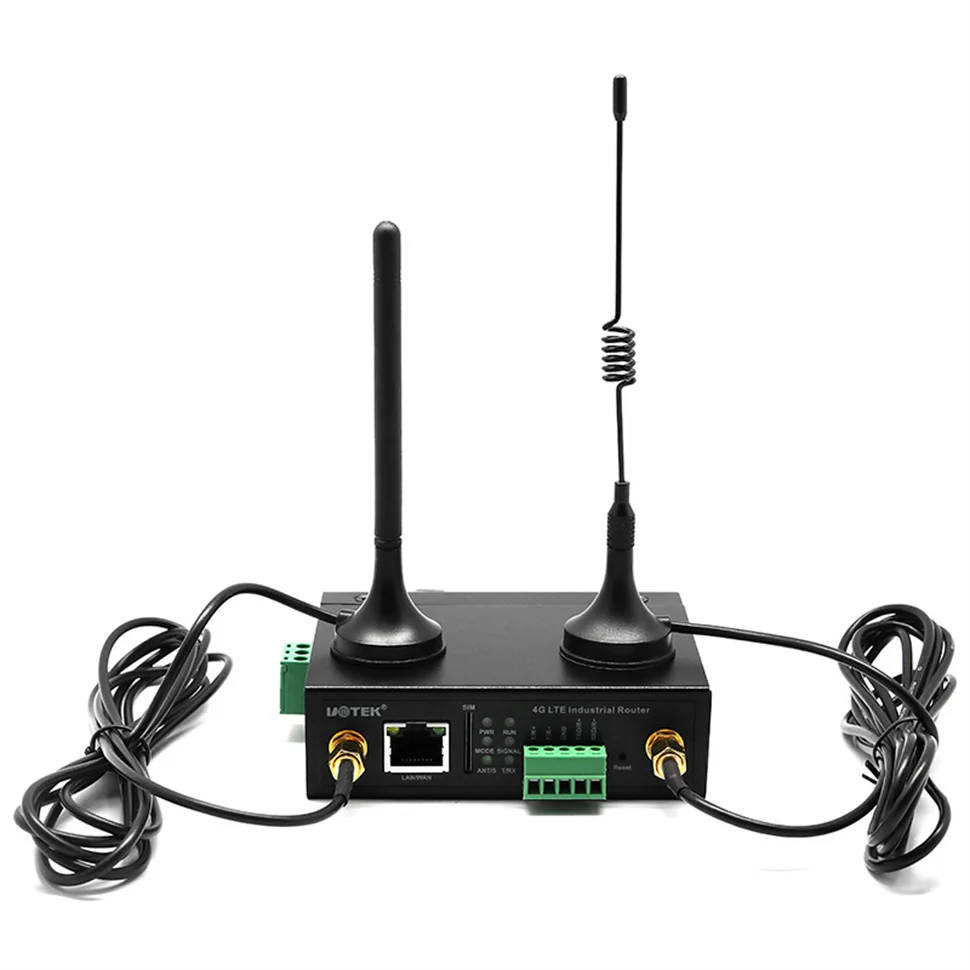

Antenna impedance: 50Ω（2m sucker antenna）
ESD protection: Air 8kV, contact 6kV
Electrical fast transient pulse: 2kV
Surge protection: power port: 1.2/50us
common mode 2kV, differential mode 1kV
Ethernet port: 10/700us common mode 2kV, differential mode 1kV
