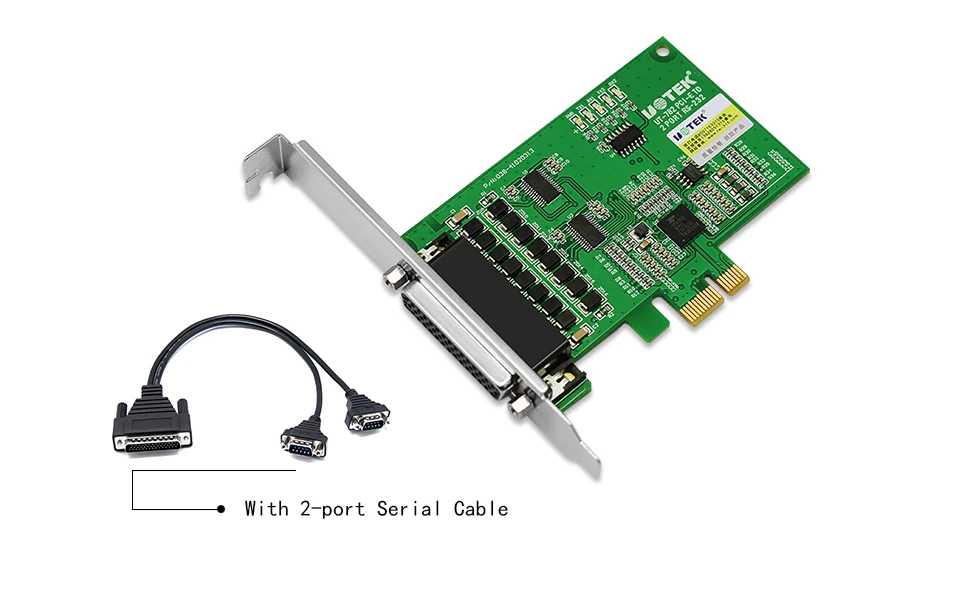

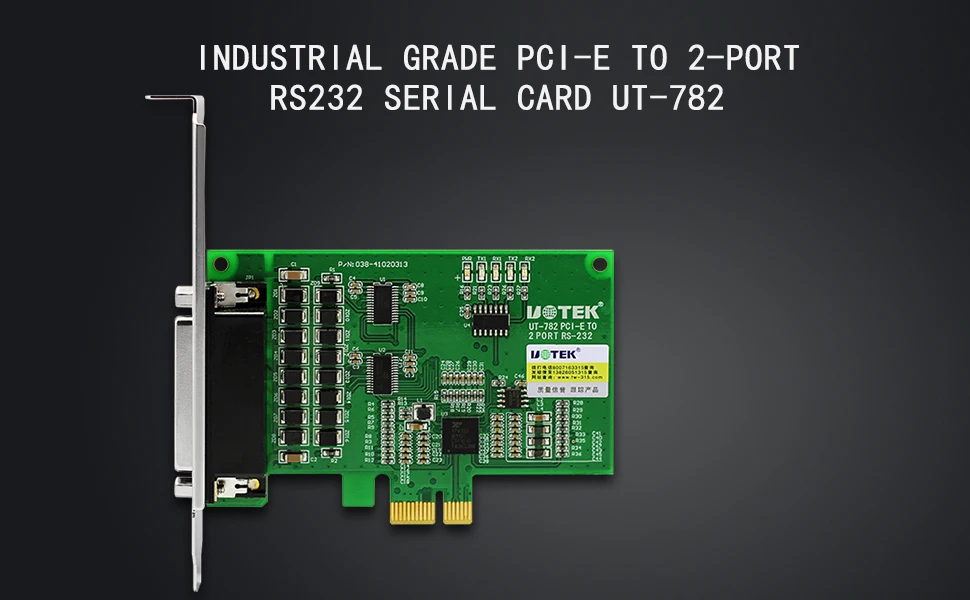

UOTEK Industrial Grade PCI-E to RS-232 Serial Card PCIE to RS232 2 Ports High Speed DR44 Converter DB9 Connector UT-782 Adapter




    UT-782 is a universal PCI-E multiport serial adapter. It is designed for POS, ATM; it can be applied in industrial automation and integrated system.

    UT-782 provides with 2 RS-232 serial ports, both of the ports support 600W surge protection. It allows connecting with most of multiport serial devices such like PC, terminal, Modem, printer, scan, etc. The transmission rate for each port can be reach to 921.6Kbps. It provides with Modem control signal, to guarantee the compatibility between serial device and peripheral equipment.

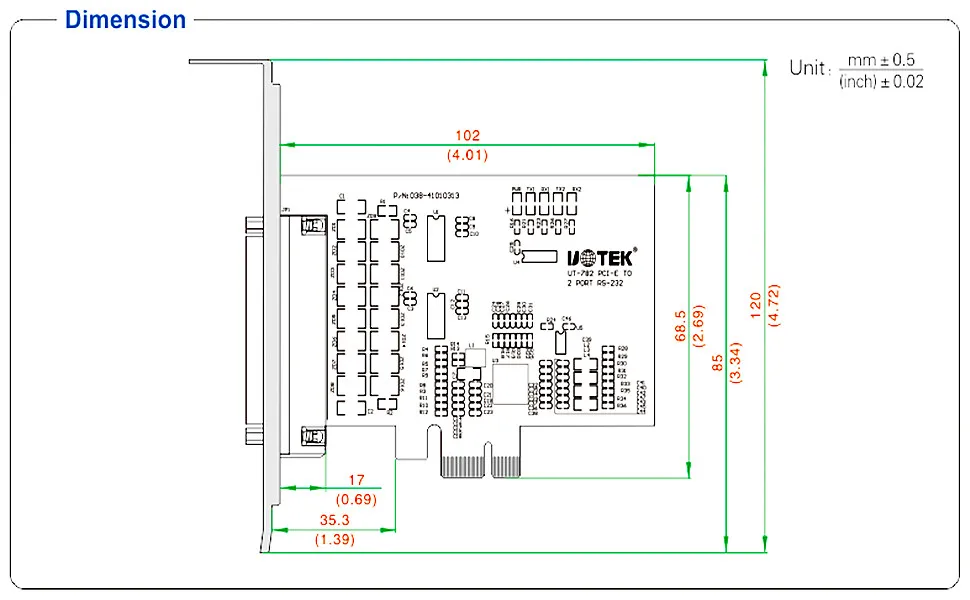

UT-782 Details


UT-782 Parameters

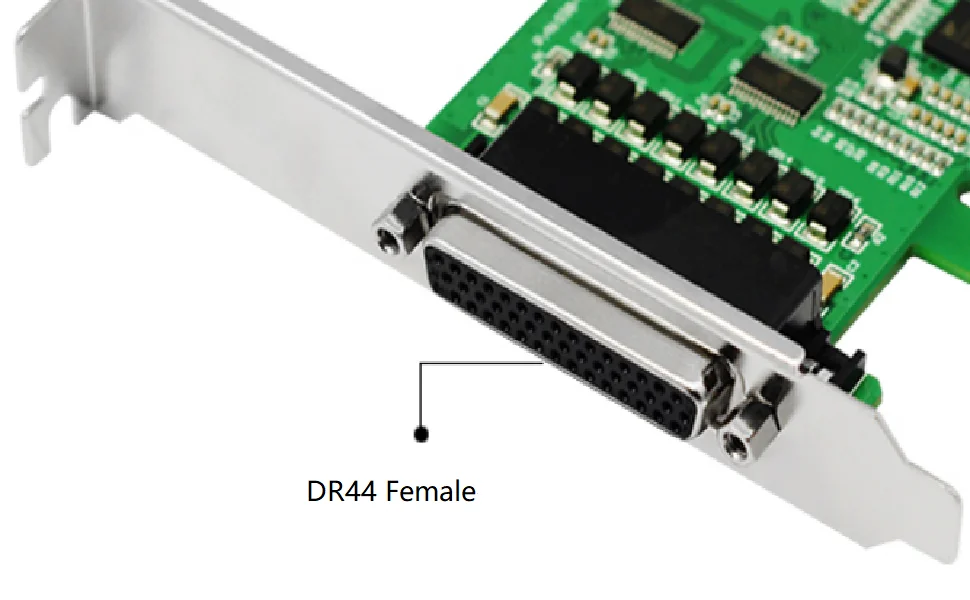

● Connector: DR44 female x1

● Bus: X1 2.5Gbps PCI Express

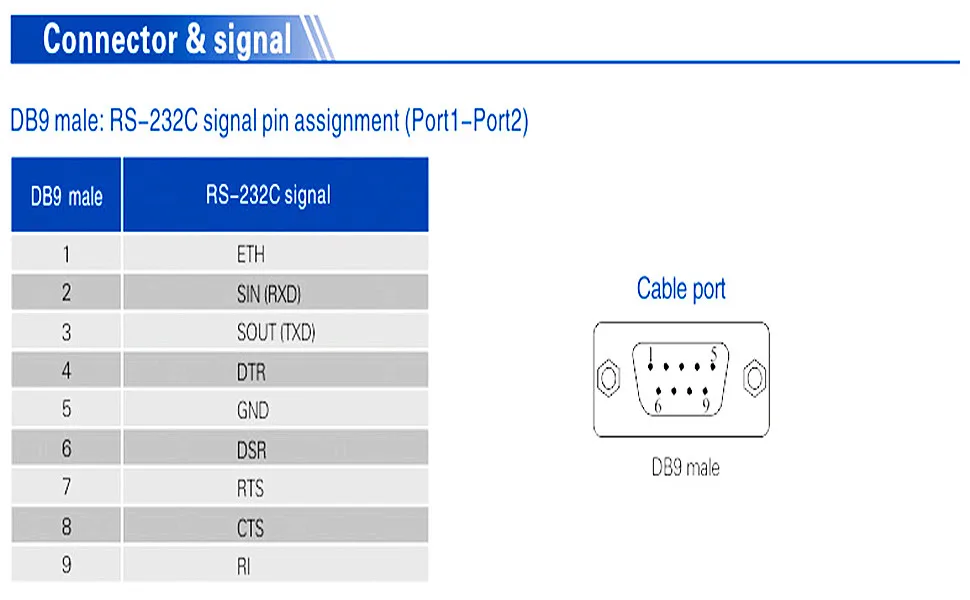

● Signal: RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

● Transmission rate: 300bps-921.6Kbps

● Data bits: 5, 6, 7, 8

● Stop bits: 1, 1.5, 2

● Check bits: None, Even, odd, Space, Mark

● Flow control: RTS/CTS  XON/XOFF

● Operating temperature: -40℃～85℃

● Interface protection: RS-232 provides with 600W lightning surge, ±15KV ESD protection each line

● Transmission distance: RS-232: 15m

● System: Win2000/XP/Vista/Win7/8/8.1/NT4.0/CE 4.2/5.0/6.0/ Vxworks/Linux 2.4.x/2.6.x


UT-782 Application


UTEK Certificate

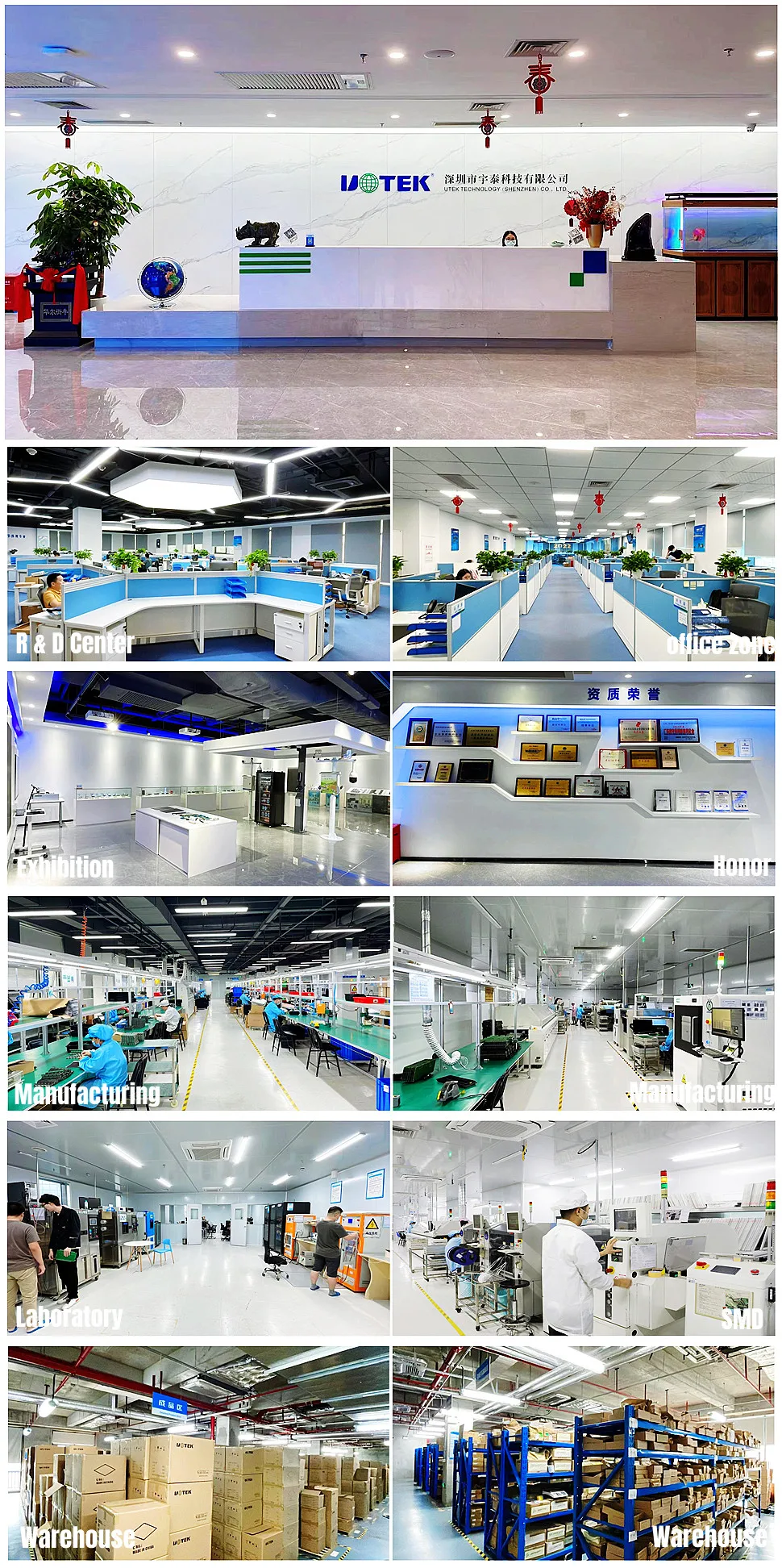

UTEK TECHNOLOGY Introduction
