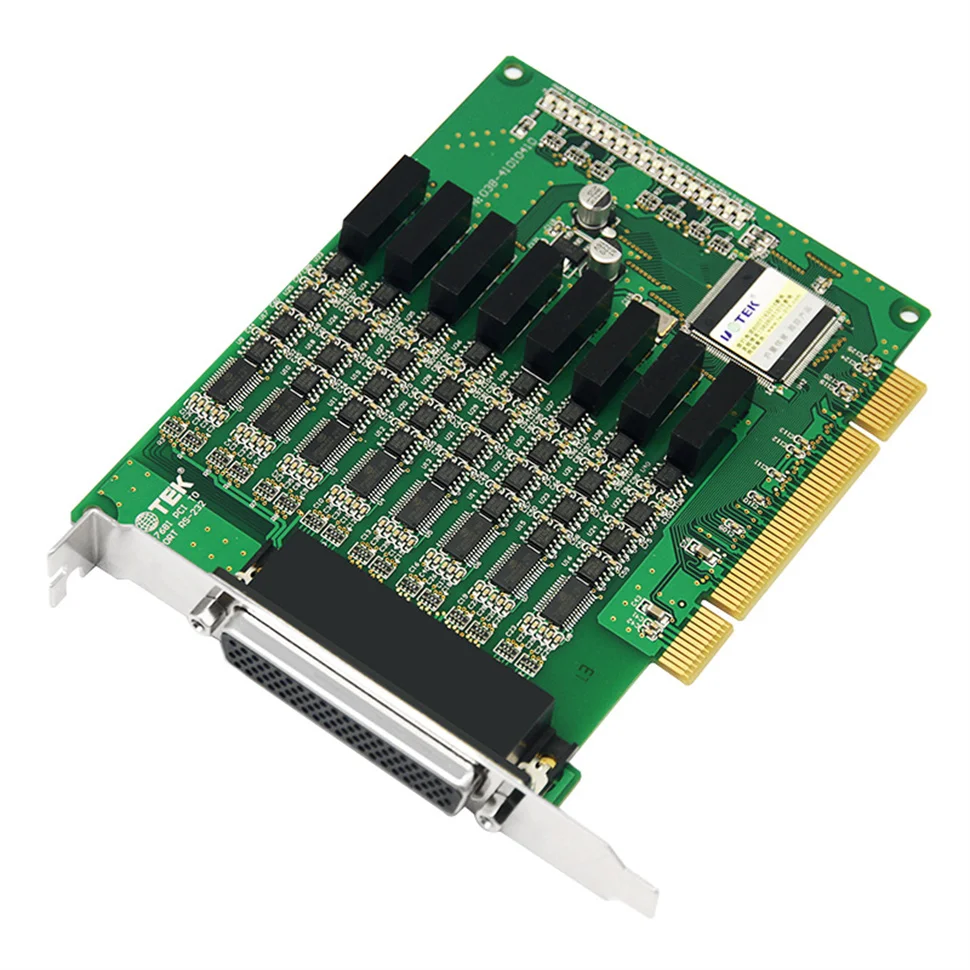

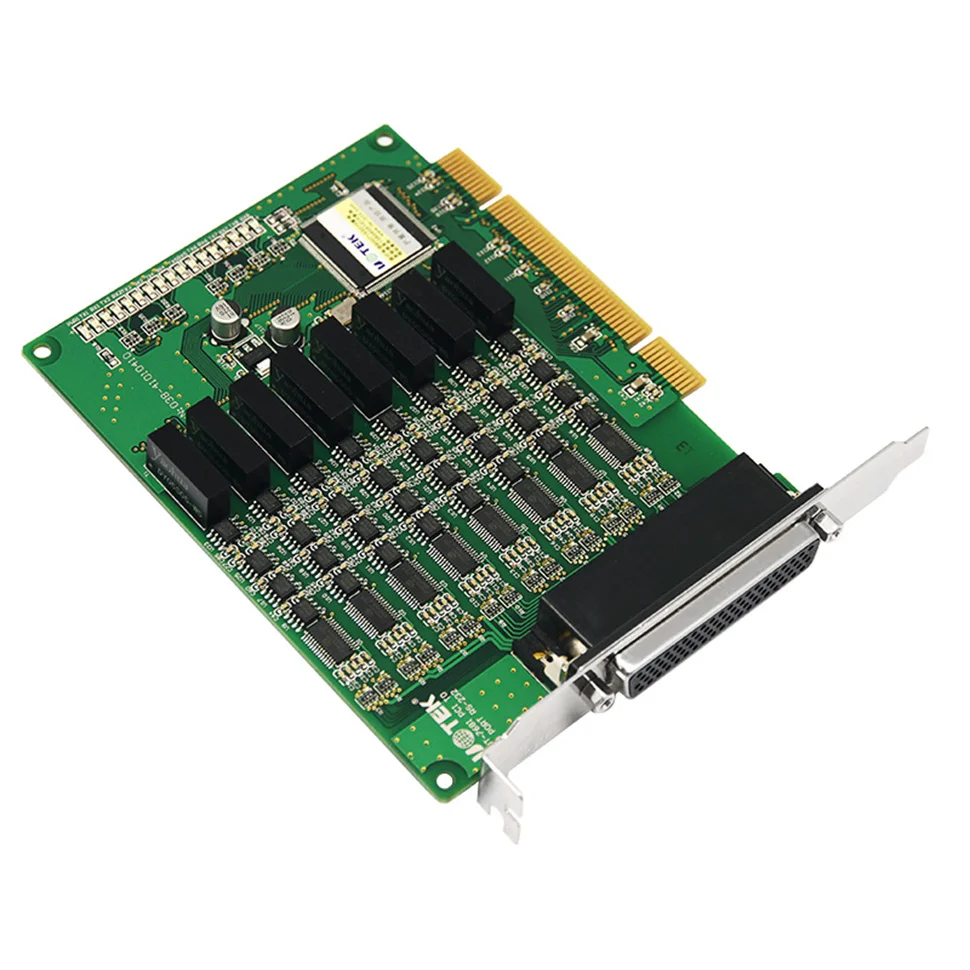

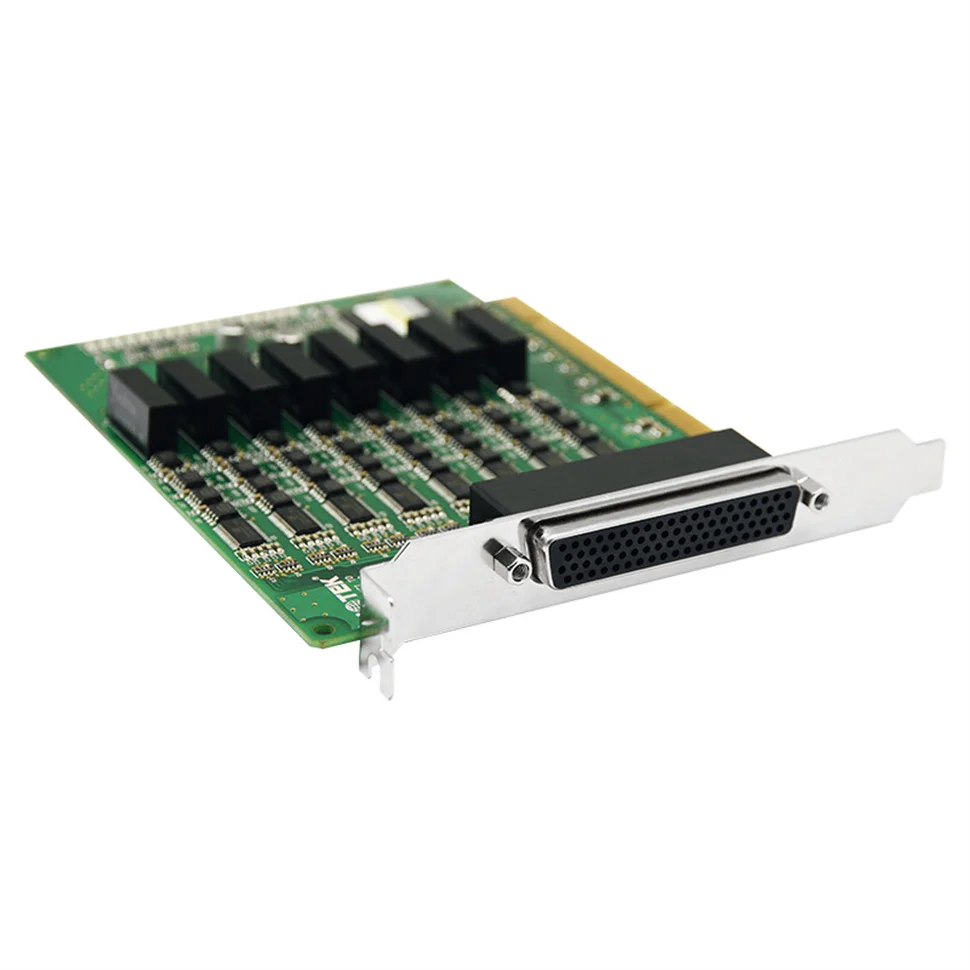

UOTEK Industrial Opto-isolated PCI to RS-232 Serial Card RS232 8 Ports High Speed Converter DB9 Connector UT-768I
UT-768I is a universal PCI serial card designed for POS, ATM and other applications that can be used in industrial automation system
manufacturing and system integration. UT-768I provides 8 RS-232 serial ports with built-in opto-isolator, capable of providing up to 2500Vrms isolation voltage, and can connect to a wide range of serial devices such as PC, terminals, modems, printers, scanners, etc. Each port is capable of data rates up to 921.6Kbps and provides modem control signals to ensure compatibility with serial device peripherals. the
UT-768i can operate on both 3.3V and 5V PCI buses, allowing the multi-serial card to be installed in any available PC or server.

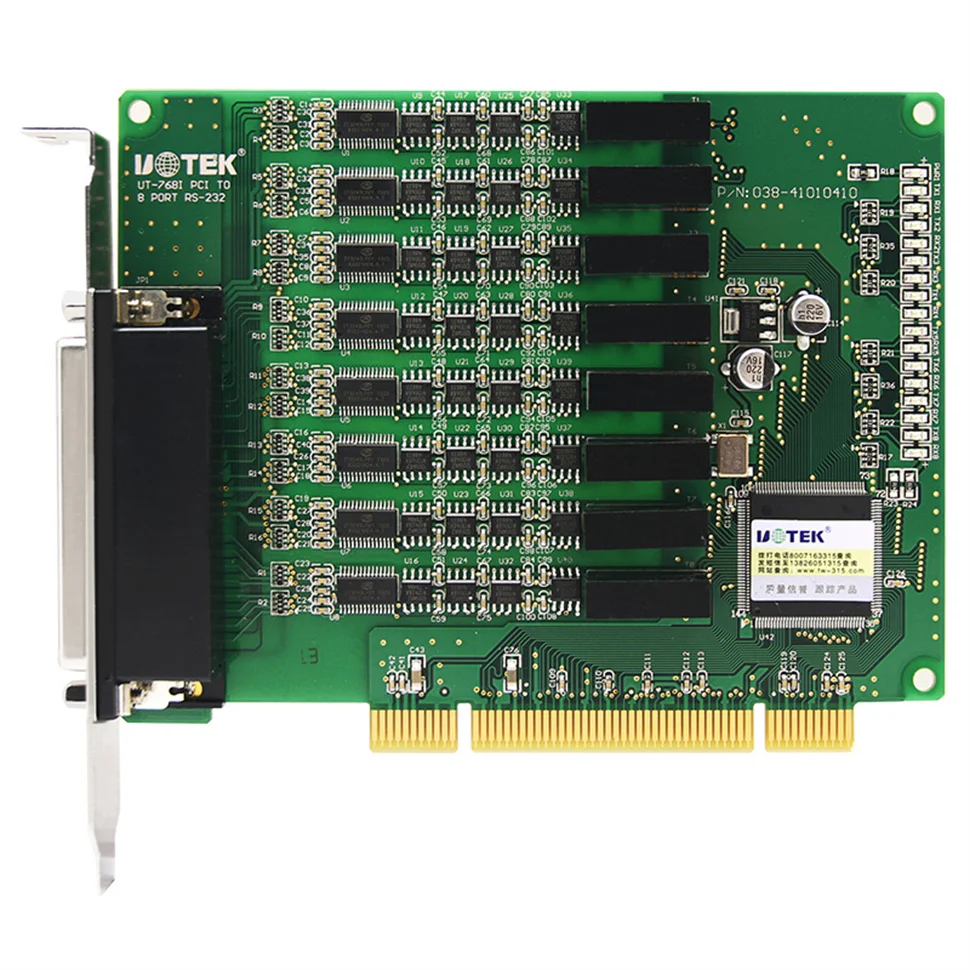

UT-768I Details

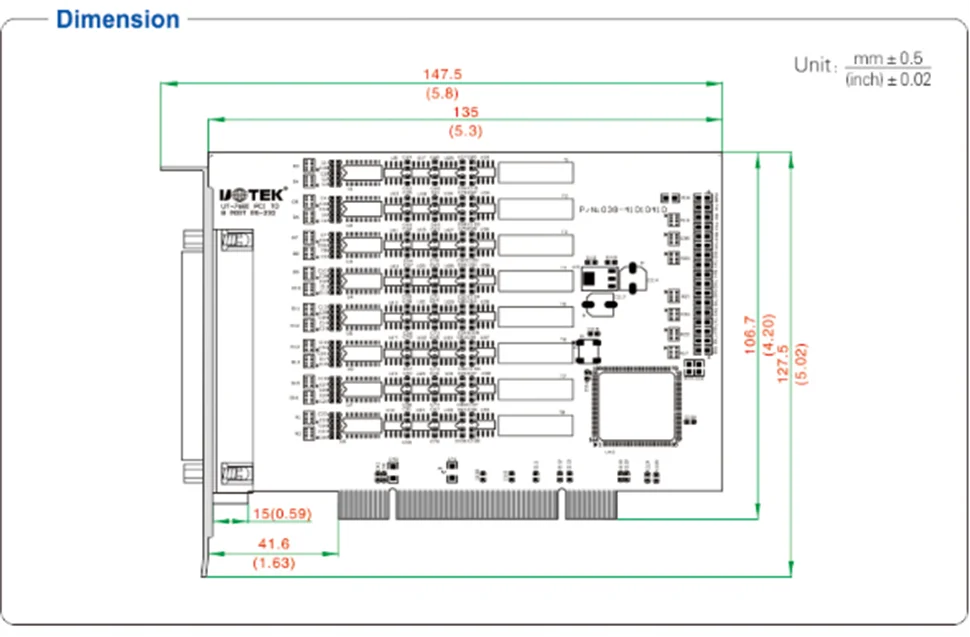

UT-768I Parameters
Connection Type: 1 HDR78 Female
BUS: 32 bit Universal PCI

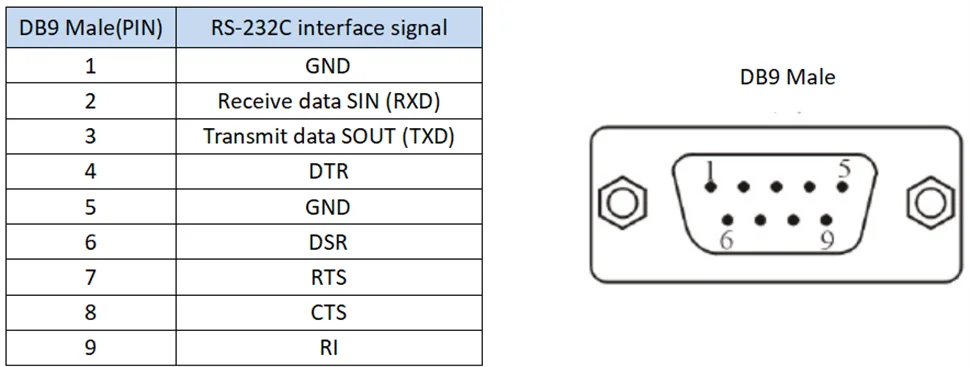

● Signal: RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
● Transmission rate: 300bps-921.6kbps
● Data bits: 5, 6, 7, 8
● Stop bits: 1, 1.5, 2
● Parity bits: None, Even, odd, space, Mark
● Stream control: RTS/CTS XON/XOFF
● Operating temperature: -40～85°C
● Opto-isolated: Isolation voltage 2500Vrms 500DC continuous dedicated DC/DC module
● Interface protection: ±15K V electrostatic protection
● Support system: Win2000/2003/XP/Vista/7/8/8.1/10/NT4.0/CE 4.2/5.0/6.0/Vxworks/Linux 2.4.x/2.6.x
UT-768I Application
