Item Description

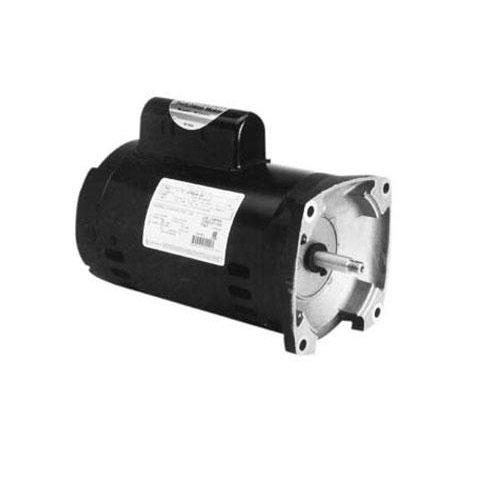

The Century Pool and Spa Pump Motor B2983 has two speeds and employs a PSC (Permanent Split Capacitor) to improve efficiency up to 20%. Full-Rated with a low service factor and equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting and trustworthy operation. The Century Pool and Spa Pump Motor delivers optimum performance, available with horsepower ratings ranging from 3/4-.10HP to 2-.33HP. This spa pump motor meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.

Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

• Ball Bearings
• Class B Insulation
• 50 C Ambient
• High Efficient High and Low Speed
• Open Dripproof
• Permanent Split Capacitor
• Rotation: CCW Pump End
• 303 Stainless Steel Shafts
• 10.0/1.6A 230V

Installation Instructions:

• Ensure the pool motor is compatible with your pool pump.
• Turn pump power off during replacement.
• Check voltage requirements on your current setup.
• Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
• Turn on the pump to test for leaks and pump operation.
• Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
• Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
