Industrial RS-232 to RS-485 RS-422 Converter RS232 to RS485 RS422 Adapter DB9F Connector with Lightning Surge Protection
For communication between PC with different standard serial port and external equipments or intelligent instruments,standard serial conversion is necessary. This converter is compatible with RS-232C, RS-485/422 standards. It converts RS-232 signals into balanced differential RS-485 or RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” charge pump technology to drive the system, and gains power without initializing RS-232 serial port. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex or half duplex mode, it will run smoothly under RS-485/422 mode, ensure to suitable for current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.

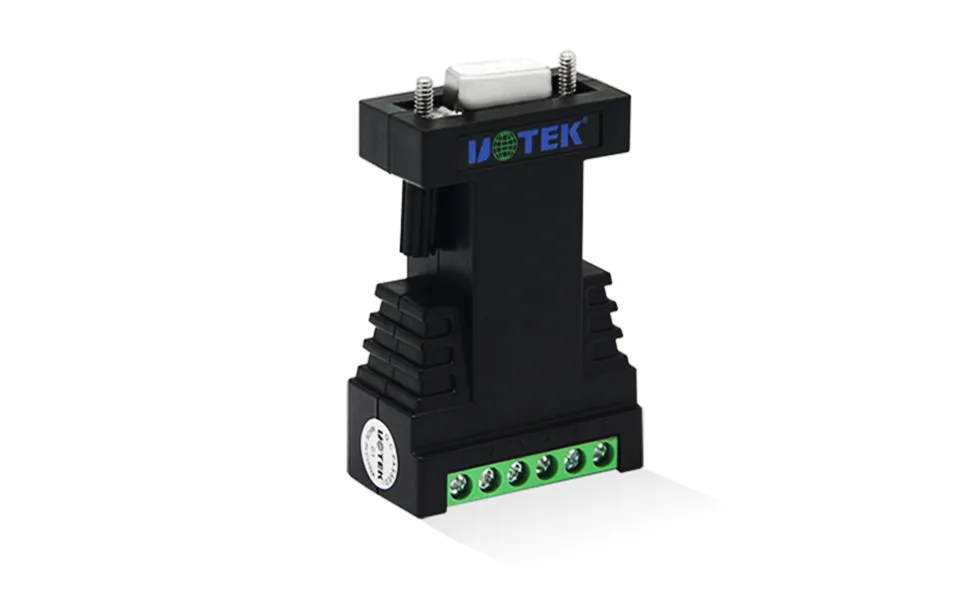

UT-242E Details
UT-242E Parameters
●Standards: RS-232C, RS-485/422 EIA/TIA
●RS-232 DB9 female connector, RS-485/422 terminal block
●Operating mode: asynchronous half-duplex, differential transmission,no need jumper setting
●Transmission media: twisted-pair or shielded cable
●Baud rate: 300bps-115.2kbps

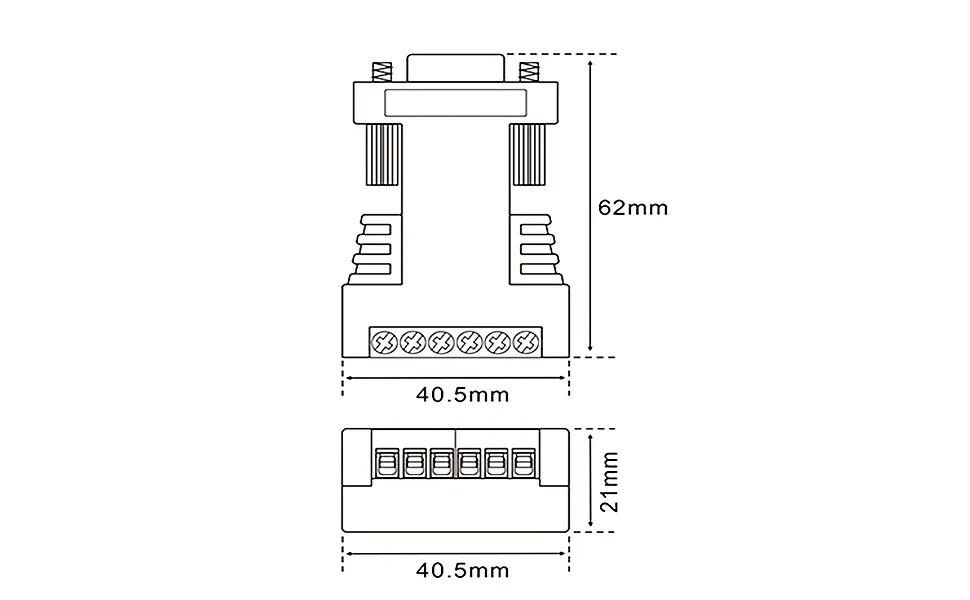

●Dimension: 62mm×40.5mm×21mm
●Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
●Transmission distance: 1,200m (RS-485/422); 5m (RS-232)
● Protection: 2KA lightning surge protection
UT-242E Application
