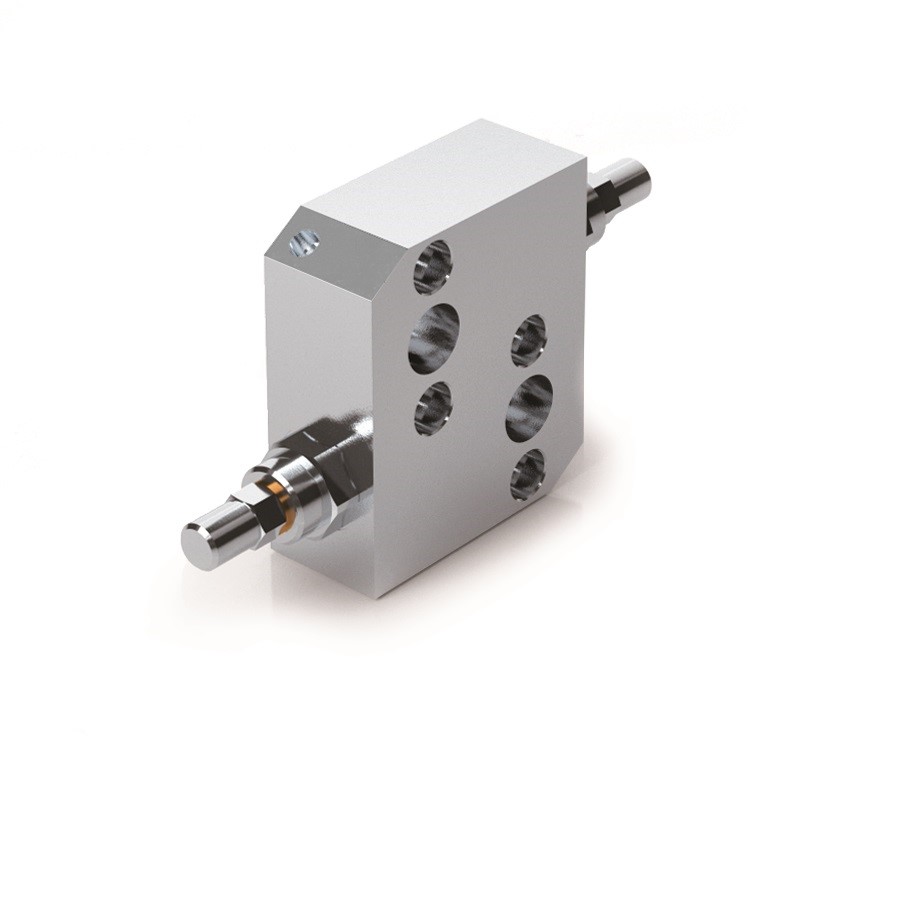

Dual Cross Line Relief Valve For Danfoss OMP/OMR Motors DE Standard/ Sealing Cap

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

USE AND OPERATION: Made up by two cross port relief valves, these valves are used to limit the pressure in the both (DE) or one (SE) ports of a hydraulic motor to a certain setting. Direct flange mounting for Danfoss motors type OMP-OMR provides maximum safety, very low pressure drop and a robust installation. MATERIALS AND FEATURES: Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard. Leakage: Guided poppet - negligible leakage. CONNECTIONS: Flange M1 and M2 directly to the motor and connect ports V1 and V2 to the supply. The dotted line on the schematic relates to V0499/SF / V0500/SF, with brake release - SF. ON REQUEST - different setting range (see the table) - other setting available (CODE/T000 please specify the desired ...

Dual Cross Line Relief Valve 50-250 bar For Danfoss OMP/OMR Motors, VAU 1/2" DE Sealing Cap



USE AND OPERATION:

Made up by two cross port relief valves, these valves are used to limit the pressure in the both (DE) or one (SE) ports of a hydraulic motor to a certain setting. Direct flange mounting for Danfoss motors type OMP-OMR provides maximum safety, very low pressure drop and a robust installation.

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: Guided poppet - negligible leakage.

CONNECTIONS:

Flange M1 and M2 directly to the motor and connect ports V1 and V2 to the supply. The dotted line on the schematic relates to V0499/SF / V0500/SF, with brake release - SF.

ON REQUEST

  • different setting range (see the table)
  • other setting available (CODE/T000 please specify the desired setting)



 Oil temperature 50° C – Oil viscosity: 30 cST

Setting range (bar)

Pressure increase (bar/turn)

Q= 4l/min

Standard setting

(bar)

10-50*

7

30

20-100

12

75

30-180 standard

30

90

50-250

45

130

80-300

50

150

*For setting less than 70 Bar: Q = 12l/min
