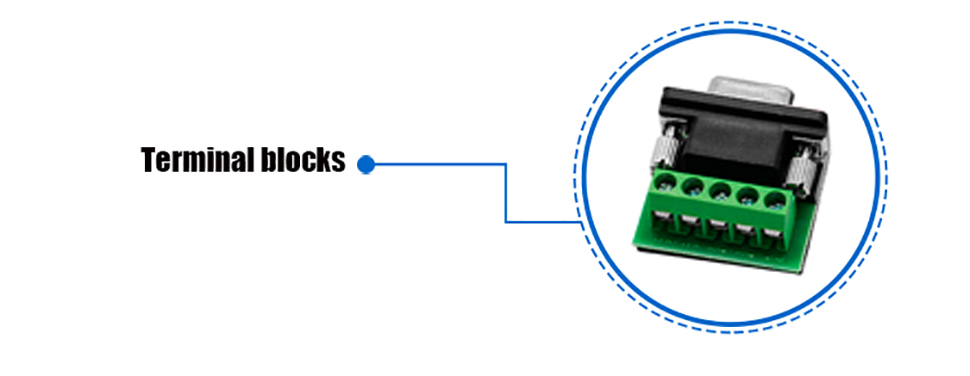

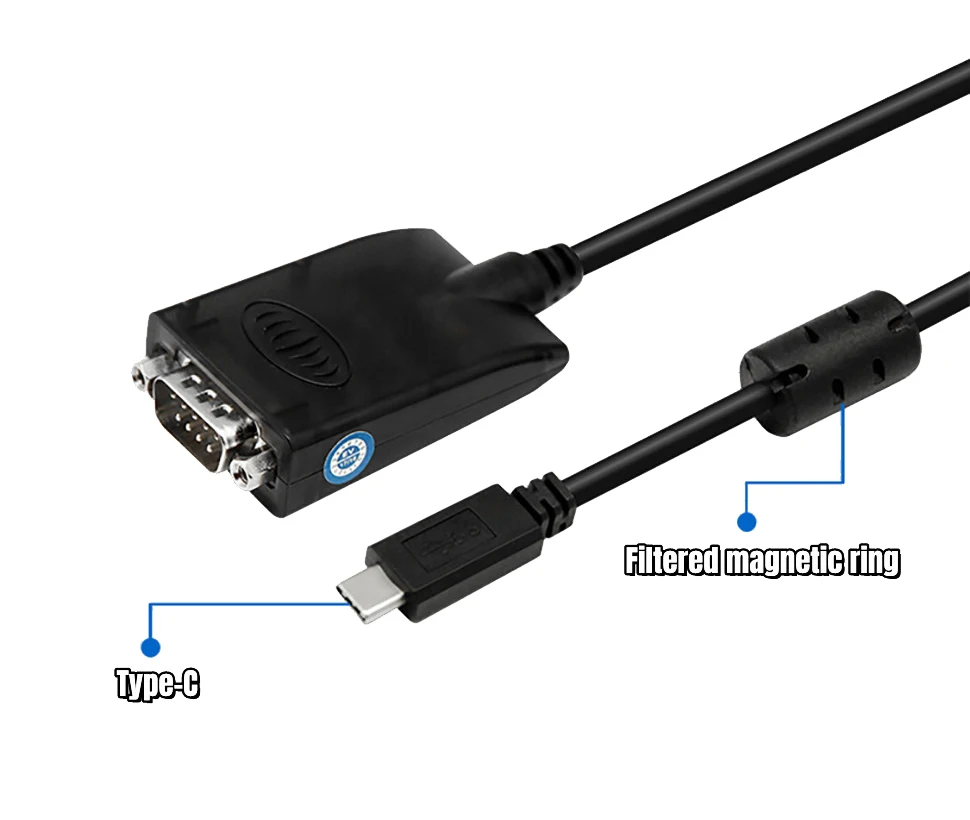

UOTEK USB-C to RS-485 RS-422 Converter 5pin DB9 Connector Type-C RS485 RS422 Cable 1.5M UT-890-TC with Magnetic Ring Terminal Blocks


UT-890-TC is a USB Type-C to RS-485/422 converter, it is industrial grade , with strong chip, strong compatibility. The product is with indicator light. This product is widely used in modem, bar code machine, tax control machine, PDA, numerical control machine, industrial machine, instrument and so on.


UT-890-TC Details



UT-890-TC Parameters


● Standards: USB V1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA

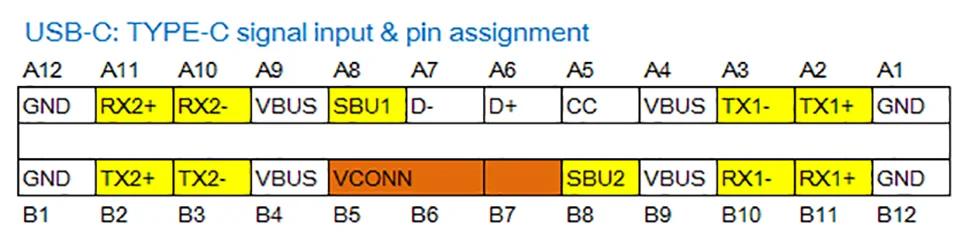

● USB signal: VCC, DATA+, DATA-, GND, FG
● RS-485 signal: T/R+, T/R-, GND

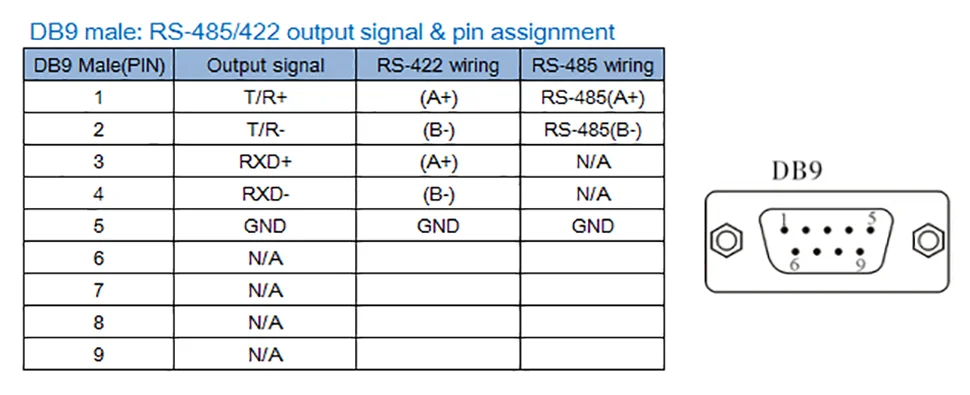

● RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
● Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex
● Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction
● Baud rate: 300-921,600bps
● Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device
● Transmission distance: RS-485/422 1,200m(9600bps), USB no more than 5m
●Port protection: 600W surge, ±15KV ESD protection

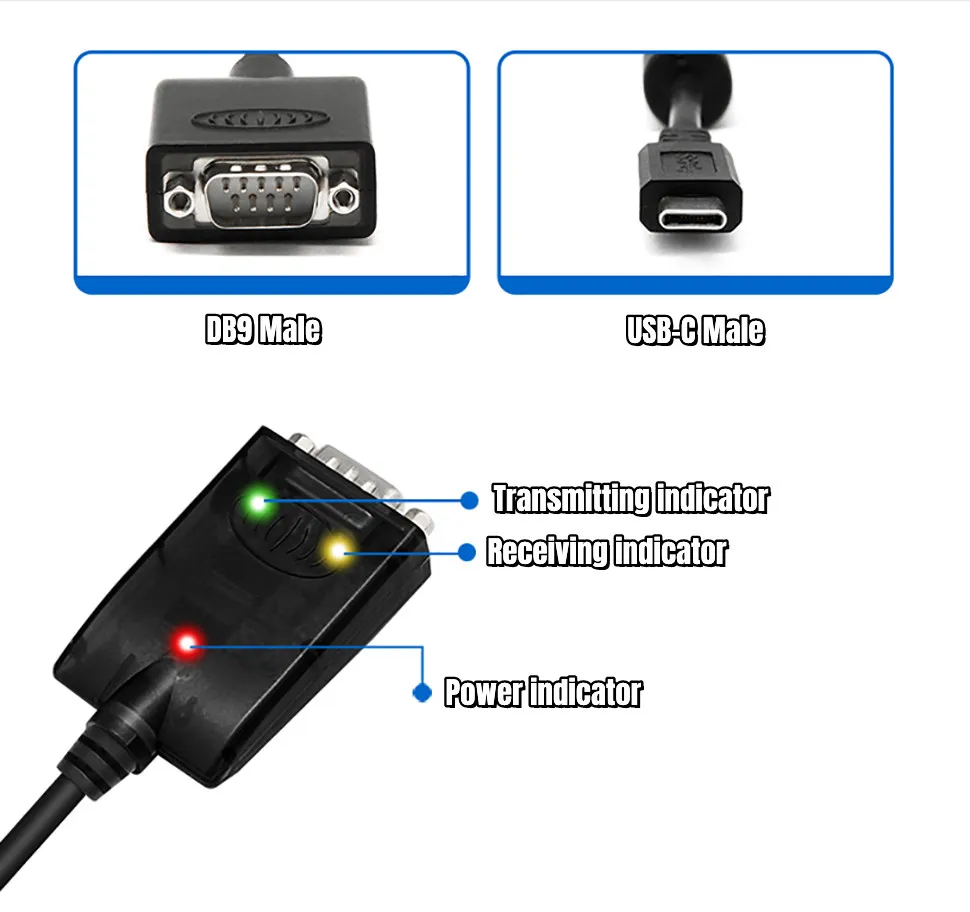

● Connector: USB-C male, DB9 male
● Signal: TXD, RXD
● Transmission media: Twisted-pair or shielded wire
● Baud rate: 921,600bps 300M 38, 400bps 600M 9,600bps 1.2KM

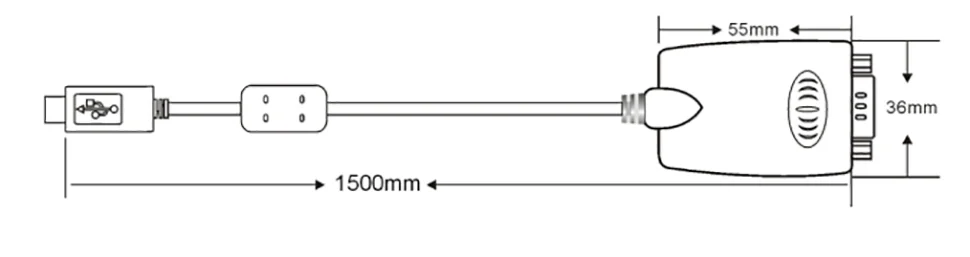

● Dimension: 55mmX36mmX18mm
● Working temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux

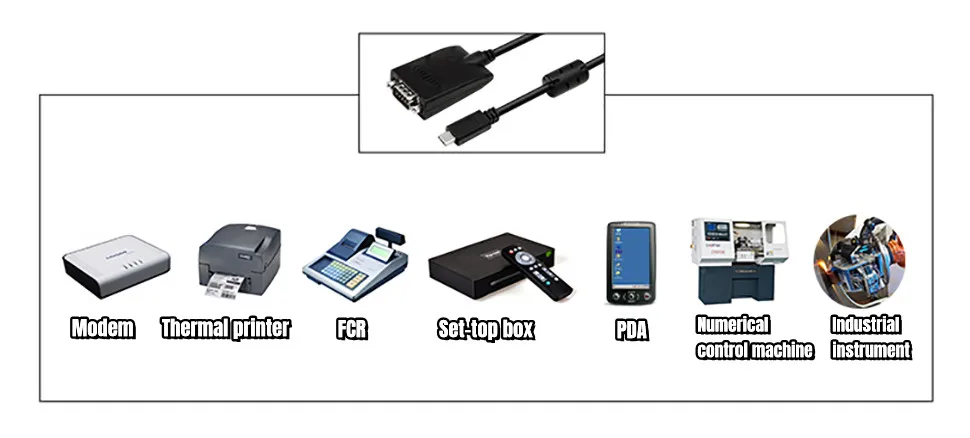

UT-890-TC Application
