Features & Details

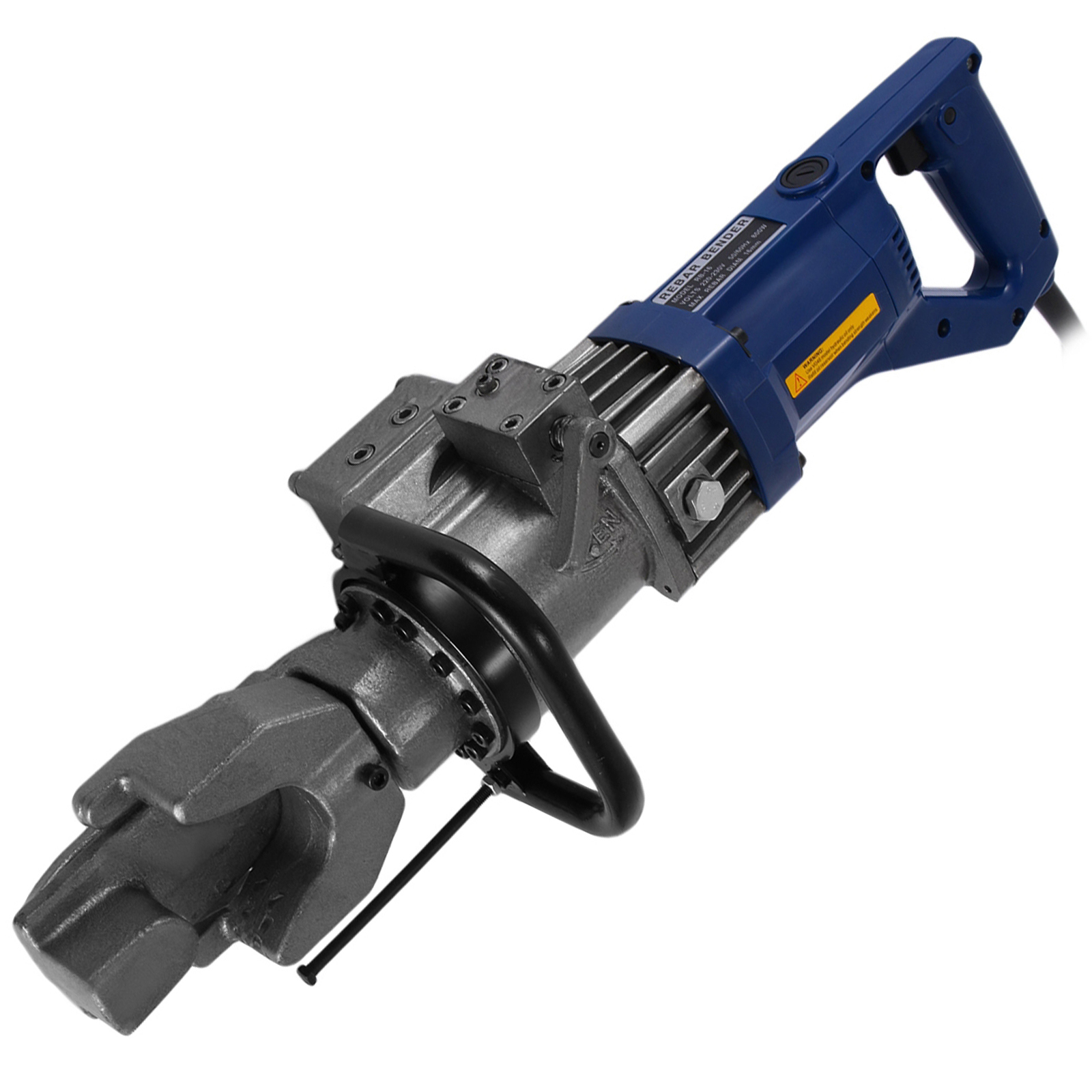

- 0 - 130 Degrees Excellent Performance: This electric rebar bender bends up to 5/8'' (#5) 16 mm from 0-130 degrees within 4-5 seconds. Max. Rebar Diameter: 5/8'' / 16 mm #5 Grade 60, Min. Rebar Diameter: 3/20'' / 4 mm, Max. Rebar Hardness: HRC30, Hydraulic Oil Type: VG46. It helps save valuable person-hours, raises your working efficiency significantly, and satisfies your various bending demands.
- 900W Pure Copper Coil Motor: This portable rebar bender features a 900W pure copper coil motor, which can run quietly with low noise and significantly improve your working efficiency, reducing unnecessary wear. Noise: 80 dB(A). Besides, a copper motor can extend this rebar bending machine's operating life to a large extent.
- Precision Pressure Relief Valve: This hydraulic rebar bender features a precision pressure relief valve and a hydraulic-powered piston for strong thrust and less power consumption. After the steel bar is successfully bent, you can pull the pressure relief valve to move the steel, and the piston will return to its original position.
- Detachable Positioning Bolt: The electric bender machine with an adjustable positioning bolt allows you to accurately bend any angle within 0-130 degrees, preset angle for repeating the same angle bend. It adopts the sturdy machine body and high-intensity hook, which are not easy to break and stand super-hard rebar with strong clamping force. Multiple screws fixed on the head enforce the stability and sealing.
- One Button Operation: This electric rebar machine is equipped with an ergonomic back grip design to facilitate maneuverability and ease of use. Simply keeping the switch pressed, the bending block starts to push forward. It is easy to bend rebar even in high air and is widely used in construction engineering for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.
Key Features
900W Powerful Motor
The concrete rebar bender features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time.
4-5S Bending Speed
The hydraulic bending machine bends 3/20'' to 5/8" (4 to 16 mm) steel super fast in just 4-5 seconds. Bending Angle: 0-130°. The bending speed depends on the thickness of the rebar and the angle you want to reach.
High Strength Hook
The high-intensity hook made of metal material is more firm and not easy to break. You can mark at the positioning bolt to bend the angle you want. In addition, multiple screw rings are tightly distributed to increase security and stability.
High-Quality Relief Valve
After reaching the angle you want and completing the bending process, pull the pressure relief valve, the bending block will reset to its original position. It is more convenient to take out the steel bar after the bending.
Humanized Handle & Switch Design
The ergonomically designed handle and auxiliary handle are comfortable to hold and easier to bend rebar even in high air. An operation switch can start the machine safely and operate efficiently. Net Weight: 33.07 lbs / 15 kg.
Extensive Application
This portable handheld rebar bender is widely applied in construction engineering / bridge construction / railway viaduct / dock highway bridges / electric power building. Perfect for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.
Rebar Up to 5/8''(#5)16 mm & 0-130 Degrees & 4-5 Seconds
The hydraulic electric rebar bender can bend 3/20'' to 5/8"(#5) grade 60 (4 to 16 mm) rebar to 0-130° within 4-5 seconds. A High-intensity hook is not easy to break and stand super-hard rebar with strong clamping force. This portable rebar bender is multi-purpose for construction or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need simple, easy-to-use, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!
- 0 - 130 Degrees Excellent Performance
- 900W Pure Copper Coil Motor
- Precision Pressure Relief Valve
- Detachable Positioning Bolt
- One Button Operation
- Model: RB-16
- Voltage: 110V, 60 Hz
- Power: 900W
- Bending Angle: 0-130°
- Max. Rebar Diameter: 5/8'' / 16 mm #5 Grade 60
- Min. Rebar Diameter: 3/20'' / 4 mm
- Bending Speed: 4-5S
- Max. Rebar Hardness: HRC30
- Hydraulic Oil Type: VG46
- Noise: 80 dB(A)
- Material: Metal
- Item Dimensions(L x W x H): 23.62 x 6.69 x 7.87'' / 60 x 17 x 20 cm
- Packing Size(L x W x H): 26.38 x 9.84 x 9.84'' / 67 x 25 x 25 cm
- Net Weight: 33.07 lbs / 15 kg
- Gross Weight: 36.38 lbs / 16.5 kg
- Certificate: CE
- Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
- 1 x Electric Rebar Bender
- 2 x Allen Key
- 1 x Oil can
- 1 x 14-17 Wrench
- 1 x User Manual
People Who Bought This Item Also Bought
Rebar Up to 5/8''(#5)16 mm & 0-130 Degrees & 4-5 Seconds
The hydraulic electric rebar bender can bend 3/20'' to 5/8"(#5) grade 60 (4 to 16 mm) rebar to 0-130° within 4-5 seconds. A High-intensity hook is not easy to break and stand super-hard rebar with strong clamping force. This portable rebar bender is multi-purpose for construction or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need simple, easy-to-use, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!
- 0 - 130 Degrees Excellent Performance
- 900W Pure Copper Coil Motor
- Precision Pressure Relief Valve
- Detachable Positioning Bolt
- One Button Operation
Key Features
-
900W Powerful Motor
The concrete rebar bender features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time.
-
4-5S Bending Speed
The hydraulic bending machine bends 3/20'' to 5/8" (4 to 16 mm) steel super fast in just 4-5 seconds. Bending Angle: 0-130°. The bending speed depends on the thickness of the rebar and the angle you want to reach.
-
High Strength Hook
The high-intensity hook made of metal material is more firm and not easy to break. You can mark at the positioning bolt to bend the angle you want. In addition, multiple screw rings are tightly distributed to increase security and stability.
-
High-Quality Relief Valve
After reaching the angle you want and completing the bending process, pull the pressure relief valve, the bending block will reset to its original position. It is more convenient to take out the steel bar after the bending.
-
Humanized Handle & Switch Design
The ergonomically designed handle and auxiliary handle are comfortable to hold and easier to bend rebar even in high air. An operation switch can start the machine safely and operate efficiently. Net Weight: 33.07 lbs / 15 kg.
-
Extensive Application
This portable handheld rebar bender is widely applied in construction engineering / bridge construction / railway viaduct / dock highway bridges / electric power building. Perfect for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.
-
- 1 x Electric Rebar Bender
- 2 x Allen Key
- 1 x Oil can
- 1 x 14-17 Wrench
- 1 x User Manual
- Model: RB-16
- Voltage: 110V, 60 Hz
- Power: 900W
- Bending Angle: 0-130°
- Max. Rebar Diameter: 5/8'' / 16 mm #5 Grade 60
- Min. Rebar Diameter: 3/20'' / 4 mm
- Bending Speed: 4-5S
- Max. Rebar Hardness: HRC30
- Hydraulic Oil Type: VG46
- Noise: 80 dB(A)
- Material: Metal
- Item Dimensions(L x W x H): 23.62 x 6.69 x 7.87'' / 60 x 17 x 20 cm
- Packing Size(L x W x H): 26.38 x 9.84 x 9.84'' / 67 x 25 x 25 cm
- Net Weight: 33.07 lbs / 15 kg
- Gross Weight: 36.38 lbs / 16.5 kg
- Certificate: CE
- Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
 |
 |
 |
 |
|

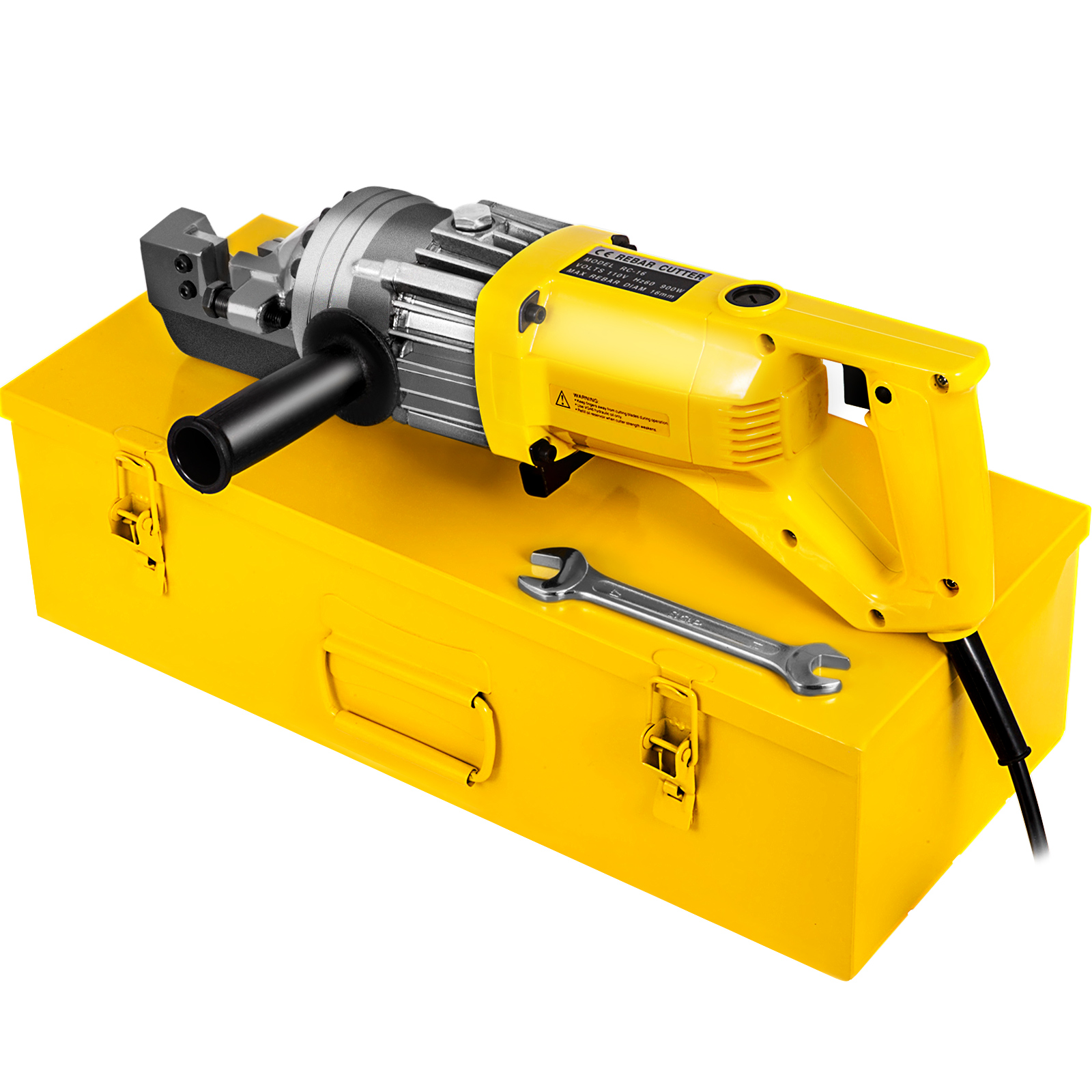

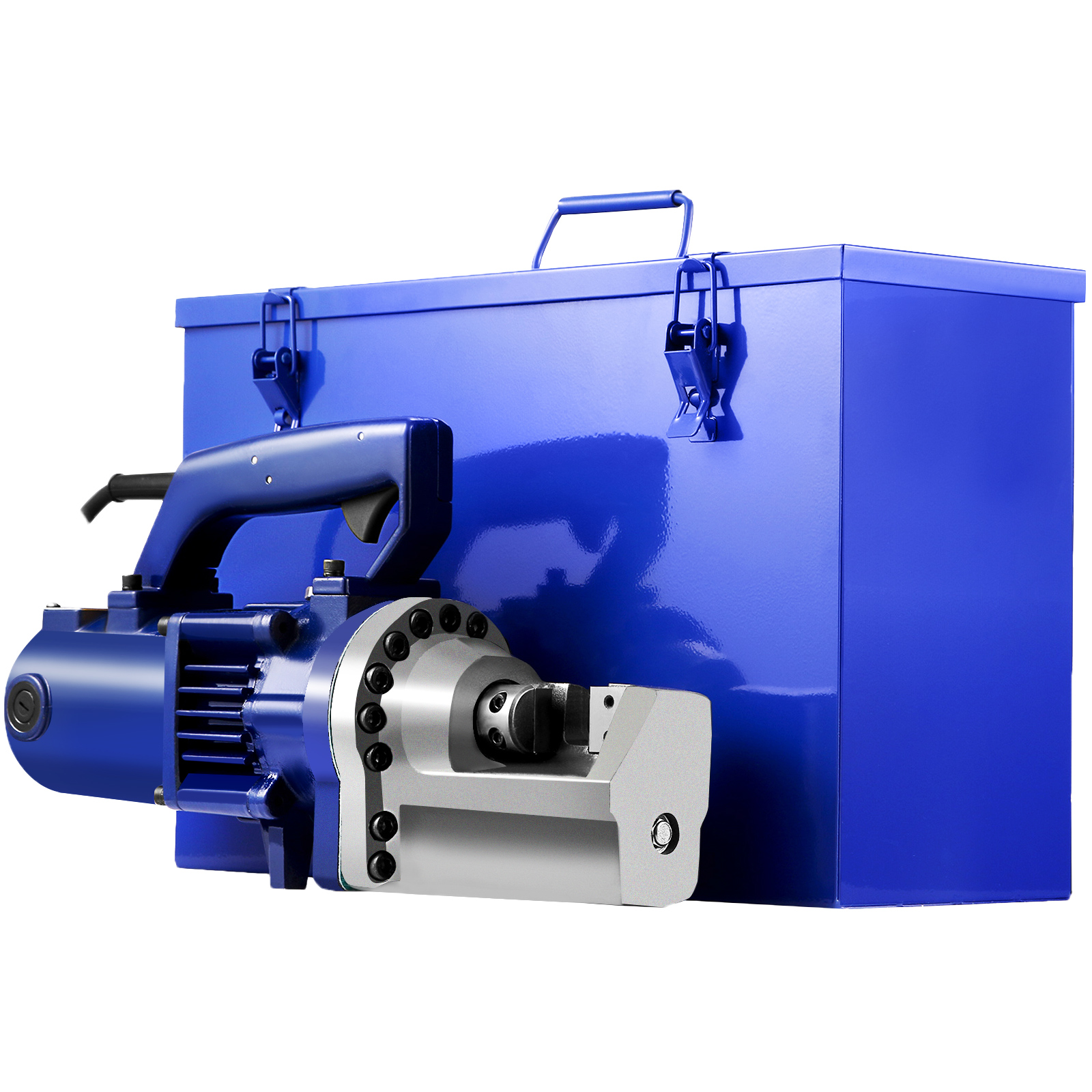

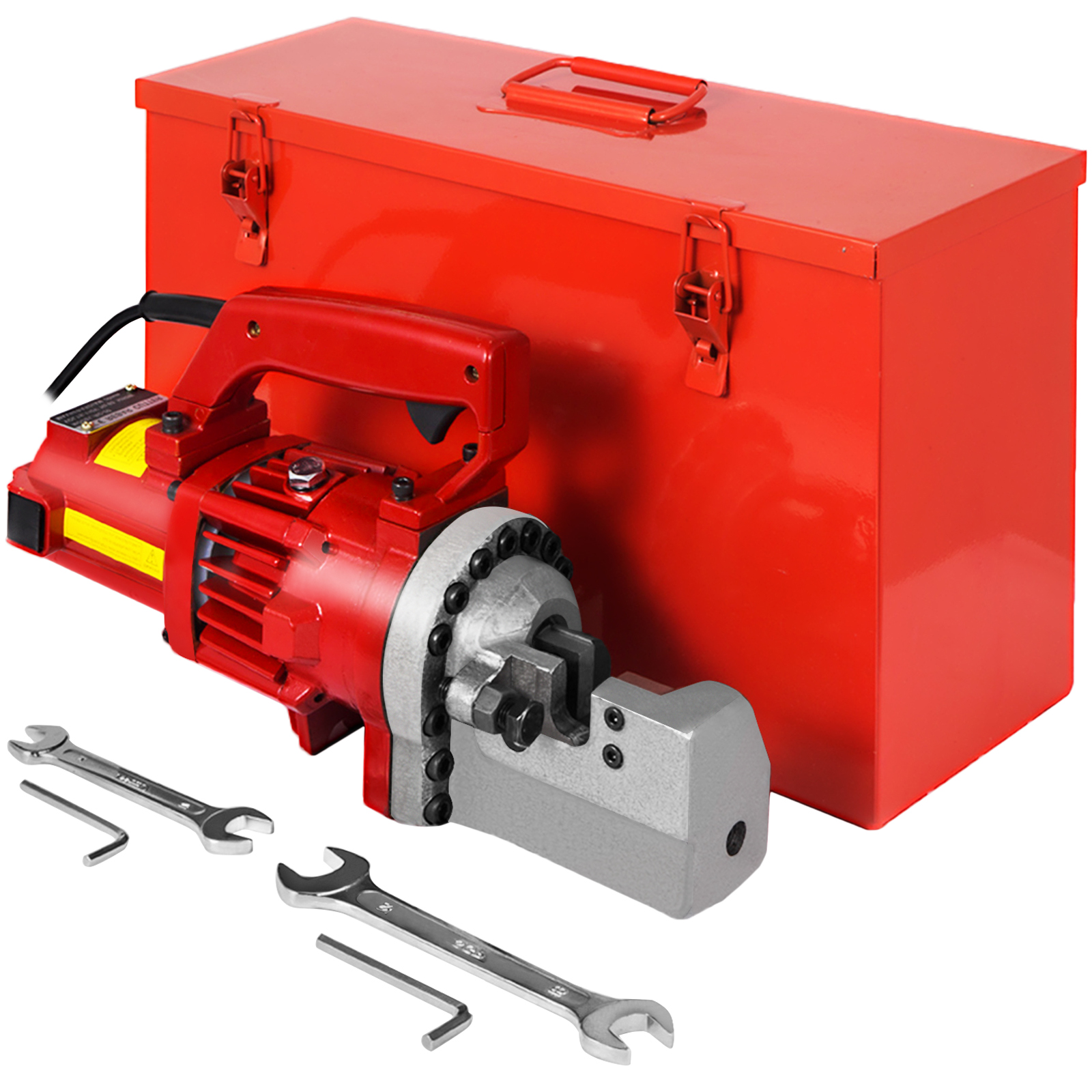

| RC-16 Rebar Bender | RC-16 Rebar Cutter | RC-20 Rebar Cutter | RC-22 Rebar Cutter | |
| Power | 800W | 900W | 1250W | 1350W |
| Voltage | 110V, 60 Hz | 110V, 60 Hz | 110V, 60 Hz | 110V, 60 Hz |
| Max. Rebar | 5/8" (16 mm) | 5/8" (16 mm) #5 | 3/4" (20 mm) | 7/8" (22 mm) |
| Min. Rebar | 3/20" (4 mm) | 3/20" (4 mm) | 3/20" (4 mm) | 3/20" (4 mm) |
| Speed | 5 sec | 2.5-3.0 sec | 3.0-3.5 sec | 3.5-4.5 sec |
| Storage Box | / | 1 x Storage Box | 1 x Storage Box | 1 x Storage Box |
