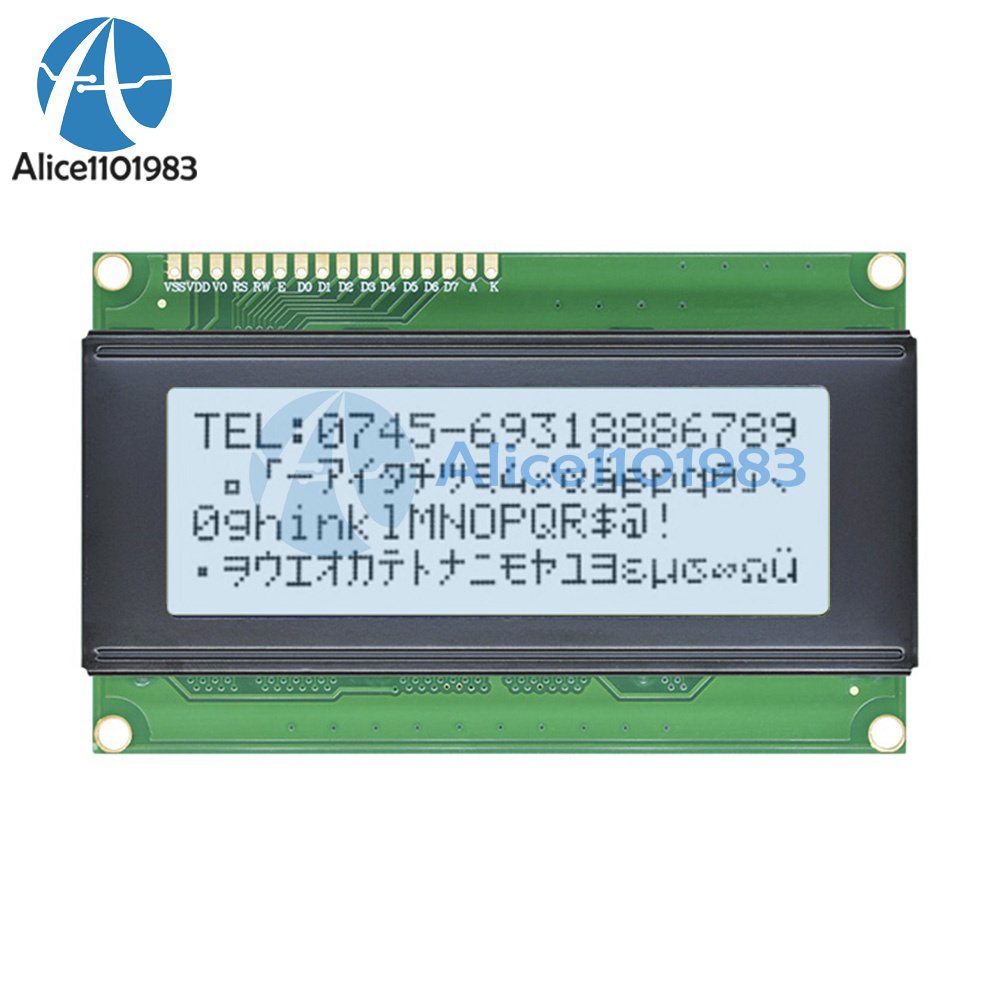

2004A LCD 5V-White/Yellow/Blue
Product Feature:
1. Made of high quality material, durable and practical.
2. Wide temperature glass for clearer display.
3. Fully automatic electroplating line, environmentally friendly materials, uniform electroplating, good corrosion resistance.
4. AIP31066 or SPLC780D controller (COB process).
5. Standard 1x16 pin interface, widely used.
parameter:
Product Model: LCM2004A
Dimensions: 98.0mmX60.0mm
Display content: 20 characters X4 lines
Interface mode: single row parallel port
Working voltage: 5V
Controller: SPLC780D
LCD operating temperature: -20℃~70℃
LCD storage function: -30℃~80℃
Wide temperature LCD: -30℃~80℃
1. Made of high quality material, durable and practical.
2. Wide temperature glass for clearer display.
3. Fully automatic electroplating line, environmentally friendly materials, uniform electroplating, good corrosion resistance.
4. AIP31066 or SPLC780D controller (COB process).
5. Standard 1x16 pin interface, widely used.
parameter:
Product Model: LCM2004A
Dimensions: 98.0mmX60.0mm
Display content: 20 characters X4 lines
Interface mode: single row parallel port
Working voltage: 5V
Controller: SPLC780D
LCD operating temperature: -20℃~70℃
LCD storage function: -30℃~80℃
Wide temperature LCD: -30℃~80℃
Precautions:
Liquid crystal displays are made of glass, organic sealants, organic fluids, and polymer-based polarizers. When handling, pay attention to the following:
1. Keep the temperature within the range of use and storage. Excessive temperature and humidity can cause polarization degradation, polarizer peeling, or air bubbles.
2. Do not touch the exposed polarizer with anything harder than HB pencil lead. Remove the dust from the surface of the monitor, gently use cotton
To wipe, soak a deerskin towel or other soft material in cleaning oil.
3. Immediately wipe off saliva or water droplets. Excessive contact time of ITO with water will cause deformation or discoloration of the surface of the liquid crystal display.
4. Glass is easily broken due to rough handling. Especially in corners and edges.
5. Do not drive the LCD with DC voltage.
Liquid crystal displays are made of glass, organic sealants, organic fluids, and polymer-based polarizers. When handling, pay attention to the following:
1. Keep the temperature within the range of use and storage. Excessive temperature and humidity can cause polarization degradation, polarizer peeling, or air bubbles.
2. Do not touch the exposed polarizer with anything harder than HB pencil lead. Remove the dust from the surface of the monitor, gently use cotton
To wipe, soak a deerskin towel or other soft material in cleaning oil.
3. Immediately wipe off saliva or water droplets. Excessive contact time of ITO with water will cause deformation or discoloration of the surface of the liquid crystal display.
4. Glass is easily broken due to rough handling. Especially in corners and edges.
5. Do not drive the LCD with DC voltage.
welding:
1. Solder to I/O terminals only.
2. Only use a soldering iron that is properly grounded and has no leakage.
3. Soldering temperature: 280℃±10℃
4. Welding time: 3 to 4 seconds.
5. Low temperature solder filled with resin flux.
6. If flux is used, the LCD surface should be covered to avoid flux spattering. Flux residues should be removed after shielding.
1. Solder to I/O terminals only.
2. Only use a soldering iron that is properly grounded and has no leakage.
3. Soldering temperature: 280℃±10℃
4. Welding time: 3 to 4 seconds.
5. Low temperature solder filled with resin flux.
6. If flux is used, the LCD surface should be covered to avoid flux spattering. Flux residues should be removed after shielding.
operate:
1. The viewing angle can be adjusted by changing the LCD driving voltage V0.
2. The driving voltage should be kept within the specified range. Excessive voltage will shorten the life of the display.
3. The response time increases with decreasing temperature.
4. At temperatures above its operating range, the display may turn black or dark blue; this (but do not press
domain) may cause some display segments to "break".
5. Mechanical damage during operation (such as pressing the display area) may cause the line segment to "break".
1. The viewing angle can be adjusted by changing the LCD driving voltage V0.
2. The driving voltage should be kept within the specified range. Excessive voltage will shorten the life of the display.
3. The response time increases with decreasing temperature.
4. At temperatures above its operating range, the display may turn black or dark blue; this (but do not press
domain) may cause some display segments to "break".
5. Mechanical damage during operation (such as pressing the display area) may cause the line segment to "break".
Package list:
LCM2004A LCD screen*
1602LCD 5V-Yellow/Blue
1.Brand new and high quality.
2.LCD display module with blue blacklight.
3.Wide viewing angle and high contrast.
4.Built-in industry standard HD44780 equivalent LCD controller.
5.Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
6.LCM type: Characters
7.Can display 2-lines X 16-characters.
8.Operate with 5V DC.
9.Module dimension: 80mm x 35mm x 11mm.
10.Viewing area size: 64.5mm x 16mm.
Package Included:
1PC*LCD Display Module

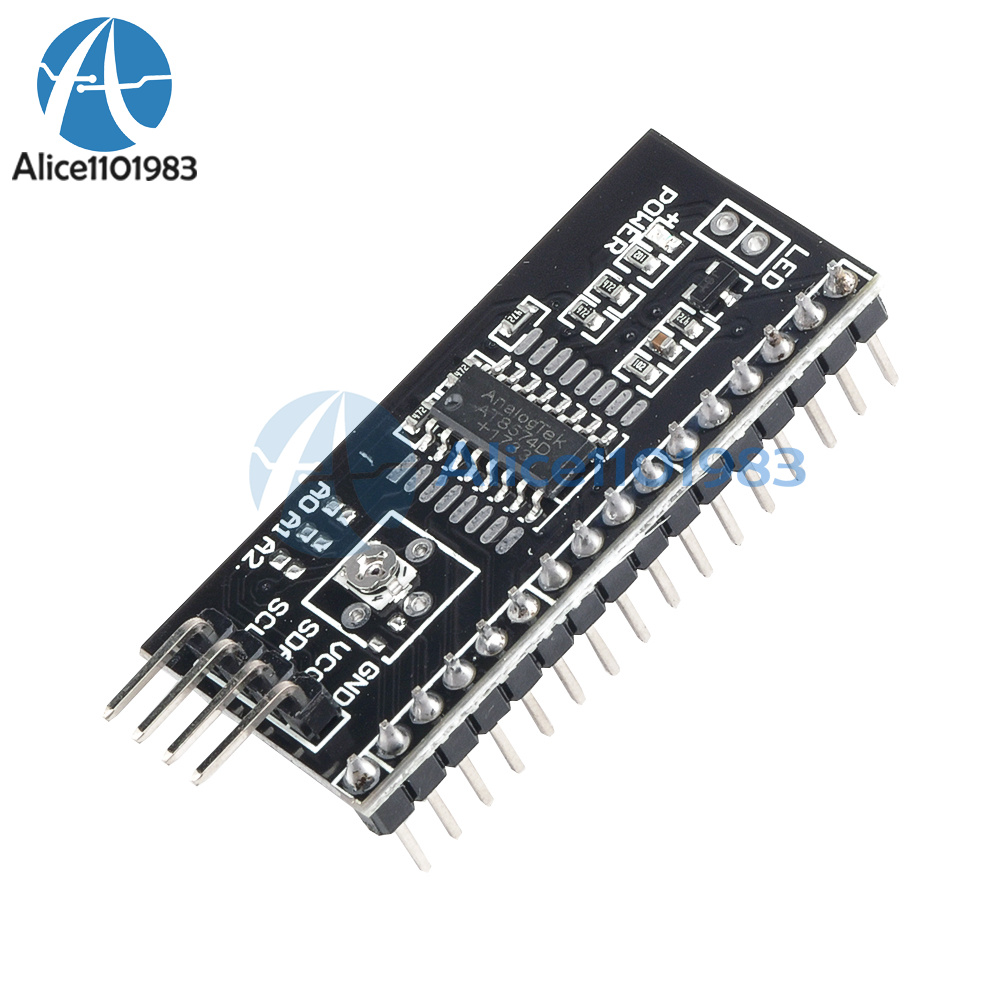

1602LCD Blue/Yellow 5V W/I2C Module
12864LCD 5V-Yellow/Blue
IIC/I2C Interface LCD1602
LCM2004A LCD screen*
1602LCD 5V-Yellow/Blue
1.Brand new and high quality.
2.LCD display module with blue blacklight.
3.Wide viewing angle and high contrast.
4.Built-in industry standard HD44780 equivalent LCD controller.
5.Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
6.LCM type: Characters
7.Can display 2-lines X 16-characters.
8.Operate with 5V DC.
9.Module dimension: 80mm x 35mm x 11mm.
10.Viewing area size: 64.5mm x 16mm.
Package Included:
1PC*LCD Display Module
1602LCD Blue/Yellow 5V W/I2C Module
Product features:
1. Support I2C protocol.
2. With backlight, and contrast adjustment potentiometer
3.4 line output is simpler
4. Provide library files
5. With backlight
1. Support I2C protocol.
2. With backlight, and contrast adjustment potentiometer
3.4 line output is simpler
4. Provide library files
5. With backlight
Features:
There are only 20 IO ports on the control board. If you add more sensors, SD cards, relays, etc., the IO ports are not enough. The original 1602 screen needs 7 IO ports to drive. This module we developed can help you save 5 Each I0 port, we] send the function library.
There are only 20 IO ports on the control board. If you add more sensors, SD cards, relays, etc., the IO ports are not enough. The original 1602 screen needs 7 IO ports to drive. This module we developed can help you save 5 Each I0 port, we] send the function library.
Product Specifications:
I2C address: 0x27
Backlight: (blue/yellow optional, blue screen is white characters, yellow-green screen is black characters)
Supply voltage: 5V
Size: 80*36*17.5mm
Comes with IIC interface, can be connected through DuPont line.
I2C address: 0x27
Backlight: (blue/yellow optional, blue screen is white characters, yellow-green screen is black characters)
Supply voltage: 5V
Size: 80*36*17.5mm
Comes with IIC interface, can be connected through DuPont line.
Pin Description:
GND: ground wire
VCC: Power
SDA: I2C data line
SCL: I2C clock line
GND: ground wire
VCC: Power
SDA: I2C data line
SCL: I2C clock line
Wiring method:
GND: GND ground wire
VCC: 5V connected to power
SDA: A4
SCL: A5
GND: GND ground wire
VCC: 5V connected to power
SDA: A4
SCL: A5
Package List:
1602 LCD 5V I2C adapter board module*1
1602 LCD 5V I2C adapter board module*1
12864LCD 5V-Yellow/Blue

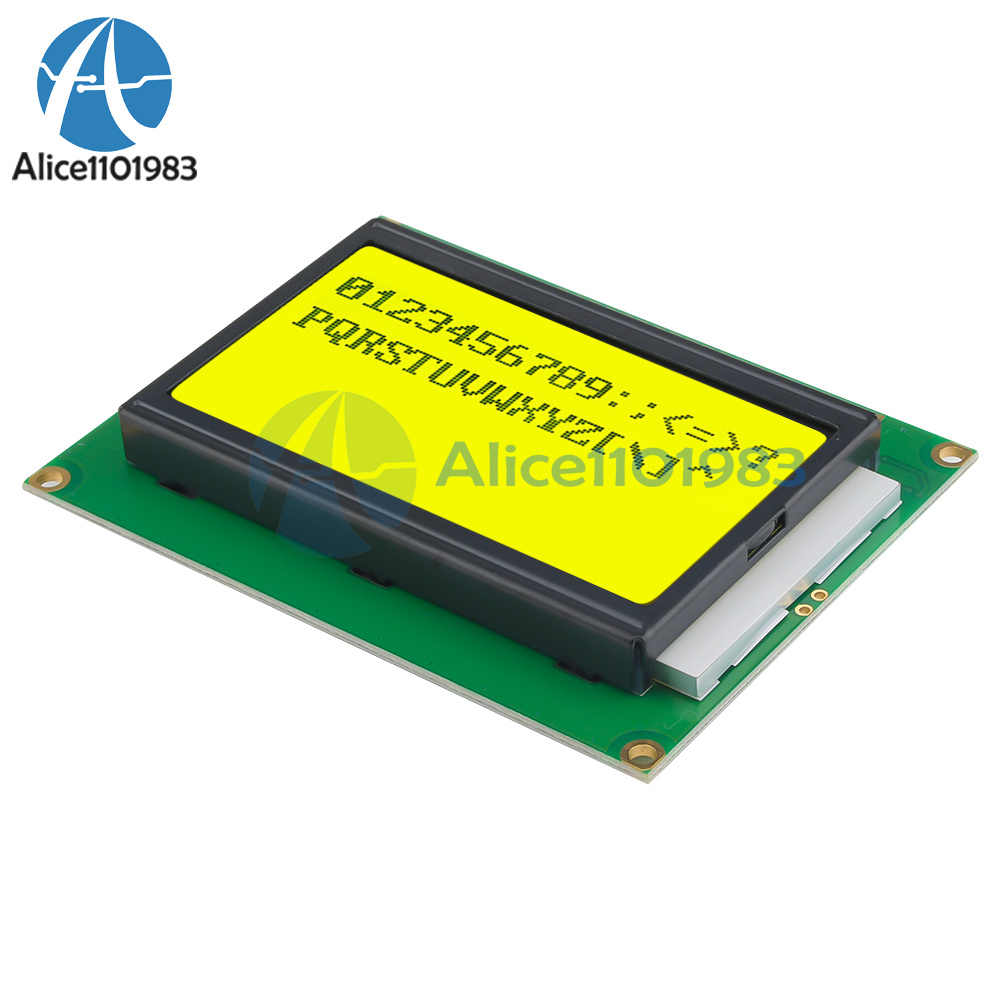

12864 LCD Display Module 128x64 Dots Graphic Blue Color Backlight
This product is a LCD display module with blue backlight, small and light appearance, suitbale for copiers, fax machines, laser printers, industrial test equipment, networking
LCD display module with blue backlight.
Small and light appearance, it is easy and convenient to use.
Suitable for copiers, fax machines, laser printers, industrial test equipment,
networking equipment etc.
Backlight: Blue
View area: 7.0cm(L) * 4.4cm(W)
Dots size: 0.48mm (L) * 0.48mm (W)
Dots pitch: 0.52mm (L) * 0.52mm (W)
LCD type: STN (Blue)
Viewing angle: 6 o?clock
Operating temperature: -20 to 70 degree
Storage temperature: -30 to 80 degree
Specification:
Original box: No
Color: Green
Item size: 92*69*10mm
Net weight: 76g
Package weight: 85g
Package included：
- 1PCS x 5V LCD Display Module 128x64 Dots Graphic Matrix LCD 12864 Blue Backlight New
IIC/I2C Interface LCD1602
Product selling point:
1. Power supply voltage: 5V
2. Support I2C protocol
3. With backlight, and contrast adjustment potentiometer
4.4 line output is simpler
5.IIC bus address: 0x27
1. Power supply voltage: 5V
2. Support I2C protocol
3. With backlight, and contrast adjustment potentiometer
4.4 line output is simpler
5.IIC bus address: 0x27
Product parameters:
IIC/I2C interface LCD1602 adapter board without LCD screen
There are only 20 IO ports on the control board. If you add some sensors, SD cards, etc., there are many modules such as relays, and the IO ports are not enough.
The original 1602 screen needs 7 IO ports to drive, this module we developed can help you save 5 IO ports, we send the function library
IIC/I2C interface LCD1602 adapter board without LCD screen
There are only 20 IO ports on the control board. If you add some sensors, SD cards, etc., there are many modules such as relays, and the IO ports are not enough.
The original 1602 screen needs 7 IO ports to drive, this module we developed can help you save 5 IO ports, we send the function library
Package List:
LCD1602 LCD screen adapter board* 1
LCD1602 LCD screen adapter board* 1
