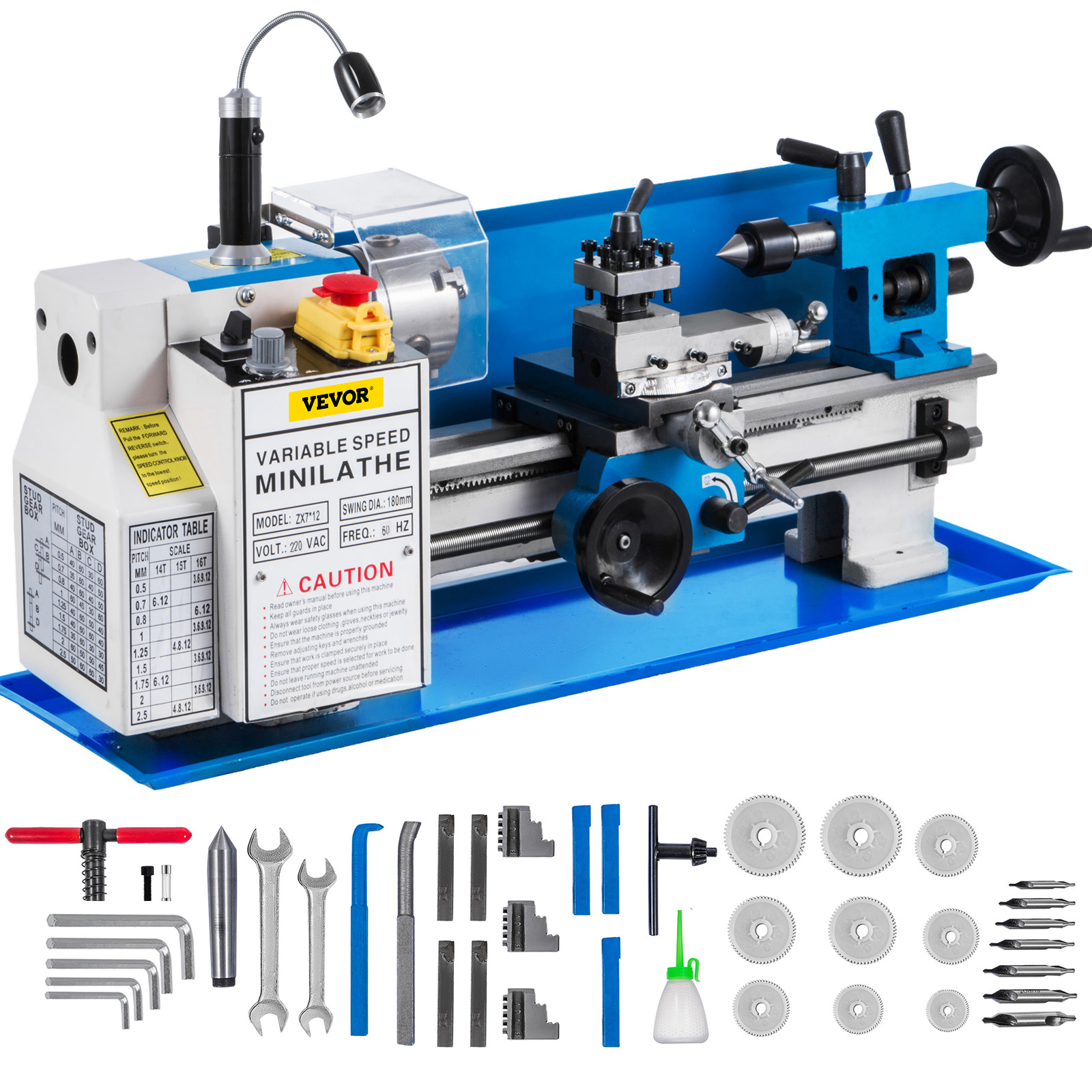

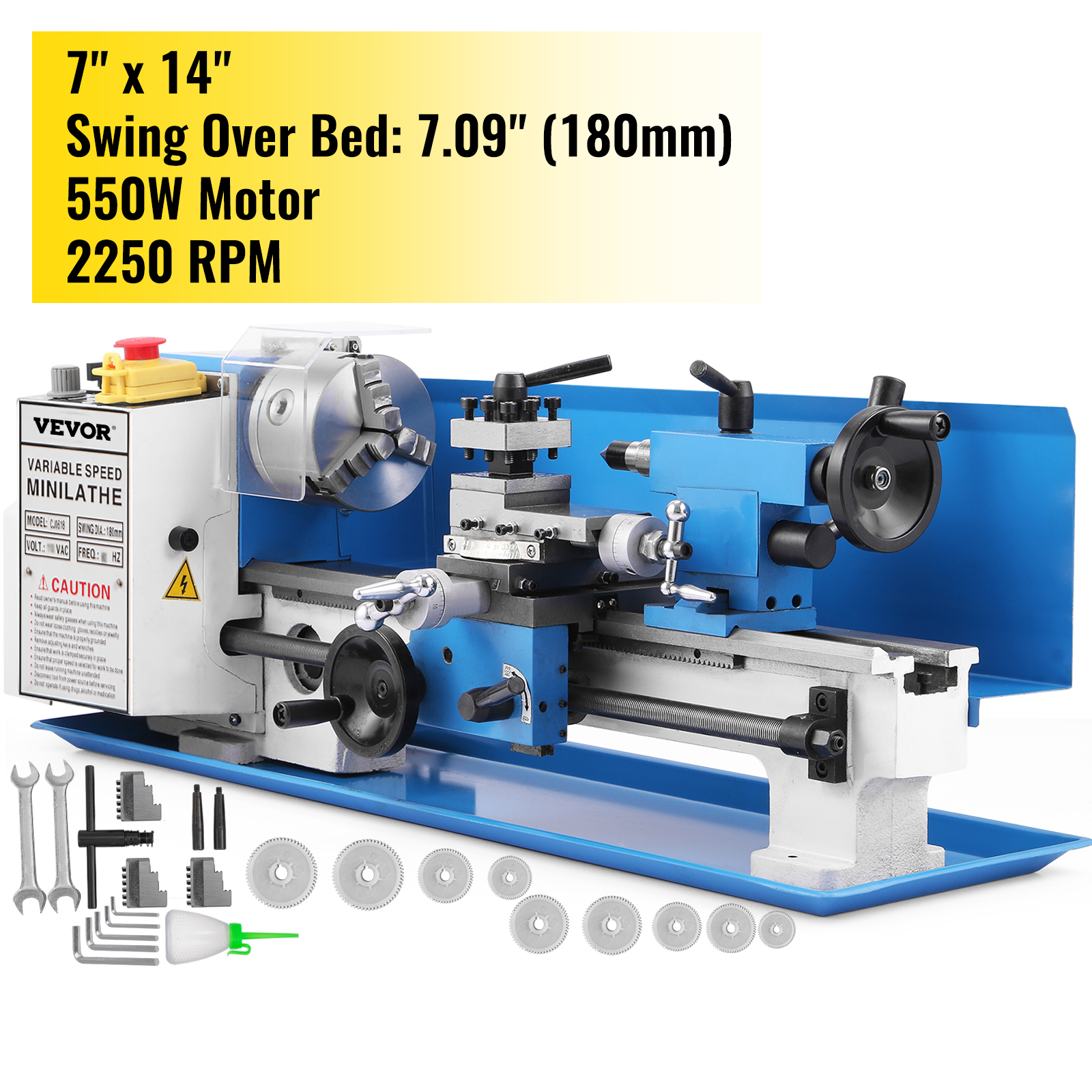

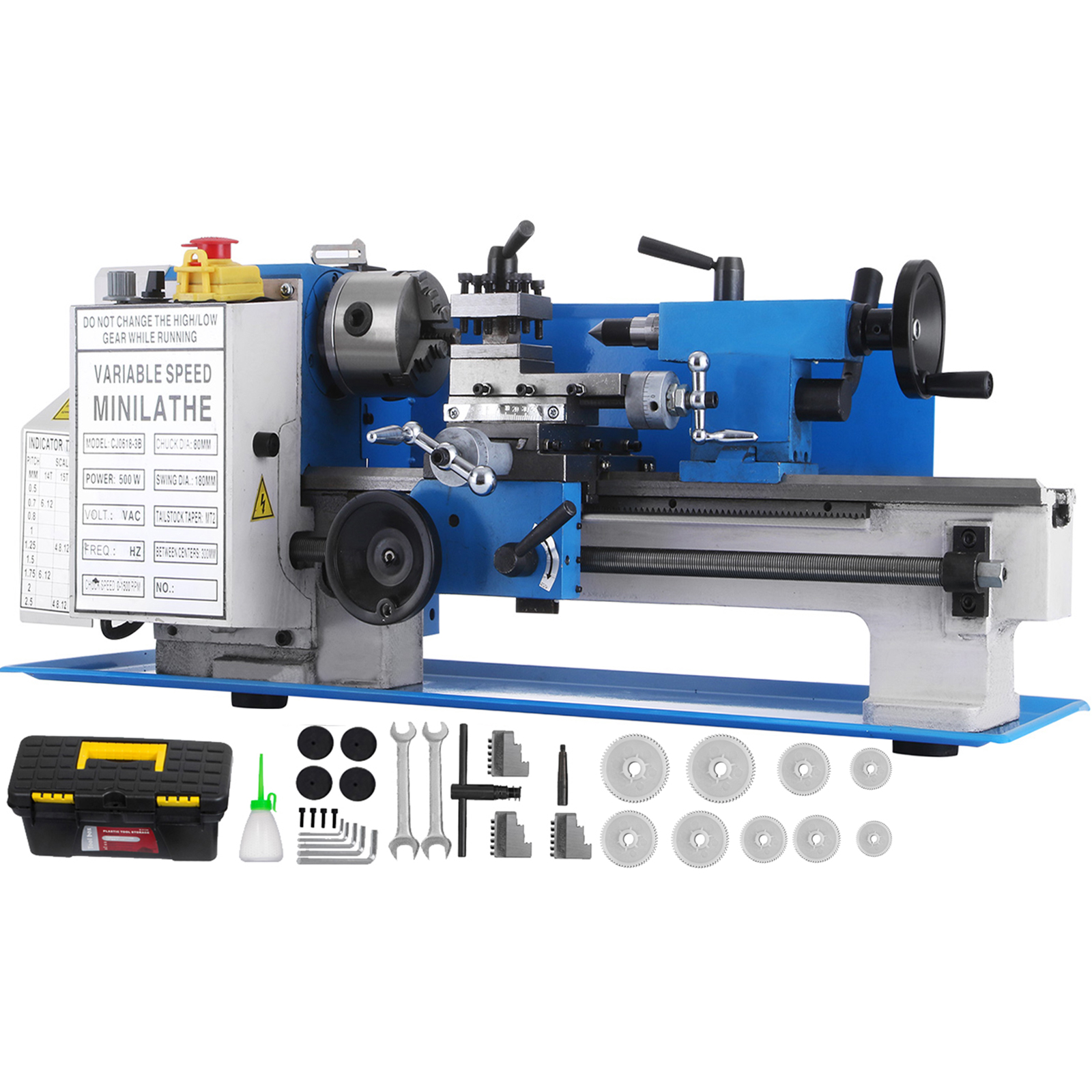

7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
Heavy & Sturdy Machine
Features a 7 inch swing over bed, 13.78 inch distance between centers and 20 mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.
Infinitely Variable Speeds
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
- Power of Motor: 550W DC Single Phase
- Spindle Speed: 0-2250 RPM
- Swing Over Bed: 180 mm (7.09")
- Swing Over Cross Slide: 110 mm
- Chuck Diameter: 100 mm (3.94")
- Centers Distance: 350 mm (13.78")
- Spindle Bore: 20 mm (0.79")
- Spindle Taper: MT3
- Tailstock Taper: MT2
- Cross Slide Travel: 65 mm (2.53")
- Top Slide Travel: 35 mm (1.36")
- Spindle Accuracy: 0.01 mm
- Inch Thread: 12-52 T.P.I
- Metric Thread: 0.5-2.5 mm
Package Content- 1 x Mini Metal Lathe
- 3 x Chuck Jaw
- 1 x Lathe Center
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrench
- 9 x Plastic Nylon Gear
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
Features & Details
- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
- Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
People Who Bought This Item Also Bought
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Key Features
-
Heavy & Sturdy Machine
Features a 7 inch swing over bed, 13.78 inch distance between centers and 20 mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.
-
Infinitely Variable Speeds
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
-
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
-
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
-
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
-
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
-
- 1 x Mini Metal Lathe
- 3 x Chuck Jaw
- 1 x Lathe Center
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrench
- 9 x Plastic Nylon Gear
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
- Power of Motor: 550W DC Single Phase
- Spindle Speed: 0-2250 RPM
- Swing Over Bed: 180 mm (7.09")
- Swing Over Cross Slide: 110 mm
- Chuck Diameter: 100 mm (3.94")
- Centers Distance: 350 mm (13.78")
- Spindle Bore: 20 mm (0.79")
- Spindle Taper: MT3
- Tailstock Taper: MT2
- Cross Slide Travel: 65 mm (2.53")
- Top Slide Travel: 35 mm (1.36")
- Spindle Accuracy: 0.01 mm
- Inch Thread: 12-52 T.P.I
- Metric Thread: 0.5-2.5 mm
 |
 |
 |
 |
 |
|

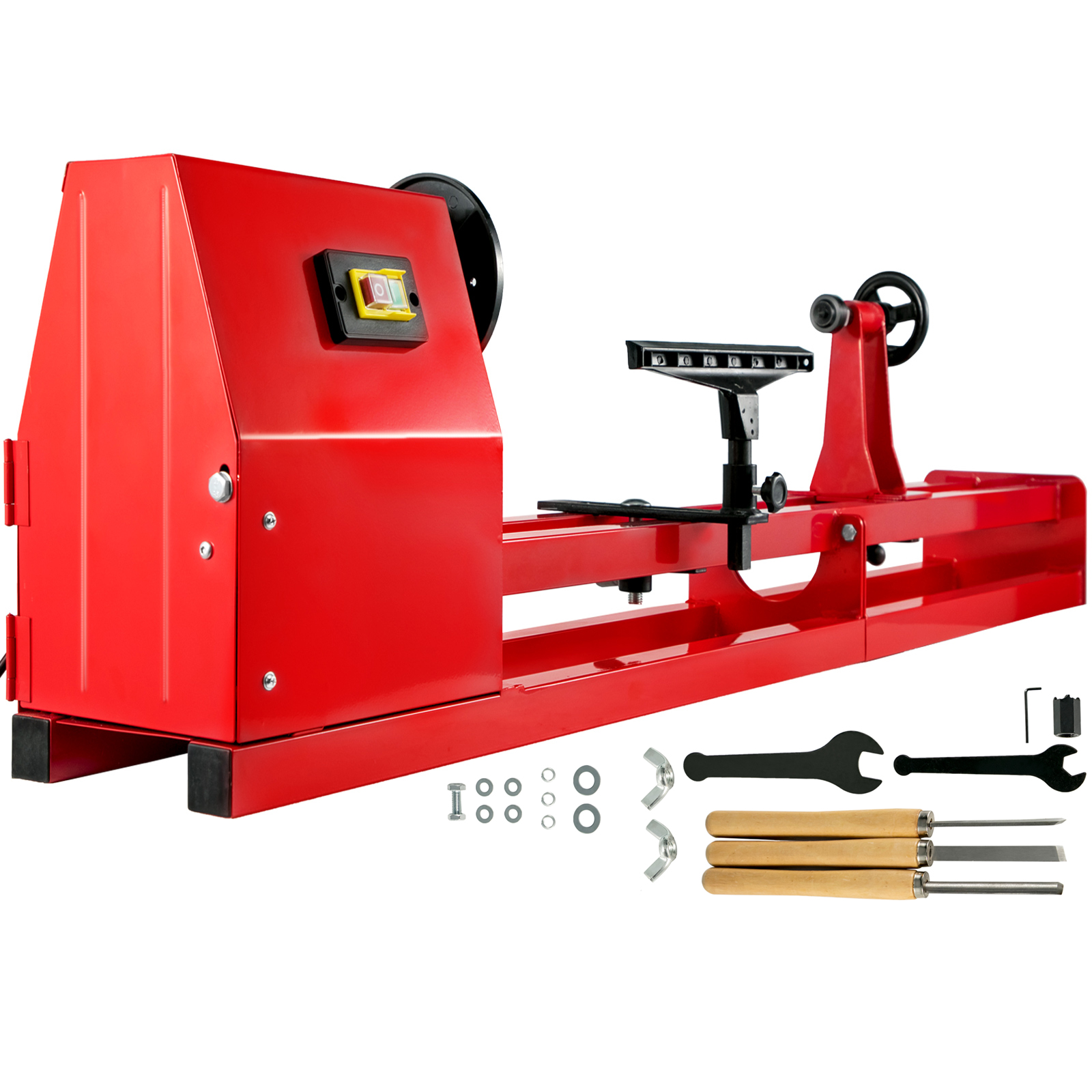

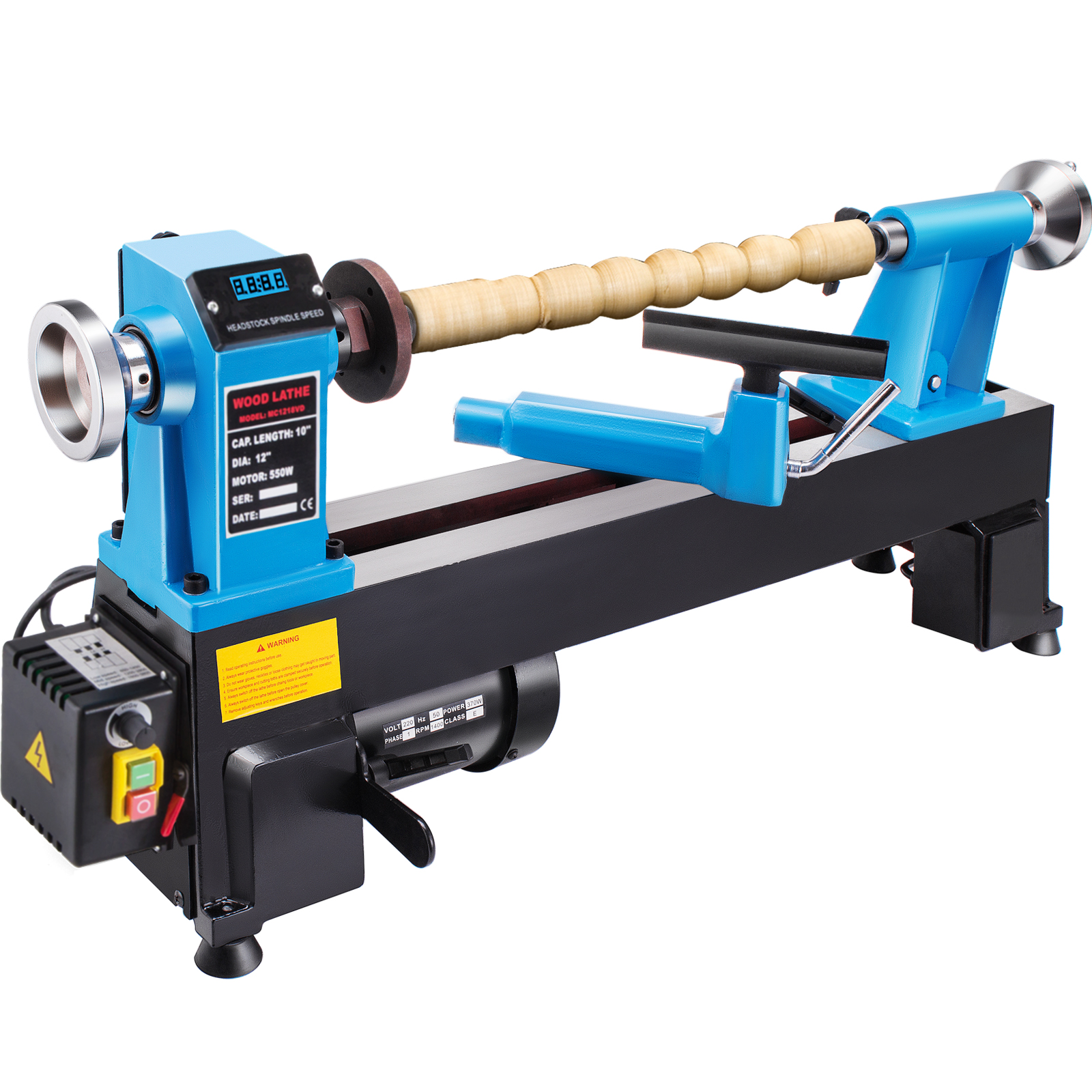

| 7"x12" Metal Lathe | 7"x12" Metal Lathe | 7"x14" Metal Lathe | 12"x18" Wood Lathe | 14"x40" Wood Lathe | |
| Chuck Size | 3" | 3" | 3.94" / 100 mm | / | / |
| Motor Power | 400W | 550W | 550W | 550W | 400W |
| Swing Over Bed | 7 inch / 180 mm | 7 inch / 180 mm | 7.09 inch / 180 mm | 12 inch / 300 mm | 14 inch / 350 mm |
| Centers Distance | 12 inch / 300 mm | 12 inch / 300 mm | 13.78 inch / 350 mm | 18 inch / 460 mm | 40 inch / 1000 mm |
| Threads Range | 12 - 52 T.P.I | 12 - 52 T.P.I | 12 - 52 T.P.I | 1" x 8TPI Taper Adaptor | / |
| Chuck Claw | 1 | 3 | 3 | / | / |
| Feature | 1 MS2 # Fix The Top, 1 Oil Can | 9 Cutters, 7 Combined Center Drills, 9 Nylon Gears | 5 Hex Wrenches, 9 Plastic Nylon Gears, 1 Oil Can | 500-3800 RPM Infinitely Variable | 4 Grade Speeds |
Features & Details
- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
- Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
