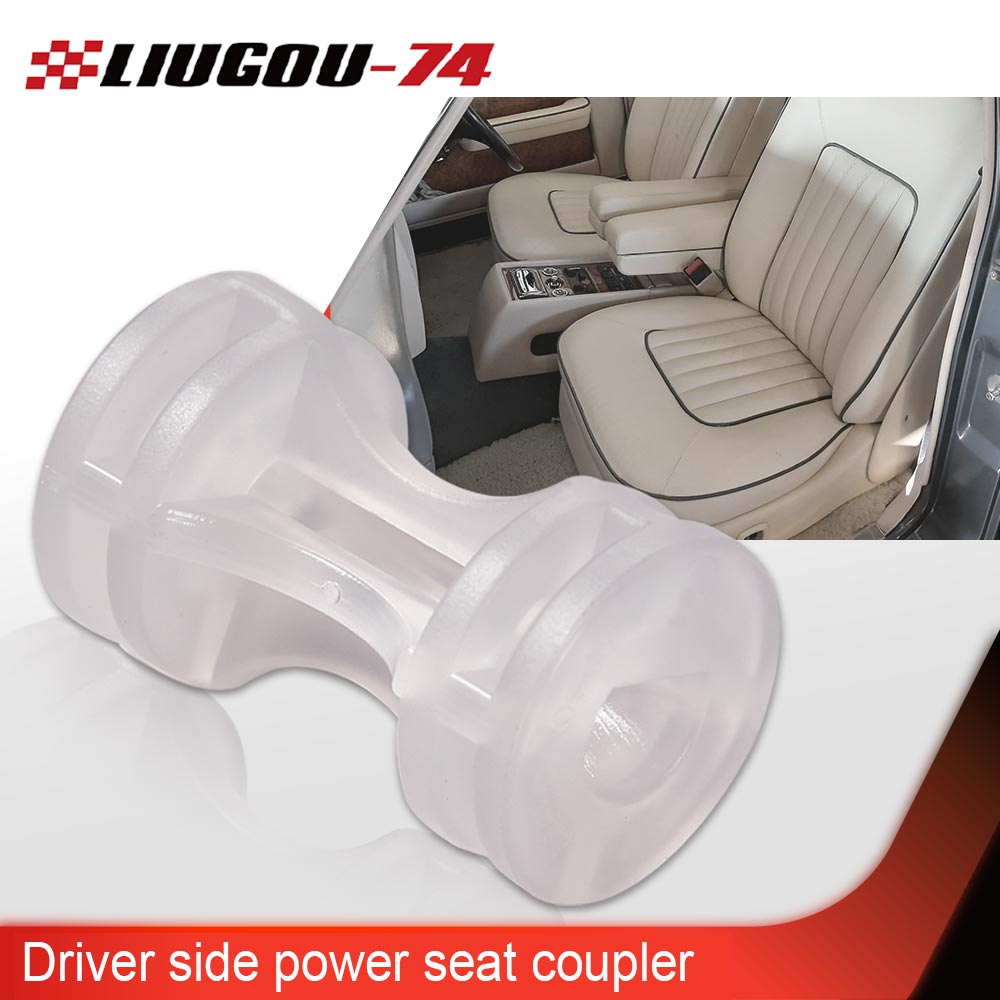

Power Seat Motor to Transmission Coupling Coupler replaces GM 20614175 20113451

Features:

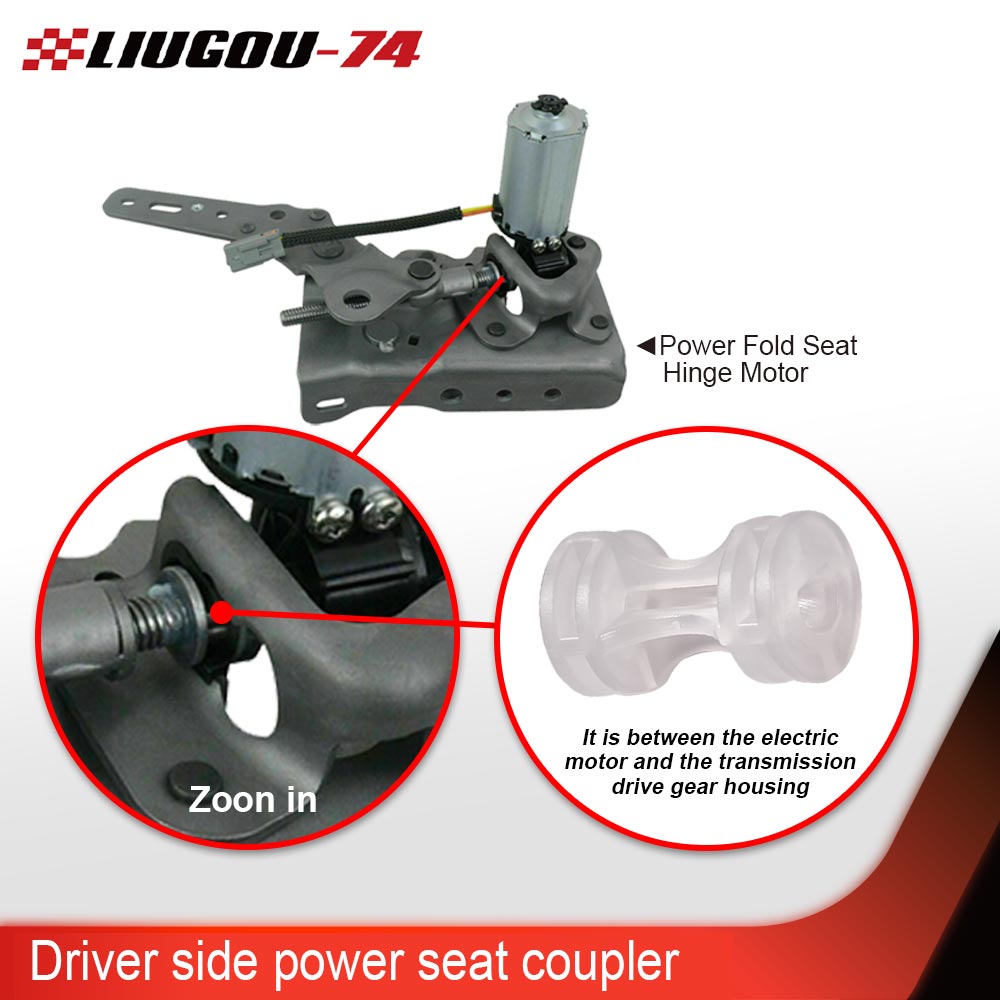

This is the Plastic Connector "Coupling" that resides between the electric motor and the transmission drive gear housing
It is designed to be a safety shear pin but commonly breaks mainly due to age.
It is designed to snap if there is too much resistance on the seat track instead of cracking the plastic transmission housing or putting to much strain on the electric motor to a point where it overheats or blows a fuse.

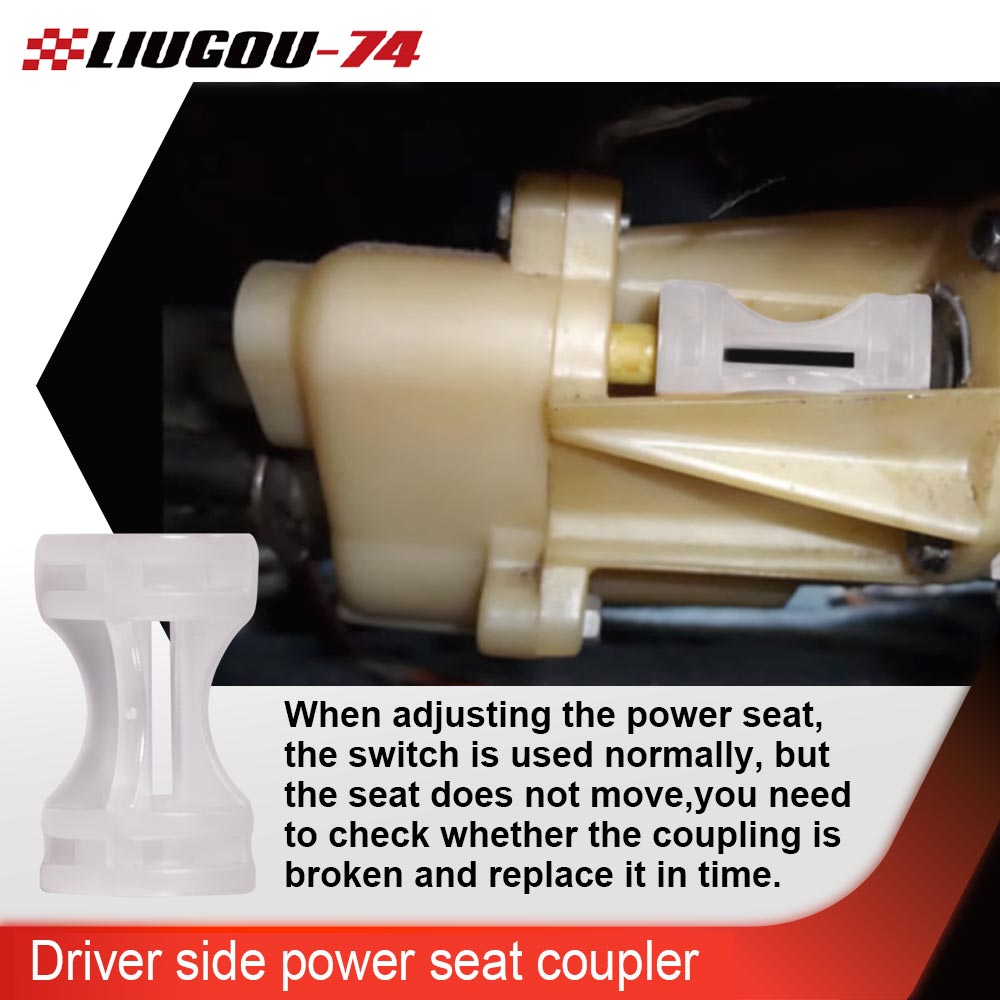

Chances are if you hear the motor running when you activate the switch and the seat does not move that this coupling has failed

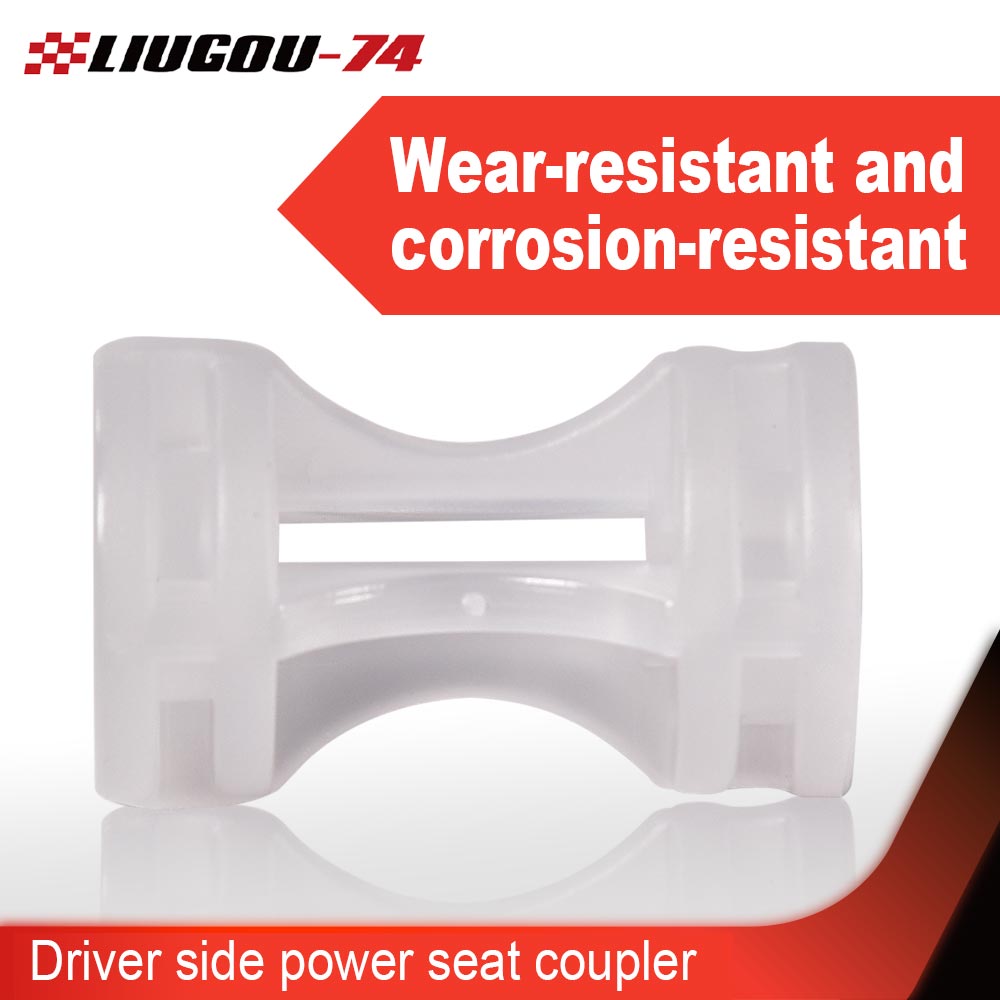

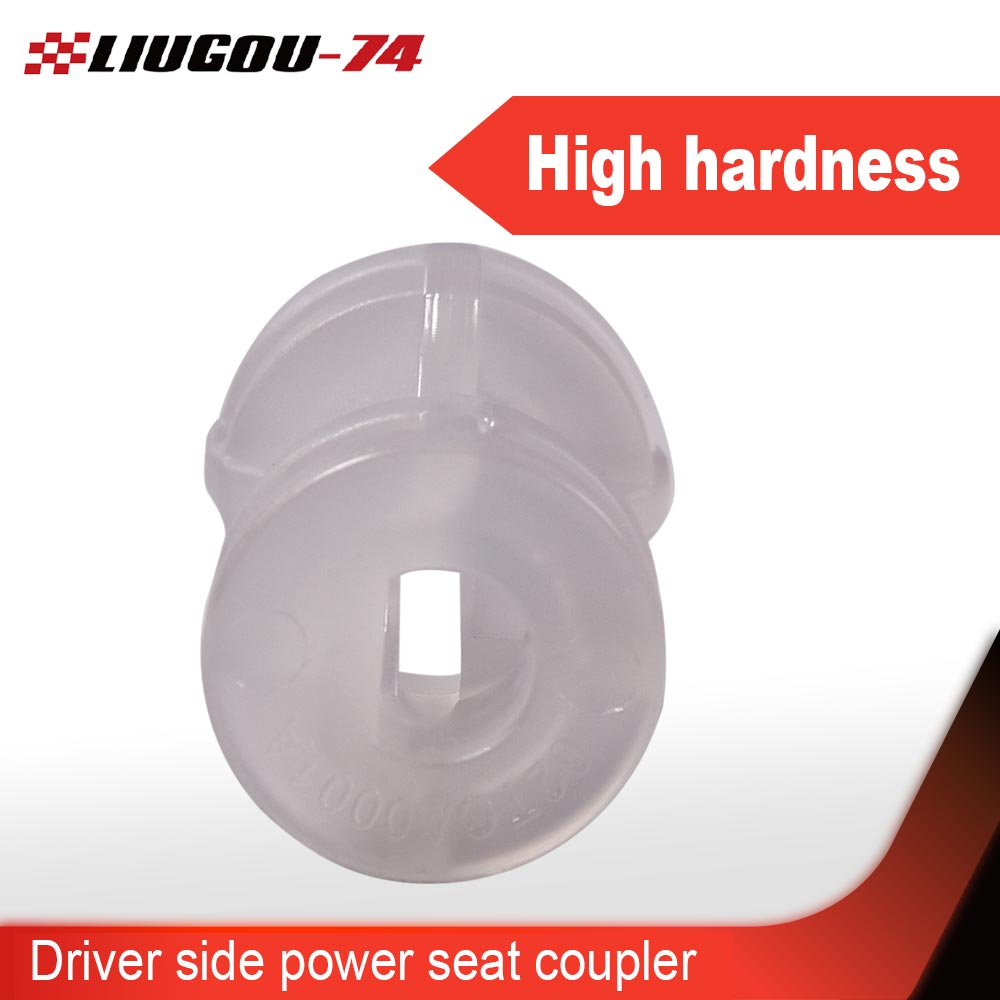

Molded in Clear / White Plastic with a Stronger Resin but still will snap in the event of a problem

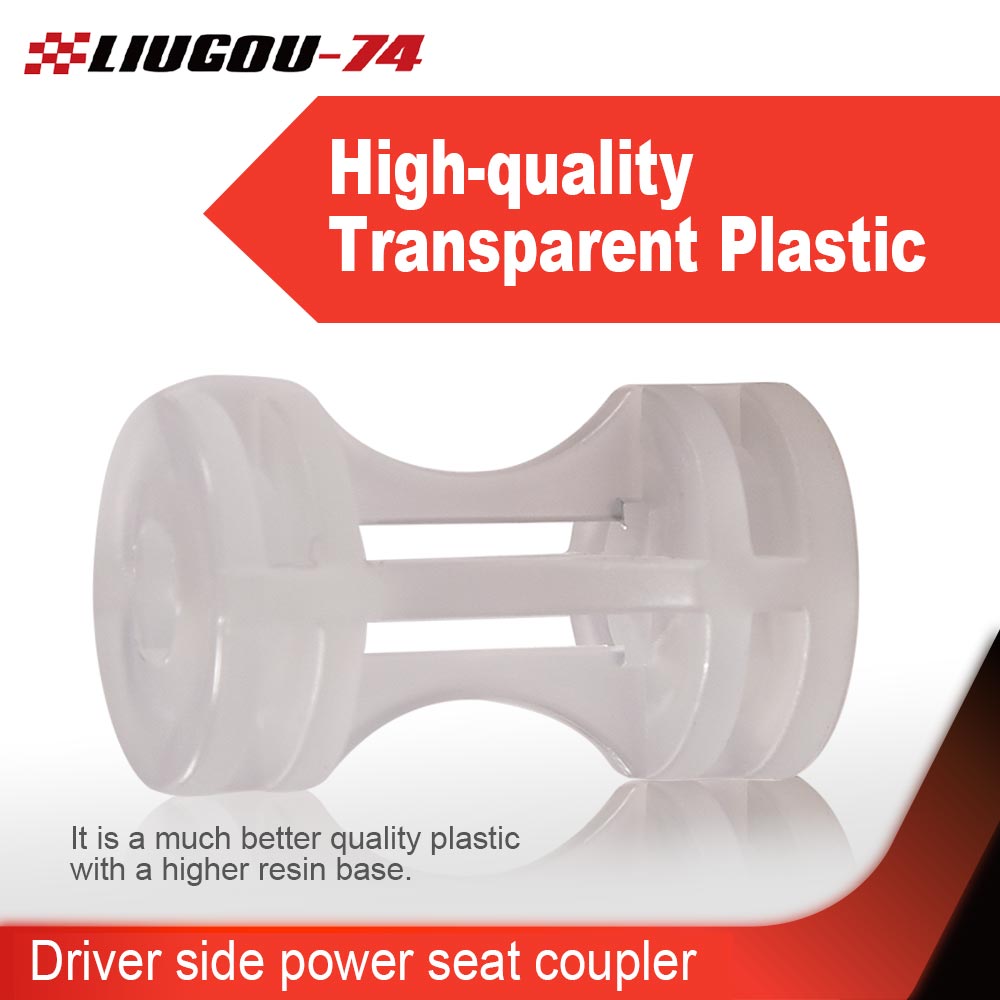

It is a much better quality plastic with a higher resin base.
If you can not grab with both hands and flex it will destroy your  power seat transmission!!!
Replaces GM # 20614175 (Group 11.561) Called a "Coupling"

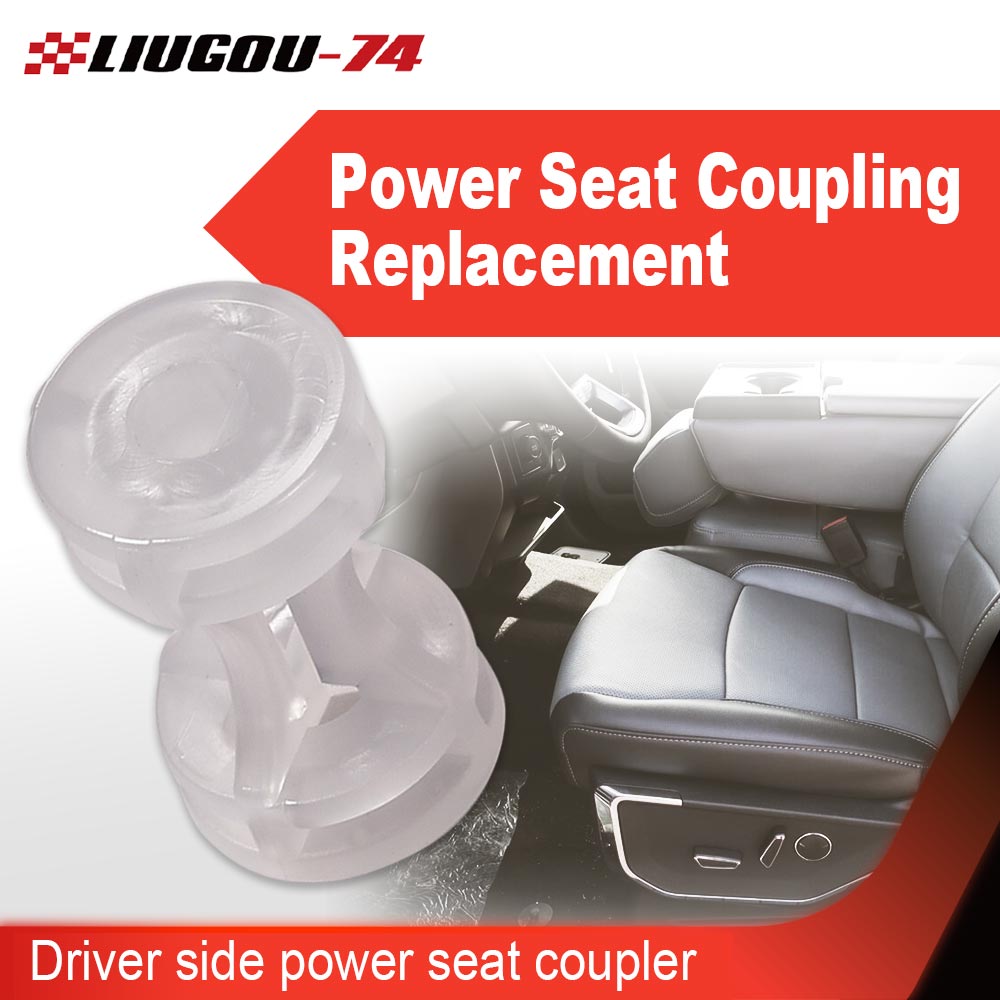

How to Remove & Replace the Power Seat Coupling

This is basically and R and R situation.
There are 3 (7 MM head) screws holding the motor on to the metal frame.
You want to remove the 1 in back first as it is hard to reach, Then the front bottom, Then the top screw.
At this point the motor is loose.
Remove any broken debris from the motor. (Cleaning is suggested).
Then remove any broken debris from the transmission. (again Cleaning is suggested).
Install the coupling on the motor shaft. The coupling is designed to fit tight. If it was loose it would eventually egg out with use.
Slide motor back in to alignment. The power seat coupling shear pin will have to be rotated to align with the power seat transmission shaft.
Now that you have Both joined together the screw installation can begin.
Install the lower front screw hand tight. Then do the same to the top screw, again just snug so the rear screw will be able to be aligned.
Tighten the rear screw.
Tighten the top front screw. Tighten the Bottom screw.
You have now successfully installed the new power seat coupling shear pin.

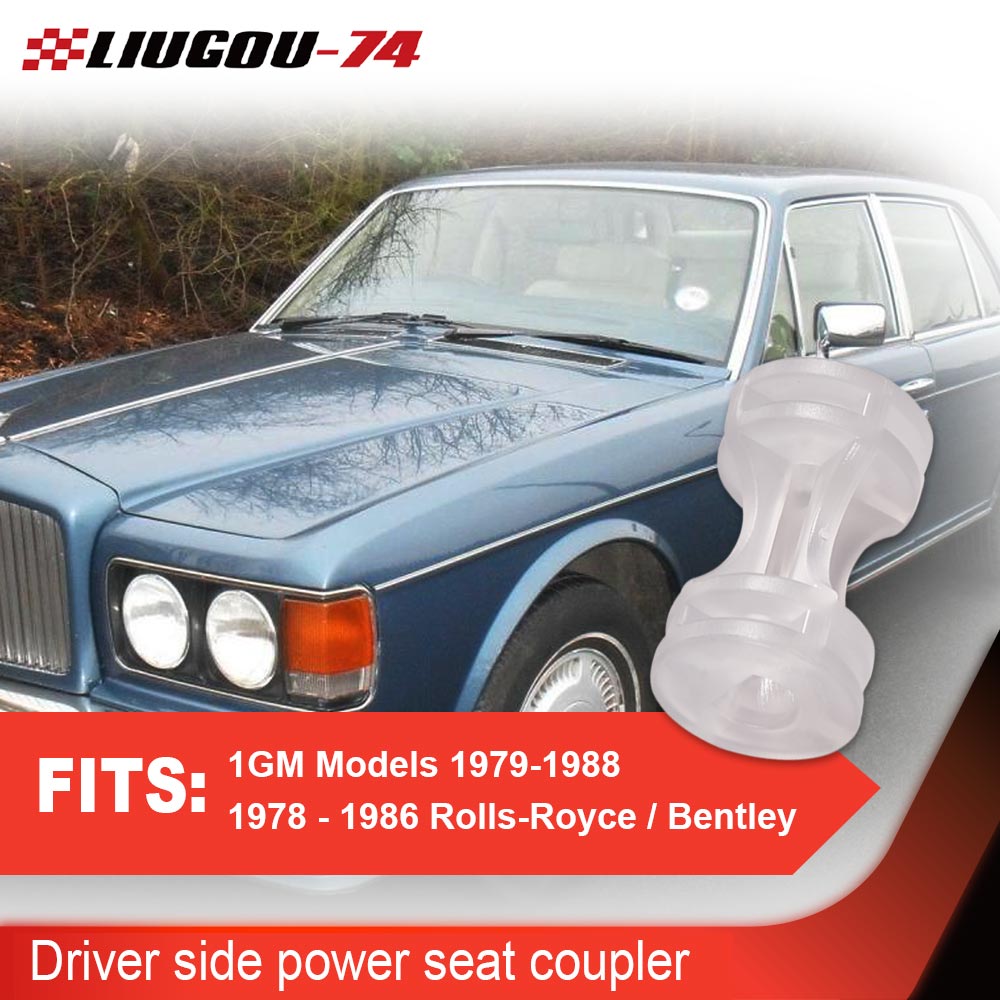

ALSO FITS:
1978 - 1986 Rolls-Royce and Bentley
