Product Features:

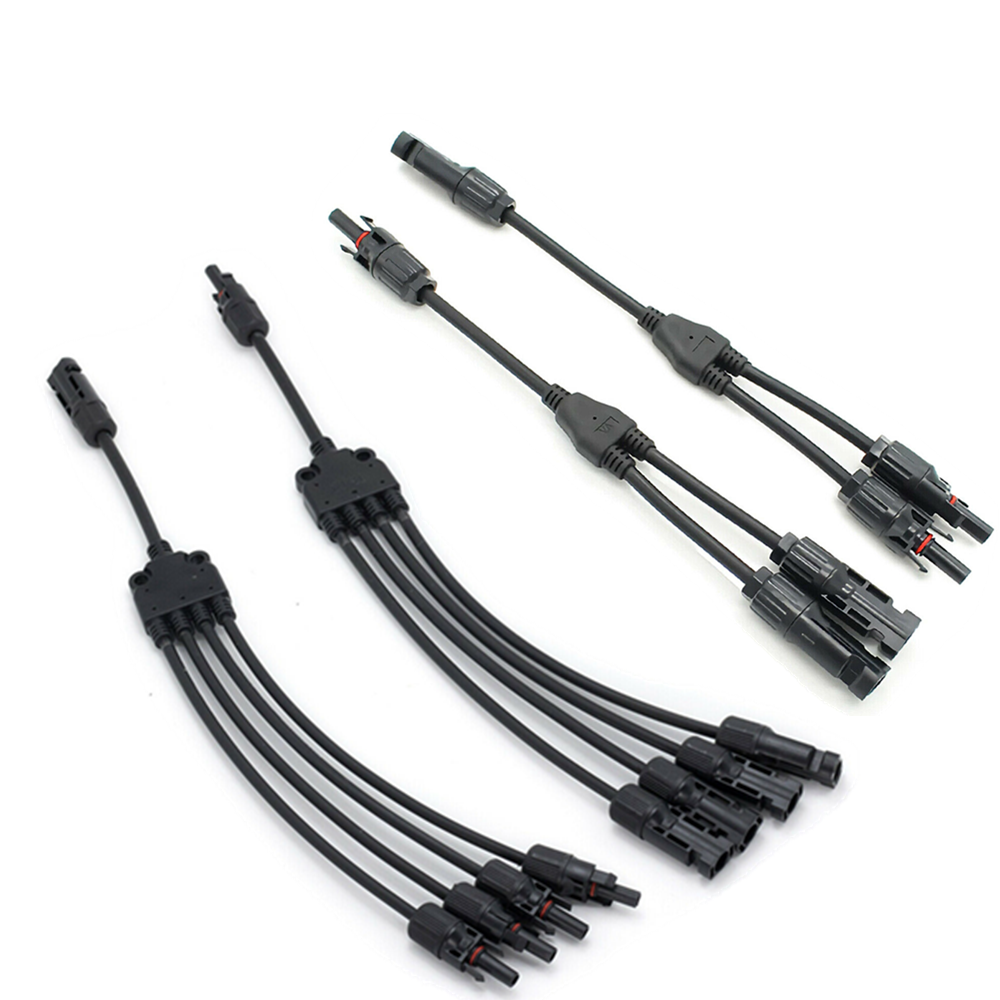

Y Branch parallel Connectors - 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)  or 1 male to 2 female
Double seal rings for better waterproof effect. The solar panel connectors are compatible with PV cables with different insulation diameters (10-14 AWG). It can be used in harsh environments, such as rain, high force winds, and snow
Excellent aging resistance and UV endurance. Sealed and dust-proof design. Load capability with big current and high voltage. Extra high & low temperature and fireproof resistance.

Product Specifications:
main cable specification:6mm2(AWG10)
Branch cable specification：4mm2(AWG12)
Rated Current：30A
Rated voltage：1000VDC
Waterproof degree：IP67
Flame class：UL94-VO
Insulation material：PPO + PA
Connecting system：crimping connection
Temperature range：-40  - +90 C

Package included:
1 Pair of For MC-4 Connector Cable
