Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector - Black
B-Shell, Large Cap
$19.99

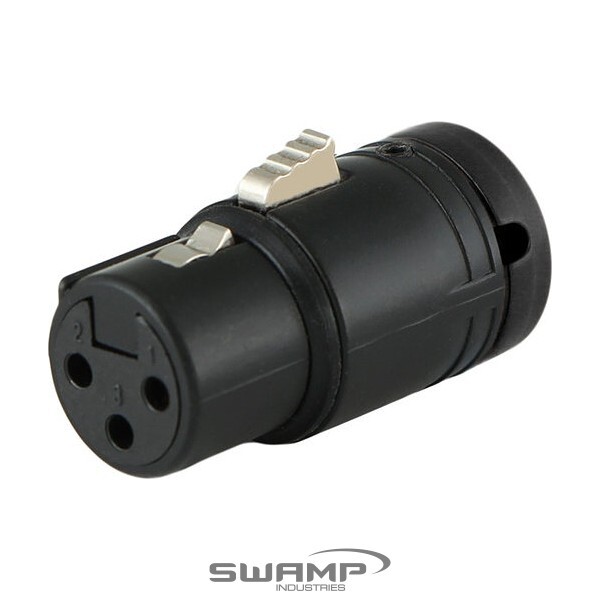

The Cable Techniques CT-BX3F-K is a low profile, right angle female XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. Accepts cable diameters up to 6mm.
-
Description
Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector - Black
The Cable Techniques CT-BX3F-K is a low profile, right angle female XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o'clock or 9 o'clock. Matte black shell, gold pins. Black cap colour. The large cap accepts cable diameters from 3.8mm to 6mm.Available in 10 optional interchangeable Cap colours: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.
The supplied large cap is compatible with super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.
Included Components:
- 1x Shell
- 1x 3-pin Insert
- 2x set screws
- 1x zip-tie
- 1x colour cap
Specifications:
Termination Style Solder Contact Material Bronze B shell RoHS Yes Cable Outlet Diameter +/- 5.8mm, 6mm MAX Shell Zinc Diecast Voltage Rating 50V Current Rating 10A Weight 34g Dimensions 37mm x 19mm x 19mm w/ Cap In-Use Length 25mm exposed length in-use Set Screw Hex Size 1.5mm Set Screw Material Anodized Stainless Steel Cap Angle Adjust 60° to 120° and 240° to 300° Plastic Cap Material Molded ABS thermoplastic Shell Colour Black Life >1,000 operations Thermal Range -50°C to + 80°C
