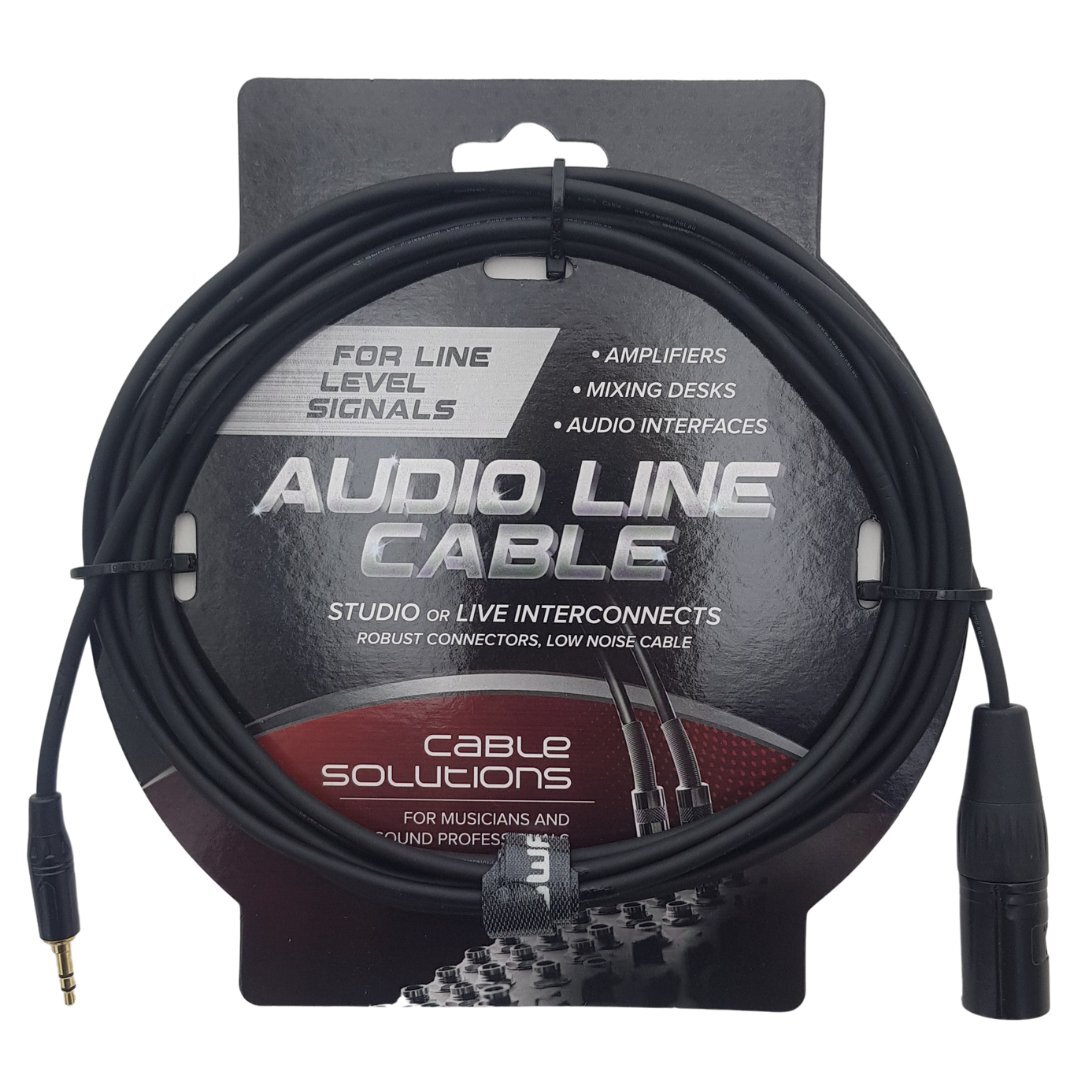

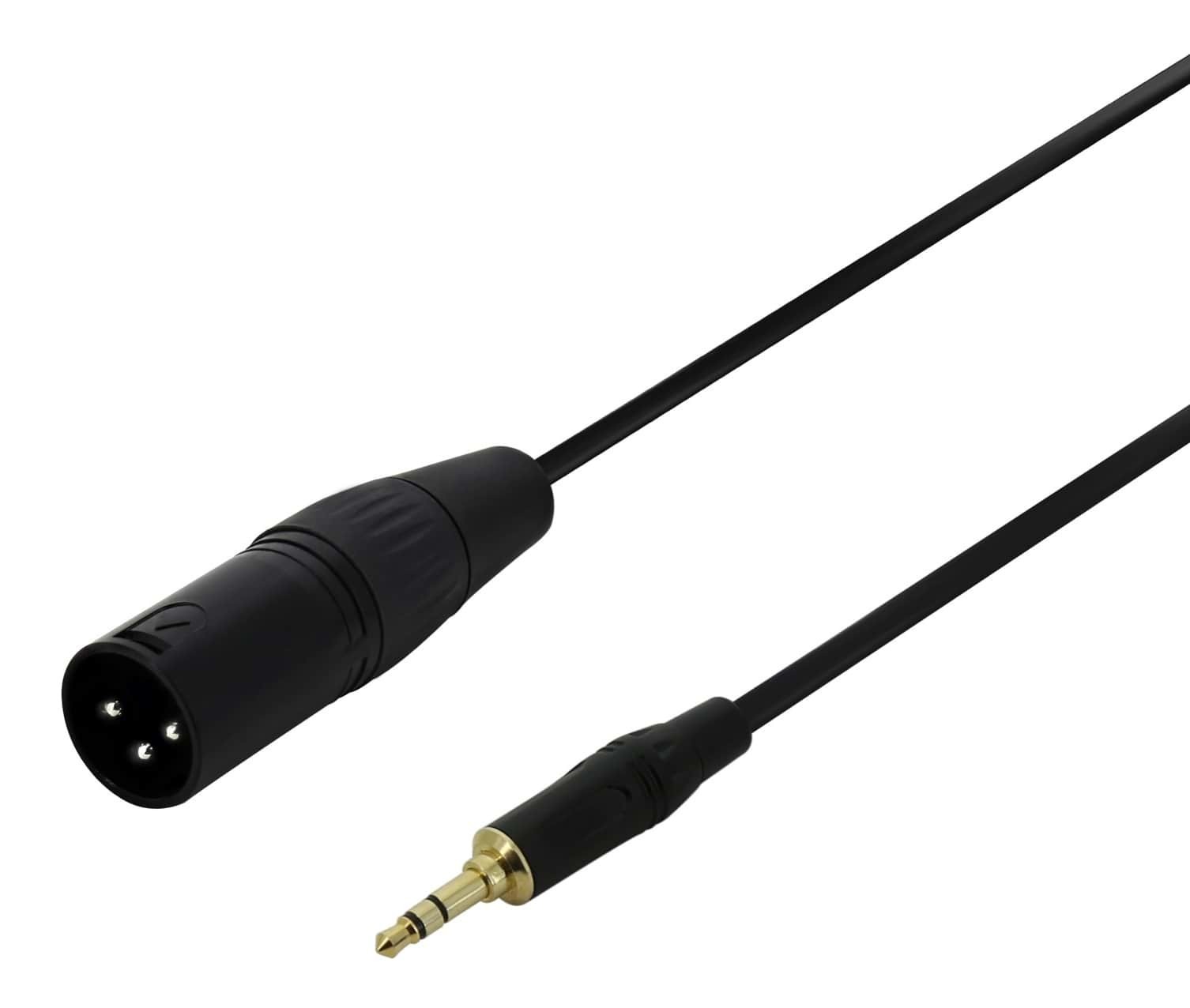

3.5mm TRS to XLR(m) - Stereo to Mono Cable

SWAMP Stereo 3.5mm (Mini-Jack) to Mono XLR(m) Cable

Stereo 3.5mm to Mono/Unbalanced XLR
This cable will combine the LEFT and RIGHT audio channels from a 3.5mm / 1/8" output, such as on a iPod, iPhone, Laptop or MP3 player, into a single audio channel. Making the signal at the XLR(m) connector 'mono' or 'unbalanced'.

Avoid Weird Sounds - Stereo to Balanced does not work!
When sending a "stereo" signal (from iPod, etc.), using a typical 3.5mm to XLR cable wired for a stereo/balanced connection, will result in a balanced XLR input reading the "stereo" signal as "balanced" and cancelling out some sound and generally making your audio sound very odd.

Quality Cable and Connectors

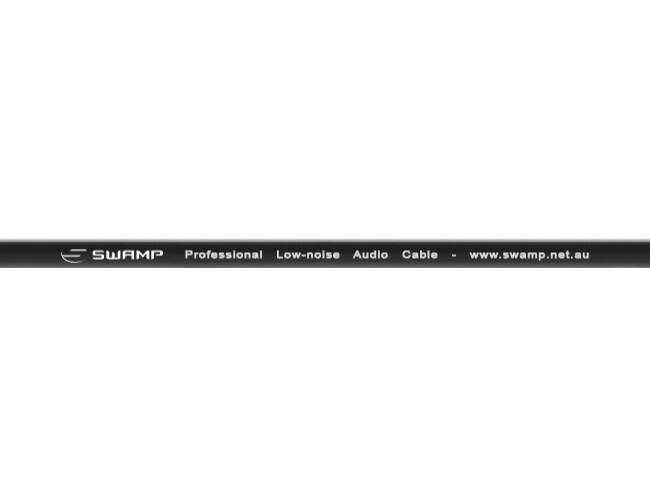

Our slim 4.4mm diameter cable still had thick 23AWG conductors and tight spiral shield, but has a thinner outer PVC jacket giving the thinner overall diameter. Ideal for patching smartphones and laptops, ensuring the weight of the cable does not pull the plug out of the connector. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference and be flexible and withstand the rigours of constant use.

Specifications:

• Cable Colour: Black
• Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
• Conductor Gauge: 23 AWG / 0.23mm2
• Outer Diameter: 4.4mm
• Connectors: 3pin XLR(m) to 3.5mm TRS (Yongsheng YS137N-B and SWAMP TP180)
• Wiring (stereo to mono): (Pin1 - Sleeve, Pin2 - Tip, Pin2 - Ring, Pin3 - Sleeve)

Wiring:
