Application:

Universal

Features and Benefits:

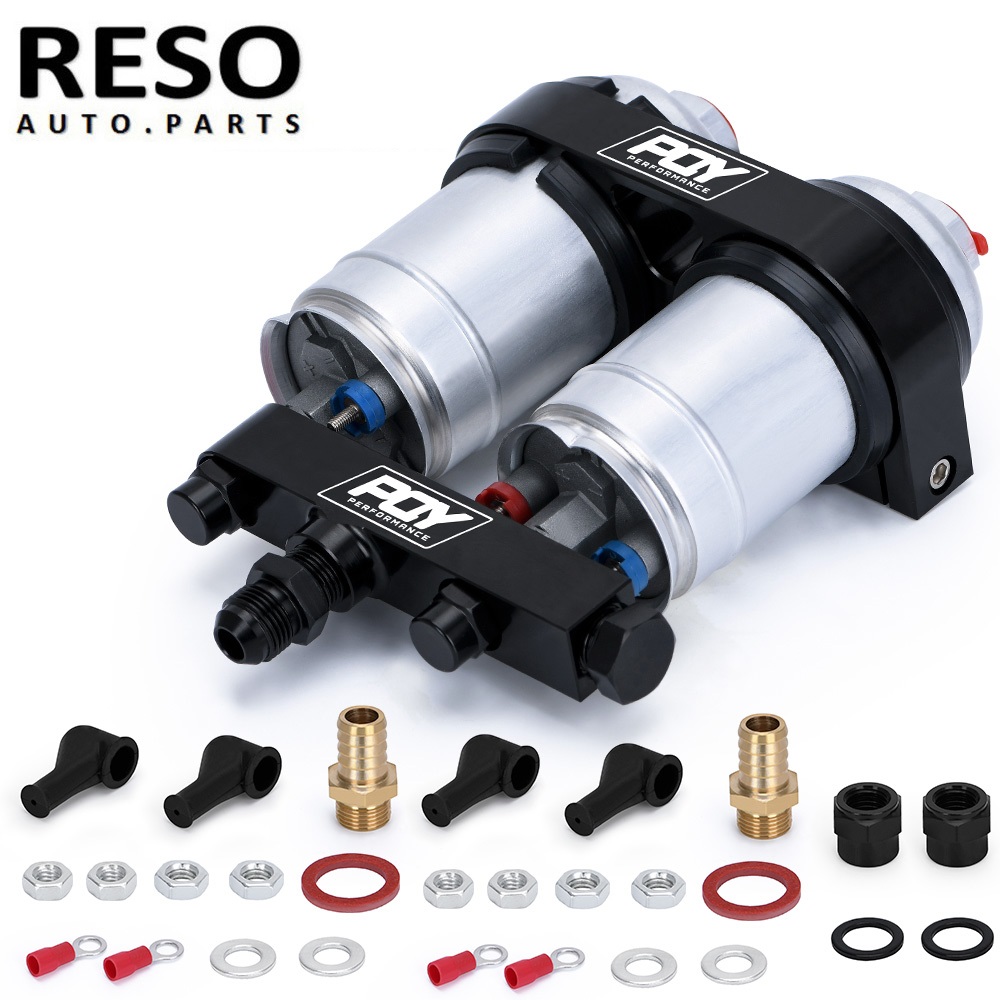

• This Twin Fuel Pump and Bracket Kit comes with 2 high flow pumps, pump bracket and a fuel manifold connector bar with a single AN8 outlet, the fuel bar has a Movable outlet which can be positioned either at the front or side of the bar.

Dimensions& Material:

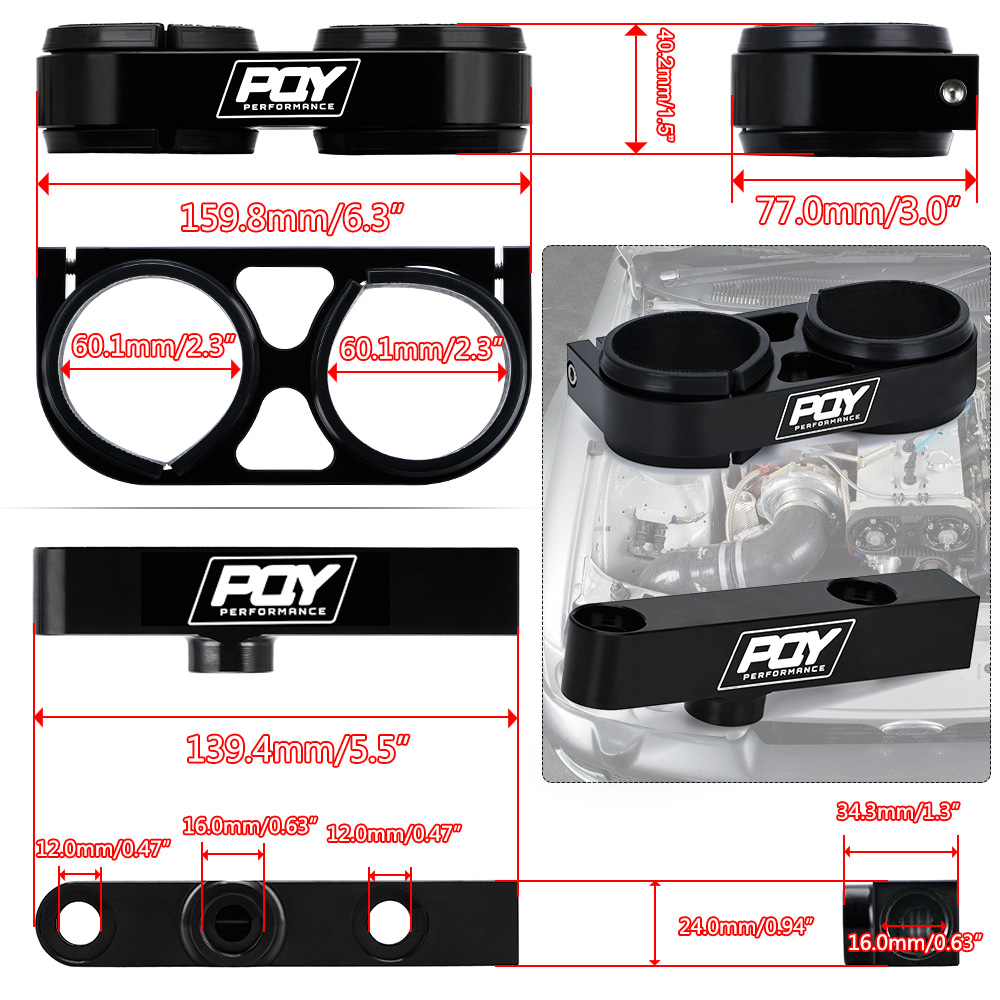

Bracket:

• Overall Bracket Height:77mm

• Length: 160mm

• Width: 24mm

• Diameter: 65mm

• Distance Between Pumps: 86mm (Centre to Centre)

• AN- Thread Size: AN8 male

• Total Weight: 600g/1.32lb

• Materiel: Aluminium

• Colour: Black

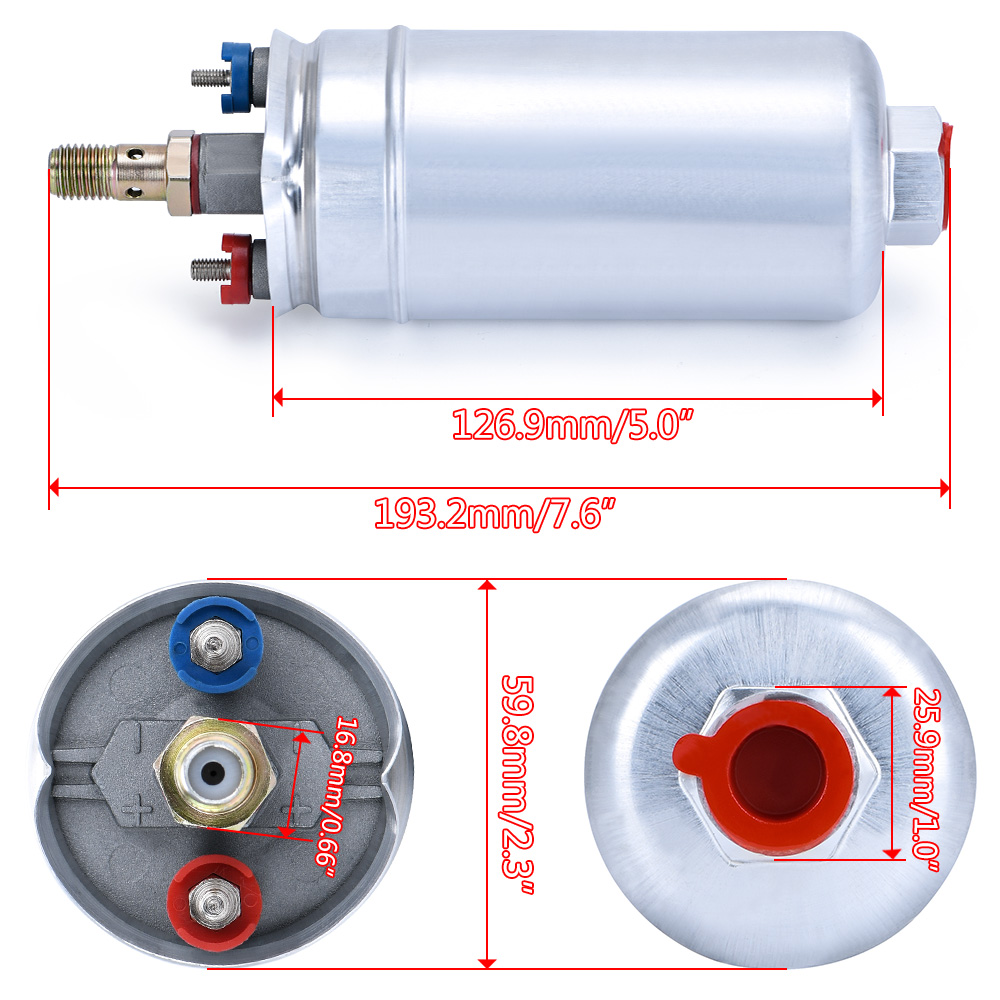

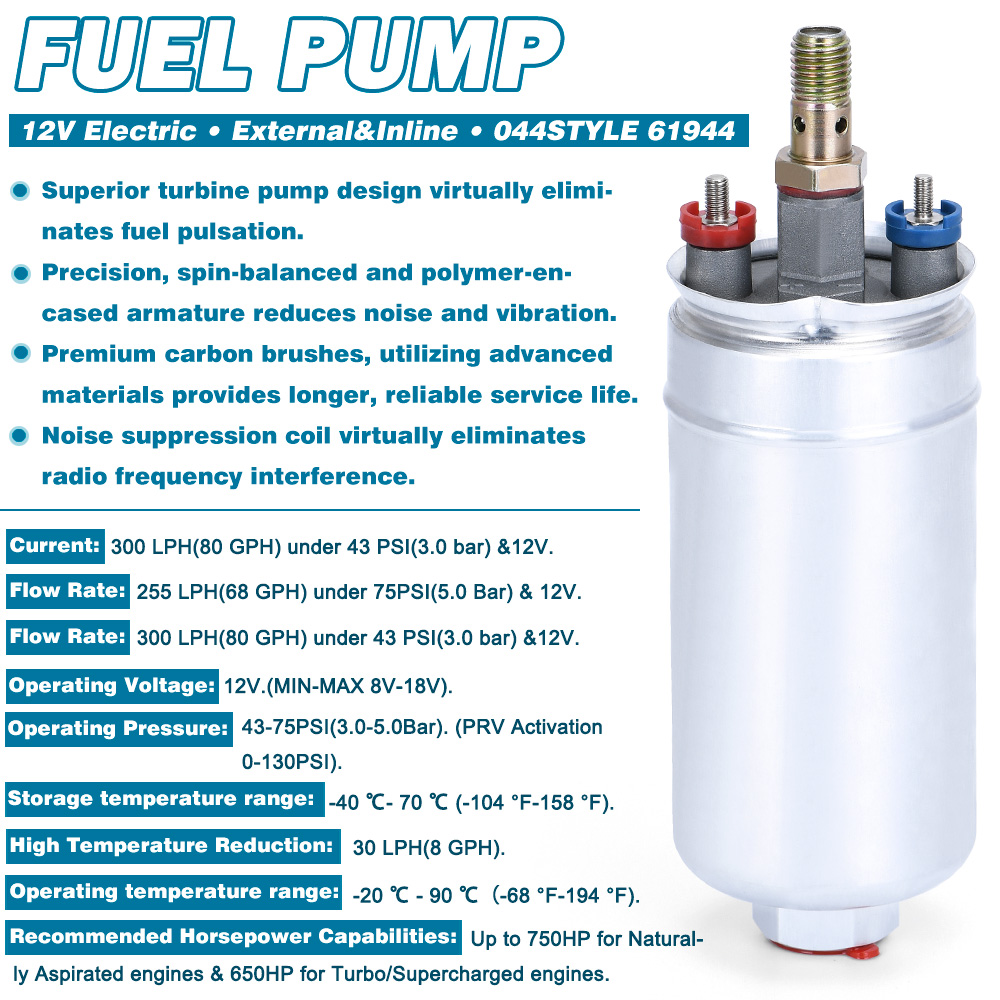

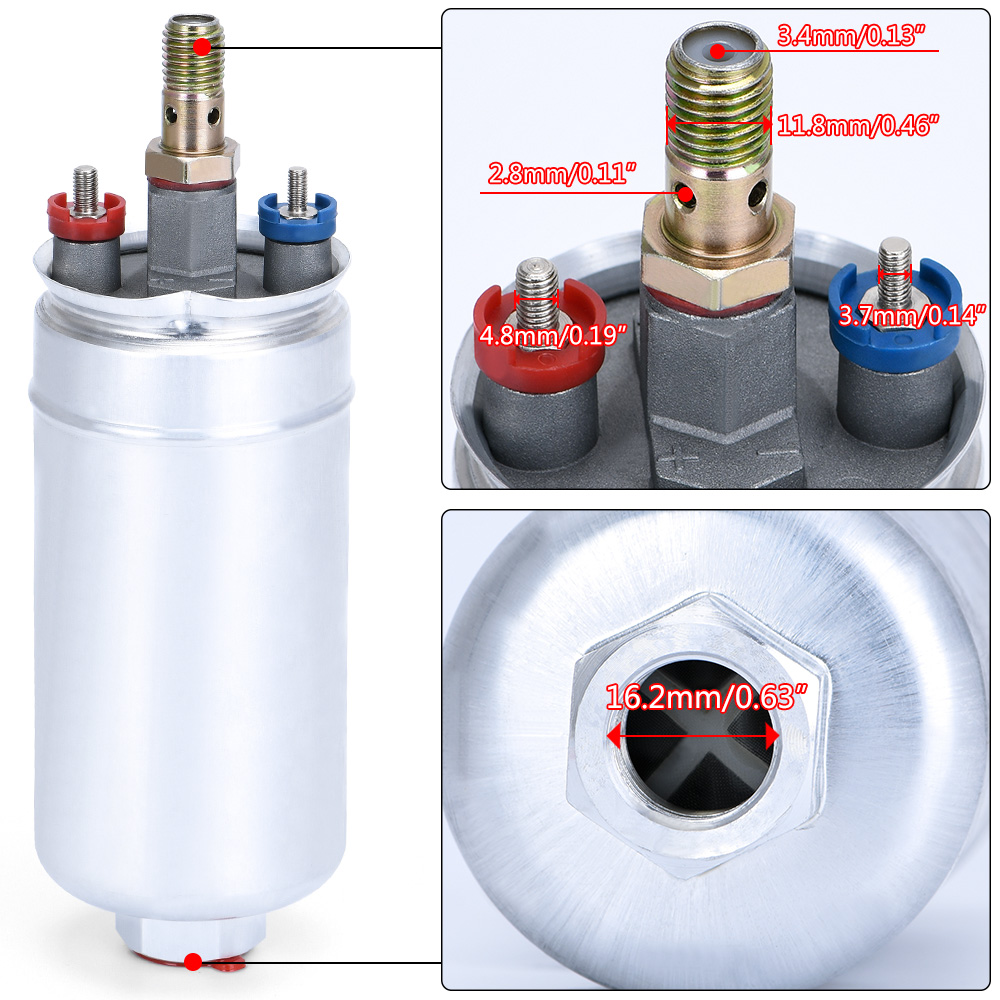

Pump:

• External Diameter : 60mm

• Body Length : 128mm

• Total Length: 196mm

• Inlet Thread : M18 x 1.5

• Outlet Thread : M12 x 1.5

• Voltage : 12V

• Current: 11amps

• Weight : 1100g /2.43lbs each

• Non Return Valve : Yes

• Materiel: Aluminium & metal

• Colour: Silver

• Operating Voltage:12V

• Min Voltage:8V

• Max Voltage:18V

• Operating Pressure:75PSI(5.0Bar)

• PRV Activation0-130PSI)

• Flow rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V

• Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V

• Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V

• Current:15A under 75PSI/12V

• High Temperature Reduction: 30 LPH(8 GPH)

• Operating temperature range: -20 - 90 -68 °F-194 °F)

• Storage temperature range: -40- 70 (-104 °F-158 °F)

• Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines& 650HP for Turbo/Supercharged engines

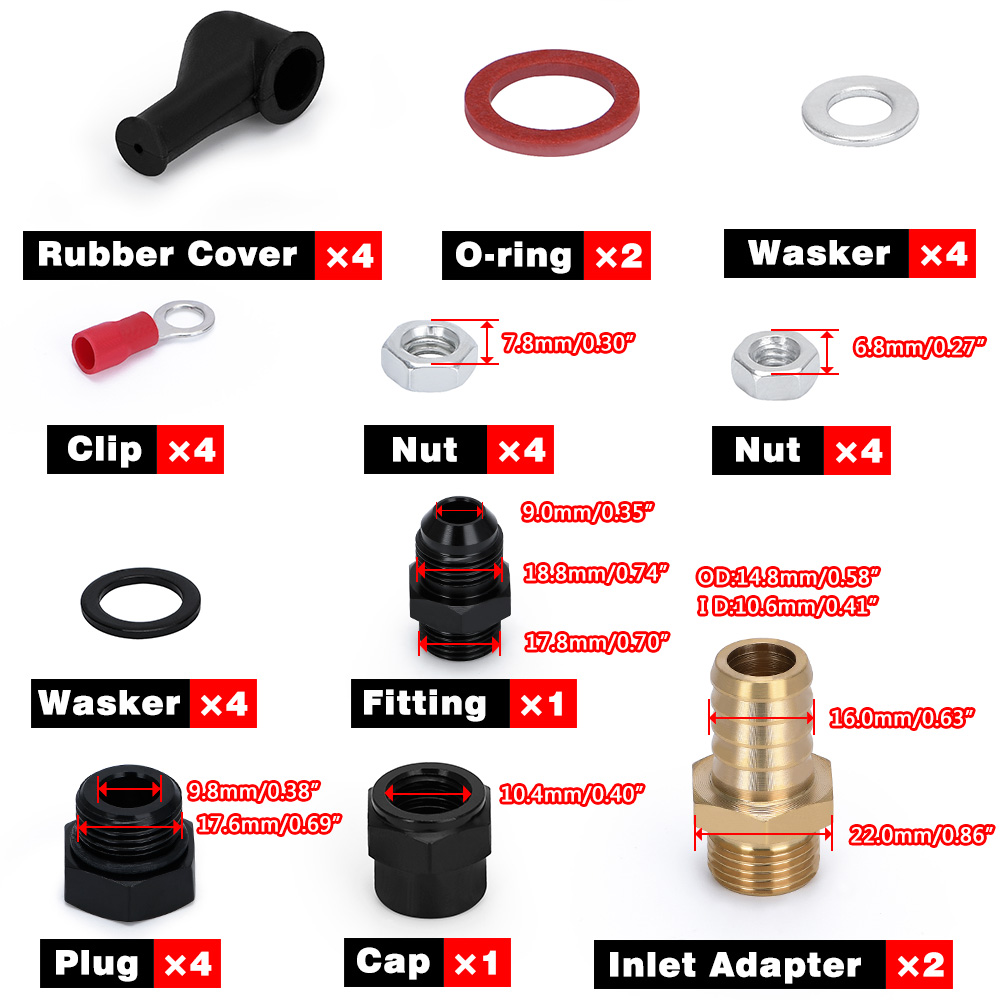

Package Included:

• 2 x Fuel Pumps

• 1 x Twin Fuel Pump Mounting Bracket

• 2 x Anti Slip/Vibration Sleeves

• 1 x Fuel Bar

• 1 x M18 to AN8 Fitting

• 1 x M18 Plug

• 2 x M12 Caps (100% Brand New Never Used Or Installed)
