DSO138 Mini Version:
Description:
DSO138mini makes the following improvements:
1. Improved structure and smaller size
2. Powered by USB or battery.
3. External trigger input.
4. Serial data output signals.
5. Shared controller.
DSO138mini makes the MCU and lcd remain in the same circuit board to avoid the problematic pin header connections that were used in the DSO138. This not only improves product reliability, but also allows the main board to become a flexible general purpose controller.
DSO138mini's trigger can reliably work under timebase 10us and 20us settings. Waveform data can be disabled via the Serial port, and data can be easily displayed on a PC using other software like Gnuplot. This photo shows the same waveform as on a PC using Gnuplot.
DSO138mini makes the following improvements:
1. Improved structure and smaller size
2. Powered by USB or battery.
3. External trigger input.
4. Serial data output signals.
5. Shared controller.
DSO138mini makes the MCU and lcd remain in the same circuit board to avoid the problematic pin header connections that were used in the DSO138. This not only improves product reliability, but also allows the main board to become a flexible general purpose controller.
DSO138mini's trigger can reliably work under timebase 10us and 20us settings. Waveform data can be disabled via the Serial port, and data can be easily displayed on a PC using other software like Gnuplot. This photo shows the same waveform as on a PC using Gnuplot.
Options:
Main characteristics of DSO138
Analog bandwidth: 0-200 kHz
Sample Rate: 1 ASM Max.
Sensitivity: 10 mV / Div-5 V / Div
Sensitivity error: <5%
Vertical resolution: 12 bits
Timebase: 10us / Div-500 s / Div
Record length: 1024 points
Built-in 1 kHz / 3.3 V Signal Tests
Frozen (hold) signal available
Save / recall signal
Serial signal data
Vertical
Number of channels: 1
Analog bandwidth: 0-200 kHz
Sensitivity: 10 mV / Div-5 V / Div
Sensitivity error: <5%
Resolution: 12 bits
Input impedance M: 1 m ohm
Maximum input voltage: 50Vpk
Coupling: DC, AC, GND
Horizontal
Maximum real-time sample rate: 1 ASM
Timebase: 10us / Div-500 s / Div
Record Length: 1024
Trigger
Trigger Modes: Auto, Normal, Single
Trigger Types: Lifting / Falling Edge
Trigger position: 1/2 fixed buffer size
Display

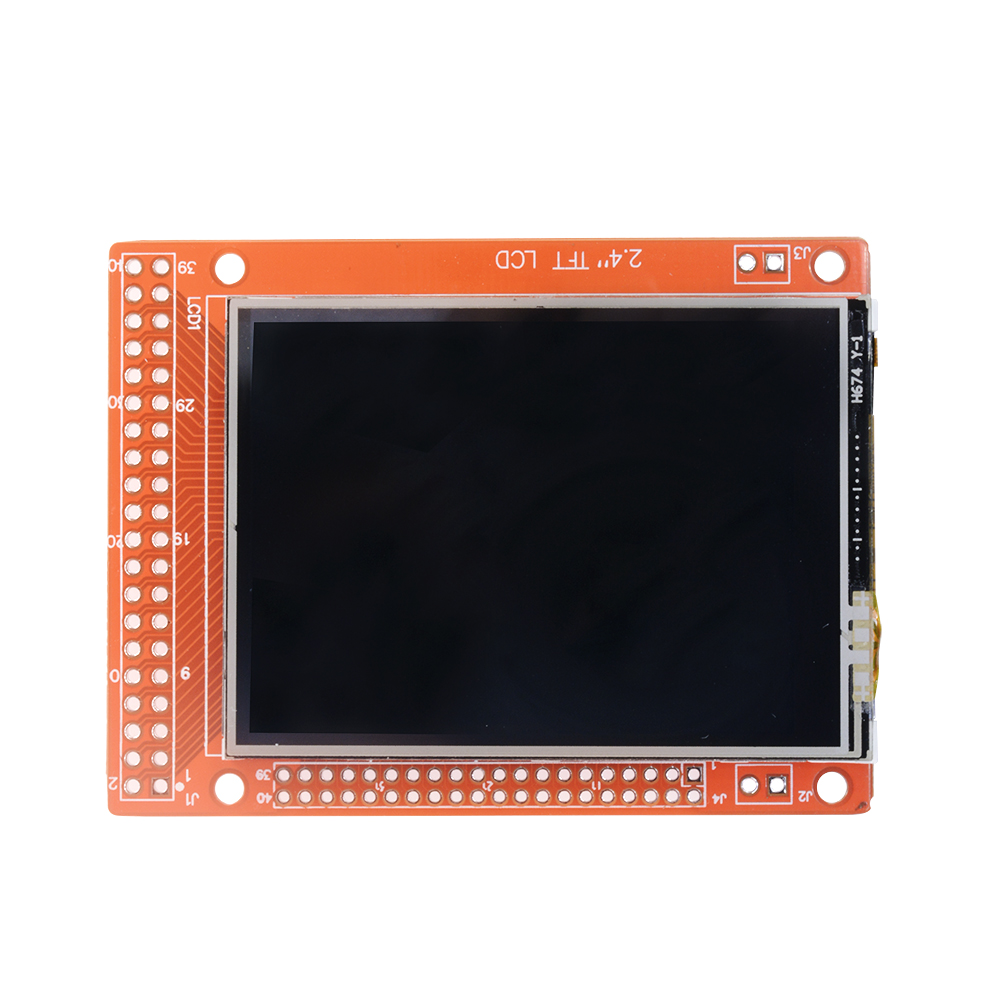

2.4 inch color TFT lcd with a resolution of 240x320
Nutrition
3.5 V-6 V DC
Power supply: 120 mA @ 5 V
Physical
Dimensions: 7x8 cm / 2.76x3.15 inches
Primary Color: Red
Note:
1. Due to the different configuration of different monitors, the image does not display the actual color of the goods. Thank!

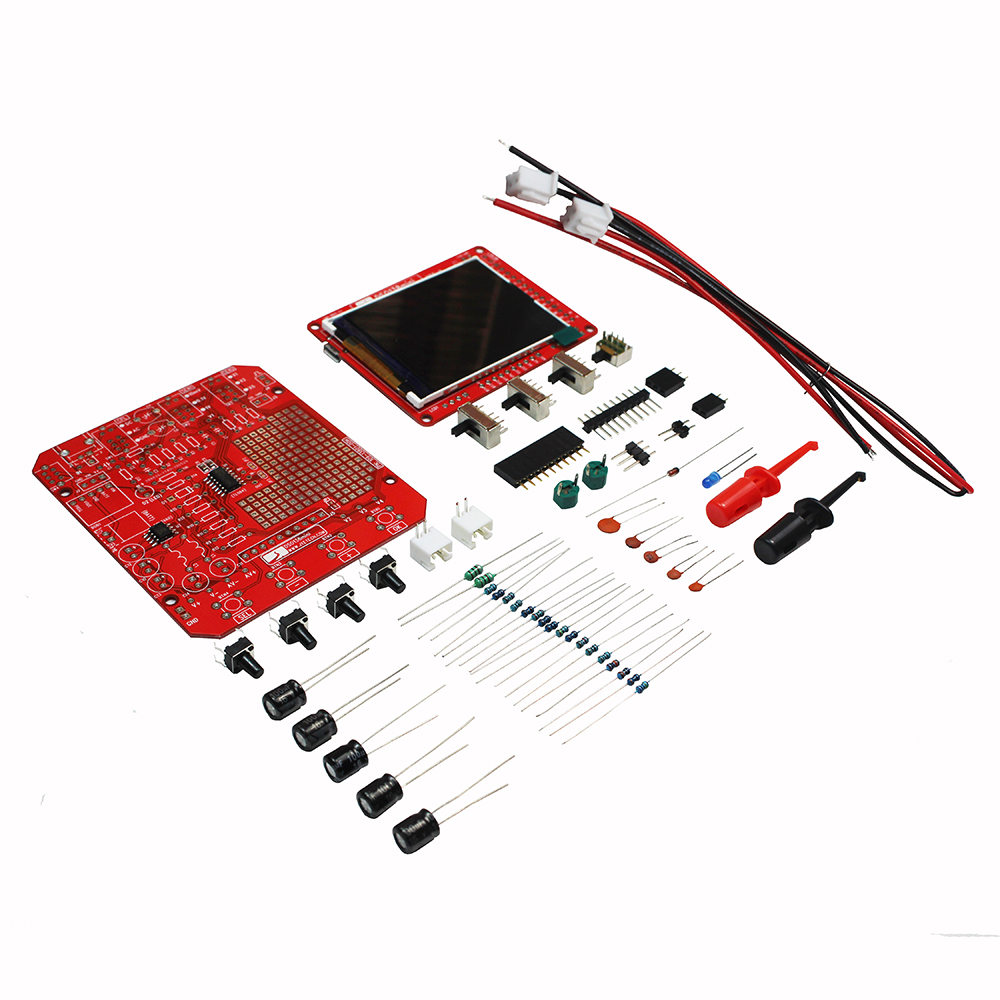

2. DSO138mini digital oscilloscope kit only, other demo accessories in the picture are not included! without acrylic shell.
Package Included:
1PC× DSO138mini oscilloscope set
Features:
Training for electronic production , complete detailed descriptive information ,
including schematics , production guidance , instructions ,
troubleshooting methods , etc., making a high success rate .
Component species diversity for students to identify elements ,
Component species diversity for students to identify elements ,
inline elements welding, soldering SMD components training.
Students can get in at the same time making a practical tool
Students can get in at the same time making a practical tool
for audio, video synchronization , low-frequency switching power supply ,
infrared receiver transmitter signal waveform and many other occasions,
effectively observed and measured , increased interest in learning, improve learning outcomes .
Kits using ARM Cortex-M3 processor (STM32F103C8),
Kits using ARM Cortex-M3 processor (STM32F103C8),
and includes a 2.4 -inch color TFT display can be used as test ARM development board .
Available source , the ability of a friend can be secondary development kit based on ,
Available source , the ability of a friend can be secondary development kit based on ,
for example, it can be changed to Millivoltmeter , data loggers , and so on .
Circuit is simple , reliable , inexpensive
Circuit is simple , reliable , inexpensive
Performance
Maximum real-time sampling rate : 1Msps
Accuracy : 12Bit
Sampling buffer depth : 1024 bytes
Analog bandwidth : 0 - 200KHz
Vertical Sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
Adjustable vertical displacement , and with instructions
Input impedance : 1MΩ
Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
Coupling modes include DC / AC / GND
The horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
With automatic, regular and one-shot mode , easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position , and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source
Package Included:

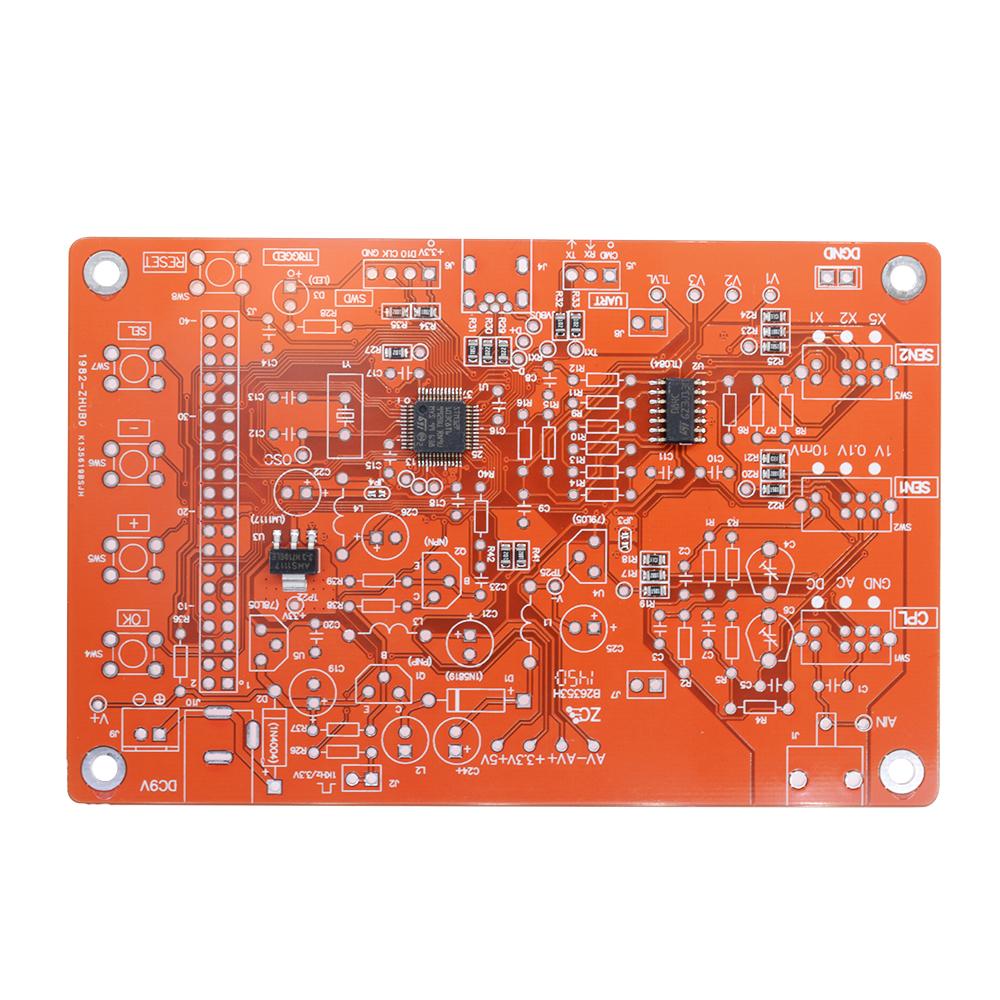

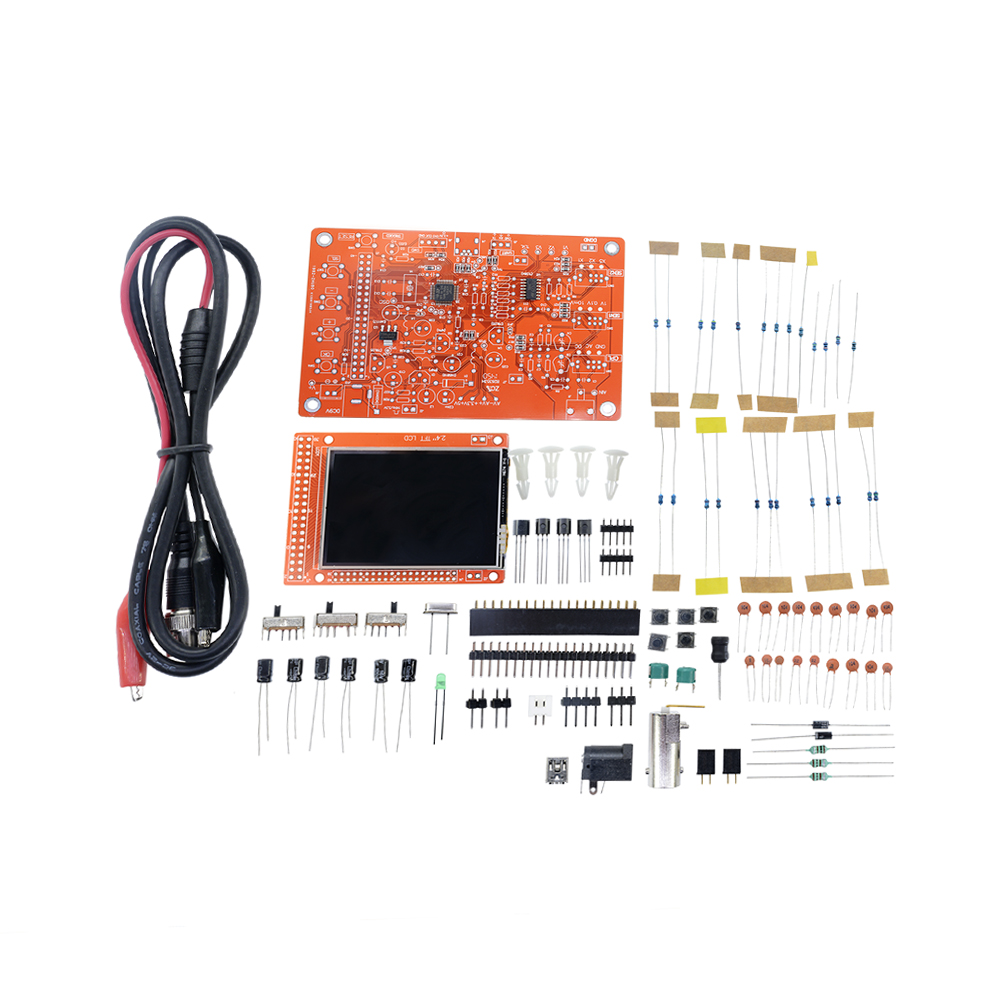

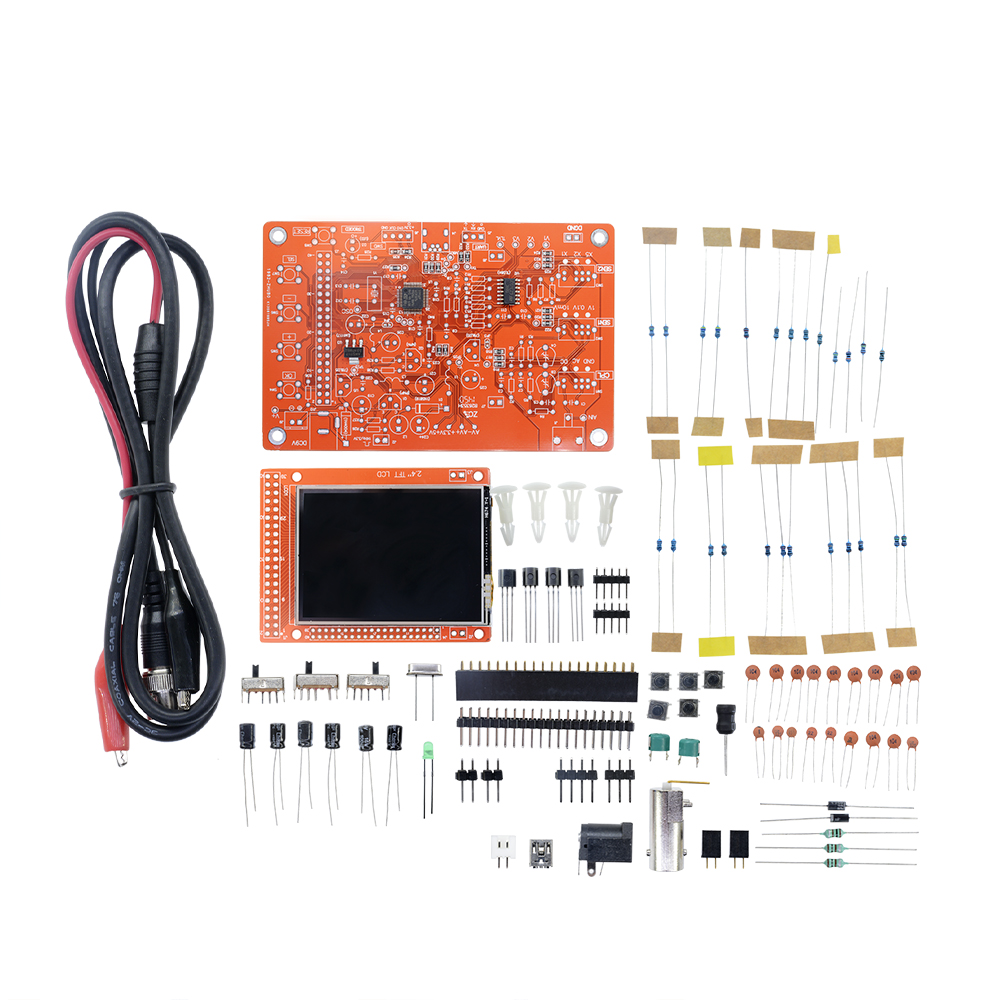

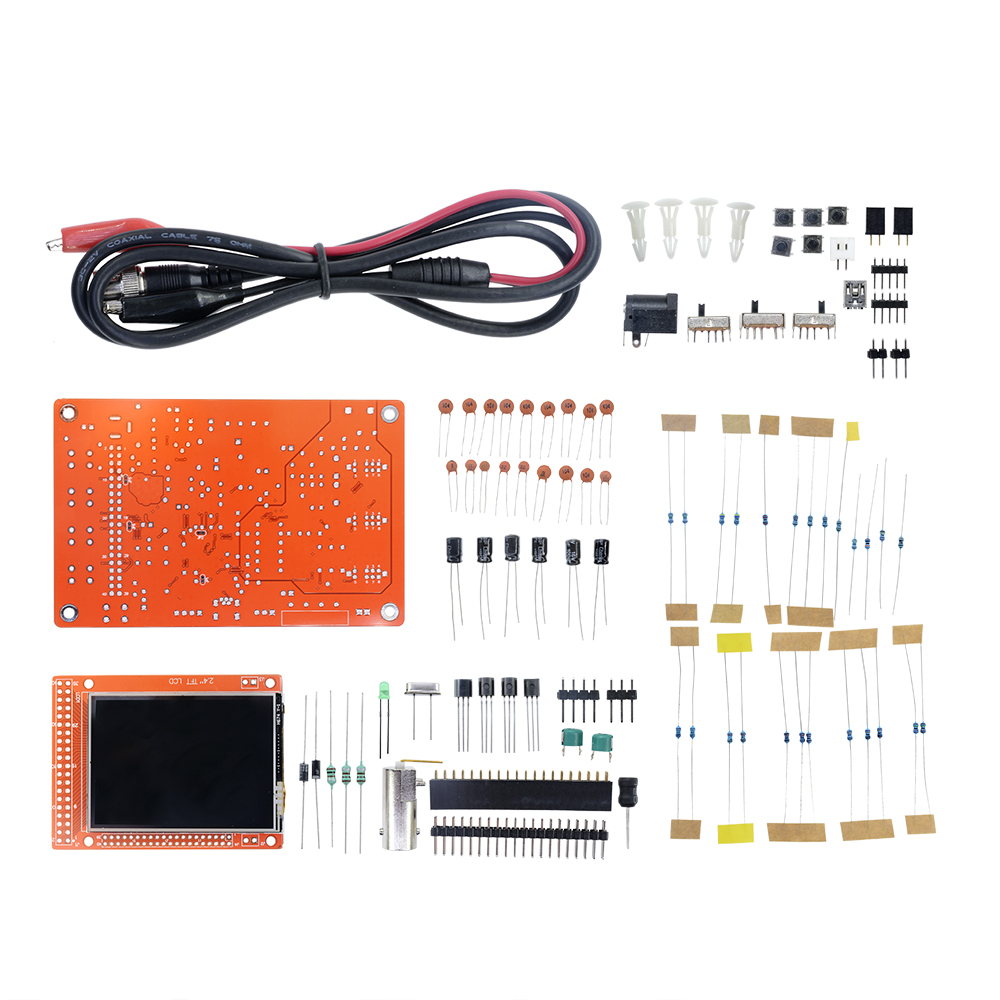

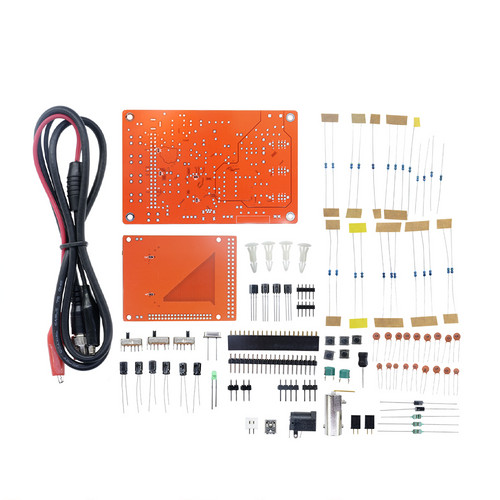

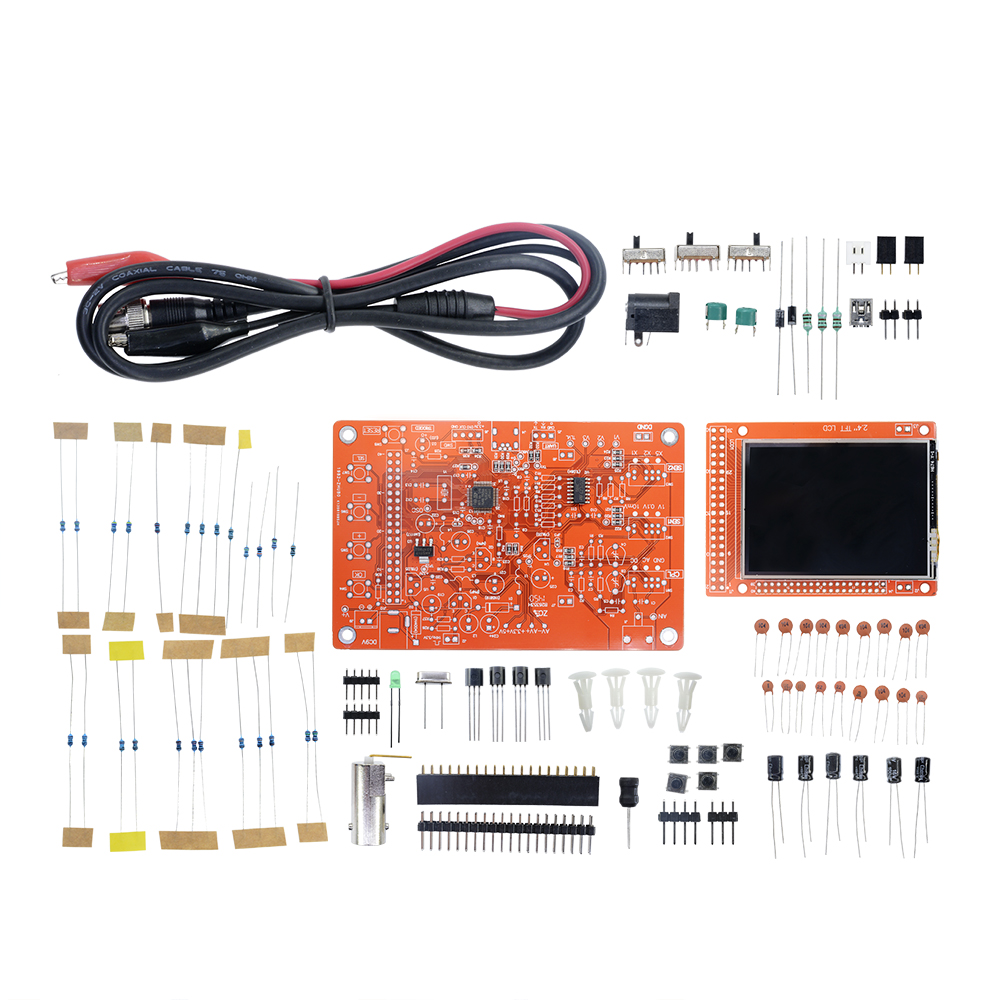

1 x DS0138 Digital Oscilloscope DIY Kit+ Probe Unsoldered Flux Workshop STM32 200khz (this is DIY item show as first photo)
