12v/24v Multi-volt 10 Gang Digital Membrane Touch Control Panel Kit (Momentary Switch)

• DESCRIPTION

  Model: LA-MA-0428

  Updated design brings new features to the membrane switch panel range while keeping the stylish design that you have become accustomed to. The ultra compact panel is 25% smaller than traditional switch panels with the same amount of switches.

  The control panel is adhesive back and can be mounted horizontally or vertically and is supplied with a 60 piece label kit. Every button operates as a standard switch or can be programmed as a
  momentary switch. The newly designed control box takes up less room while still being just as easy to install.

  Organising all your switches on one device has never been easier with the new updated Membrane Switch Panels.

  Suitable for applications in boats, yachts & caravans.

  Quick Product Specs:

  • 100% Brand New Marine Grade Product
  • Programmable Momentary Buttons - NEW
  • Every switch on the control panel can now be programmed as a momentary switch or left as a on/off switch.

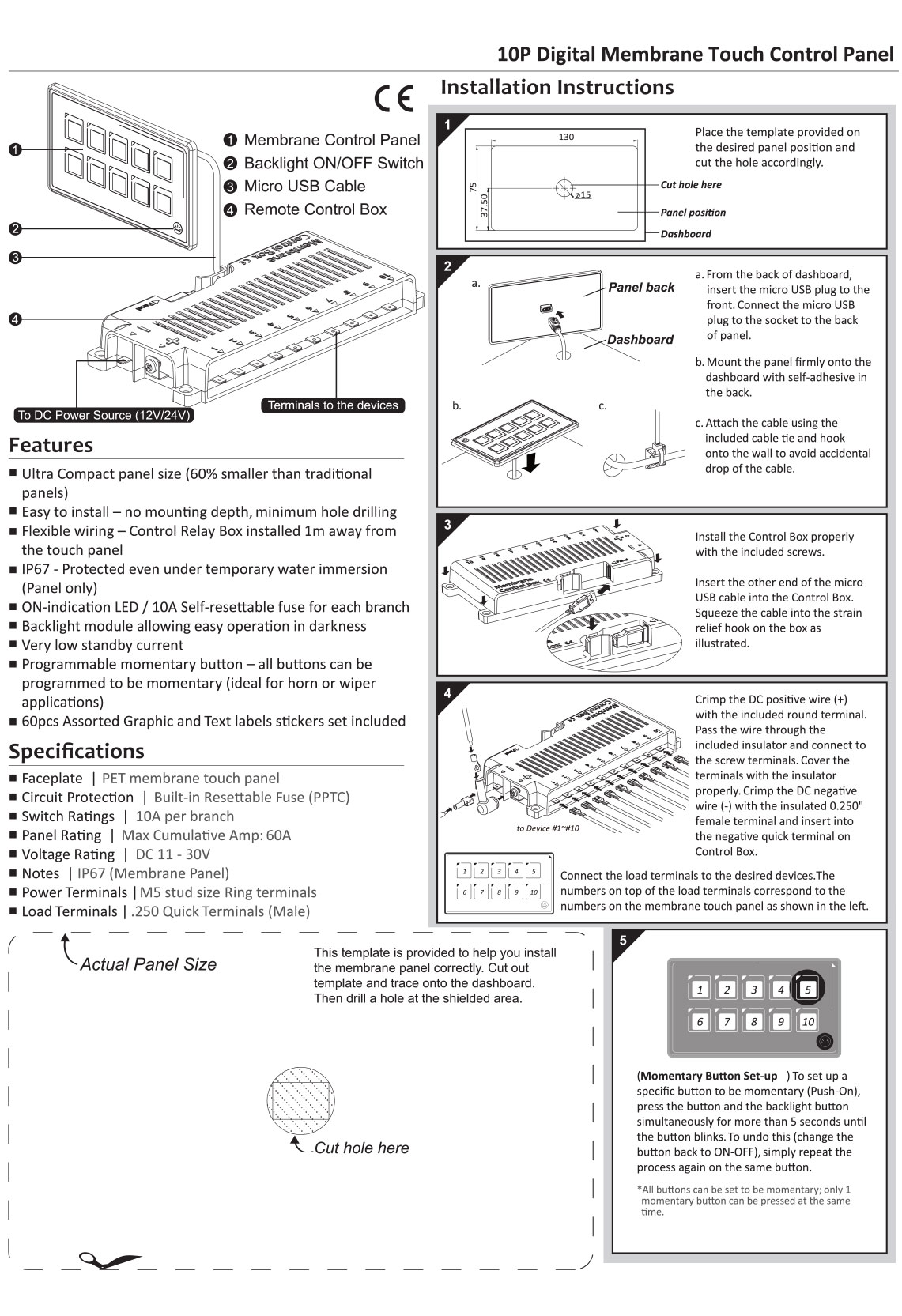

  • Ultra Compact Panel - UPDATED DESIGN, The compact panel installs flush with a 5mm lip and a 15mm x 15mm cut out for the control cable.
  • Remotely Installed Control Box - UPDATED DESIGN, The control box can be installed anywhere dry (supplied with a 1m micro-USB cable).
  • LED Indication - LED indication for on/off with 10A PPTC protection.
  • Back Lighting: Push button back lighting for easy detection in the dark.
  • Quick Terminals: The control box is fitted with 0.250 (1/4”) male quick terminals.
  • Waterproof Design: The control panel is IP67 rated (Control box not rated).
  • Hardware Included: Supplied with mounting screws, electrical terminals and 60pc label set.


  Material Description: PET Membrane Touch Panel
  Circuit Protection: Built-in resettable fuse (PPTC)
  Current Rating: 10 Amp Rating Per Switch (Max Cumulative Amp: 60A)
  Switch Amount: 10 Gang
  Mounting Depth: < 5mm
  Power Terminals: M5 Stud Size
  Dimensions:

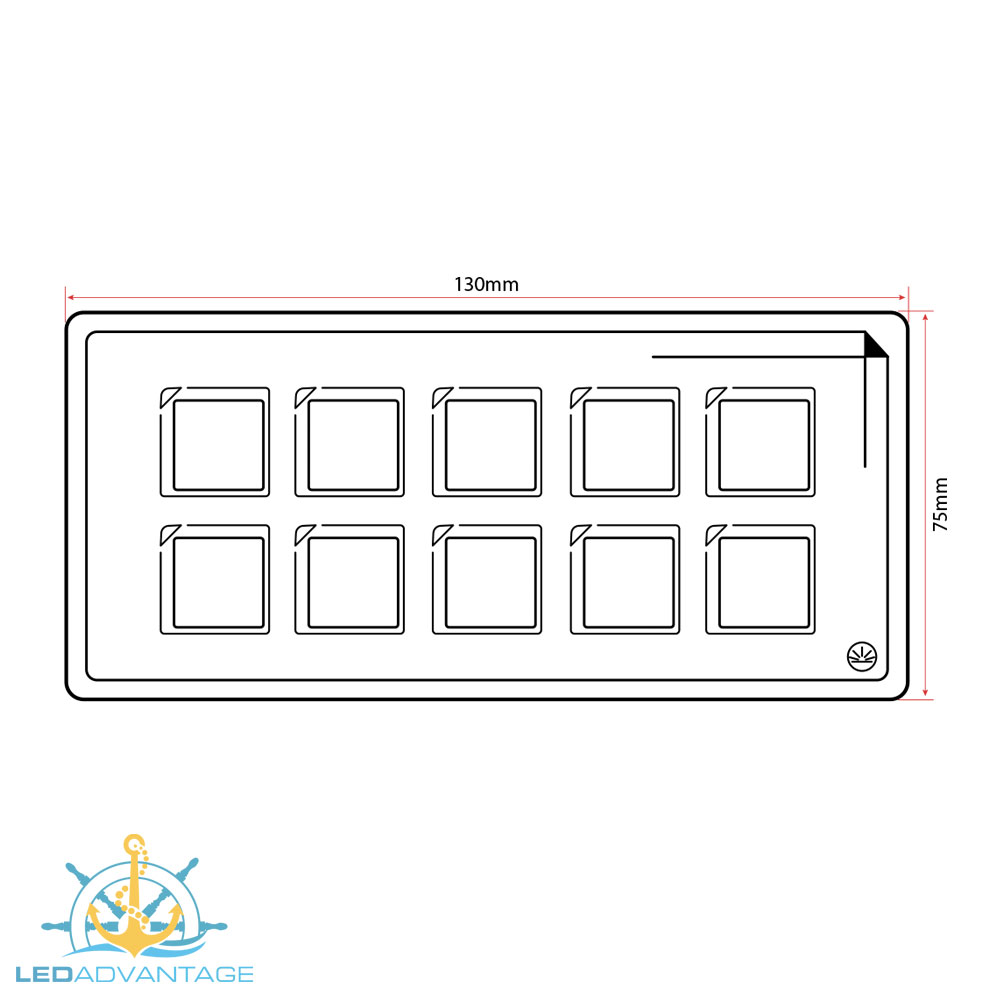

  Membrane Control Face Plate: 130mm (W) x 75mm (H) x 5mm Depth (protrusion)

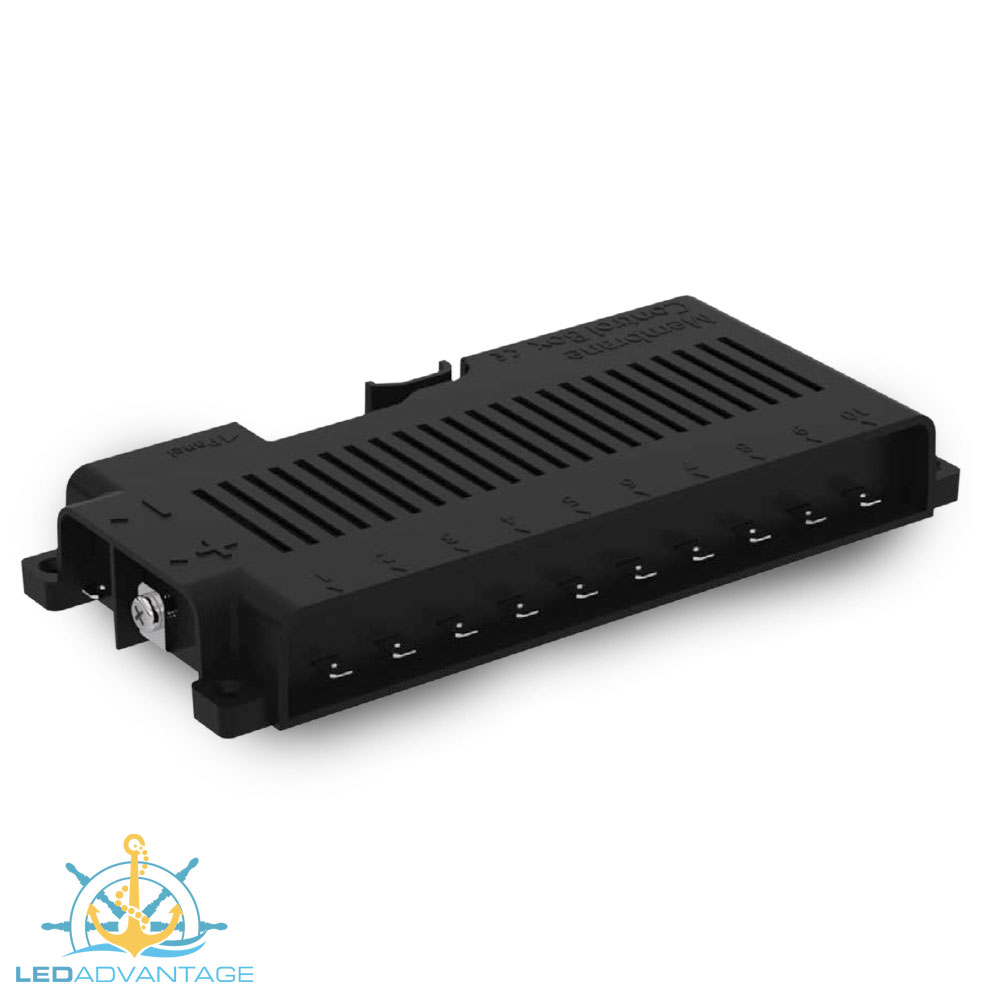

  Control Box: 214mm (L) x 95mm (W) x 29mm (D)
  Cut-Out Size Dia. 15mm

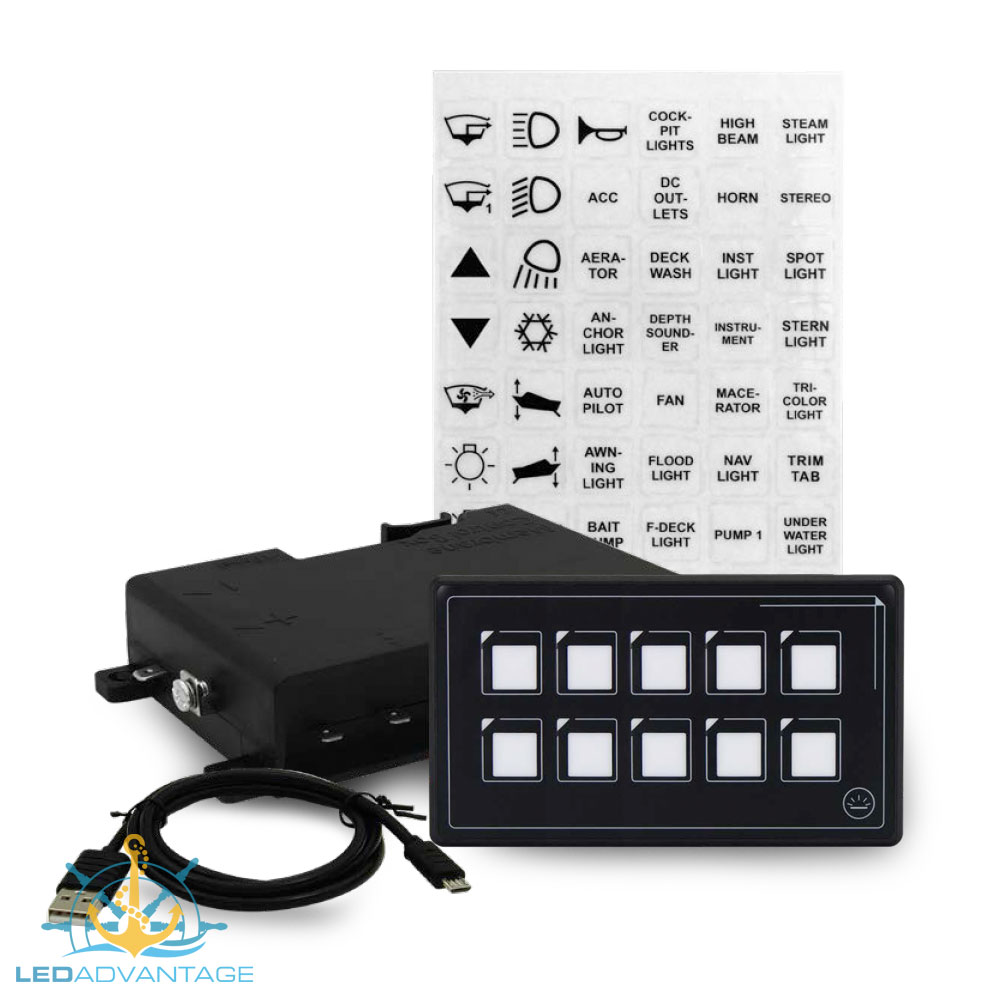

  Contents:
  1 x Control panel.
  1 x Control box.
  1 x 1m USB to micro-USB cable.
  1 x Blue eye terminal.
  1 x Female blade terminal.
  1 x Red battery terminal boot.
  4 x Mounting screws.
  1 x Zip tie and mount.
