iBL-EX5425N-AE

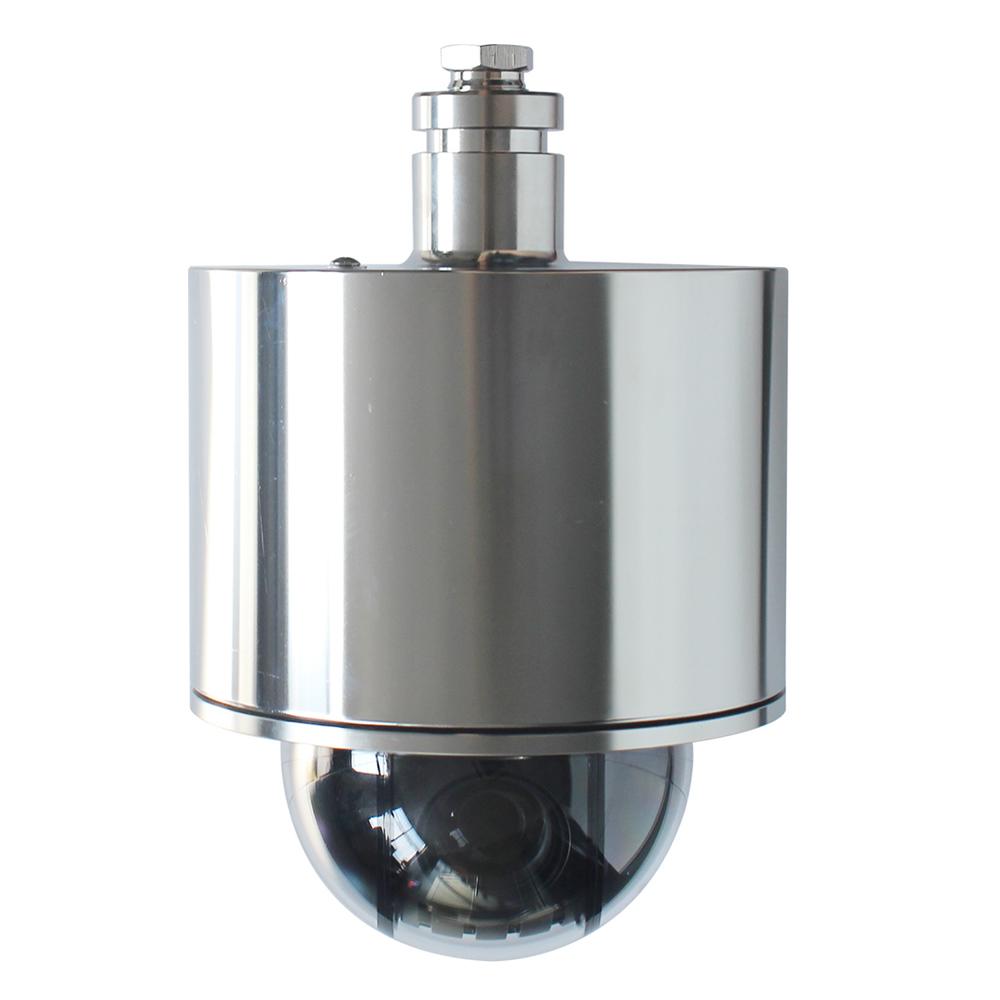

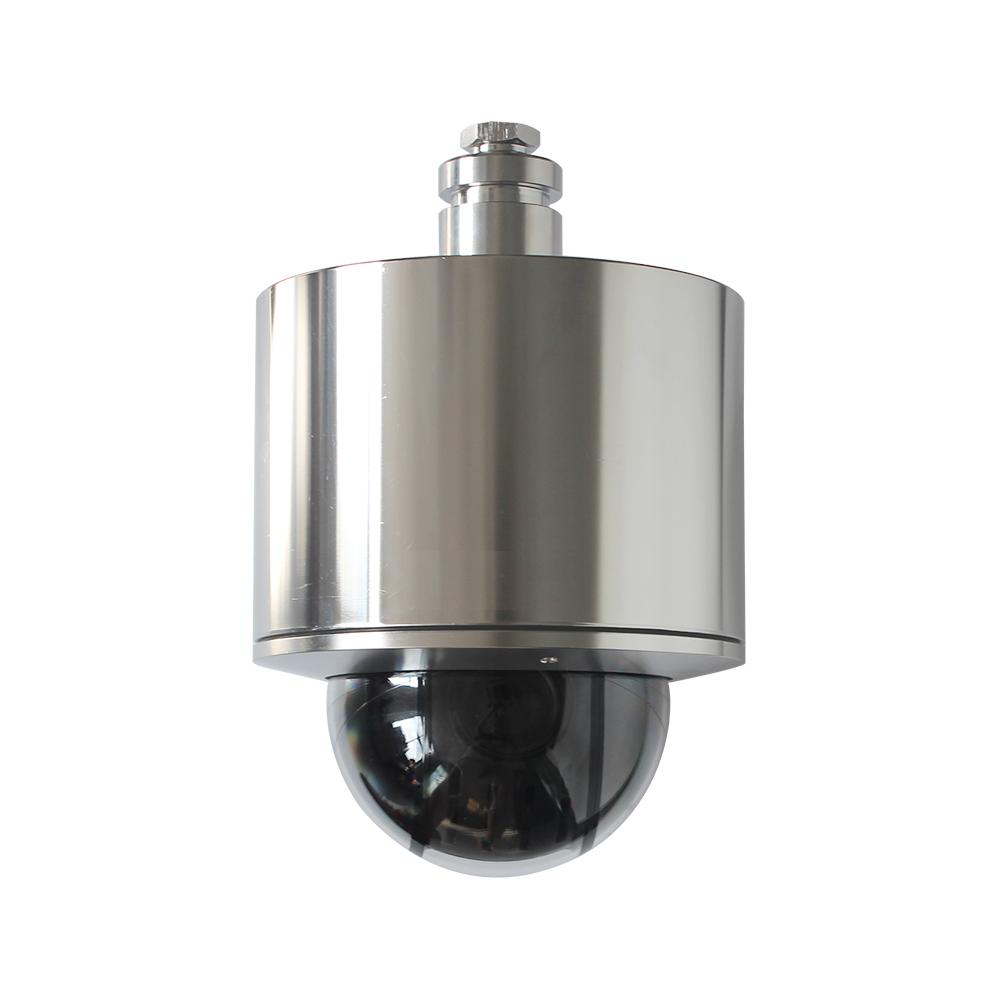

4MP 25x Explosion-Proof Network IR PTZ Camera


  Color: 0.005 Lux @(F1.6, AGC ON)

  B/W: 0.001 Lux @(F1.6, AGC ON)

• • 1/2.8" progressive scan CMOS
  • Up to 2560 × 1440@30fps resolutio
  • 25× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focu
  • AC24V
  • Support H.265+/H.265 video compression

• •


    Camera
    Image Sensor:		1/2.8" Progressive Scan CMOS
    Effective Pixels:		2560(H)x1440(V)
    Signal System:		PAL/NTSC
    Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR
    White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
    AGC:		Auto/Manual
    BLC:		ON/OFF
    HLC:		Support
    Smart defog:		Support
    WDR:		120dB
    Shutter Time:		50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
    Day& Night:		ICR
    Digital Zoom:		16X
    Privacy Mask:		24 programmable privacy masks
    Auto Focus:		Auto / Semi-automatic / Manual

    Lens
    Focal Length:		4.8 mm to 120 mm, 25× optical zoom
    Zoom Speed:		Approx. 3.6 s (optical lens, wide-tele)
    Field of View:		Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
    Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
    Aperture Range:		F1.6 to F3.5

    Pan & Tilt
    Pan Range:		360°endless
    Pan Speed:		Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
    Tilt Range:		-15°-90° (Auto Flip )
    Tilt Speed:		Configurable, from 0.1°/s to 80°/s,  Preset speed: 80°/s
    Number of Preset:		300
    Patrol:		8 patrols, up to 32 presets per patrol
    Pattern:		4 pattern scans, record time over 10 minutes for each scan
    Power-off Memory:		Support
    Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
    PTZ Position Display:		ON/OFF





    Network
    Ethernet:		1 RJ45 self-adaptive 10 M/100 M Ethernet Interface
    Max.Image Resolution:		2560×1440
    Main Stream:		50Hz:25fps (2560x1440,1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(2560x1440,1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
    Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
    Third Stream:		50Hz: 25fps(2560x1440,1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(2560x1440,1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
    Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
    ROI encoding:		Main stream, sub-stream, and third stream respectively support four fixed areas.
    Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
    Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    Simultaneous Live View:		Up to 20 channels
    Three-Stream:		Support
    Storage:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
    User/Host:		Up to 32 users, 3 levels: Administrator, Operator and User
    Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

    Client GUI
    Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
    Web Browser:		IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

    General
    Language:		32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    Power Consumption:		AC24V Max.18 W, including max.7W for IR
    Working Temperature/Humidity:		-30°C to 65°C (-22°F to 149°F) 90% or less
    Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
    Material:		ADC 12, PC, PC+10%GF

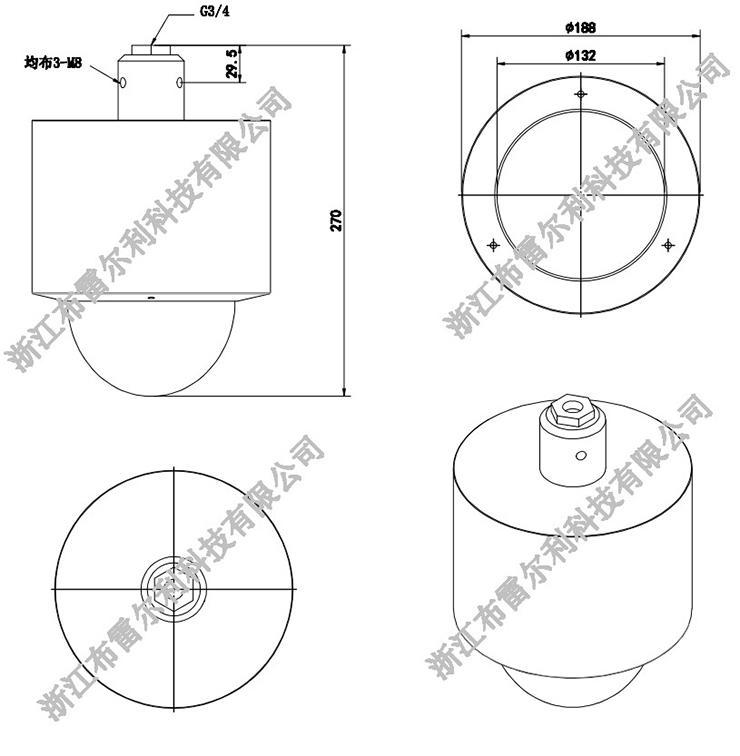

    Dimensions:		Φ 188 mm × 270 mm
    Weight (approx.):		Approx. 8 kg
