Small Mainboard with CPU AMD Mobile 2100+ 512 MB D2703-A12 S500 Mini-ITX --M23
This auction is
Mini-Motherboard Mini-ITX D2703-A12 (17x17 cm tall)
With Socket S1 Slot, 2x RS-232, 6x USB 2.0, Gigabit Lan Card
Incl. CPU AMD Mobile 2100+, cooler and 512 MB SO GDR2 memory
Mainboard AMD Mini-ITX, MAT: 34025085 S26361-D2703-A23-2-R791
Manual: dpie.com/manuals/pcbus/ Fujitsu /a26361-d2703-z210-muli.pdf
This is a board for the S1 processors AMD Mobile Sempron CPUS, Max.9W
With processor AMD Mobile 2100+ cooler + 512 MB SO GDR2 memory
Graphics processor (GPU) embedded, ATI Radeon X1200
Incl. Slot for the compact Flash card; A normal hard drive cannot be connected
But a microdrive (mini -defined plate) - already; You can do such a microdrive here Order.
Other alternative: instead of the hard drive, you can connect a CF card, or from one
boot-capable USB stick stick; A 4 GB CF card can here be ordered.
PCI expansion solder is also available on the board; A riser card can here; to be ordered.
You can also connect an extension card, e.g. Dual Head Video Card (Lowprofile cards).
You can also find such cards with us here.
Gigabit lan; 6x USB 2.0; VGA DVI
2x serial ports (com) RS-232
2x PS2 for the keyboard and mouse; Internal Standard PCI slot

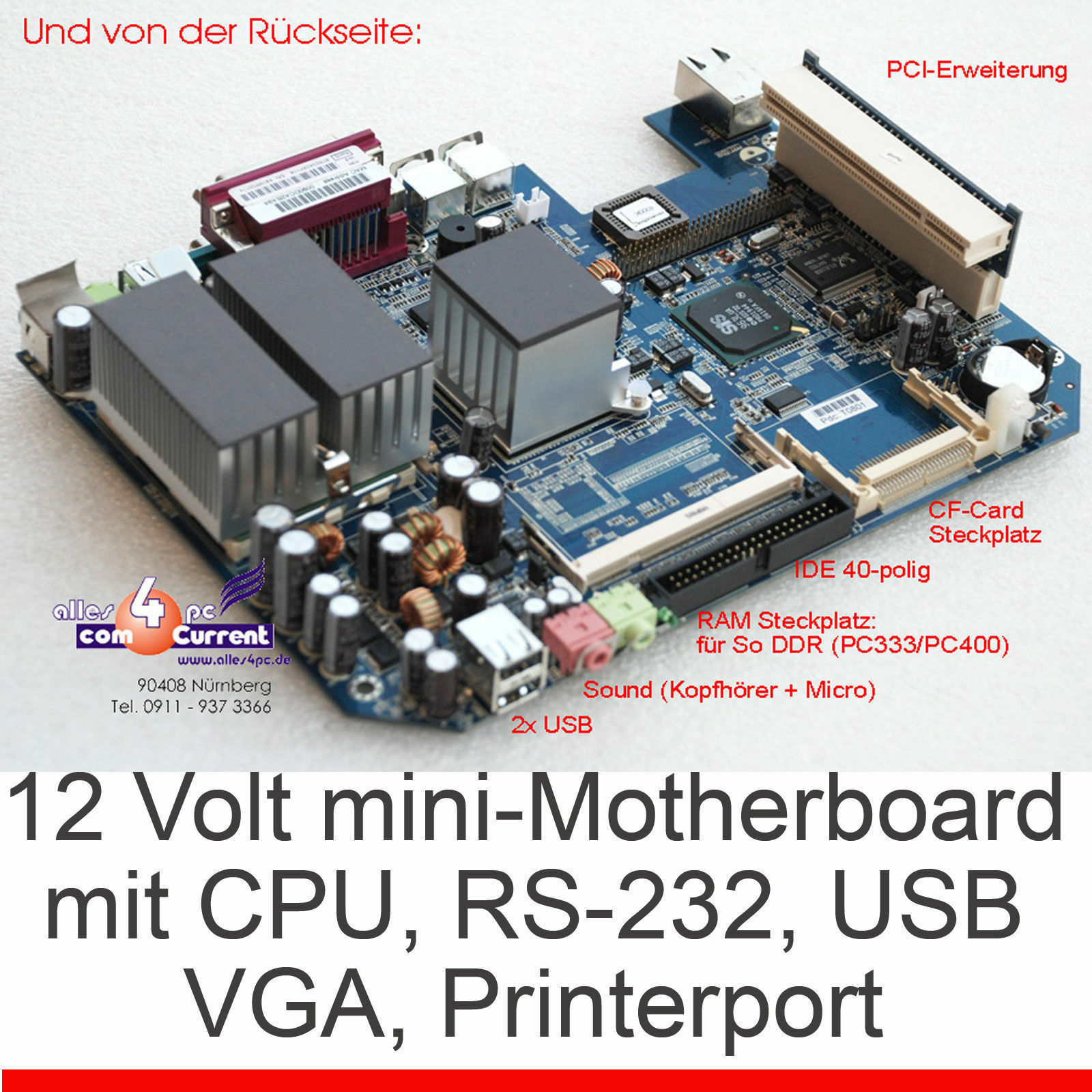

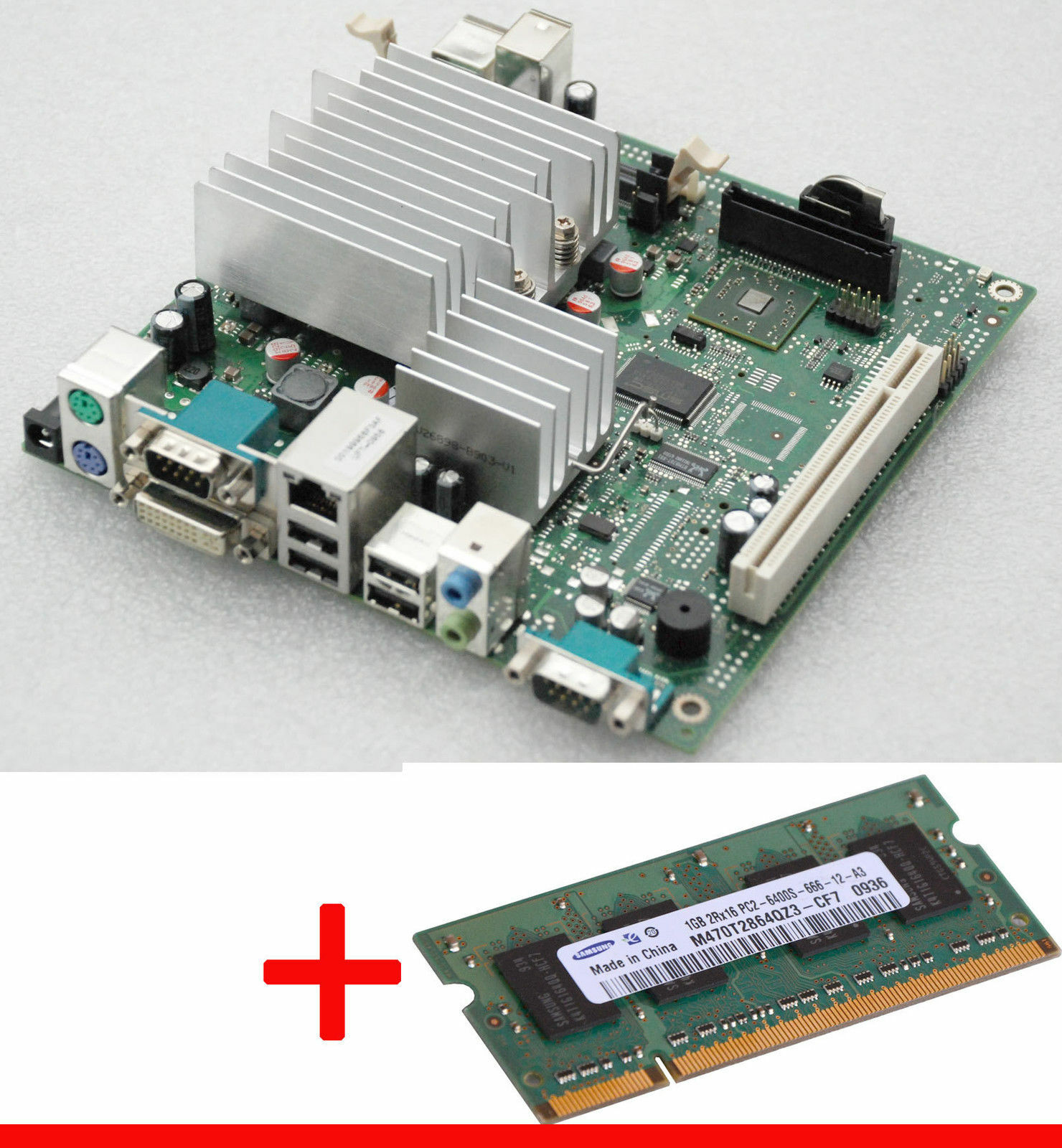

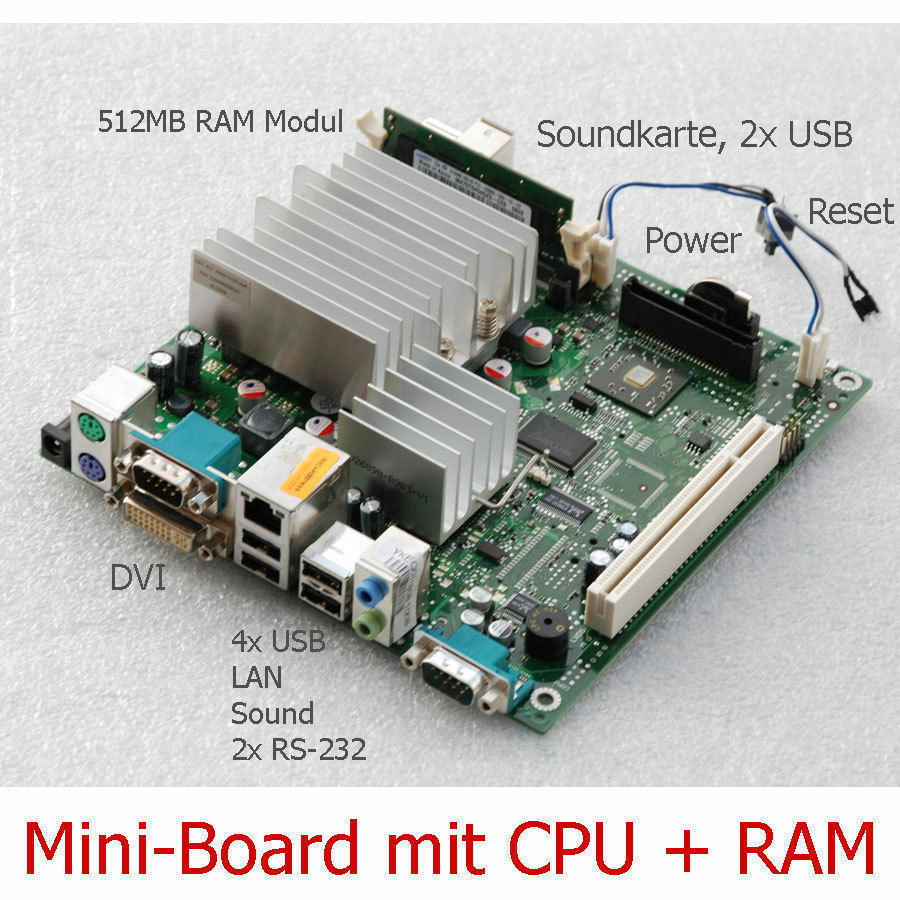

The board from the front and from the back:
Interfaces:
2 x serial (9-pin, 16-byte fifo, 16550-compatible)
1 x keyboard (PS/2) (rear)
1 x mouse (PS/2) (rear)
1 x monitor (dvi-i dual link), vga via adapter
1 x LAN RJ-45
1 x PCI slot, medium size (max. 155mm long)
1 x line out (stereo) (back)
1 x line in (back)
1 x headphones output (stereo) (front)
1 x microphone output (mono) (front)
6 x USB (2.0) 2 x front, 4 x behind
1 x CF slot
1 x DC connector
The board needs an FSC power supply with 20V 3.25 A with a classic round.
Incl. Slot for the compact Flash card;
Scope of delivery: 1x Board D2703-A12 with AMD 2100+ Mobile CPU and 512 MB RAM RAM,
as shown, postproof packed.
IMPORTANT: This board is available from us without RAM, with 512 RAM and with 1GB RAM;
You can find all configurationsHERE;
We also have an external power supply to this miniboard, you can HERE order at the same time
Other options and options: Do you need a suitable mini hard drive?
A normal hard drive cannot be connected, but a microdrive (minifest plate) - already;
You can do such a microdrive here Order.
Other alternative: instead of the hard drive, you can connect a CF card, or from one
boot-capable USB stick stick; A 4 GB CF card can here be ordered.
PCI expansion solder is also available on the board; A riser card canherebe ordered.
You can also connect an extension card, e.g. Dual Head Video Card (Lowprofile cards).
You can also find such cards with ushere.
 |  |  |  |  |  |
 |  |  |  |  |  |
* * *
