This auction is about

professional 38cm (15 ") industrial monitor Canvys PV760T, with ELO touch system

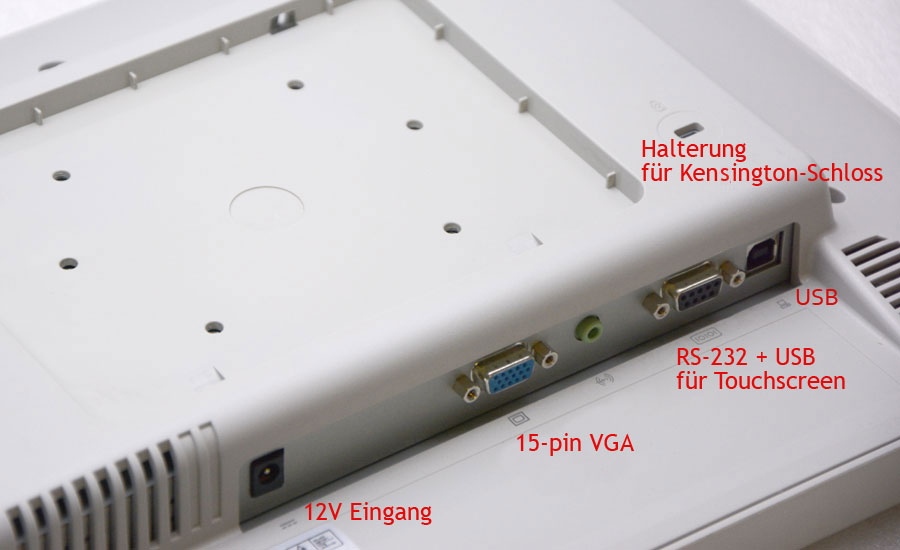

via USB and RS-232, resolution 1024x768, VESA bracket 75mm
compatible with Windows XP, Vista, WindowsWindows 8 and 10 (32 and 64-bit versions)

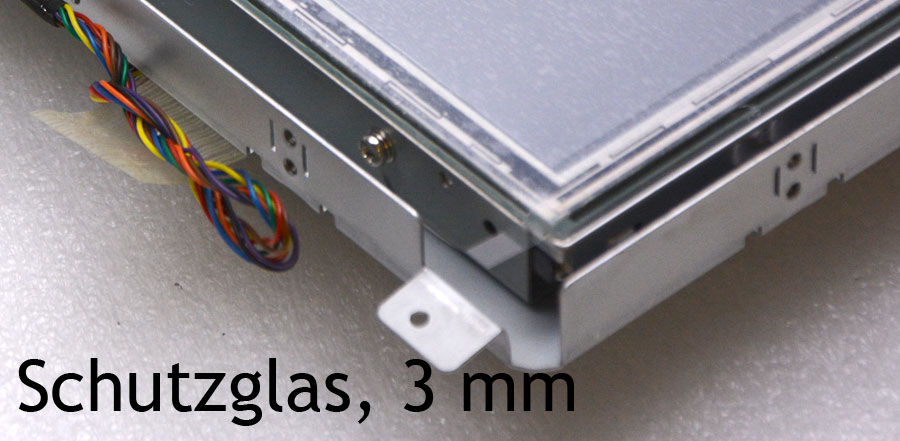

The monitor has a 3mm glass protective plate and provides a good and bright picture. The touchscreen is in the good, fully functional condition, with new protective film.

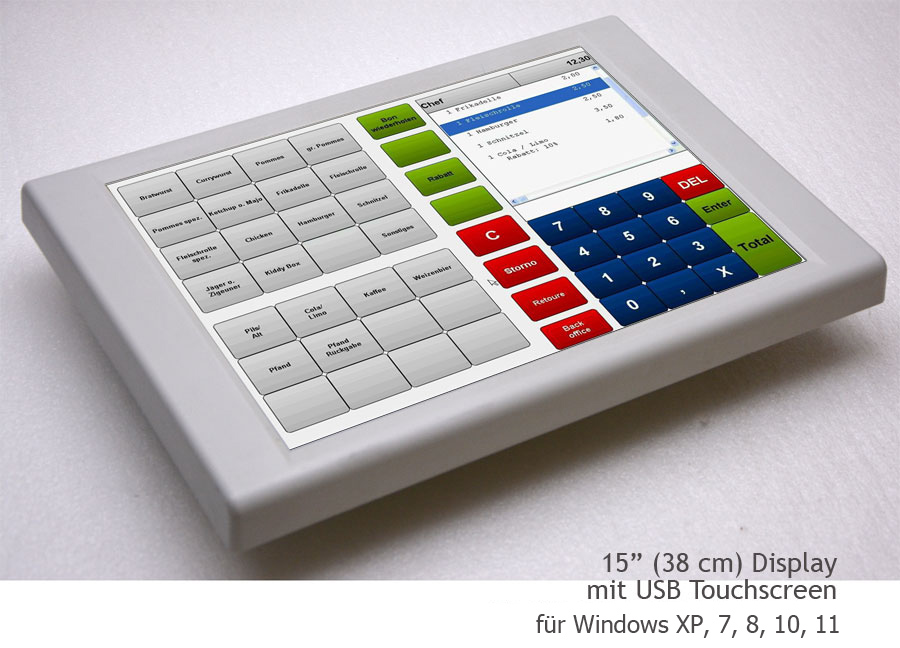

The monitor is suitable for cash registers, panel PCs and home automation



  USB cable, VGA cable and 12V power supply and the monitor is immediately ready for use.
If this monitor needs a 12V power supply, it can also be operated in the car or from a 12V battery. The monitor can survive some power fluctuations and also delivers the image when the working voltage drops to 8V or rises to 14 volts. VESA mount 75mm. Working resolution 1024 x 768.

Actual consumption (measured by us): Sleep mode 12V 0.05A (0.6W); Min. Brightness: 12V 1A (12W); Max. Brightness: 12V 1.3A (15.6W);
The monitor has small speakers; Consumption with sound and with full brightness 1.5A at 12V (18 watts).
Dimensions of the monitor: 38.5 wide, 27.9 cm high, 6.5 cm deep.











 With protective glass:

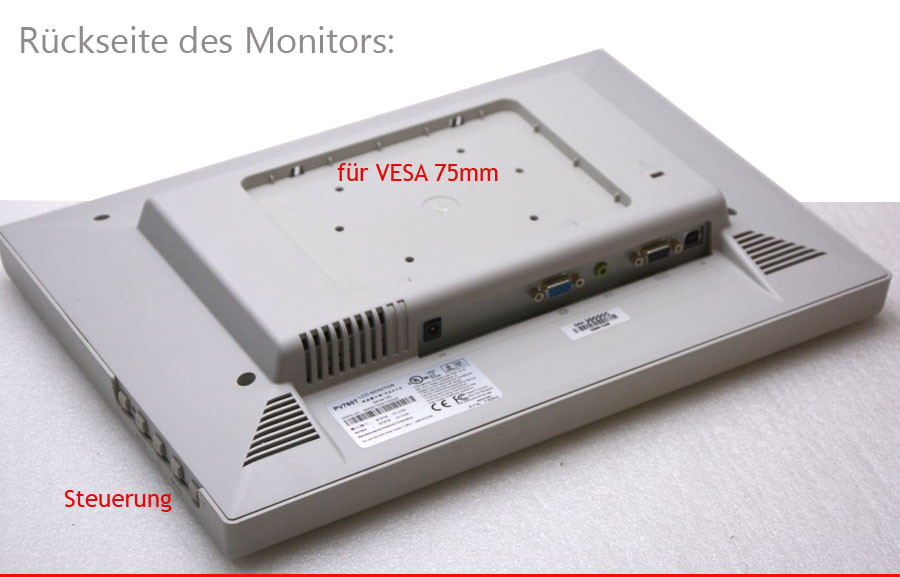

  Back; VESA mounting 75 mm;

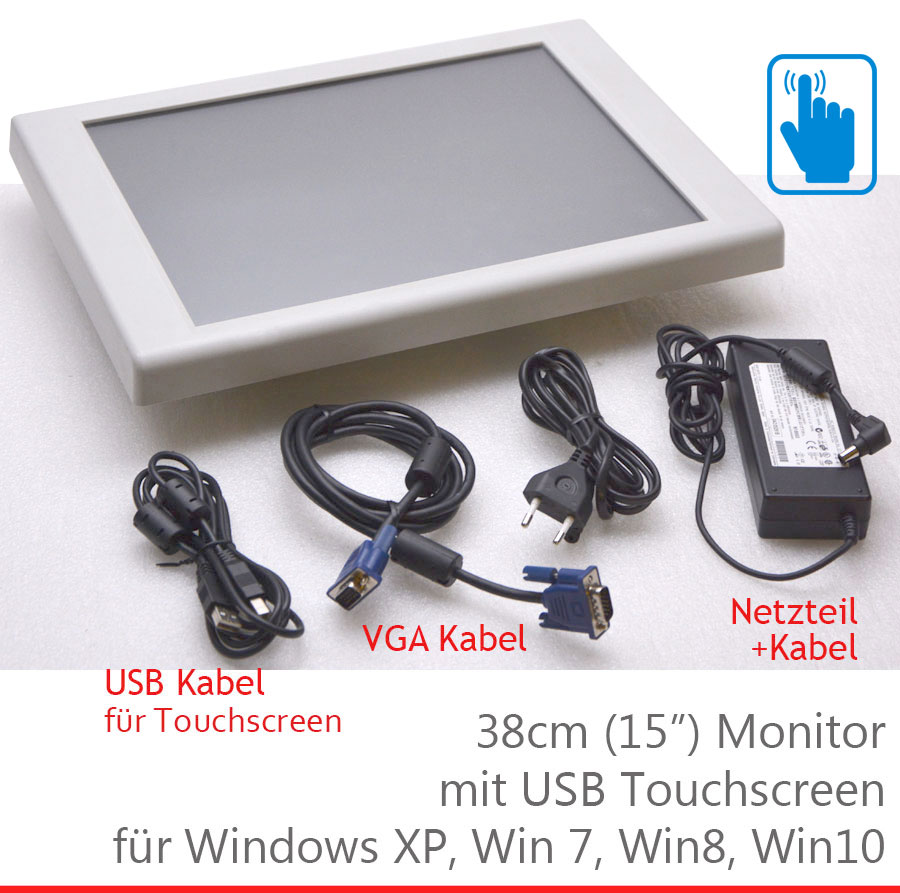

Scope of delivery: monitor incl. Power supply unit and cables, as shown, without foot,
in a plastic housing for wall mounting, incl. Touchscreen driver.





And something else... Via the touchscreens ... Are you curious?

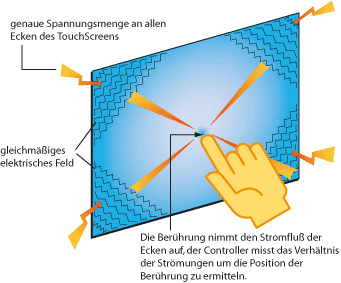

How a touchscreen works

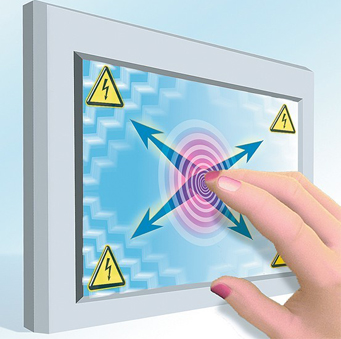

In this case, the glass surface of the monitor is provided with a conductive layer, which usually consists of indium tin oxide (ITO). This material is very thin and transparent. This layer is connected to electrodes located on the edges of the monitor. In this way, a uniform electric field is created on the surface of the monitor. In other words: the surface is charged evenly. When a finger approaches this electric field, some of the charge jumps over to the finger. This disturbance is then perceived by the control of the monitor.




With the first touchscreens, the touch layer was attached to the outside. It therefore wore out quickly, which limited the life of the product. Nowadays, the algorithms for touch recognition are so advanced that a greater distance between the ITO layer and the finger is possible. The surface of the monitor now consists only of simple glass. So wear and tear is no longer an issue.


and now - some application examples:
