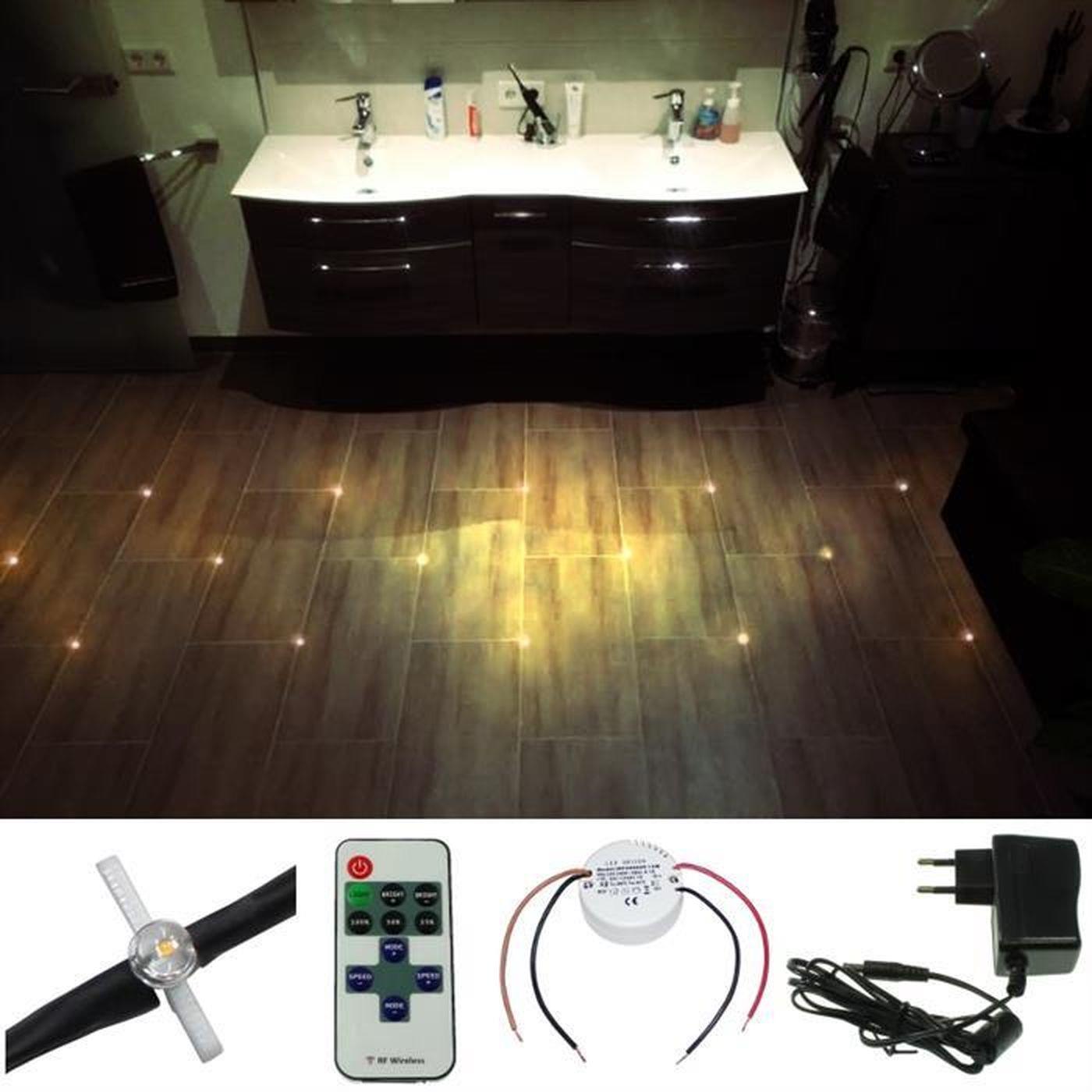

Joint cross LED Joint light Floor light Tile lighting + Power supply unit + Dimmer
Article-number: IT-800118

Danger notice:

Expertise in the use of electrical current and the applicable regulations is essential for installation. We can not be held liable for any possible consequences.
Quantity delivery: All items offered are sold exclusively in the specified units. No partial quantities will be given.

  • LED tile spacer available in light colors:
    • 3000K (Warm-White)
    • 6000K (Pure-White)
  • You can purchase up to 88pcs LED tile spacers in one set
  • Description of the single components:
    • Lead wire for the LED tile spacers
    Is a standard of each set and serves as a connection between the power supply, or controller and the first tile spacer

    The delivery contains:
    2x 5m lead wire
    2x heat shrink tube
    2x cable end sleeve

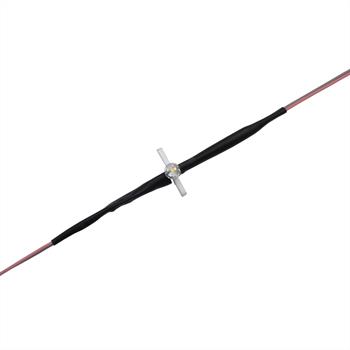

    LED tile spacer single color
    Color temperature 3000K or 6000K selectable
    Number of tile spacers can be selectede
    Operation volatge: +12VDC
    Current: ~ 10mA / LED
    Beam angle: ~ 60°
    EEC (Energy efficiency class): A+

    The delivery contains:
    1x tile spacer LED with 2x 50cm input cable and 2x 50cm wire for the next LED
    2x heat shrink tube
    2x cable end sleeve

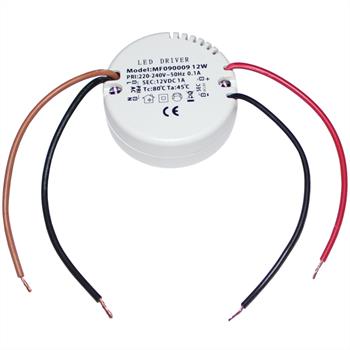

    Power supply round
    Output voltage: +12VDC
    Power: 12W
    Max. current: 1A
    Input voltage: 220...240VAC
    Dimensions (DxH): 55x22mm Connection cable primary: ~10cm
    Connection cable secondary: ~10cm

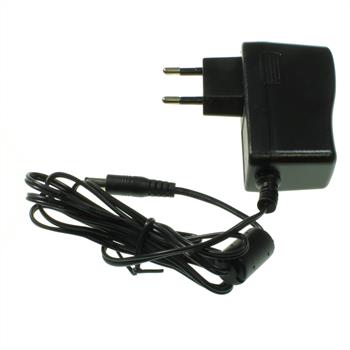

    Wall power supply
    Output voltage:: +12VDC
    Power: 12W
    Max. current: 1A
    Input voltage: 100...240VAC
    Connection cable secondary: ~100cm

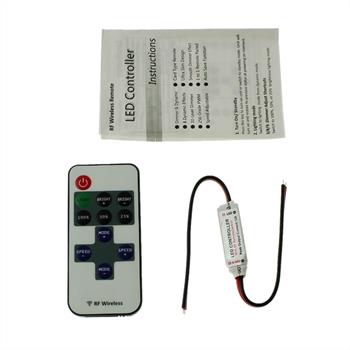

    Mini Controller with 10Key remote
    Transmission technology: RF (RadioFrequency)
    Operation voltage: 12...24V
    Power: 144W - max. 6A
    Dimensions remote: 86x40x6mm

    Connection diagram:
