This Listing Is For A NEW Black Box SW617A Multihead ServSwitch, Dual Video, 4-Port (4 CPUs) NEW

http://www.blackbox.com/Store/Detail.aspx/Multihead-ServSwitch-Dual-Video-4-Port-4-CPUs/SW617A


Product Highlights

  • Share multiple monitors among multiple CPUs.
  • Supports resolutions up to 1600 x 1280!
  • Dual Video units support two monitors. Quad Video units support four monitors.

Further Details

  • Supports Windows 3.x/95/98, Windows NT, Windows 2000, UNIX, Linux, NetWare, OS/2, and more.
  • Ideal for use in banks, flight simulators, police control centers, and high-end publishing.
  • Use one keyboard and mouse for all your CPUs.
  • Access two or four IBM PC/AT® or PS/2 type CPUs with two or four video outputs.



    •
  • Today, many users are discovering that they can dramatically increase efficiency by connecting several monitors to one PC.

    The Multihead ServSwitch™ supports multiple monitors. When you switch between CPUs on this ServSwitch, you see all the monitors connected to each CPU—up to four monitors per CPU. So you always get the entire view.

    Imagine what you can do with more monitors connected to your PC. You can put each of several applications on a different monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across several monitors to provide more work space.

    The Multihead ServSwitch is compatible with all IBM® PC/AT® or PS/2® type CPUs and most major operating systems including Windows® 3.x/95/98, Windows NT®, Windows 2000, UNIX®, Linux®, NetWare®, and OS/2®.

    The switch supports video up to 1990 x 1400 over coax cable at distances of up to 10 feet (3 m).
Approval CE

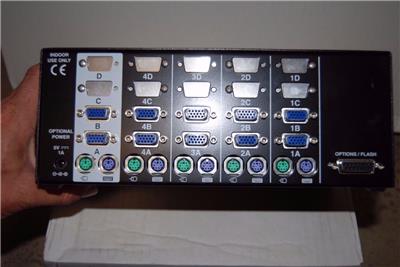

Connectors CPU: Video: (2) or (4) HD15 F per CPU; Mouse: (1) 6-pin mini DIN F per CPU; Keyboard: (1): 6-pin mini DIN F per CPU;
User: Video: (2) or (4) HD15 F; Mouse: (1) 6-pin mini-DIN F; Keyboard: (1) 6-pin mini DIN F;
Options: (1) DB15 F; Power: (1) power jack;
Remote controller/serial port: (1) DB15 F
Indicators (7) LEDs
Power From the interface; optional 5-VDC, 300-mA power supply available
Dimensions 4.1"H x 10.3"W x 6"D (10.4 x 26.1 x 15.1 cm)
