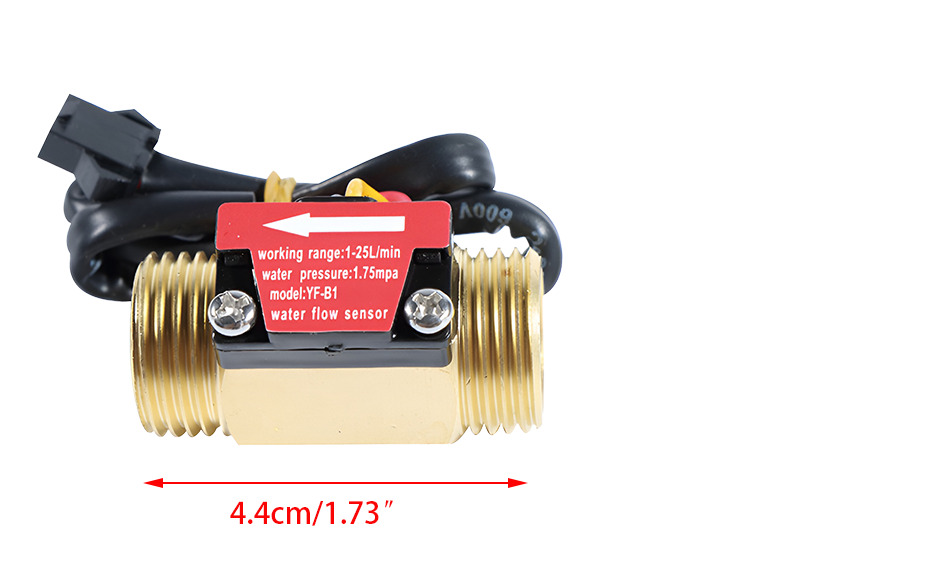

G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter YF-B1

Description

Product Dimension:

Feature:

1) 100% New and high quality.

2) Easy to install, safe to use.Lightweight, small, stable low water pressure start.

3) Stable characteristics, high reliability.

4) Made of high quality material, wearable, environmental-friendly, sturdy, resistant to high and low temperatures, durable and practical to use.

5) The hall effect sensor is sealed- from the water pipe and allows the sensor to stay safe and dry.The sealing ring with the upper and lower force structure never leaks.

Wiring:

1) Red-In-Positive.

2) Yellow-Out-Signal output.

3) Black-GND-Negative.

Specifications

  • Condition: 100% new
  • Color: As The Pictures Show
  • Material: Brass&Plastic
  • Type: Hall Flow Water Sensor Switch
  • Size: As The Pictures Show
  • External Thread: G1/2"
  • Model: YF-B1
  • Working Flow Range: 1-25L/min
  • Water Pressure: 1.75mpa
  • Item included: 1 x Water Sensor Switch
  • Suitable for: Water Heaters, Water Dispenser, Water Purifier, Water Coffee Maker, Credit Card Vending Machines, Water Vending Machines, Flow Meter, etc.

    This Is Aftermarket Replacement Item But Not Genuine

  • Note:

    1) All dimensions are measured by hand, there may be small deviations.

    2) Color may vary slightly due to the color setting of each individual monitor.

    3) In order to avoid particles, debris into the sensor, the sensor inlet must be installed at the filter.

    4) The installation of water flow sensor should be inside the equipment or indoors, do not be exposed to the outdoors or wet for a long for time.

    5) The installation of the water flow sensor must avoid vibration and shaking environment and application in harsh environment such as high temperature, so as not to affect the measurement accuracy of the sensor.

    6) When materials or materials that produce force on the sensor are close to the sensor, its characteristics may occur.
