800W Solar Panel Kit With Mounting for Controller Caravan Camper Van Boat Camper

PRODUCT DESCRIPTION

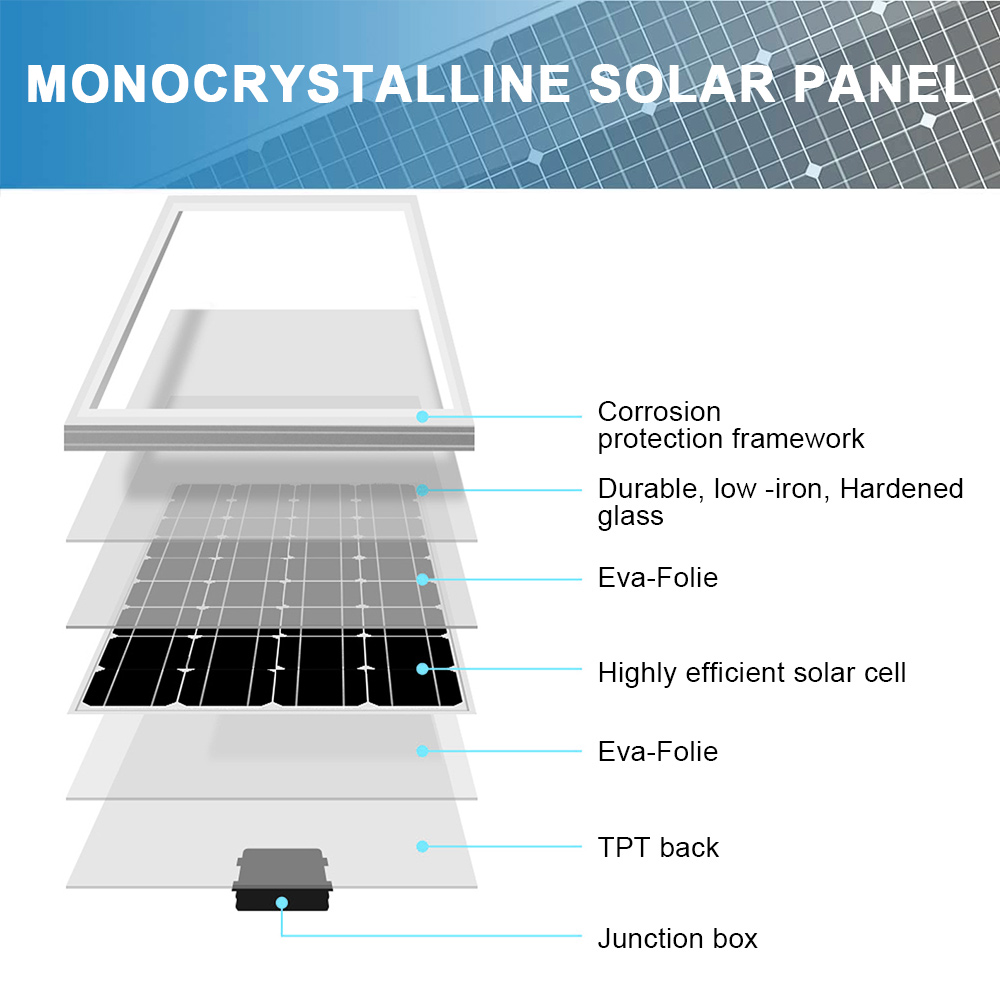

PFCTART Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.

Features:

【High Conversion Efficiency】

Over 90% transferable power output in 10-year, 80% transferable power output in 20-year.

Under 8 hours full sunshine:

200W solar panel generating 1.6 KWH per day
300W solar panel generating 2.4 KWH per day
400W solar panel generating 3.2 KWH per day
500W solar panel generating 4 KWH per day
600W solar panel generating 4.8 KWH per day
700W solar panel generating 5.6 KWH per day
800W solar panel generating 6.4 KWH per day
900W solar panel generating 7.2 KWH per day
1000W solar panel generating 8 KWH per day

【Upgraded Design】

PFCTART monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

【Easy to install】

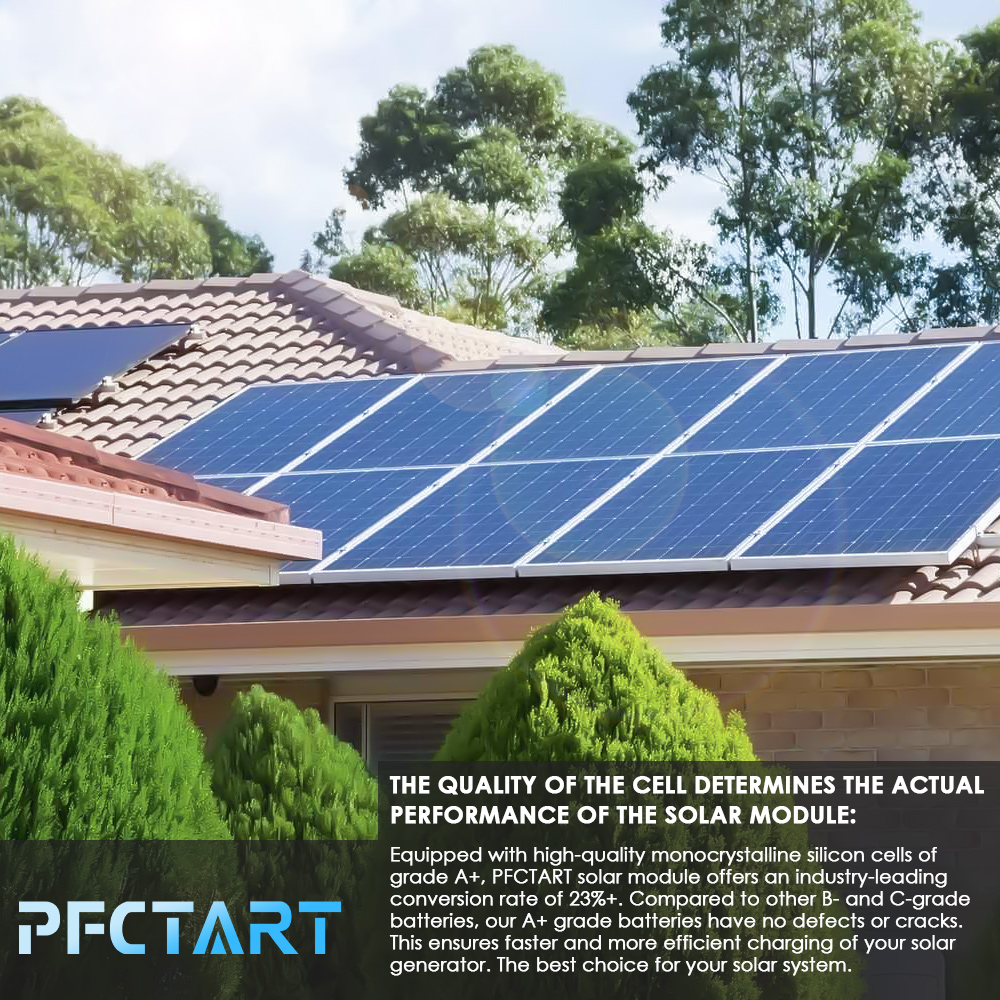

It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

【High Quality】

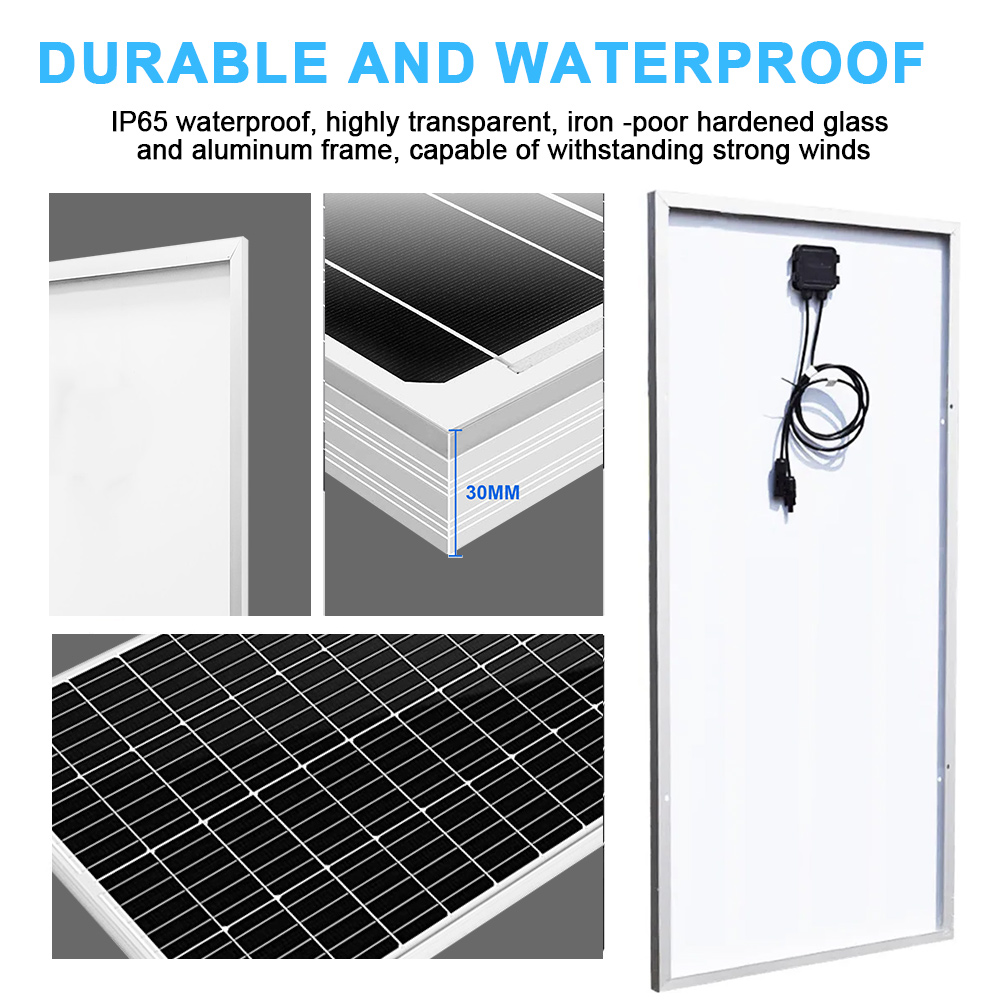

The panel is covered with a special glass to protect against the bad environmental conditions. Good quality frame, withstands high winds (2400Pa) and snow loads (5400Pa).

【Built to Last】

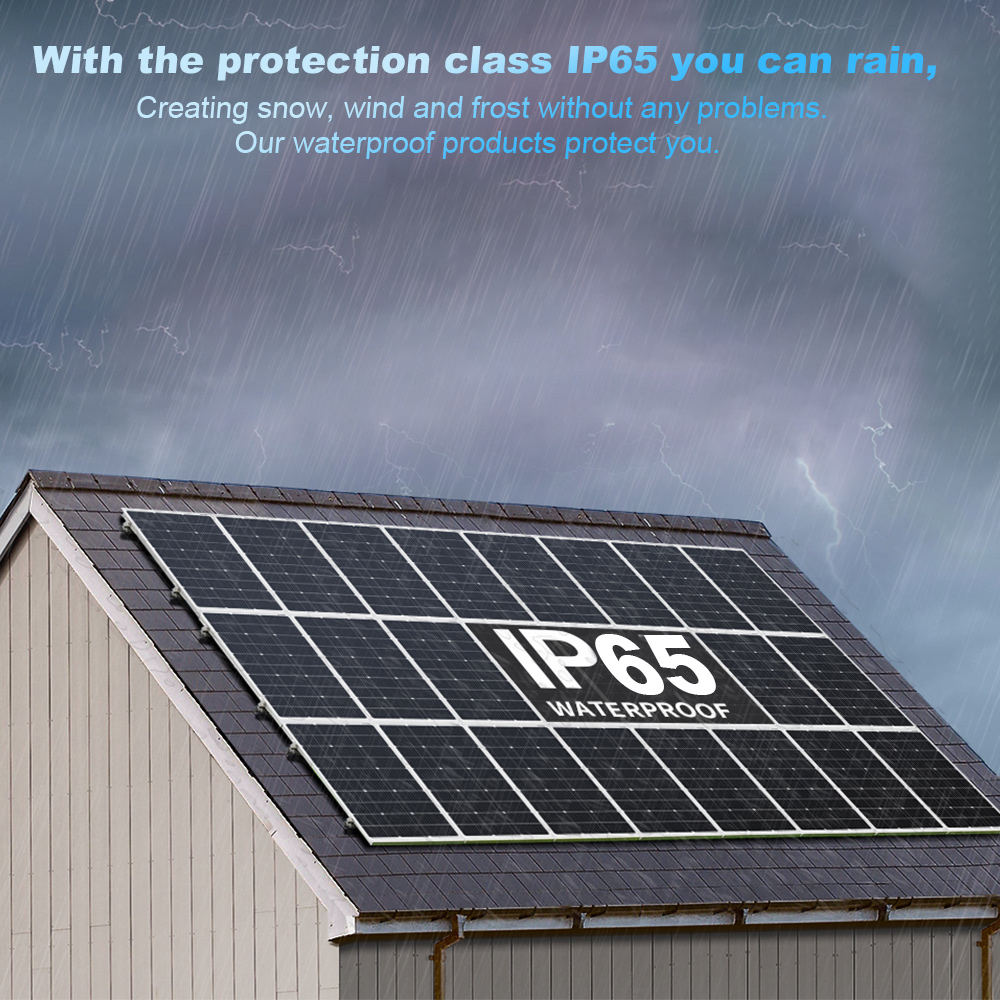

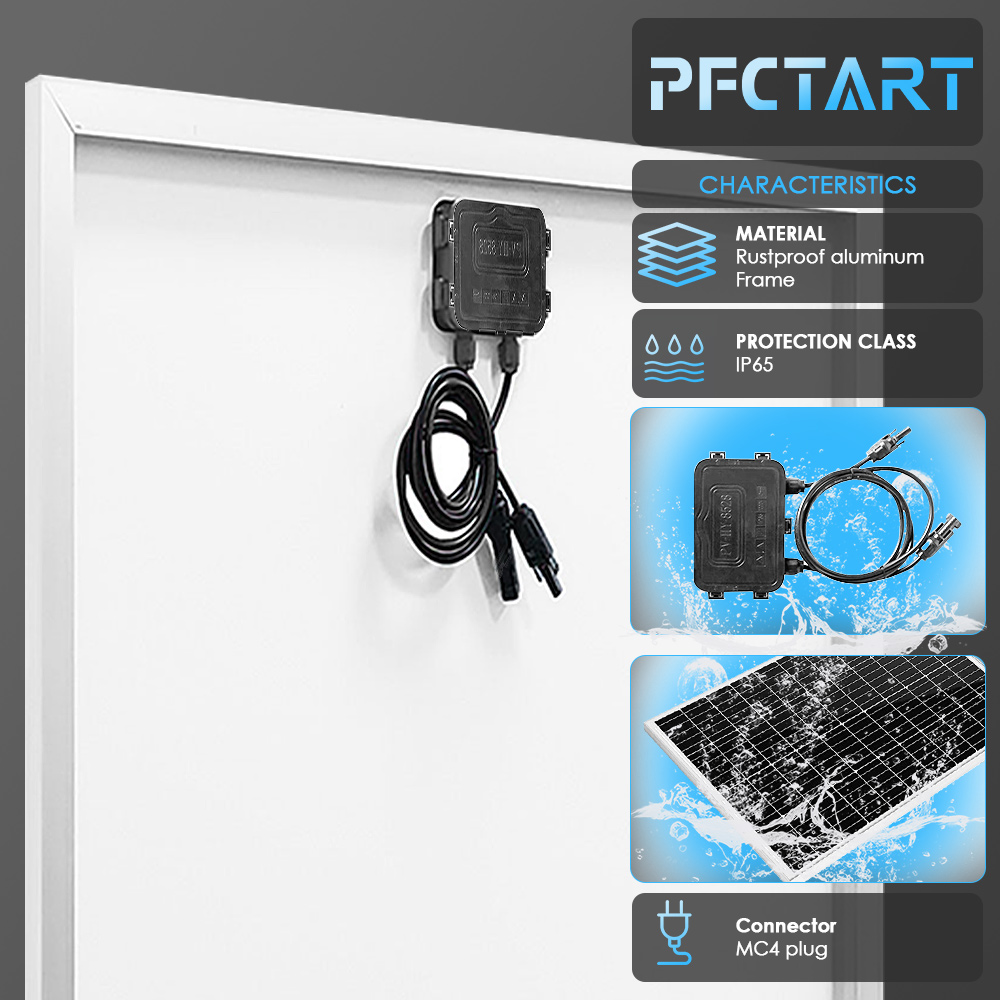

Corrosion-resistant aluminum frame of this solar panel  provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Specification：

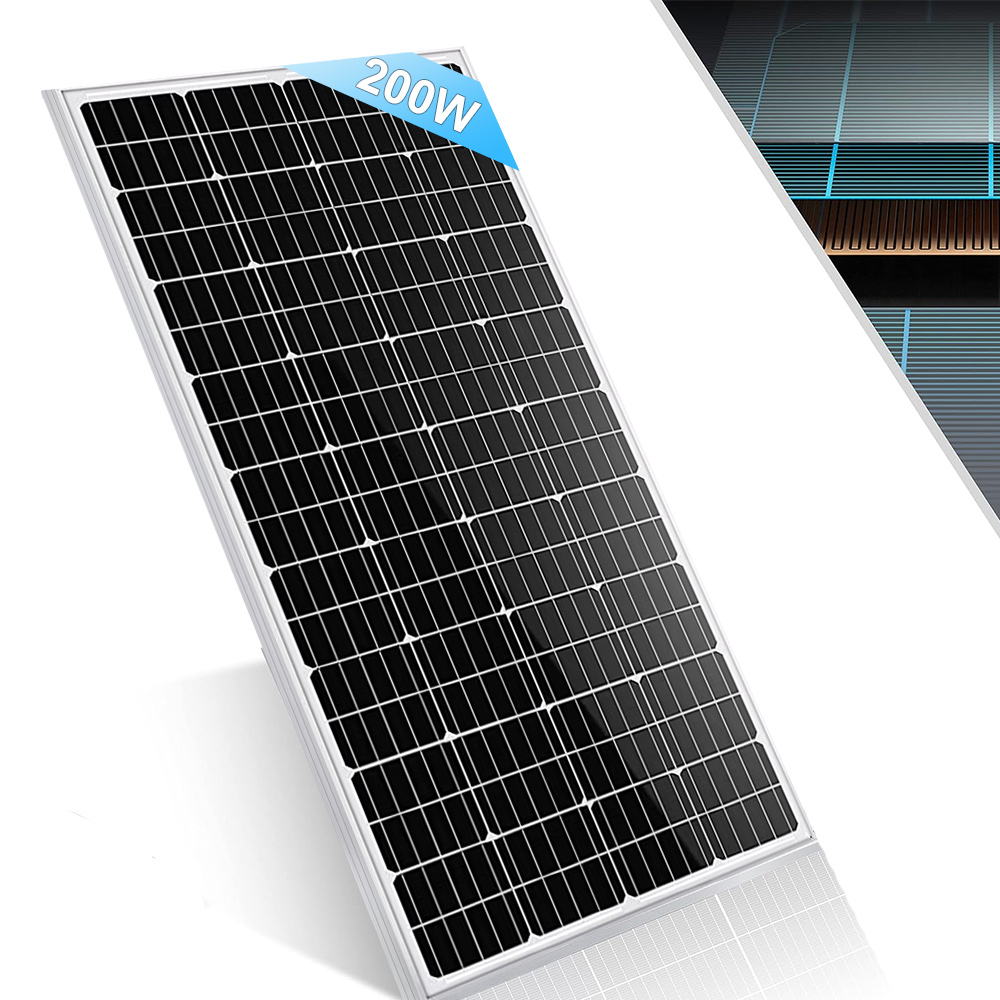

200W Solar Panel

High Efficient Monocrystalline

Maximum Power: 200W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 12.2A

Working Current (Iop): 11.11A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range： -40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

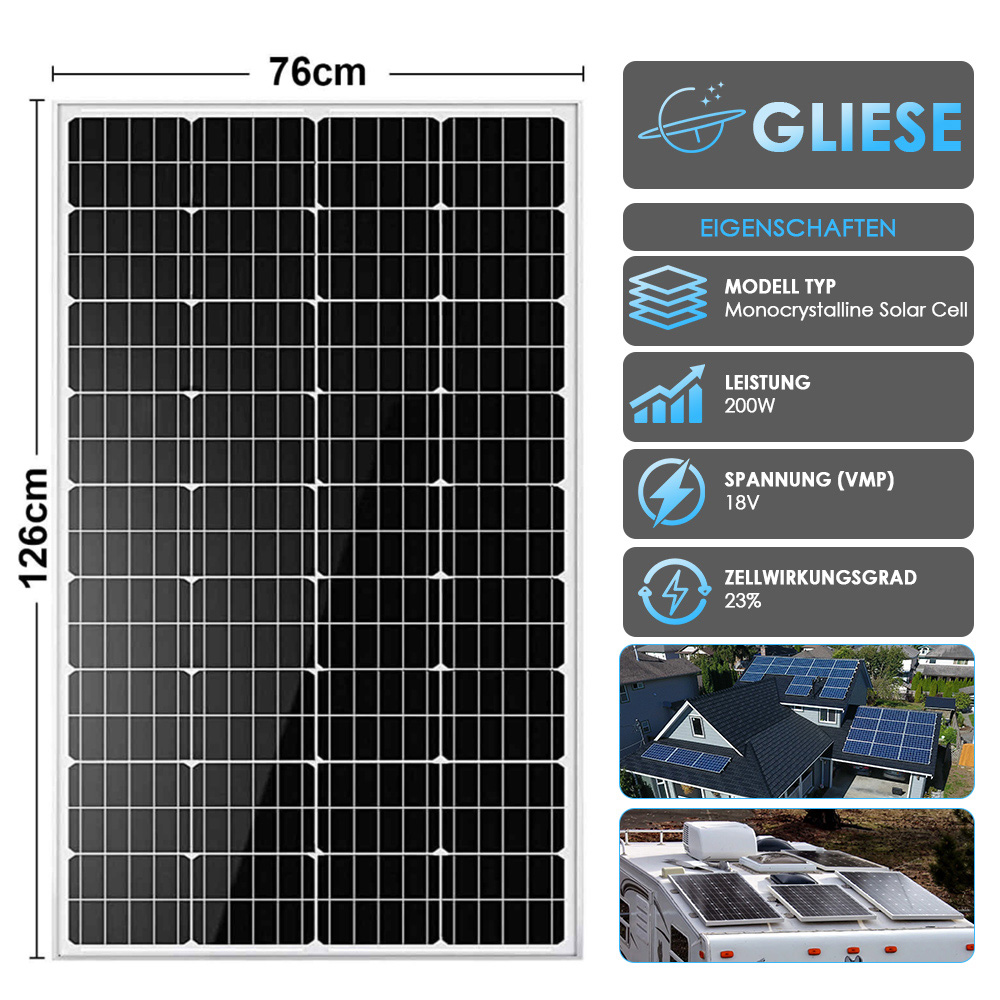

Product size：126*76*3 CM ( 49.60*29.92*1.18 Inch )

Product weight：9.5 kg (20.94 lbs )

How Many Solar Panels Do You Need To Buy?

1-4 Solar Panels For Boat power generation

1-6 Solar Panels For RV Power Generation

1-30 Solar Panels For House power generation

More Welcome to consult !

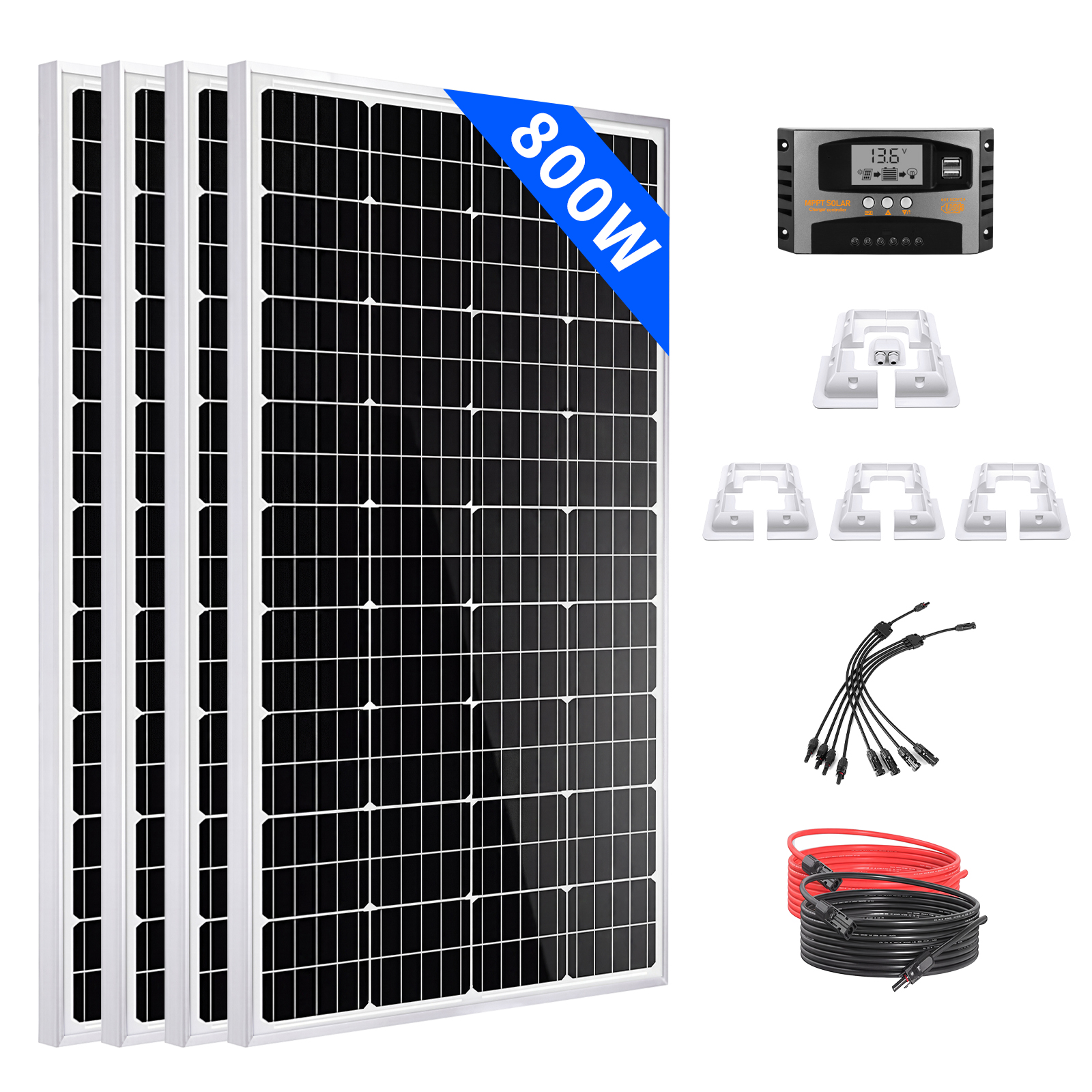

Packages Includes

4 x 200W Mono Solar Pane

1 x 100A Solar Controller

1 Pair 3M Solar Red Black Cable
17 Pcs Mounting Brackets
1 Pair Y-4 Branch Connectors
