Smart Wireless Door Bells Waterproof 1000ft Range Plug in Home Cordless Doorbell
The Full House Wireless Doorbell system consists of a waterproof push button (transmitter) and a plug-in receiver. The push button is designed for outdoor use with an IP44 waterproof rating, ensuring durability in various weather conditions. The receiver plugs into any standard wall outlet and features adjustable volume and multiple chime options.
📋 Specifications
Shape: Rectangle
Colour: Black
Material: Durable Plastic
Power Supply: Receiver (AC 80–260V), Transmitter
Chime Type: Digital
🔑 Key Features
- Wireless Range: Over 1000 feet in open space (up to 500 feet with walls).
- Chimes: 60 selectable melodies.
- Volume Levels: 5 adjustable levels, from 0dB (mute) to 110dB.
- LED Flash: Visual alert for visitors, especially useful in mute mode.
- Expandable: Supports up to 8 transmitters and unlimited receivers for larger homes or multiple entry points.
Setup and Installation
1. Install the Push Button (Transmitter)
The push button can be installed using either the provided double-sided adhesive tape or screws.
- Using Double-Sided Tape:
- Clean the desired mounting surface thoroughly to ensure it is free of dust and moisture.
- Peel off one side of the protective film from the double-sided tape and firmly apply it to the back of the push button.
- Peel off the other side of the film and press the push button firmly onto the wall for at least 30 seconds.
- Using Screws:
- Carefully pry open the back cover of the push button.
- Mark the desired drilling points on the wall using the screw holes on the back cover as a guide.
- Drill holes and insert wall anchors if necessary.
- Secure the back cover to the wall with the provided screws.
- Snap the push button onto the secured back cover.
📦 Package Contents
- 1 x Wireless Push Button (Transmitter)
- 1 x Plug-In Receiver
- Mounting Hardware (Double-sided adhesive tape, Screws)
- User Manual (This document)
Maintenance
Battery Replacement (Push Button)

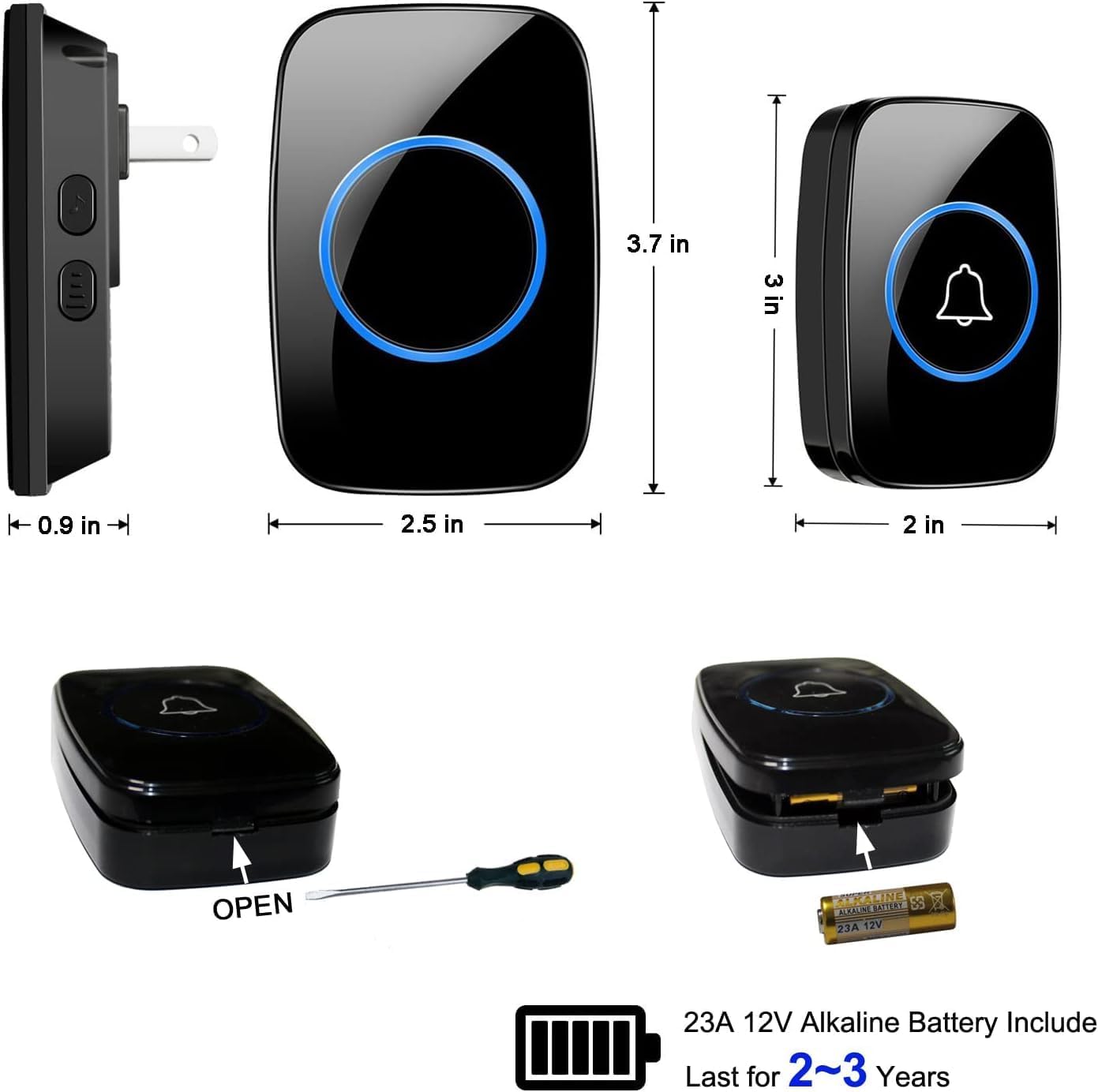

The push button uses a replaceable 23A 12V alkaline battery, which typically lasts up to 3 years. To replace the battery:
- Carefully pry open the back cover of the push button using a small flat-head screwdriver or similar tool.
- Remove the old battery.
- Insert a new 23A 12V alkaline battery, ensuring correct polarity (+/-).
- Snap the back cover securely into place.
