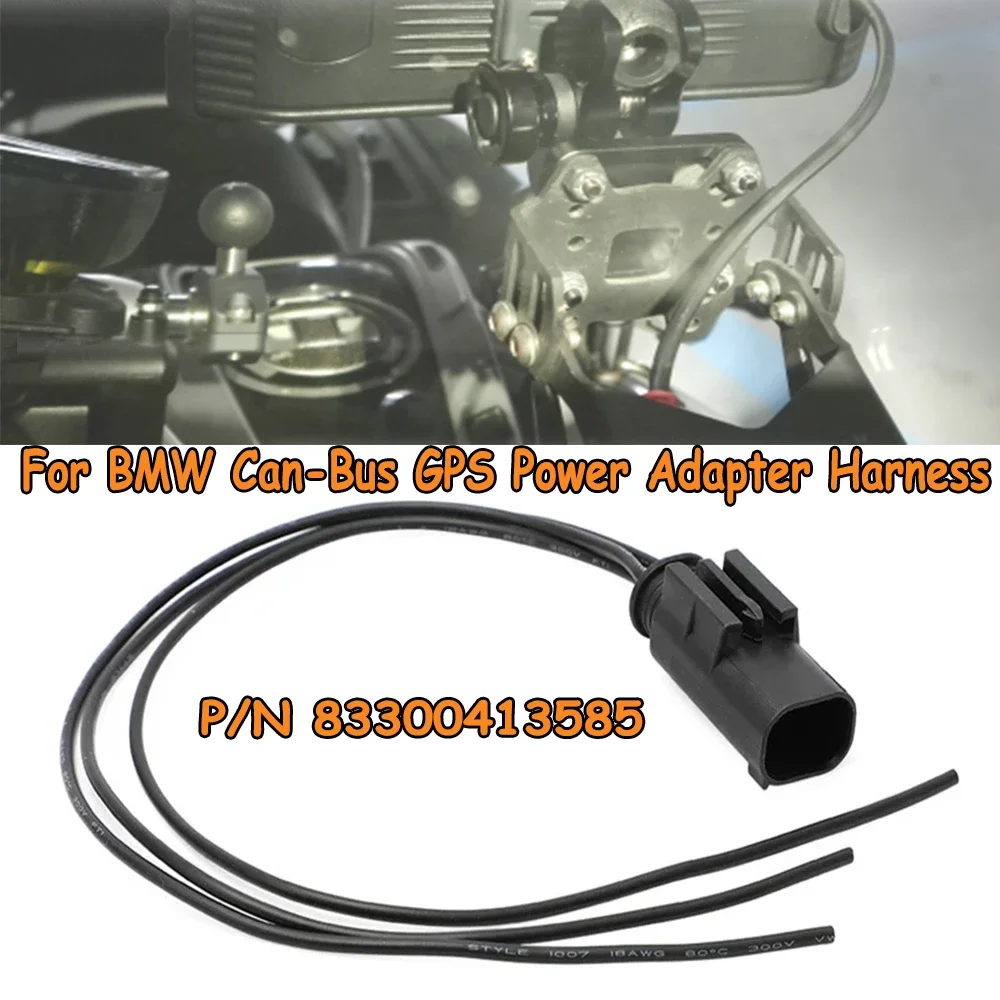

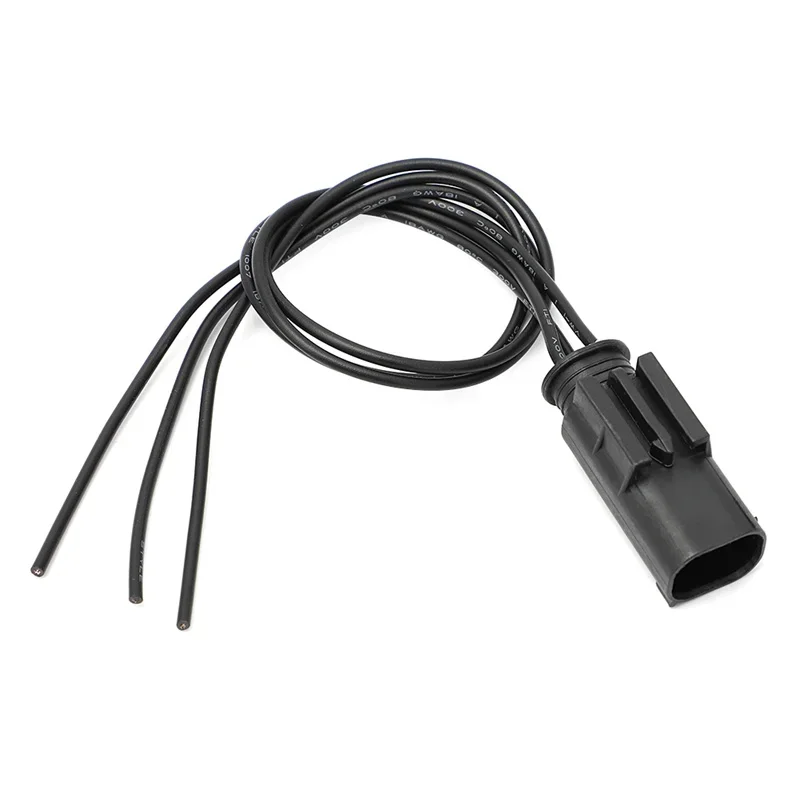

For BMW Can-Bus GPS Power Adapter Harness (P/N 83300413585)

Switched Power for GPS/Nav Units – Plug & Play Installation

CLEAN POWER SOLUTION

Direct Can-Bus Connection – Taps into ignition-switched power

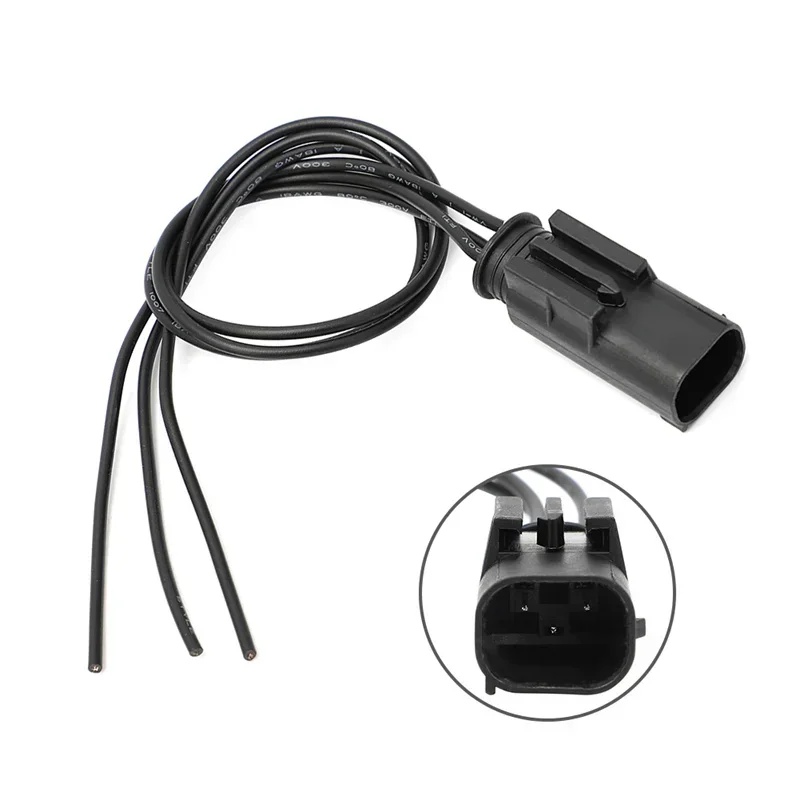

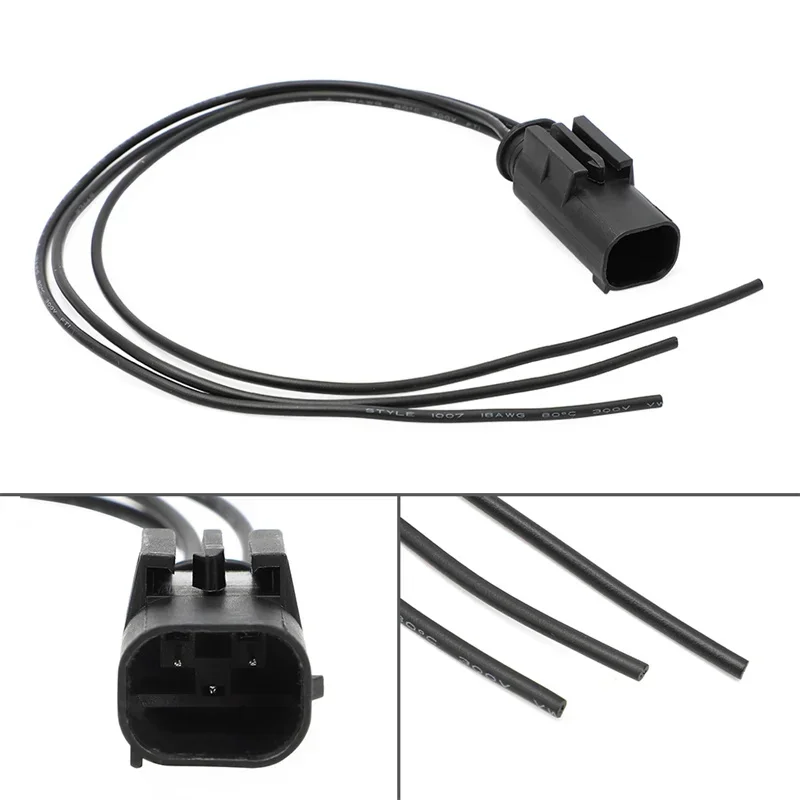

3-Pin OEM Connector – No wire cutting/splicing required

Simplified Wiring:

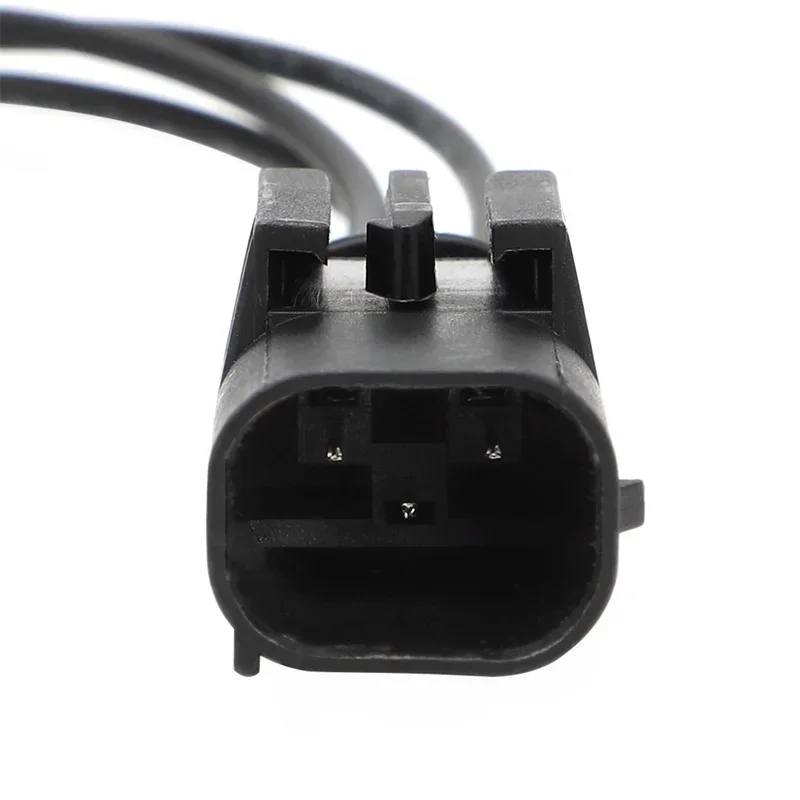

Pin 1 (LH): Ground

Pin 3 (RH): +12V Power

Pin 2 (Middle): Speed pulse (unused for aftermarket GPS)

️ TECHNICAL SPECS

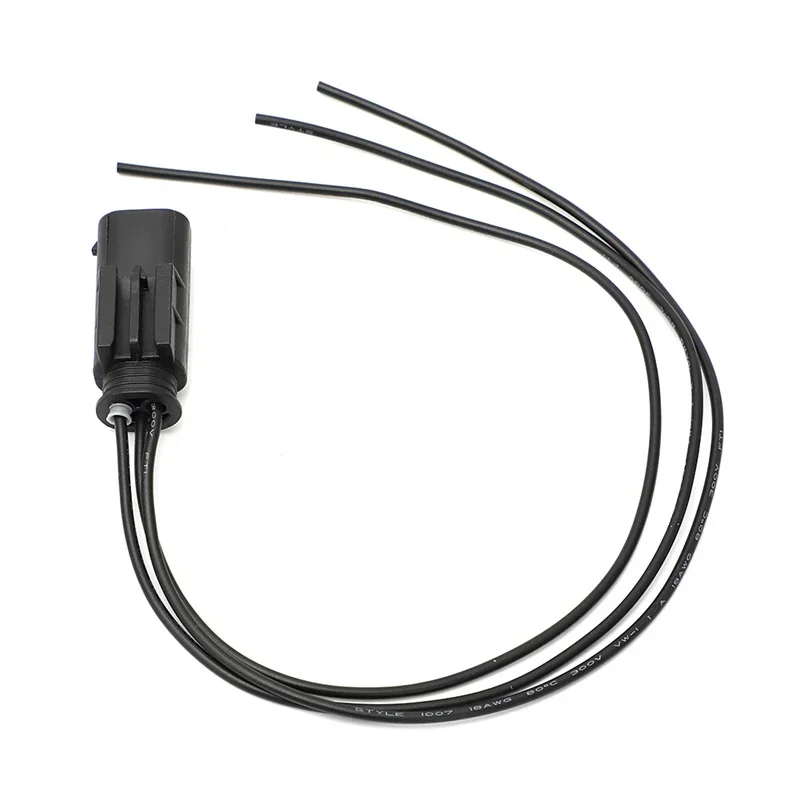

• Wire Gauge: 18 AWG

• Voltage: 12V DC (Can-Bus regulated)

• Max Load: 2A (GPS/accessory-safe)

️ GUARANTEED FITMENT

R1200GS 05-07

R1200RT 05-09

R900RT 05-09

R1200ST

R1200S

K1200S

K1200R

K1200GT 06-08

F800S

HP2 Enduro

R1200R 05-10

INSTALLATION

Locate factory accessory plug under seat/tank

Connect pins 1 & 3 to GPS power lead

Tuck away unused wire (Pin 2)

*(No battery disconnect needed – 10-minute job)*

️ NOTES

• For low-power devices only (GPS, phone chargers)

• Not for heated gear/power-hungry accessories

• Verify connector type before purchase

INCLUDES

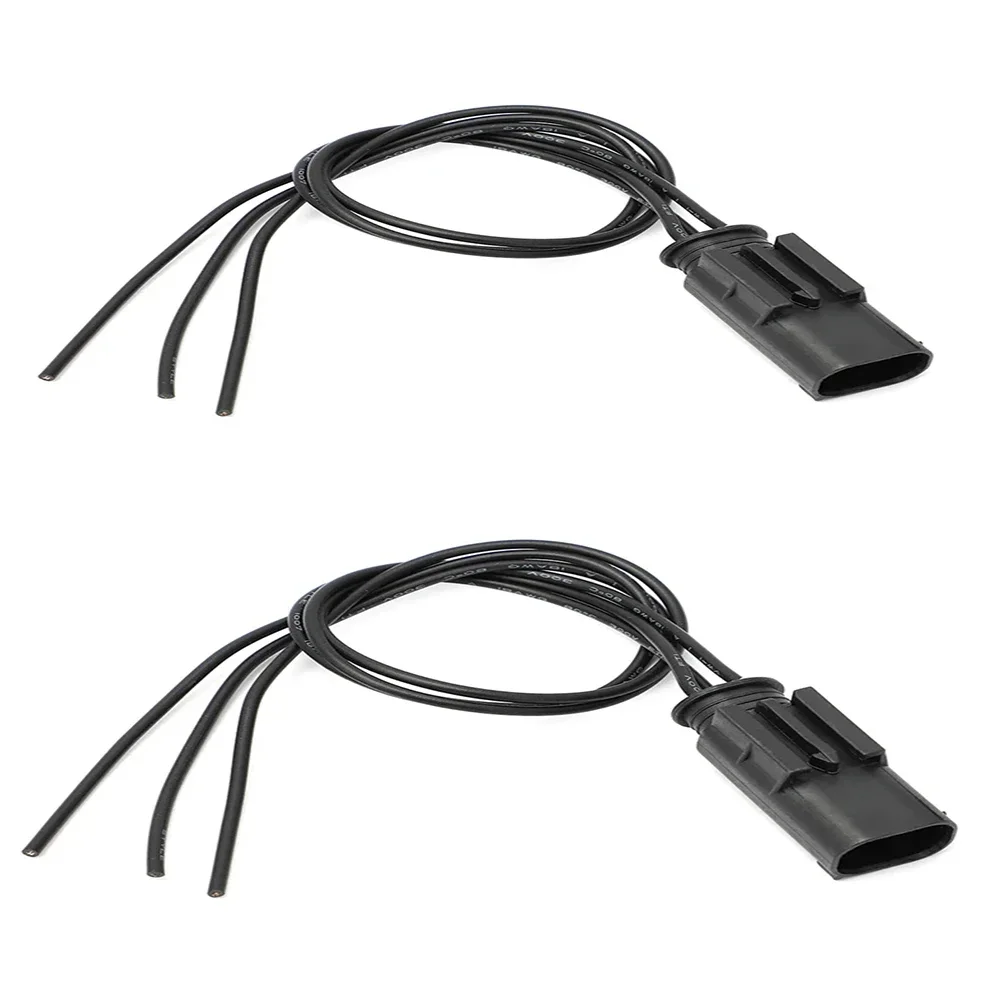

1x 2x 3-Pin Can-Bus Harness

READY TO POWER YOUR GPS?

Click [Add to Cart] – Ships Today!

WHY RIDERS CHOOSE THIS

OEM Plug Design – No hack jobs

Cleaner Than Tapping Fuses

Preserves Can-Bus System
