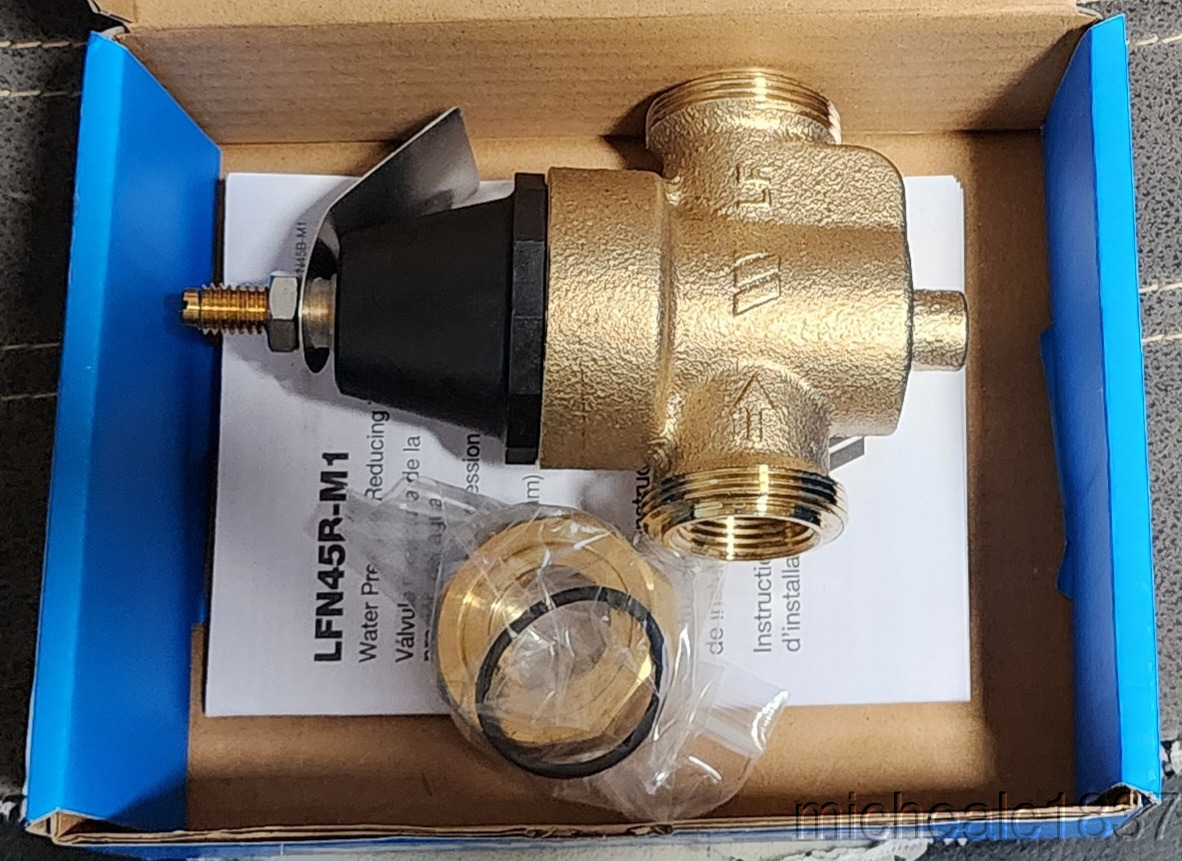

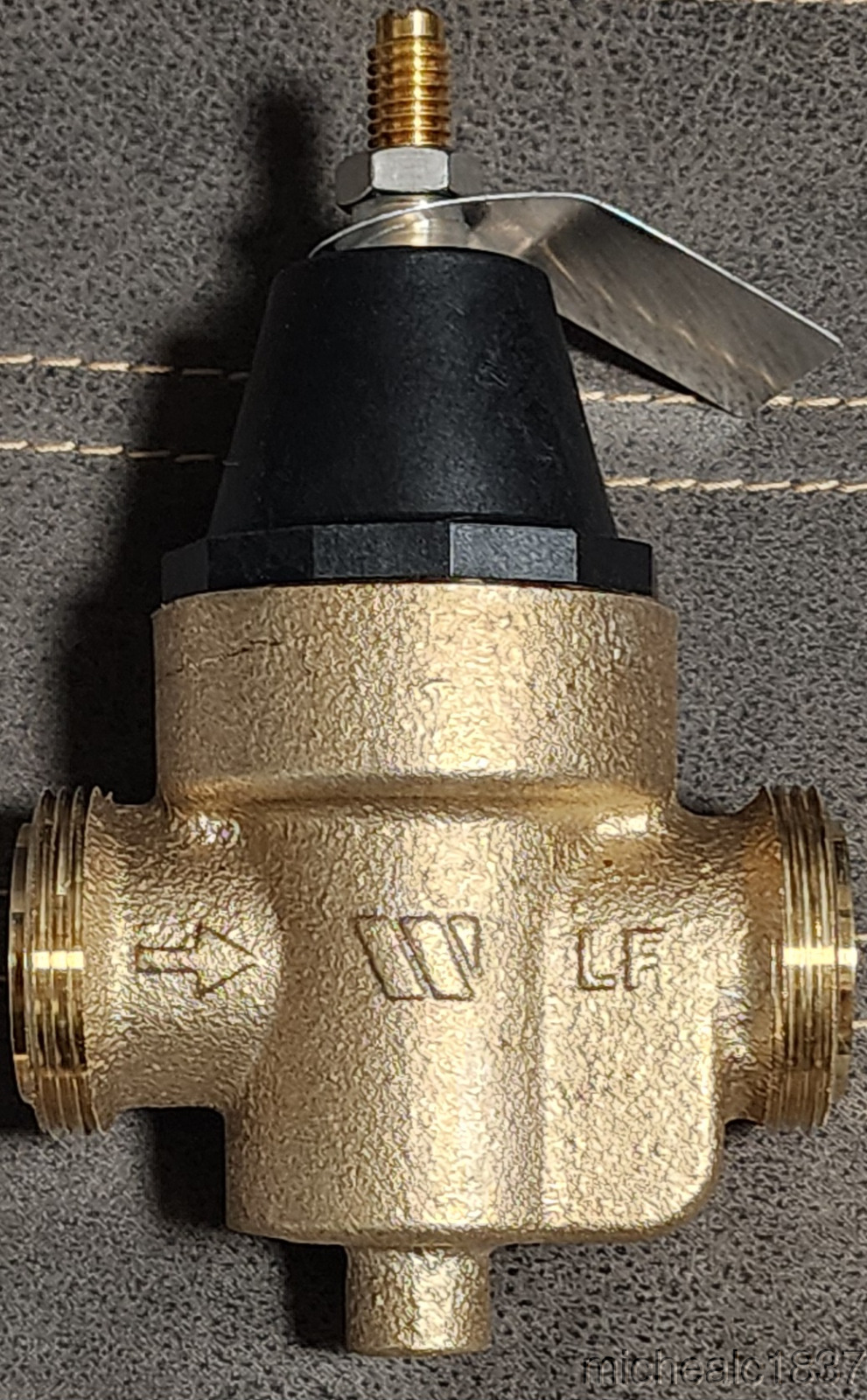

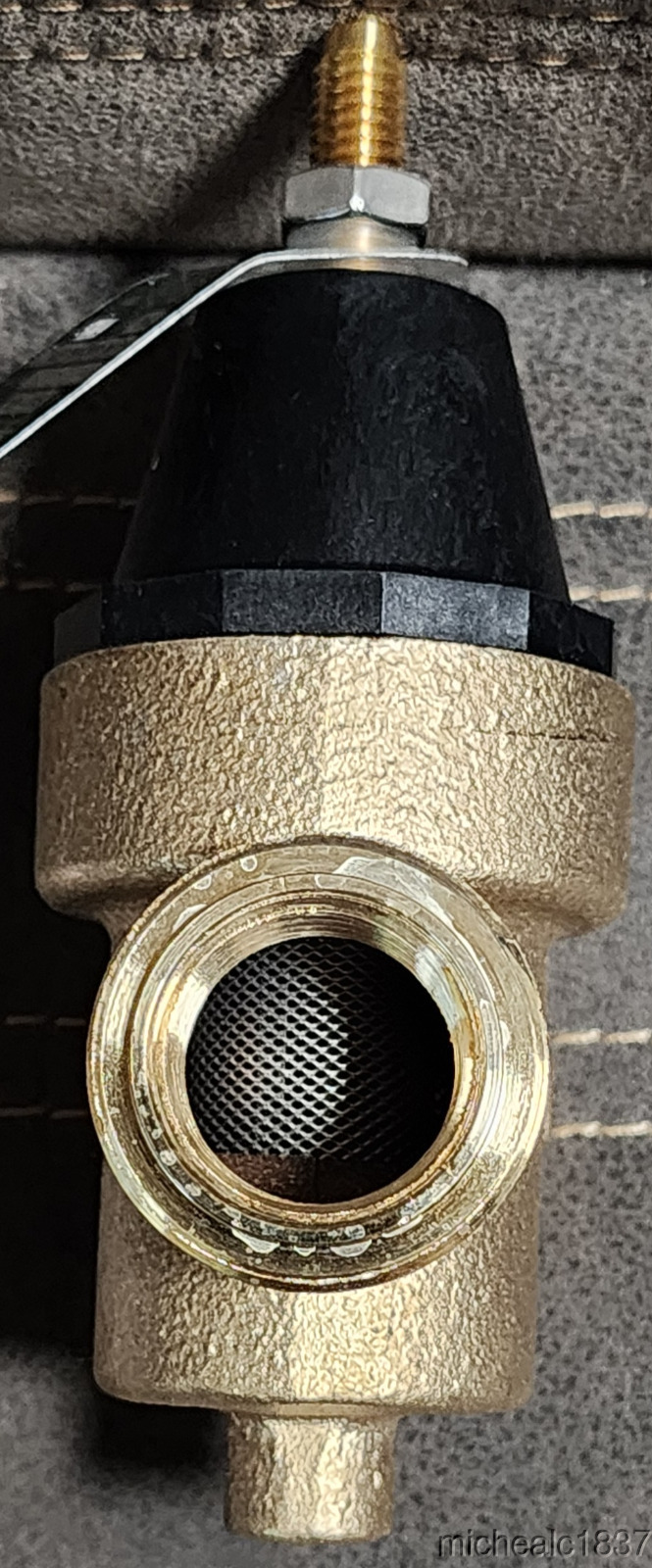

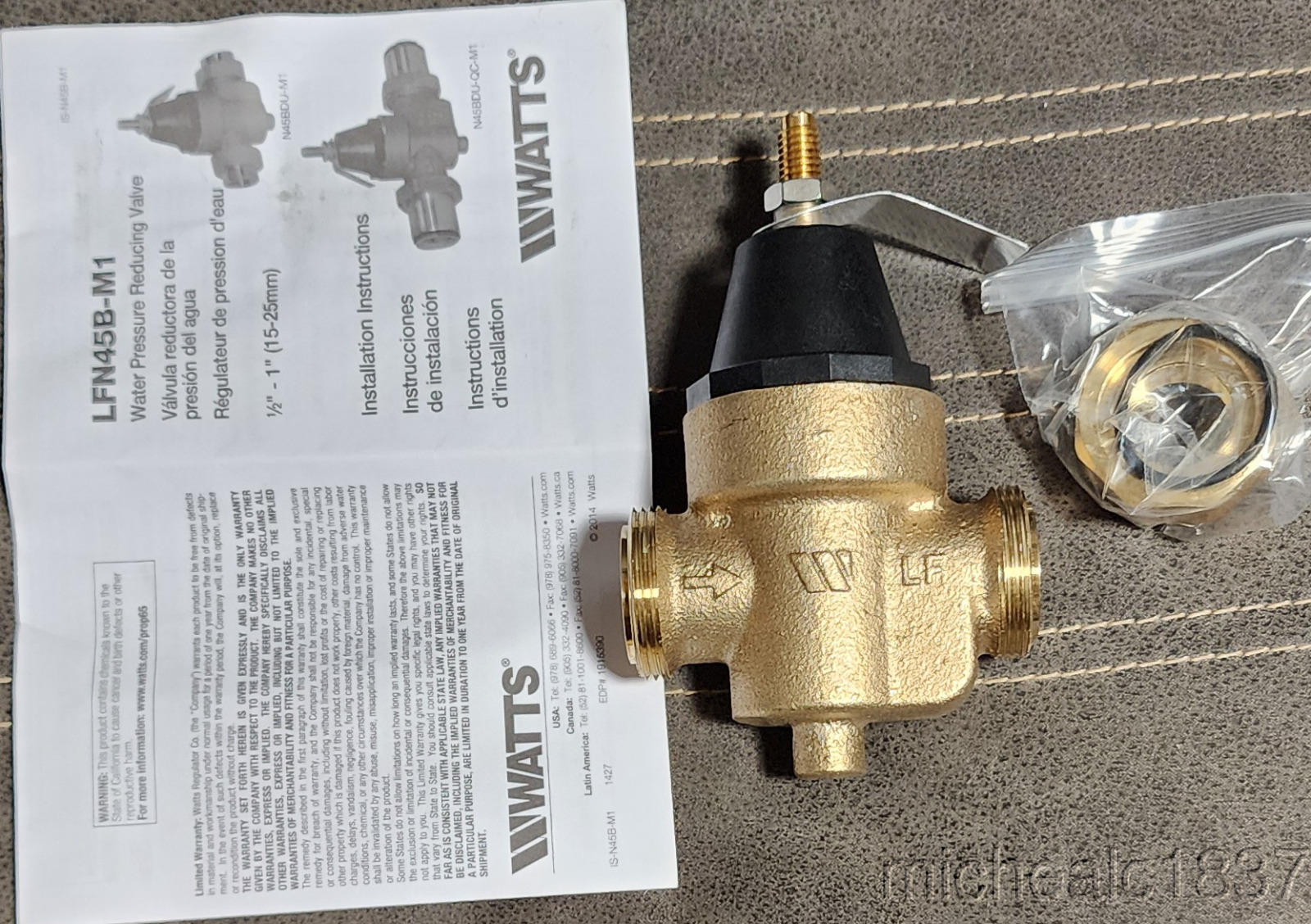

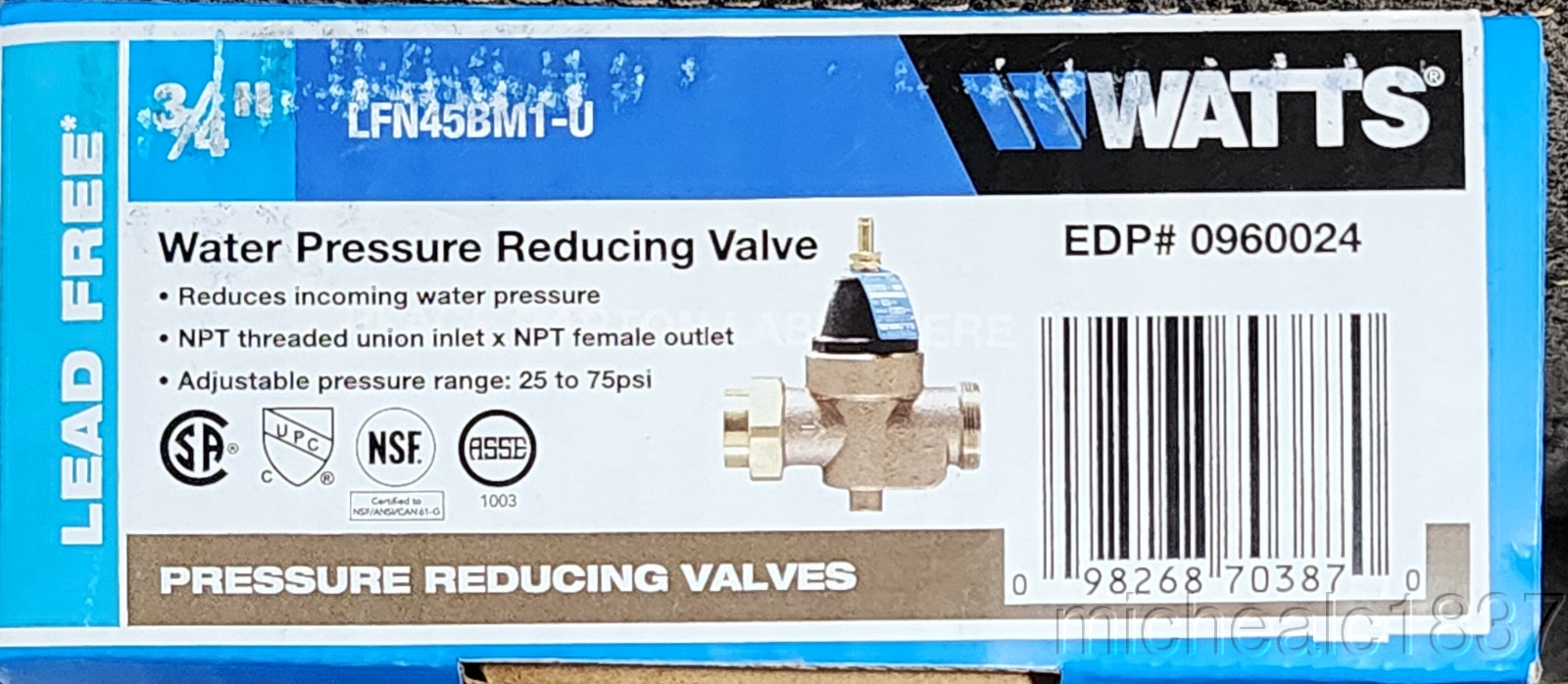

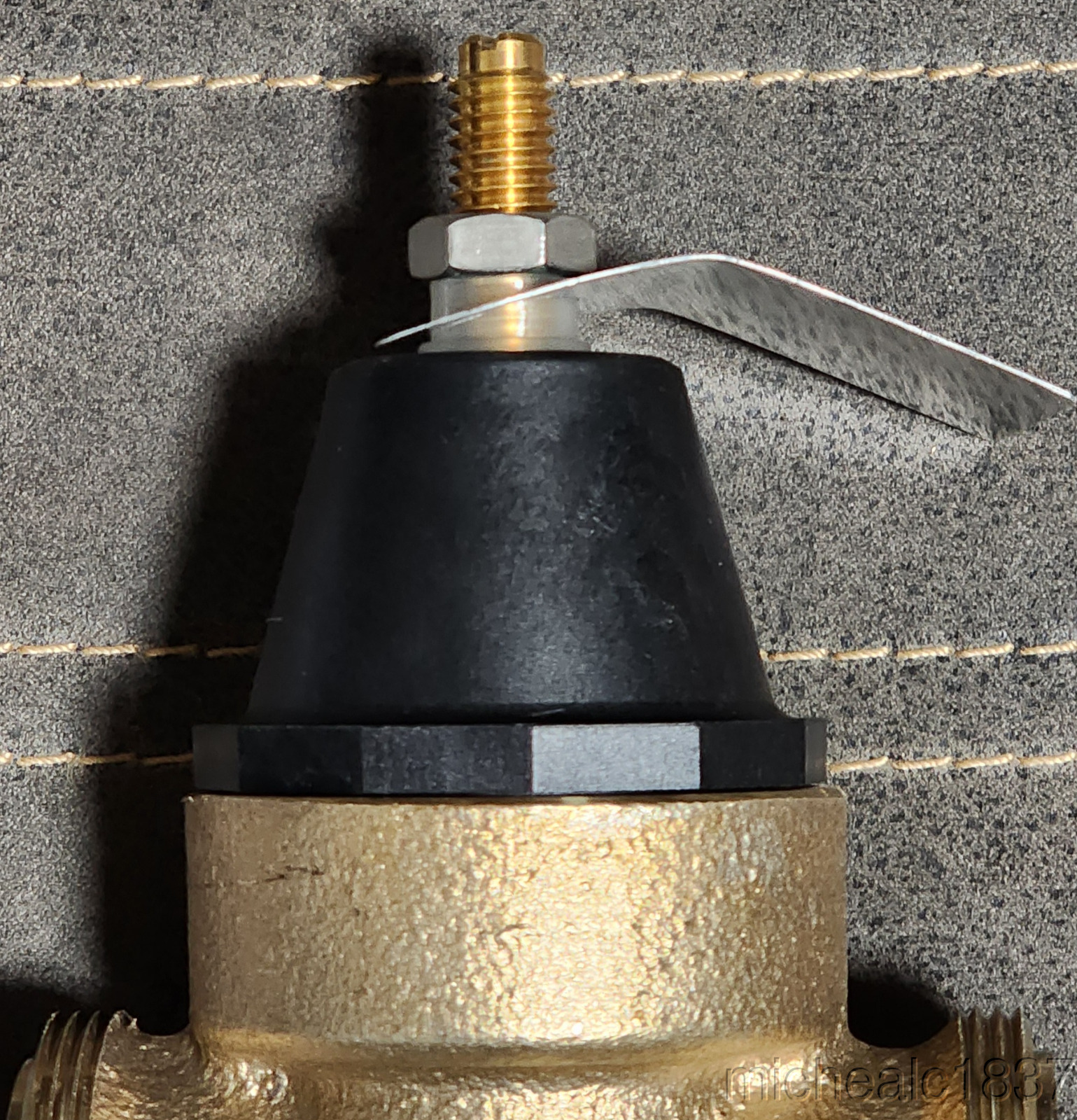

3/4 IN Lead Free Water Pressure Reducing Valve, FPT x FPT, Adjust 25-75 psi, Max Work 400 psi_This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body construction, threaded female inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)._Serviceable in line_Sealed spring cage for accessible outdoor or pit installations_Thermoplastic seat and cage_Integral stainless steel strainer removable for cleaning_Specifications_Adjustable Reduced Pressure Range 25 to 75_Adjustable Reduced Pressure Range-BAR 1.7 to 5.2_Body Material Lead Free Cast Copper Silicon Alloy_Brand Watts_Buy American Act Compliant YES_Corrosion Resistant Coating No_Disc Material Elastomer_EAN 098268332391_Gauge Option No Gauge_High Pressure Reduced Pressure Range Does Not Apply To Product_High Pressure Reduced Pressure Setting Does Not Apply To Product_Inlet Connection Size 3/4 IN_Inlet Connection Type Female Threaded_Inlet Thread Type NPT_Lead Free YES_Maximum Operating Temperature-Fahrenheit 180_Maximum Working Pressure-BAR 27.60_Maximum Working Pressure-PSI 400_Minimum Temperature - Celsius 0.50_Minimum Temperature-Fahrenheit 33_Outlet Connection Size 3/4 IN_Outlet Connection Type Female Threaded_Outlet Thread Type NPT_Part Number 0009477_Series LFN45B_Standard Reduced Pressure Setting-BAR 3.40_Standard Reduced Pressure Setting-PSI 50_Strainer Yes_Strainer Material Stainless Steel_Thermal Expansion Bypass Yes_Trim Material Does Not Apply To Product_Valve Style Standard
