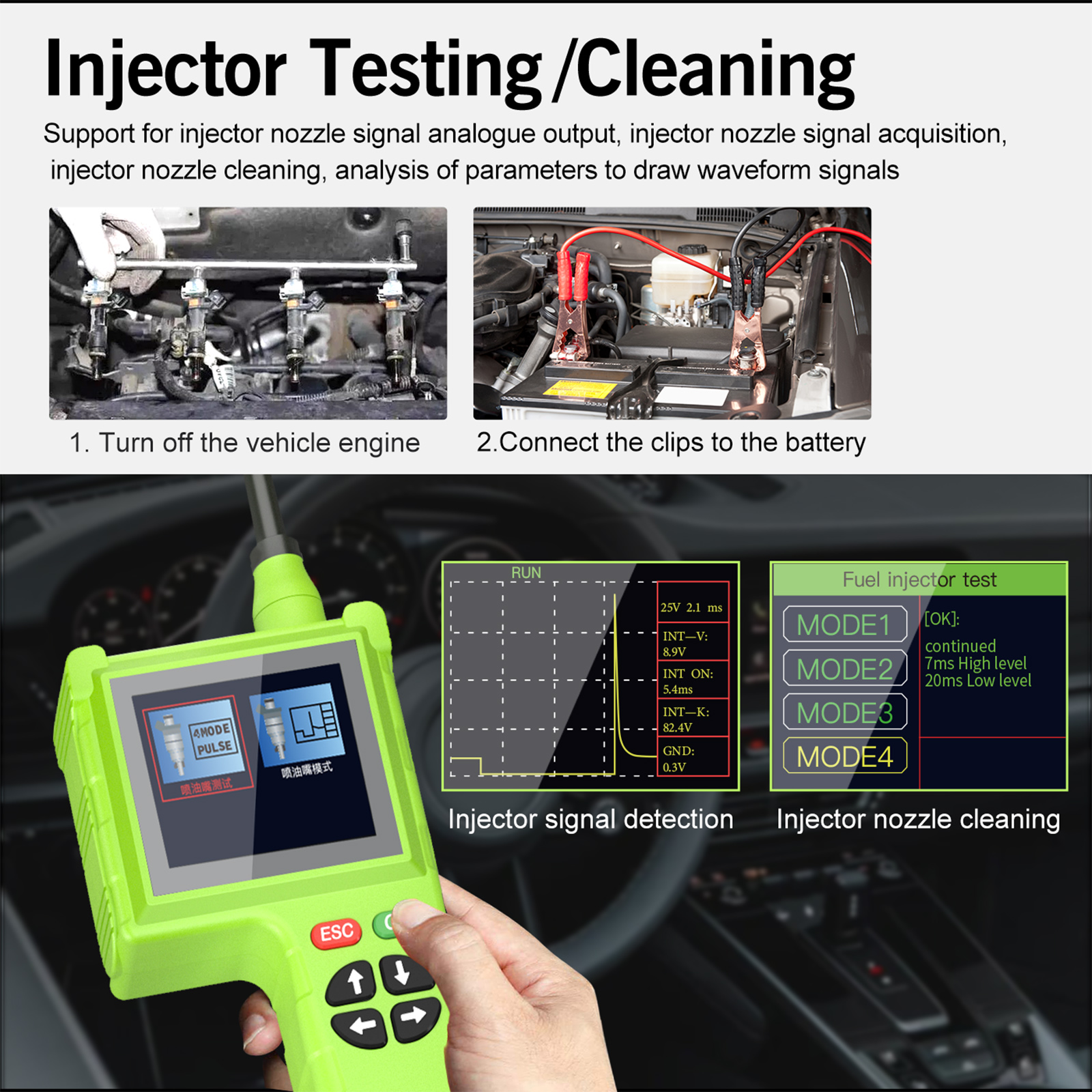

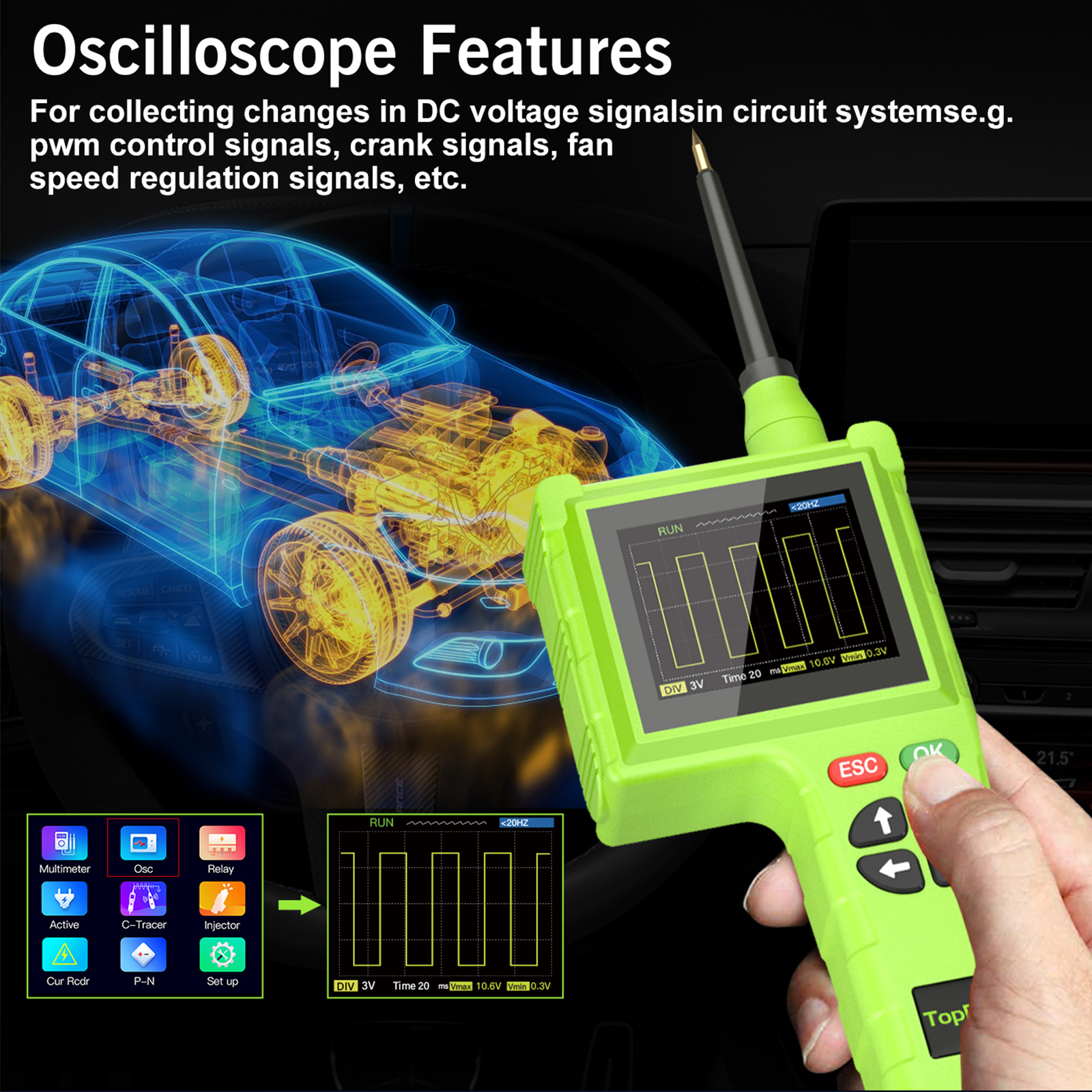

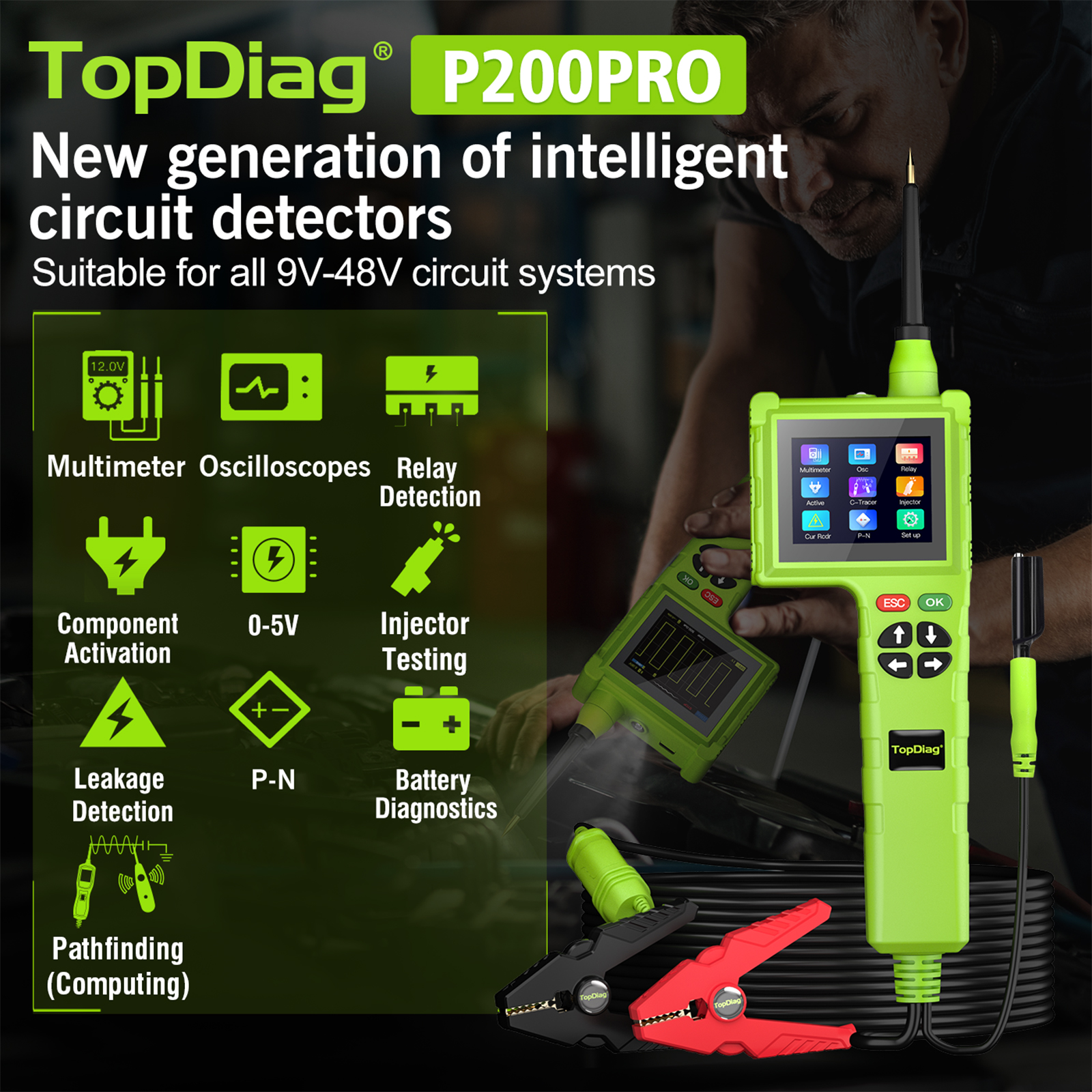

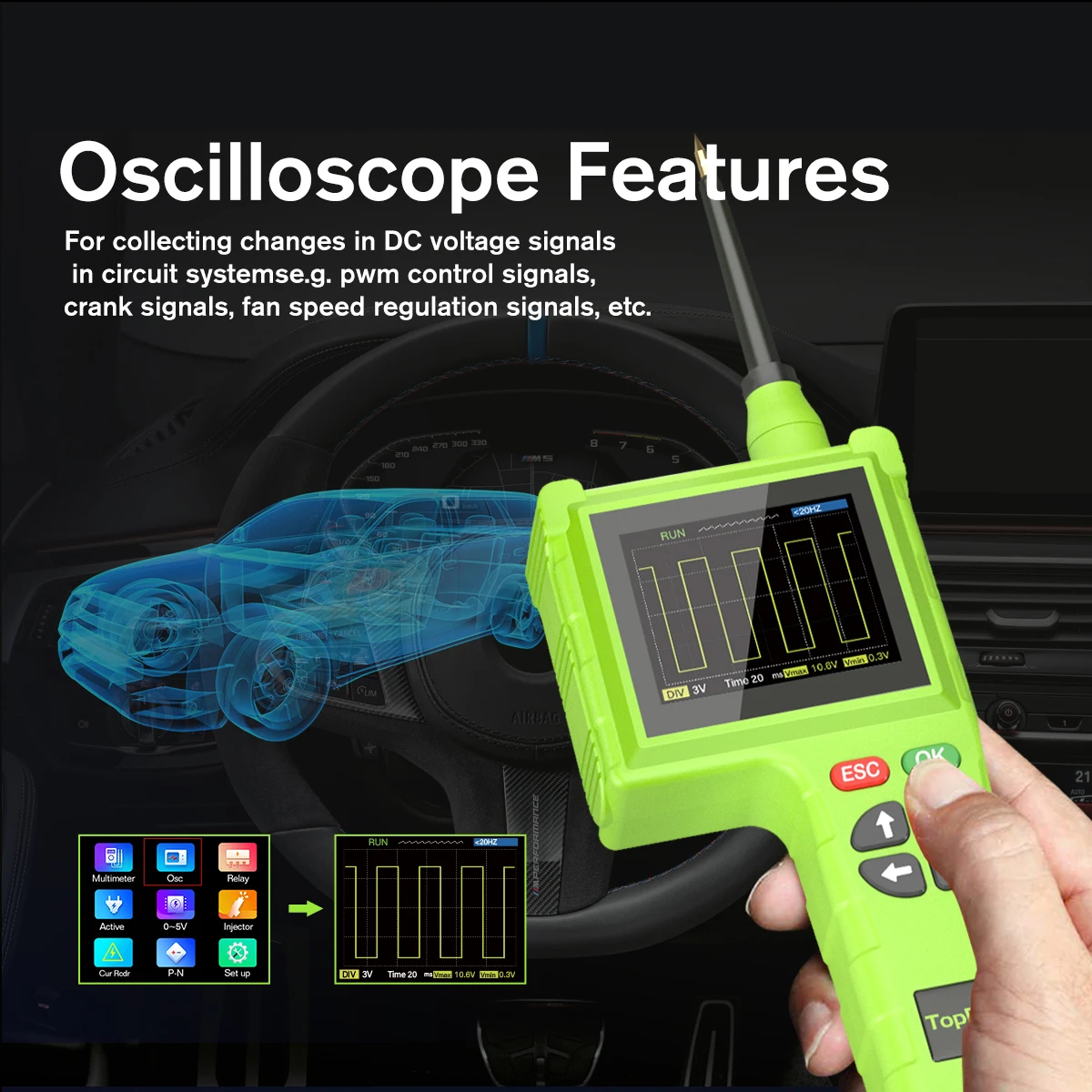

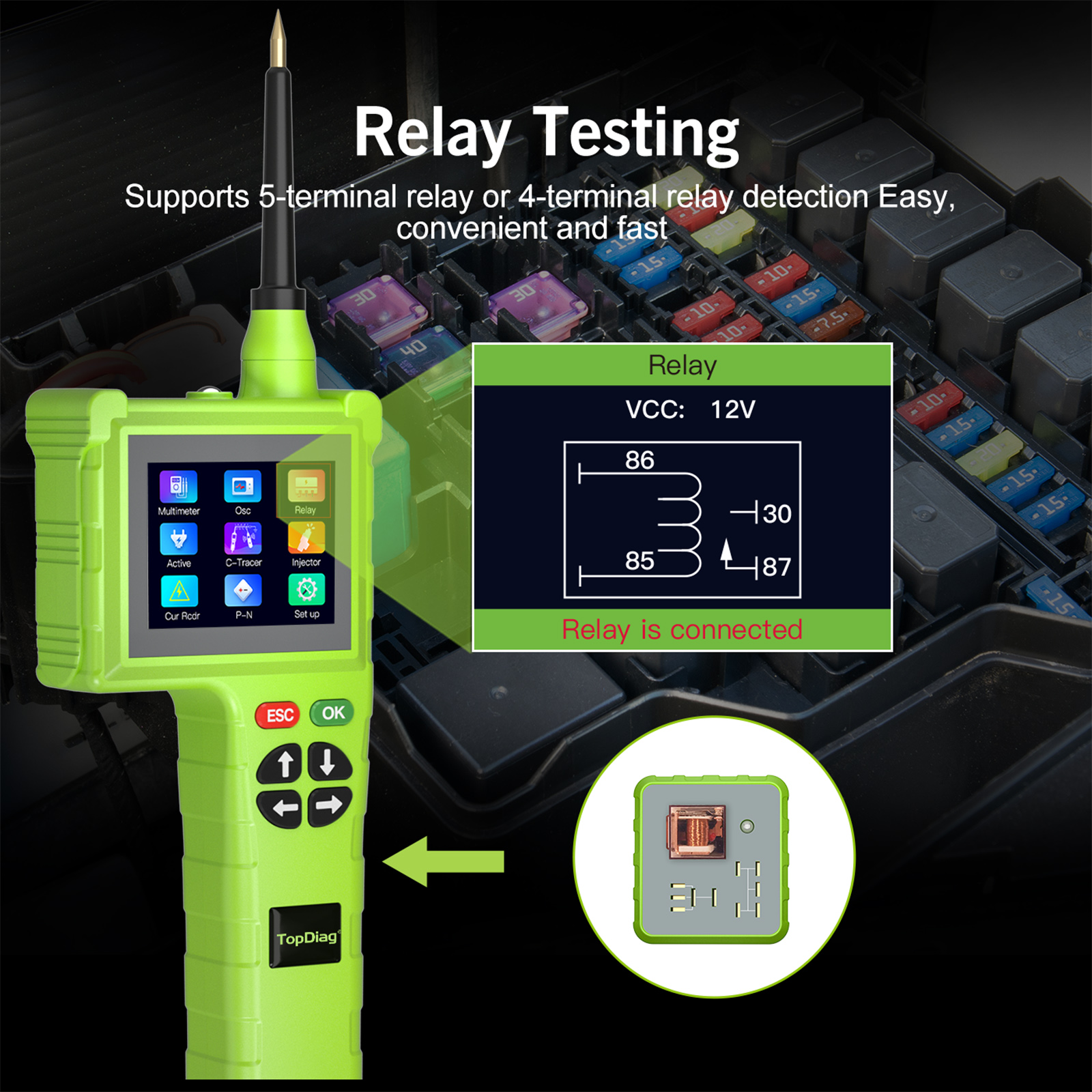

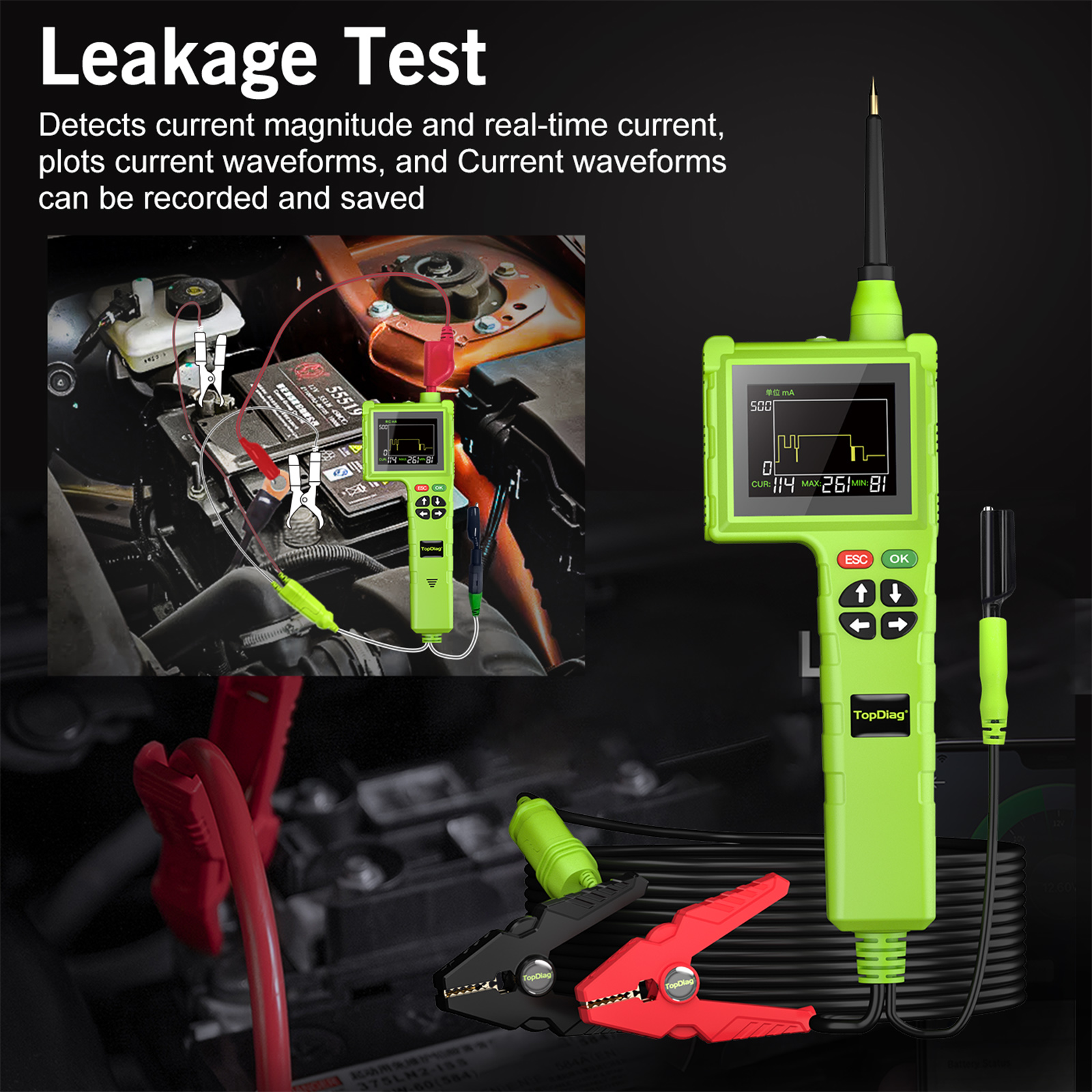

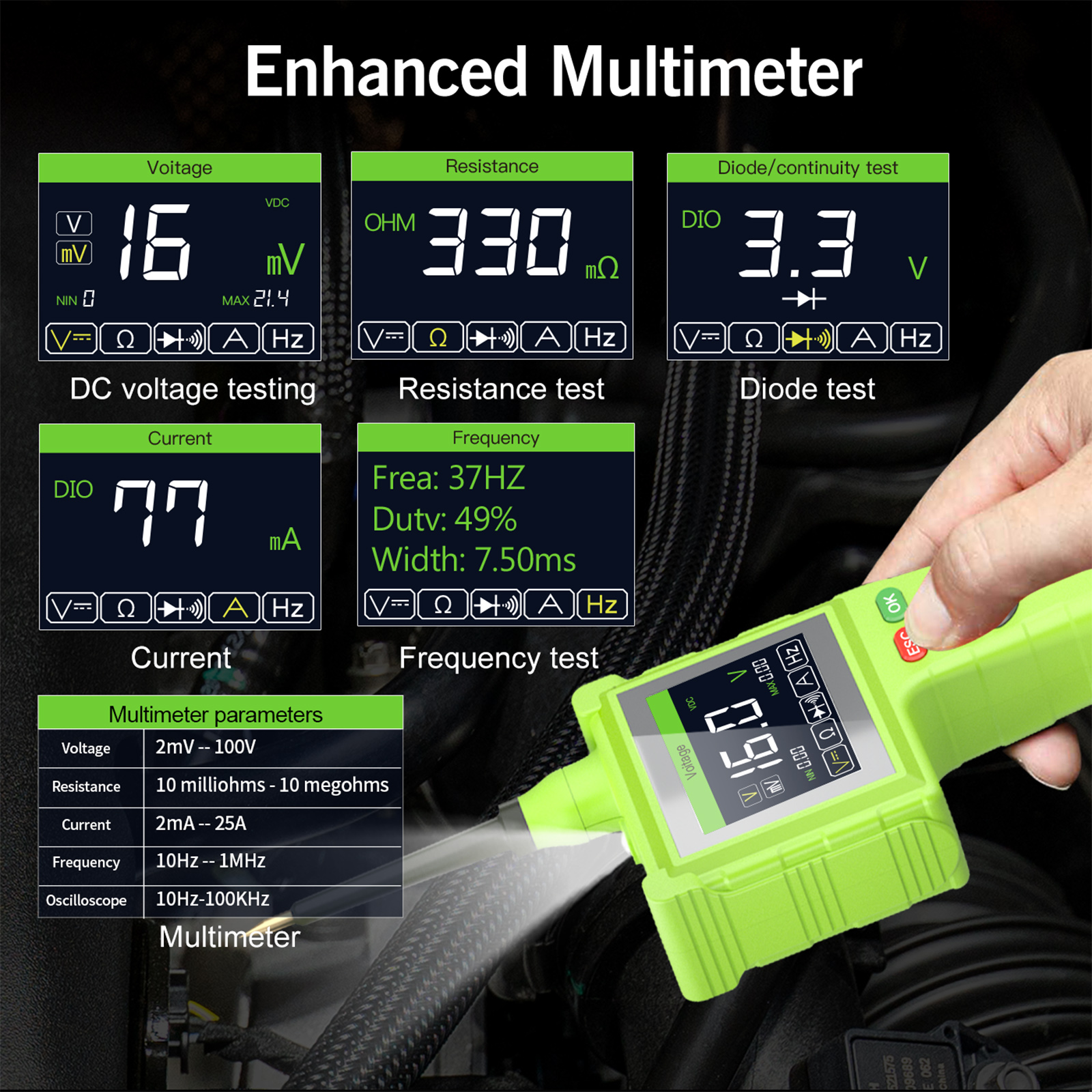

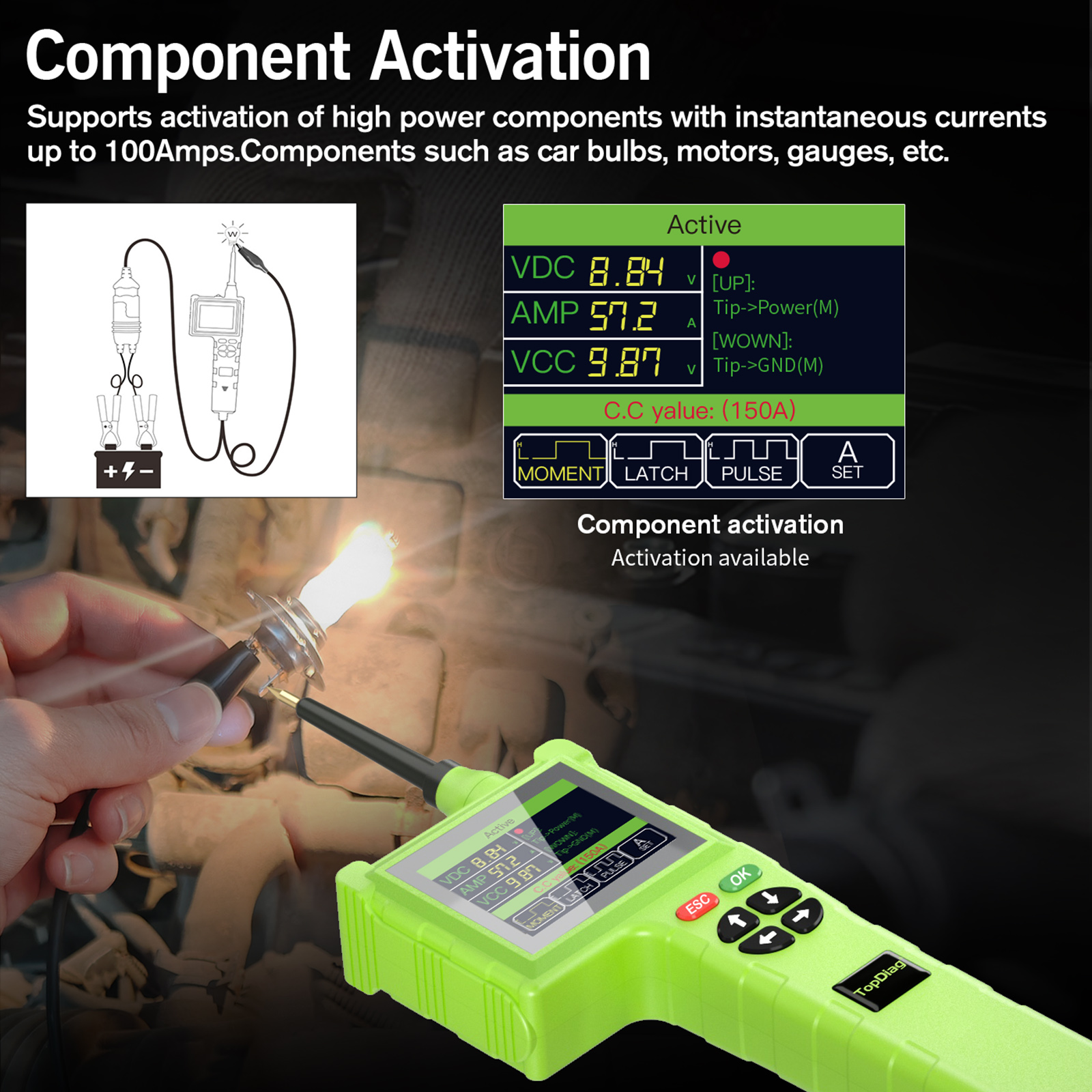

TOPDIAG P200 PRO Smart Hook Master Edition 9V-48V Circuit Tester Can Test/Cleaning Fuel Injector Circuit Analyzer TOPDIAG P200Pro is a new generation of enhanced circuit system testers dedicated to providing comprehensive circuit diagnostics for all 9V-48V circuit system equipment. It is widely used in motorbikes, cars, trucks, boats, construction machinery, etc. Circuit Tester Functions: Multimeter, Oscilloscope, Relay, Active 0~5V Product Features: Injector Testing/Cleaning Support injector nozzle signal analogue output, injector nozzle signal acquisition, injector nozzle cleaning, analysis of parameters to draw waveform signals. Leakage Test Detects current magnitude and real-time current, plots current waveforms. Current waveforms can be recorded and saved. R-elay Testing Supports 5-terminal r-elay or 4-terminal r-elay detection Easy, convenient and fast. Component Activation Supports activation of high power components with instantaneous currents up to 100Amps. Components such as car bulbs, motors, gauges, etc. Oscilloscope Features For collecting changes in DC voltage signals in circuit systems. e.g. pwm control signals, crank signals, fan speed regulation signals, etc. Support A Wide Range of Models Supports all vehicle electrical systems, cars, trucks, SUVs, motorbikes, boats, excavators, etc. Multi-language Support English, Spanish, German, French, Italian, Portuguese, Polish, Chinese, Japanese, Korean. Product Specifications: operating voltage: 9-48V measurement frequency: 10Hz-1Hz operating current: 150MA measurement of current: 3mA-25A measured voltage: 2mV-100V operating temperature: 0-60℃ storage temperature:-40℃-70℃ measured resistance:10 milliΩ-10 megaΩ Component Activation: OA-25A continuously activated, 50A for 7S, 60A for 5S, maximum instantaneous current 120A Fuel Injector cleaning Instructions: 1. Turn off the vehicle's engine 2. Connect the BLACK clip to the negative termainal of the battery and the RED clip to the positive terminal of the battery. 3. Unplug the connector from the fuel injector, connect the probe auxiliary ground lead to the negative side of the injector, positive side of the injector. 4. After enter into the injector test function, select the test mode. 5. Press "OK" button to trigger the test. 6. Check the injector spraying status to diagnose the condition. Package Includes:

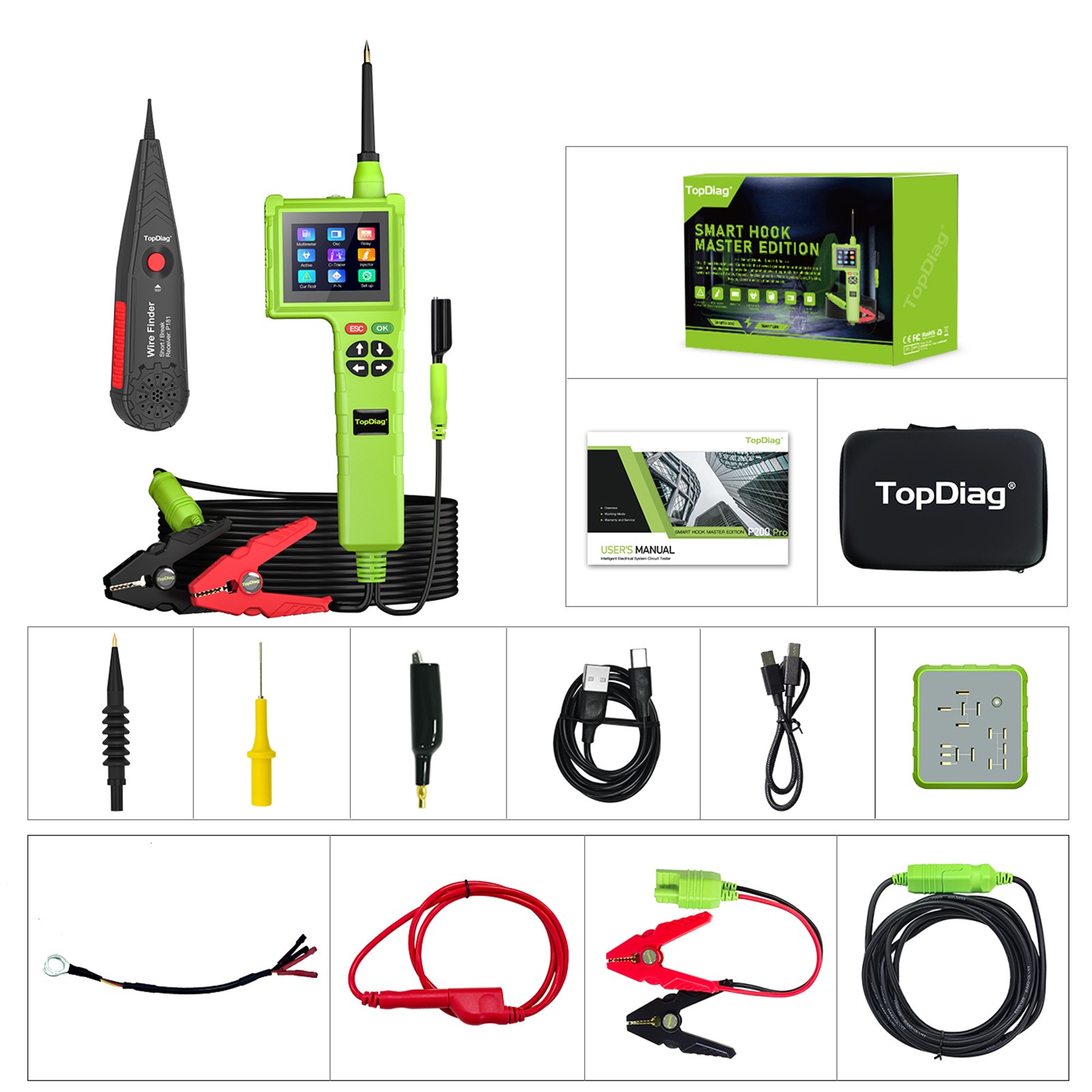

1pc x TOPDIAG P200Pro

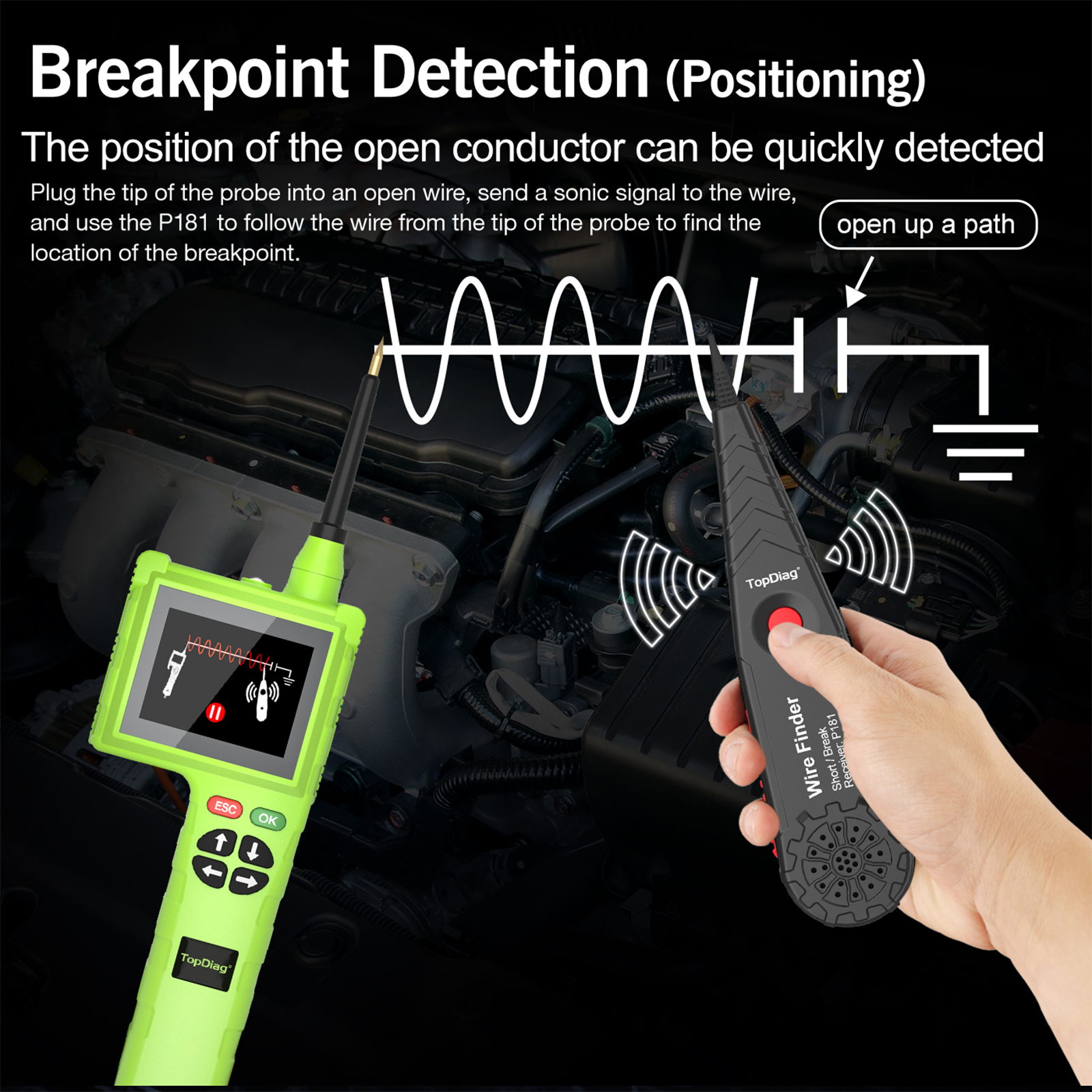

1pc x Wire Finder

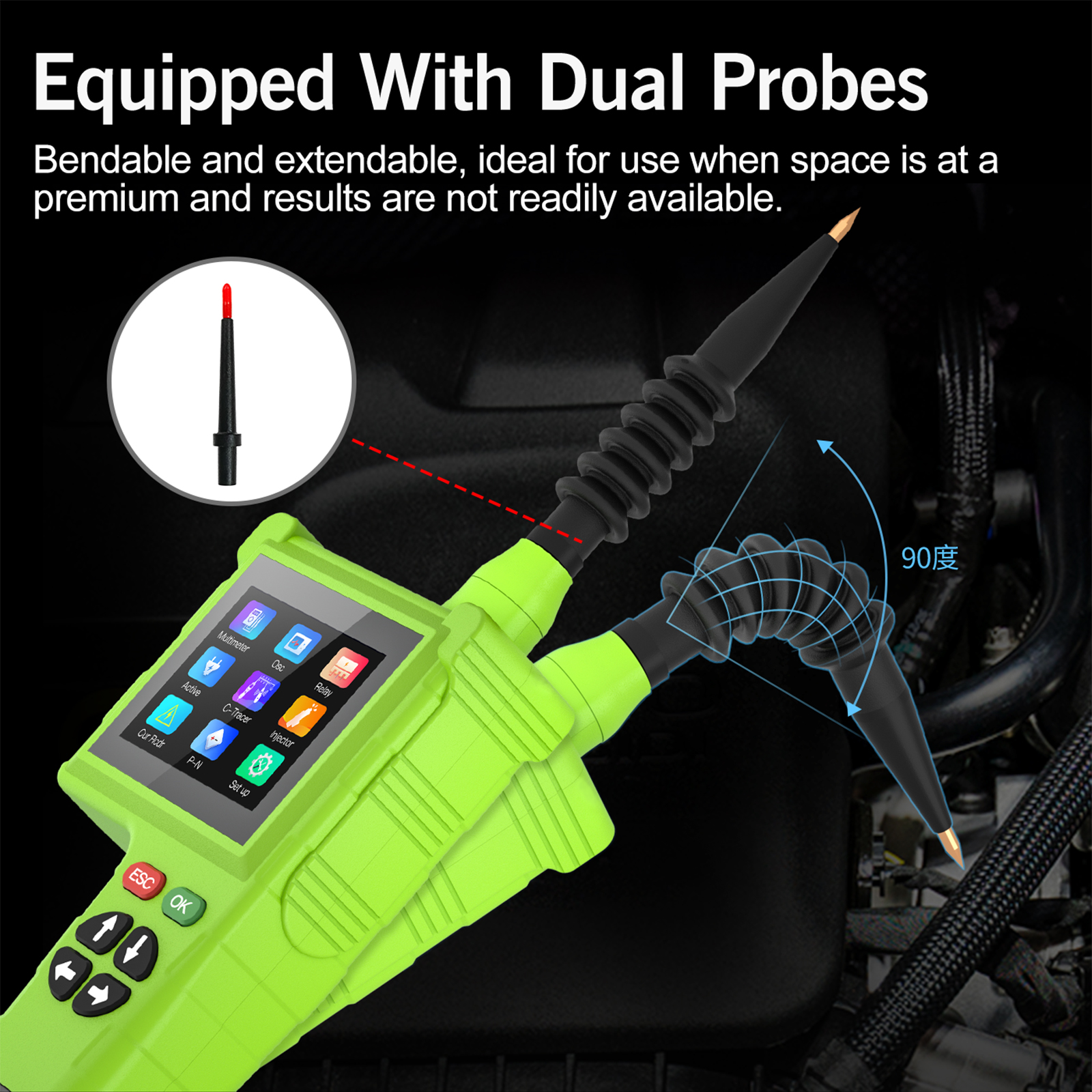

1pc x Probe
1pc x Spring pen
1pc x Alligator clip
1pc x USB to Type C cable
1pc x Type C cable
1pc x Clip cable
1pc x Relay test box
1pc x Injector test wire
1pc x Banana wire
1pc x Extension cable
1pc x black bag
