SSD Heatsink Kit for Steam Deck/Rog All Pure Copper Heatsink (26X23X0.5Mm) with Phase Change Thermal Pads/Silicone Pads Includes Screwdriver/Screws Compatible

Product Description

Ejoyous SSD Heatsink Kit, All Pure Copper Heatsink (26x23x0.5mm) with Phase Change Thermal Pads/Silicone Pads Includes Screwdriver/Screws

1. SCOPE OF APPLICATION: SSD copper heat sink for Steam Deck and for ROG ALL , the installation is more convenient and easy, easy to meet your usage needs.

2. HEAT DISSIPATION: SSD heatsink thermal pad is made of pure copper material, which is not only very durable, but also has good heat dissipation performance to improve gaming experience.

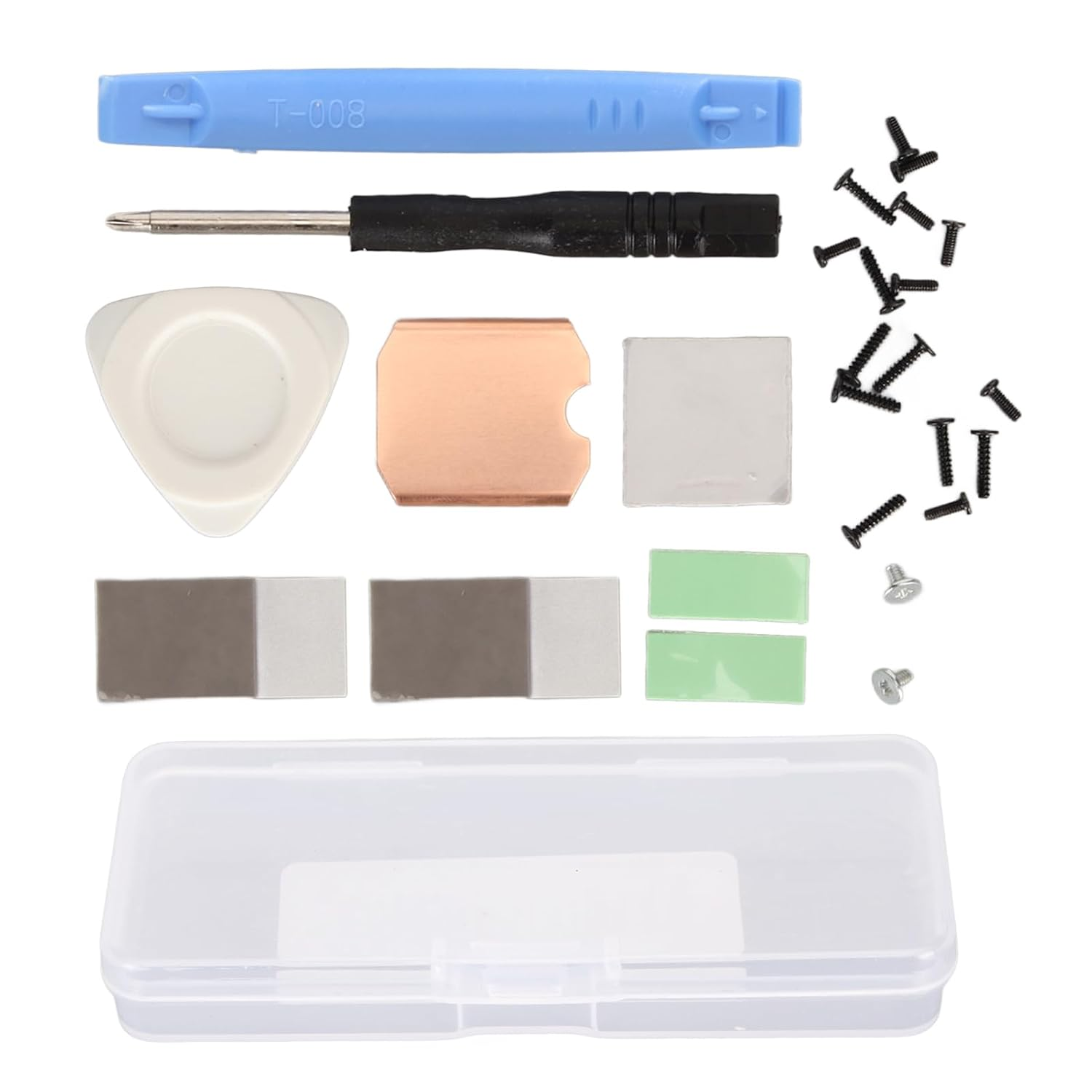

3. INCLUDED: Includes 1 x 0.5mm / 0.02in Copper Heatsink, 2 x 0.13mm / 0.01in Phase Change Thermal Pads, 3 x 0.5mm / 0.02in Silicone Thermal Pads, 1 x Screwdriver​, 1 x Split Pry Bar, 1 x Triangular Pry Tool, 18 x Screws.

4. PHASE CHANGE THERMAL PAD: Phase change silicone thermal pad not only improves heat dissipation, but also flattens the SSD face to avoid bumping the shield cover.

5. STABLE OPERATION: Thermal copper sheet aids in passive heat dissipation, plus the high performance thermally conductive silicone sheet absorbs solid heat onto the top of the copper sheet, which quickly removes heat through the laptop's internal fan.

Spec:

Item Type: For Steam Deck SSD Heatsink Thermal Pad Material: Copper, Silicone Heat Dissipation Copper Sheet Size: Approx. 26 x 23 x 0.5mm / 1.02 x 0.91 x 0.02in Compatible Brands: For Steam Deck, For ROG ALL Applicable Hard Disk: M.2 2230 NVME SSD

How to Use:

Hard Disk Cooling Installation Tutorial:

1. Turn off the for STEAM DECK. Before replacing the hard disk, turn off the for STEAM DECK and unplug all cables.

2. Remove the eight screws on the back of the for STEAM DECK. (1) Use a screwdriver​ to unscrew the eight screws securing the back cover. Four 9.5mm / 0.37in screws and four 5.8mm / 0.23in screws. (2) Keep the screws during replacement to prevent loss.

3. Pry off the rear cover. (1) Insert a tab along the edge of the right‑hand handle into the gap​ between the back cover and the front housing. (2) Use the tab to pry up the rear cover and release the tab.

  • 【Precise Fit】Designed for Steam Deck handhelds and ROG ALL series devices, the M.2 2230 NVME SSD is perfectly matched to the size of the SSD and can be installed without cutting or modification. The kit comes with a full set of mounting tools and accessories to prevent heat dissipation failure or damage to the device due to “improper fit”, and meets the cooling needs of SSDs for handhelds/gaming devices
  • 【Heat Dissipation Efficiency】The core heat sink is made of pure copper, which has a much higher thermal conductivity than aluminum heat sinks and can quickly absorb the heat generated by the SSD during operation. Two phase-change thermal pads (0.13mm) and three silicone pads (0.5mm) are used, while the silicone pads enhance heat conduction and effectively reduce speed degradation caused by high SSD temperatures
  • 【Complete Tools】The kit includes 1 copper heatsink, 2 types of thermal pads, 1 screwdriver, 1 pry bar, 1 triangular pry tool and 18 screws (with different specifications to suit the needs of device disassembly), and even comes with a storage box to organize small parts. No need to buy extra tools for the whole process of disassembling and installing the heatsink, you can do it right out of the box
  • 【Stable Operation】The pure copper heat sink absorbs heat from the SSD through passive heat dissipation, while the highly thermally conductive silicone pads transfer the heat to the top of the heat sink, and then the heat is quickly discharged with the help of an internal fan, forming a complete process of “heat absorption - temperature conduction - heat dissipation”. Maintains SSD stability and enhances the overall gaming experience
  • 【Durable】The phase-change thermal pad not only enhances heat dissipation, but also automatically adheres to the concave and convex texture of the SSD face, preventing the heatsink from directly impacting the device shield and protecting the internal components. The copper heatsinks are tough and the pads are resistant to high temperatures, eliminating the need for frequent replacements

Item Specification

  • Number of Items 1
    Country Of Origin China
    Included Components no
    Model Number 2so43vw5im
    Part Number 2so43vw5im
    Number of items 1
