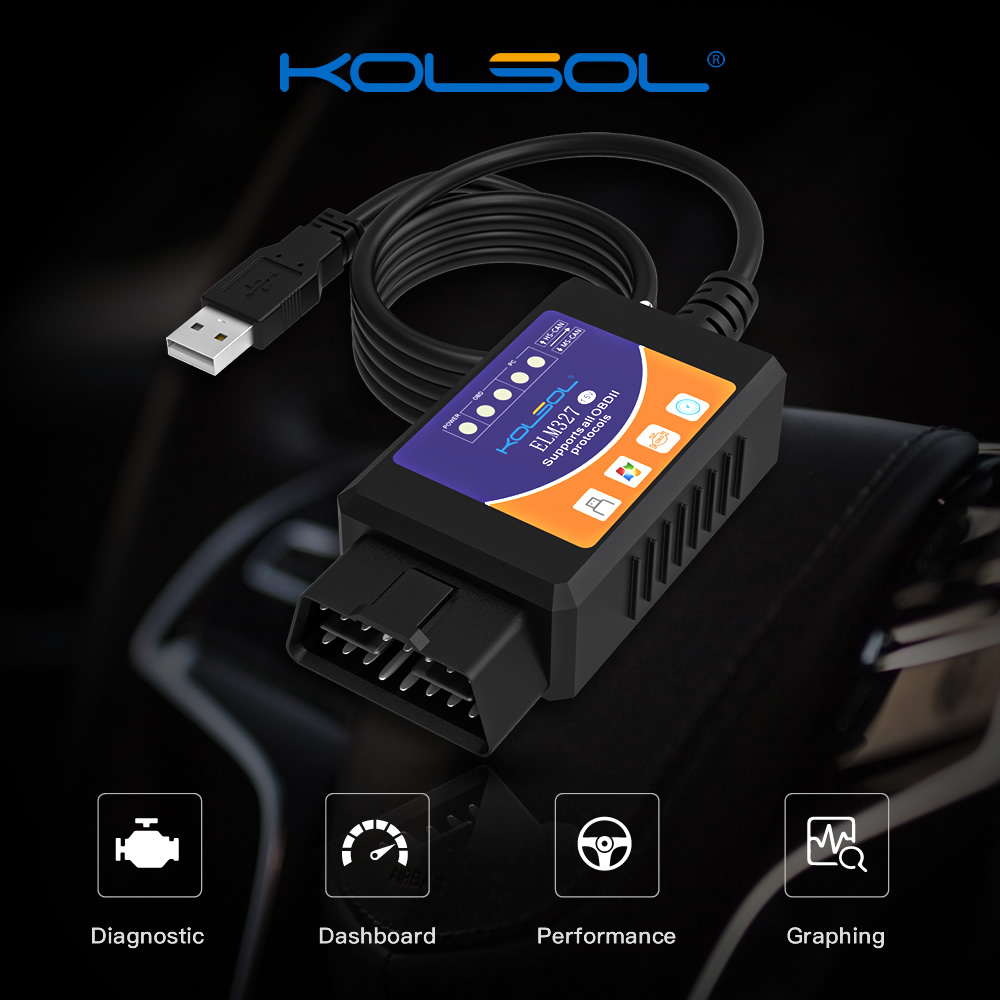

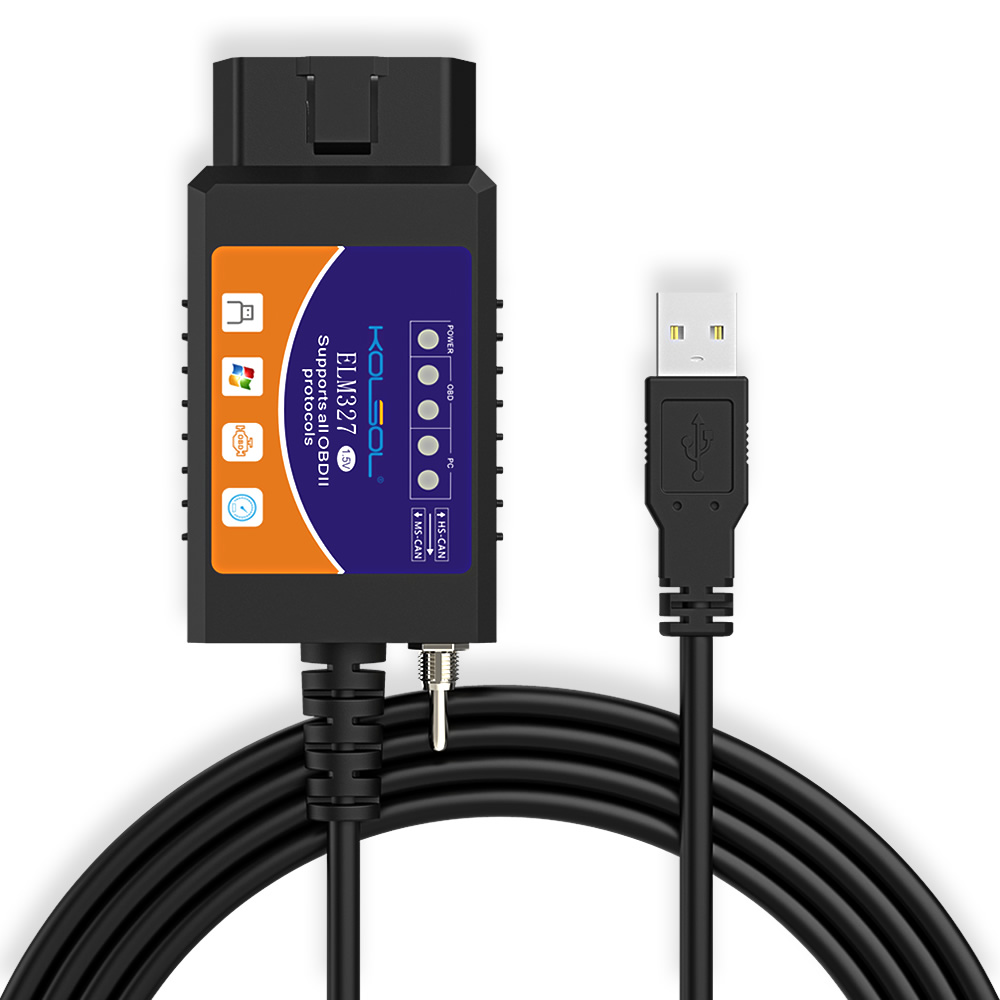

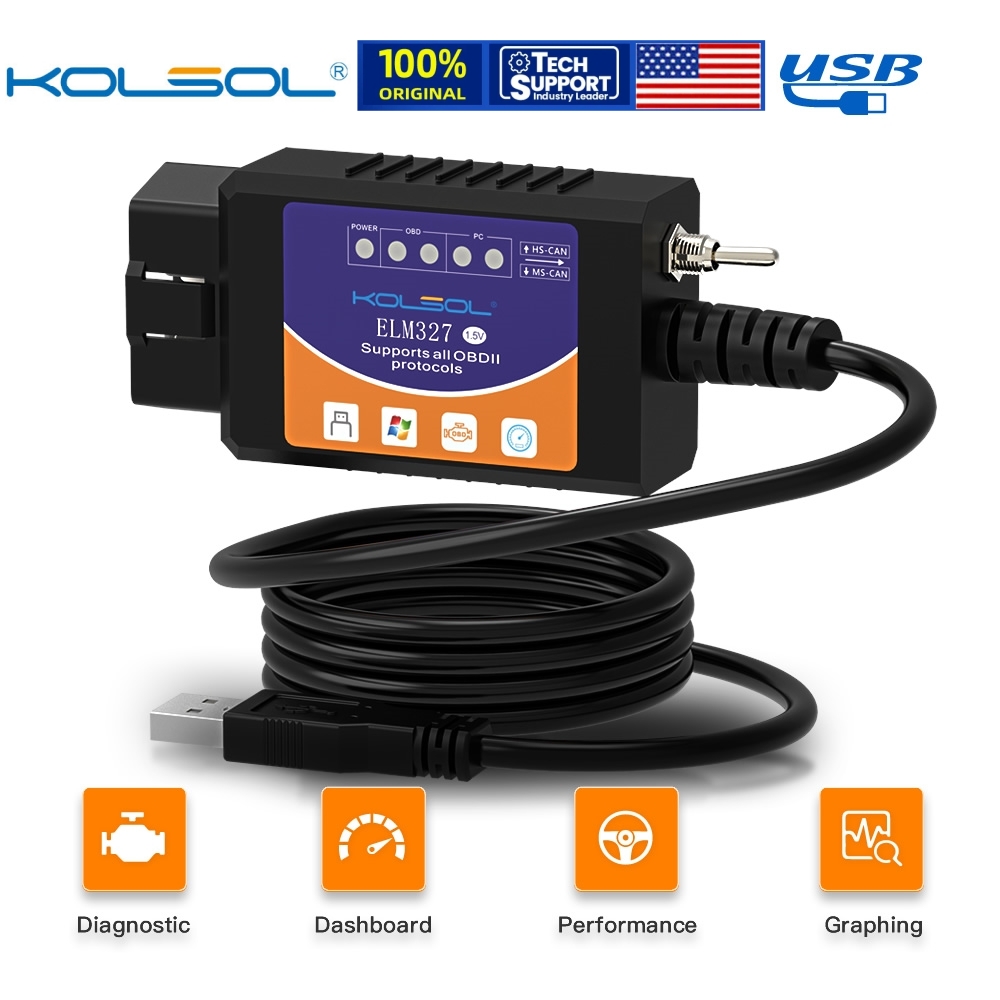

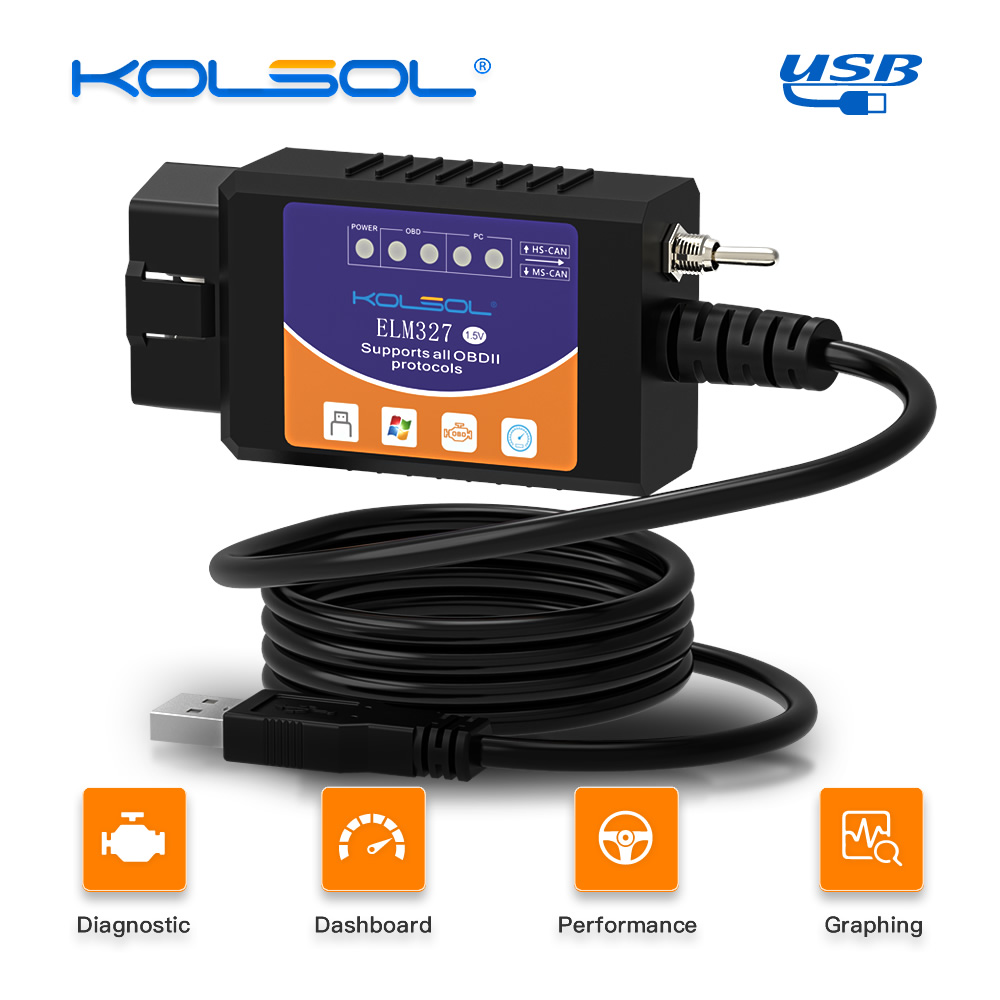

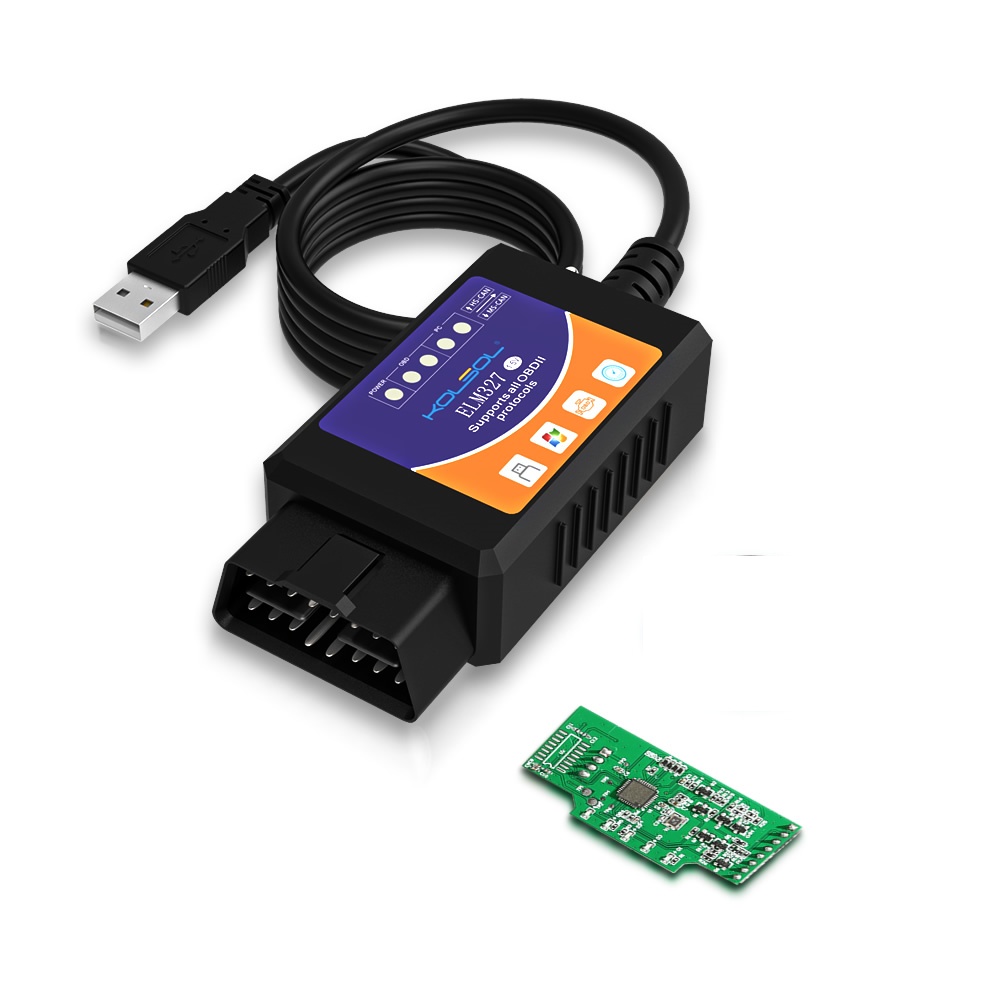

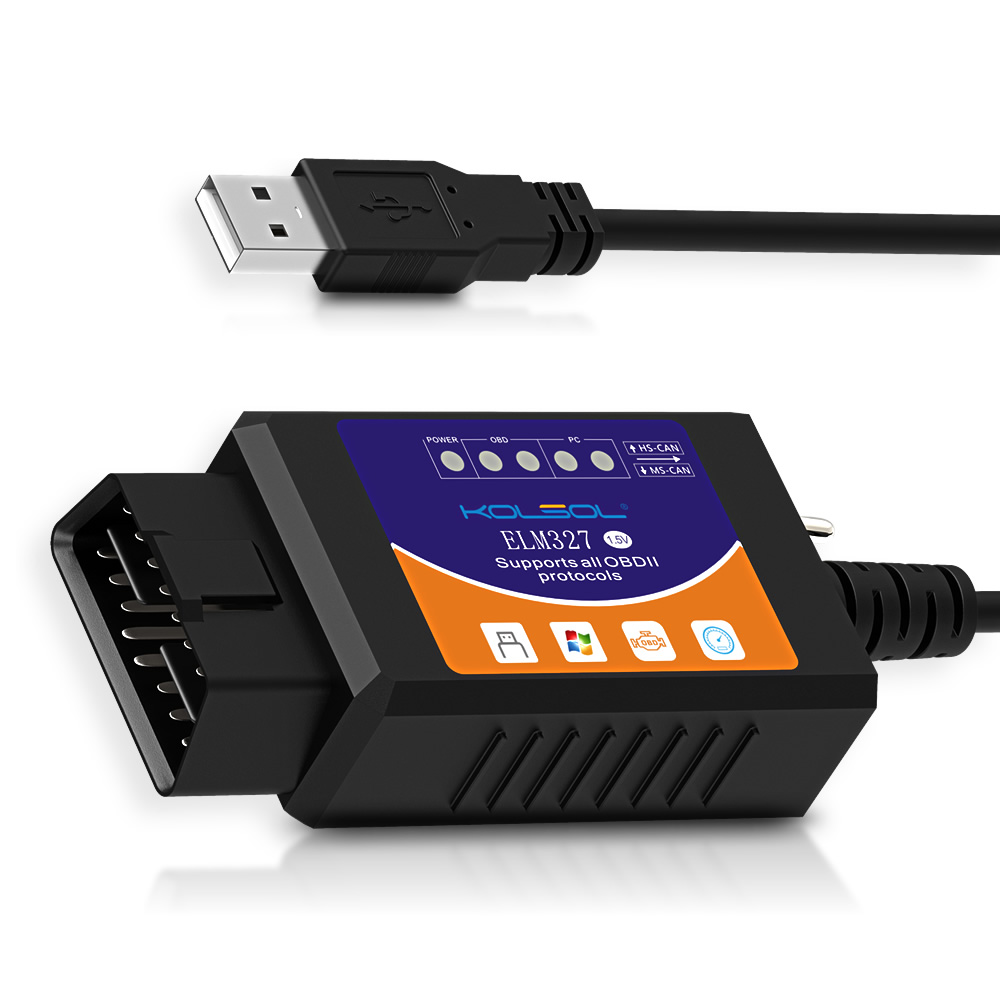

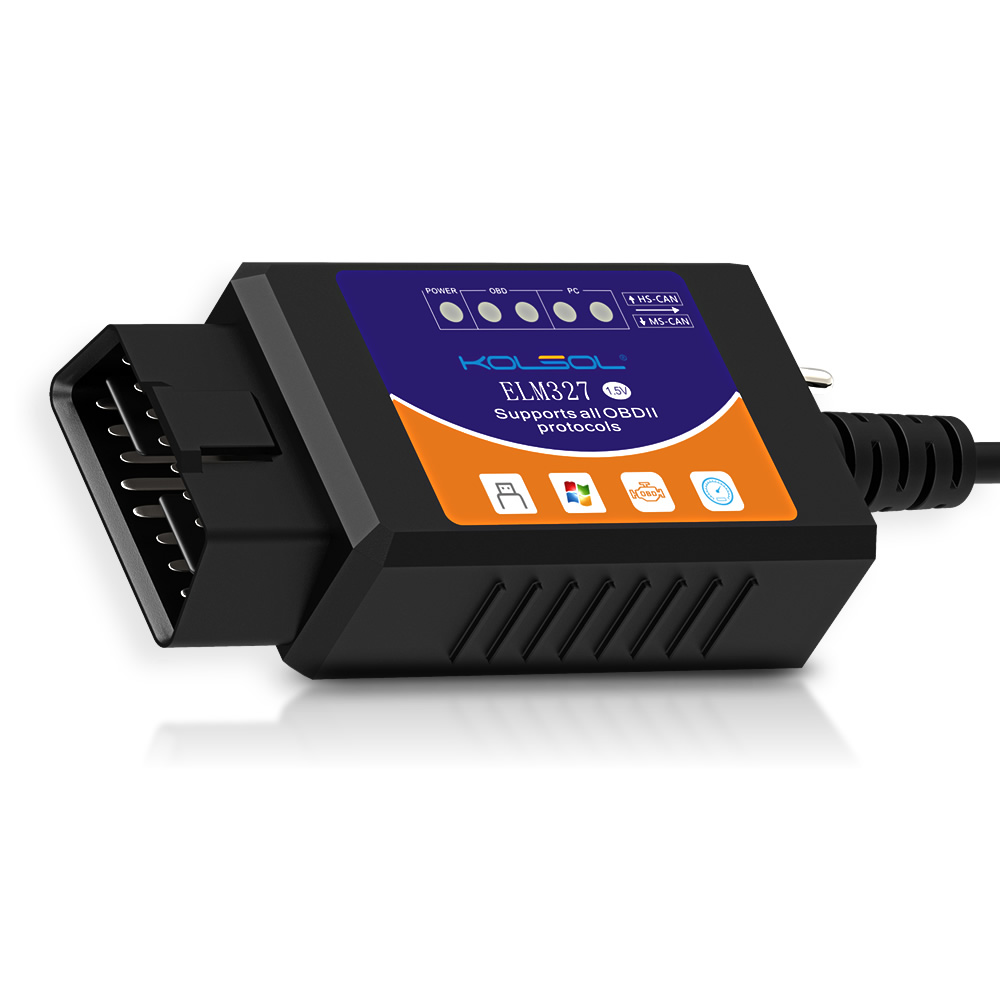

KOLSOL ELM327 USB OBD2 Scanner V1.5 ELM327 Diagnostic Tool with Switch

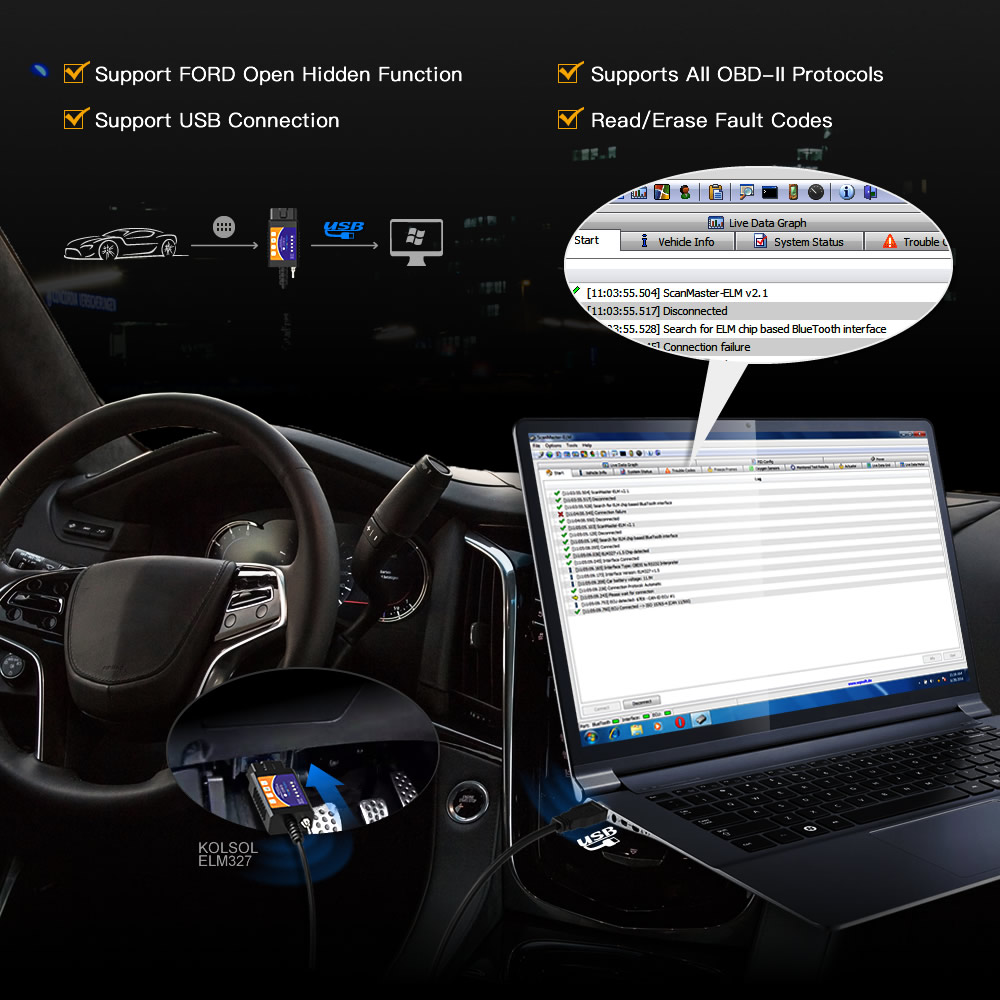

Highlights:

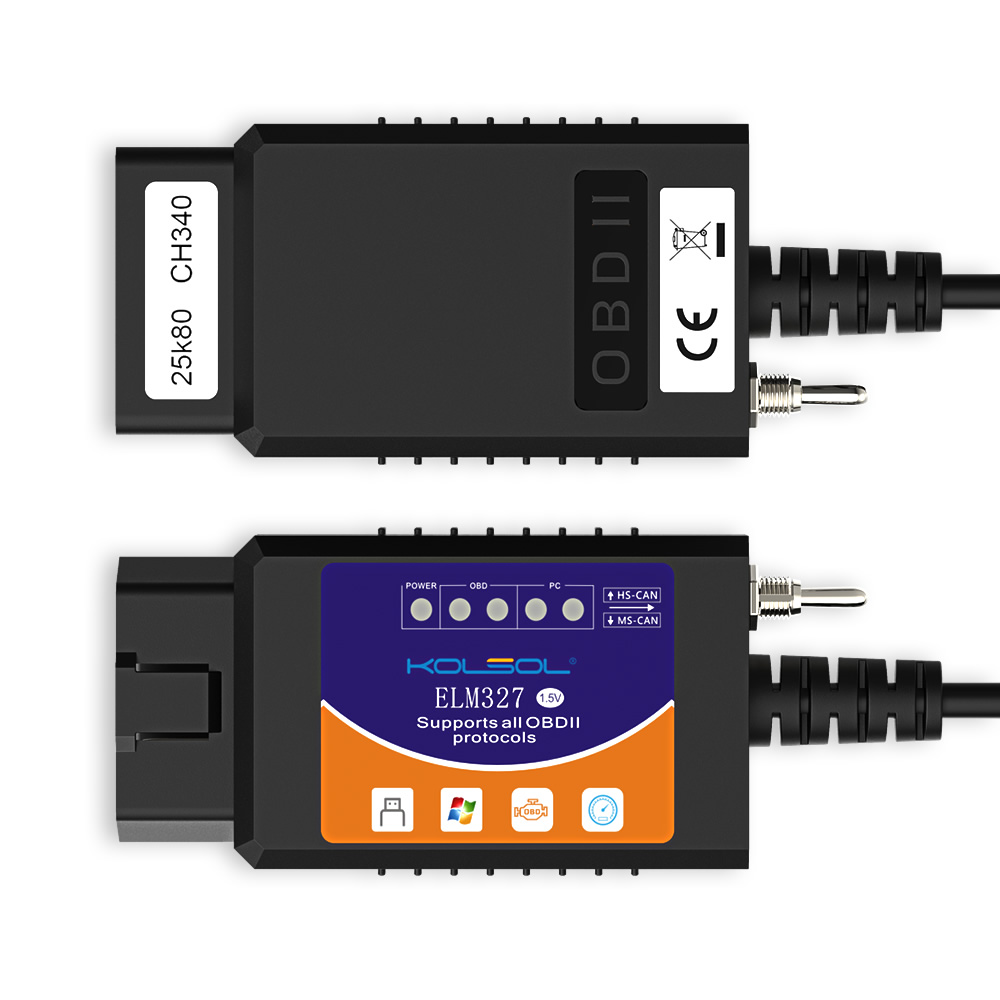

1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.

2.Support FORD models open hidden function.

3.It supports all OBD-II protocols.

4.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.

5.Supported System: Windows10 Professional Version, Windows XP, Windows 7

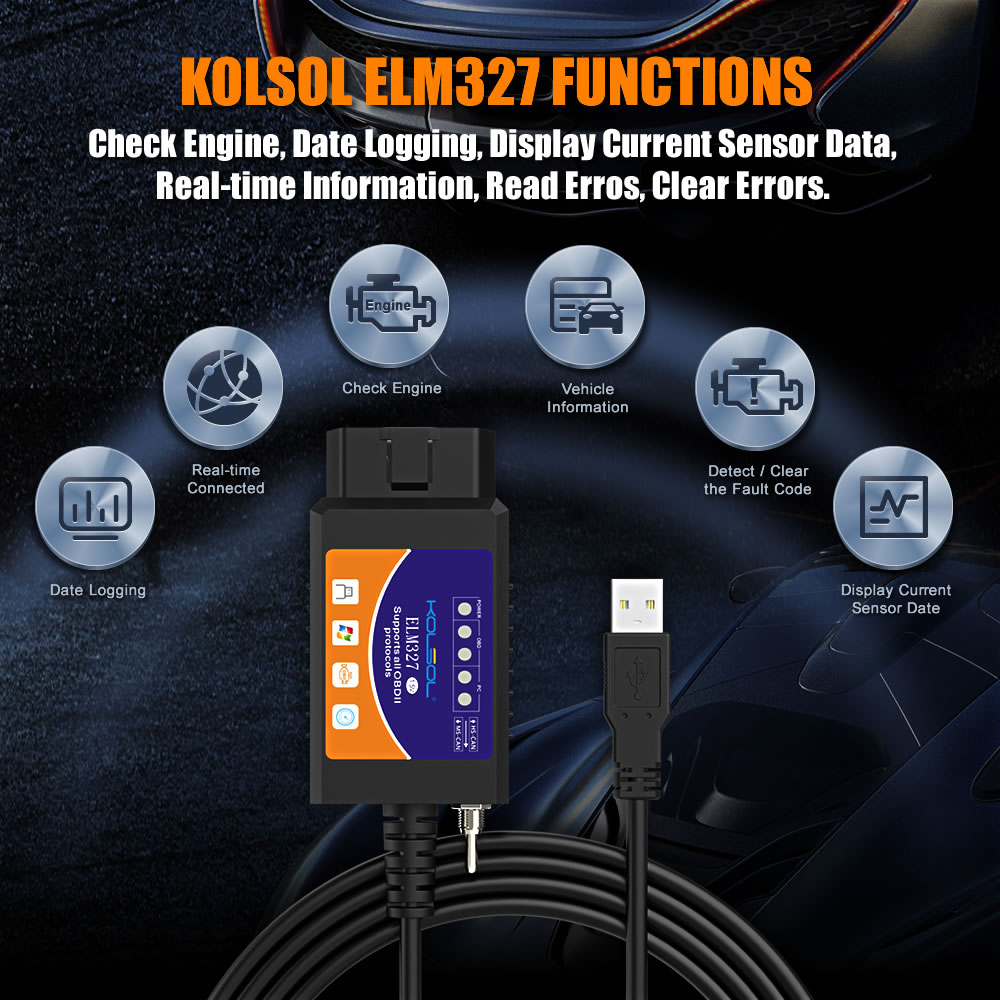

Functions:

1.Read/erase fault codes from all modules, including OBD2/EOBD

2.Access modules on both HS-CAN and MS-CAN mode

3.Read vehicle configuration

4.Actuator tests

5.Live Data

6.Injector coding

7.Software update

8.Service program

9.Force D-P-F regeneration

10.Prog.ramming

11.Coding

12.Adaptation

Vehicle Coverage:（If you are not sure whether it supports your vehicle, please contact us）

America

For Chrysler, For Dodge, For Jeep, For Ford, For Chevrolet, For Cadillac, For Lincoln, For Buick, For Hummer, etc.

Asia

For Honda, For Nissan, For Lexus, For Toyota, For Mazda, For Mitsubishi, For Hyundai, For Kia, For Isuzu, For Suzuki, For Land Rover,

For Daewoo, For Chery, For BYD F3/F0, For Infiniti, For Subaru, etc.

Europe

For Audi, For BMW, For Citroen, For Fiat, For Mercedes, For Opel, For Peugeot, For R.enault, For SEAT, For Skoda, For V.olvo, For Vo-lks.wagen, For Jaguar,

For Lamborghini, For Maserati, For Bentley, For Rolls Royce, For Porsche, For Opel, For Lancia, For Mclaren , For Ferrari, etc.

Other mainstream models that comply with the international standard obd2 agreement.

Supported Software: When download and install software, please turn off antivirus software .

ELM-config

For-scan

FOC-CCUS

FF-2

Supported protocols:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP (fast init,10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID,500 Kbaud)

7. ISO15765-4 CAN (29bit ID,500 Kbaud)

8. ISO15765-4 CAN (11bit ID,250 Kbaud)

9. ISO15765-4 CAN (29bit ID,250 Kbaud)

kolsol-elm327-usb-2

ScanMaster-ELM Software Install:

You should follow the steps shown in the pictures below:

Step1: Open the ScanMaster-ELMv2.1 folder in the Computer-DVD/CD-RW Drive.
kolsol-elm327-usb-3

Step2: Double-click the ScanMaster-ELM_2.1.104.771 icon to start it.
kolsol-elm327-usb-4

Step3: You will see the following picture and click [Next].
kolsol-elm327-usb-5

Step4: Select the [I accept the agreement] option and click [Next] button.
kolsol-elm327-usb-6

Step5: Select the target location for the installation software.
kolsol-elm327-usb-7

Step6: Successful installation,there would be a shortcut on the desktop.
kolsol-elm327-usb-8

Step7: Open the software, set the complete user information.
kolsol-elm327-usb-9

Step8: Double-click the KeyGen-scanmaster-2.1 icon to get the registration keys.
kolsol-elm327-usb-10

Step9: Enter the installation code and click[Generate Key] button. Then enter the registration keys to complete the registration.
kolsol-elm327-usb-11

Driver Installation:

Step1:Open the DVD/CD-ROM Drive and Double-click the CH341SER icon.
kolsol-elm327-usb-12

Step2: Click the [Install] option.
kolsol-elm327-usb-13

Step3: Successful installation.
kolsol-elm327-usb-14

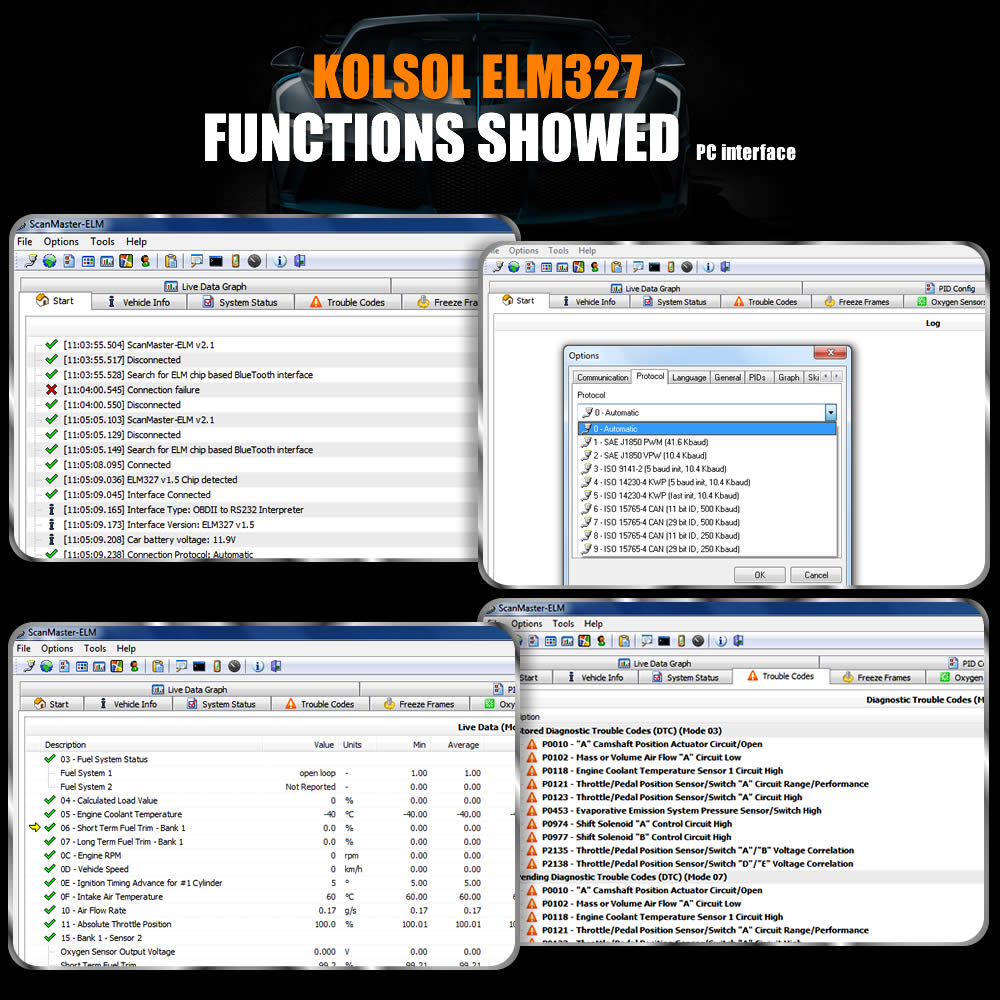

ScanMaster-ELM Usage:

Open the ScanMaster-ELM software,choose the language you need.
kolsol-elm327-usb-15

Notice: Software port settings and device manager detected ports, both must be consistent
kolsol-elm327-usb-16

Click the [Connect] button in the lower left corner to connect the device.
kolsol-elm327-usb-17

The software is running ,computer detected interface version V1.5
kolsol-elm327-usb-18

Read Trouble Codes
kolsol-elm327-usb-19

Read Live Data Grip
kolsol-elm327-usb-20

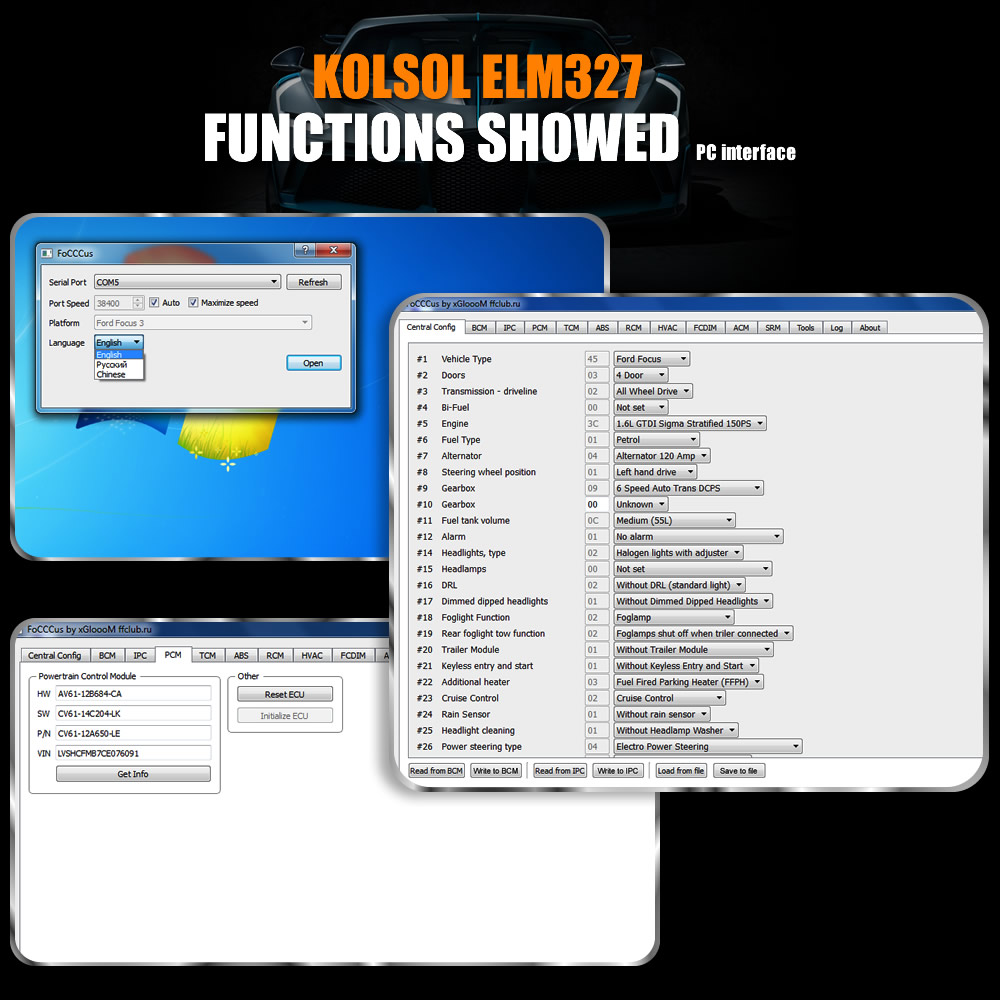

FoCCCus Software Usage:

Open the FoCCCus folder and you will see the FoCCCus icon.
kolsol-elm327-usb-21

Software port settings and device manager detected ports, both must be consistent.

Select the language and click the [Open] button.
kolsol-elm327-usb-22

These are what you’ll see when the software is running:
kolsol-elm327-usb-23

kolsol-elm327-usb-24

Package includes:
1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
