Description

The hydroponic grow kit is characterized by soilless cultivation with nutrient film techniques, producing more plants than traditional soil cultivation. Meanwhile, it requires less water and less space. The vegetables it grows are more nutritious and better-tasting than those of traditional soil cultivation because oxygenated water and nutrients are delivered directly to the roots. Therefore, eating more hydroponic vegetables will make you healthier.

Key Features

Safer and Healthier: Food-grade hydroponic growing systems using PVC pipes are safer and healthier, which can bring greater reassurance. High-quality PVC pipes have good water tightness, corrosion resistance, and a long service life.

High Productivity: Its soilless culture with nutrient film technology, three levels of growing space, and 108 planting points allows you to cultivate more plants, so you can sow more and reap more.

Great Convenience: There isn't odor and a need to till the ground or remove weeds in soilless cultivation, so it is easy to take care of the plants, both time and energy-saving.

More Nutritious and Delicious: The planting kit with water circulation can provide sufficient oxygen to the plants, and the smooth PVC pipe wall transfers water more efficiently. Therefore, oxygenated water and nutrients can be transported directly to the roots, which is more conducive to plant growth and growing great-tasting vegetables.

Easy to Install: It has a simple structure and the fittings don't need to be glued for installation, you just need to follow the steps on the installation drawings to complete the assembly easily.

Water and Space-saving Design: It utilizes vertical space and an S-shaped flow design to create a three-layer planting space, maximizing the space savings. Internal circulation saves water and fertilizer resources by having the water output and intake on the same side.

Convenient to Clean: The smooth surface and easy-to-remove construction make it easy for you to clean and maintain it.

Buy with Confidence: We are honored that you have chosen our product. We have sufficient confidence in the quality of the product so that you can buy it confidently. But if you have any questions, you can contact our customer service, he will patiently answer and solve your problems.

Details

Thickening Joint: The thickening joints (0.13 inches) connecting the individual pipes that make up the base are so stable that the hydroponic grow kit dose not easily collapse.

Foot Mats: Four flat PVC foot mats can better fit the ground and improve the stability of the hydroponic stand.

Large Planting Baskets: A planting basket (1.38*1.77 inches) with large holes makes it easier for plant roots to grow and spread.

Application

It is suitable for leafy vegetables to grow in the garden or even office, balcony, or rooftop. You can grow stuff such as herbs, lettuce, celery, beets, bell peppers, garlic seedlings, vegetables, flowers, plants, canola, etc.

Specification

Material: PVC

Color: White

Layer Quantity: 3 Layers

Pipe Quantity: 12

Plant Site Quantity: 108

Pipe Diameter: 6.1cm/2.4inch

Hole Diameter: 3cm/1.18 inch

Spacing Between the Holes: 5.5cm/2.17inch

Hose Length: 1.15m/ 3.77ft

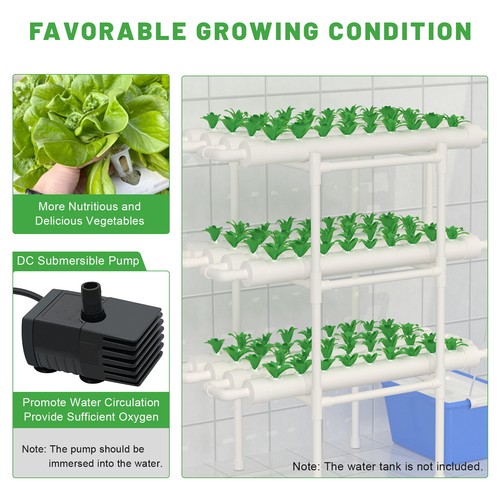

DC Submersible Pump

Voltage: DC 12V 280mA

Hmax: 0-160cm

Qmax: 200L/h

AC/DC Adapter

Model: RY-1210

Input: 100-240VAC, 50/60Hz

Output: 12V, 1A

Joint Wall Thickness: 3.41mm/0.13inch

Planting Basket Size(D*H): 3.5*4.5cm/1.38*1.77inch

Product Size: 96×55×111cm/37.8×21.65×43.7inch

Package Size: 79.5×27×28.5cm/31.3×10.63×11.22 inch

Net Weight: 10.65kg/23.48 lbs

Gross Weight: 11.55kg/25.46 lbs

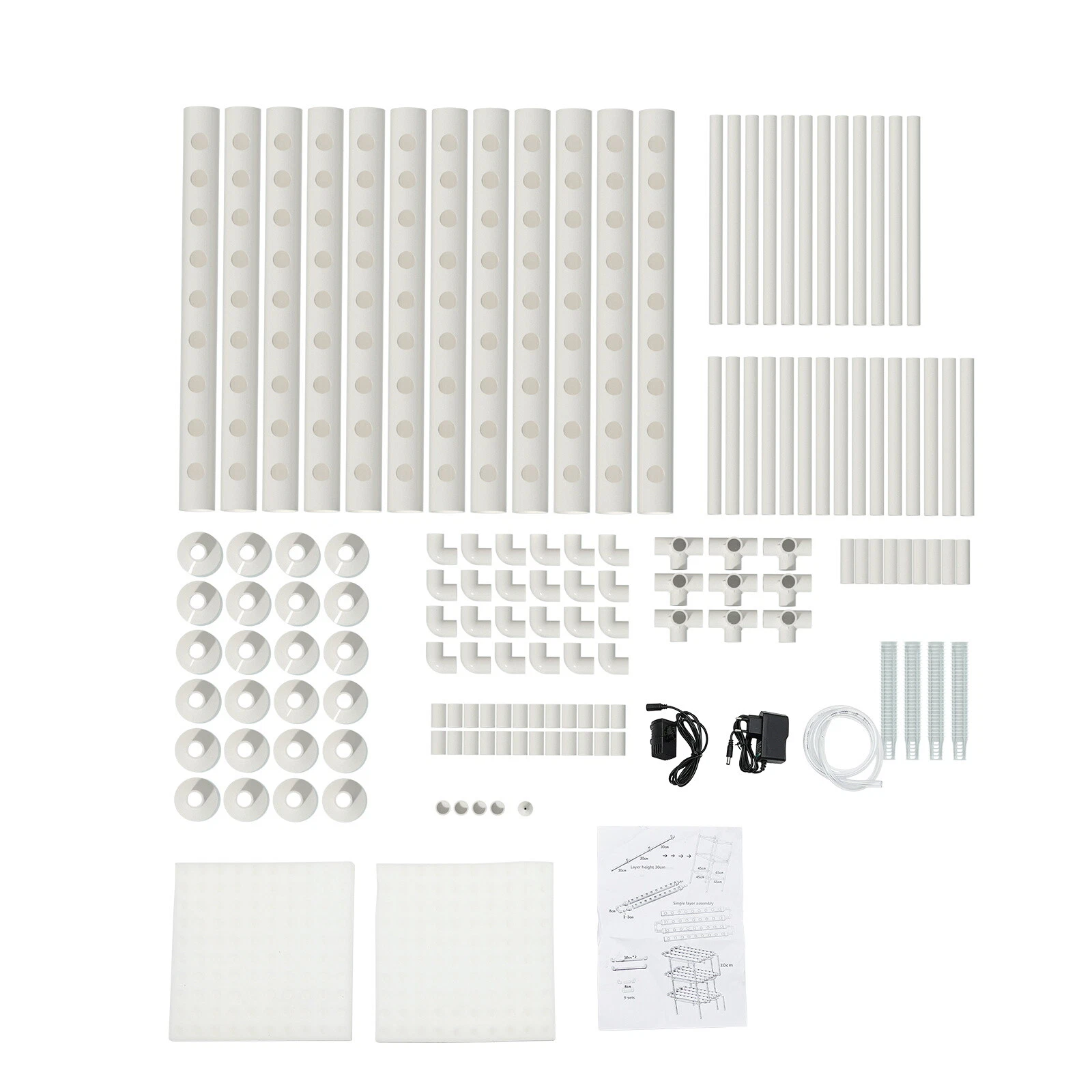

Package Included

12 x Holders

12 x Main Pipes

1 x Water Pump

1 x Hose

1 x Adapter

1x English Installation Diagram

Other Accessories for Assembly

Notes

1. Please do not insert the hose into the bottom of the inlet joint. Inserting only two or three sections is ok.

2. The hydroponic equipment is installed without glue. Please insert all the connectors to the end to ensure the shelf is stable.

3. Place hydroponics equipment in the sunlight at least 4 hours a day to avoid vegetable malnutrition due to insufficient light.

4. You need to prepare one 15-20L non-transparent and covered reservoir tank (not included).

5. We suggest that the water pump be immersed in the water tank, otherwise the pump will dry out and be damaged.

6. Please note that if you plant vegetables indoors, you need to add LED growth lights (not included) to replace sunlight.

7. Please allow the slight color difference caused by the shooting light and 1-3 cm/mm error due to manual measurement, and make sure you do not mind before ordering.
