DESCRIPTION
Package included：

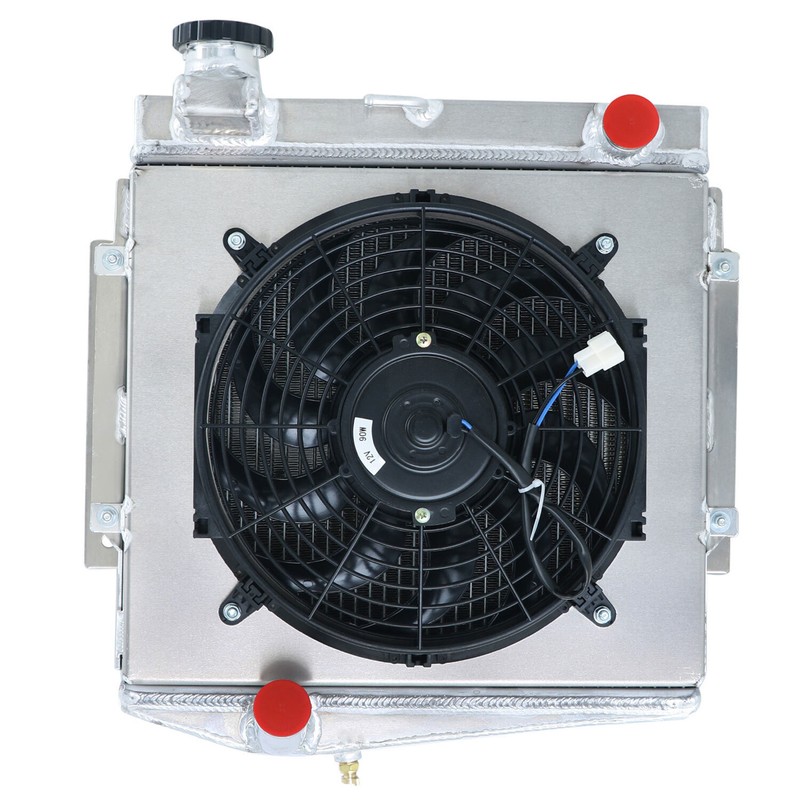

1 X4 -ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
1 X 12" 90W Fan
1 X Thermostat Temperature Switch Relay Kit
Application:
For 1969 Datsun 2000 2.0L 1982CC 121Cu. In. l4 GAS
For 1970 Datsun 2000 2.0L 1982CC 121Cu. In. l4 GAS
Configuration:
Core Row Quantity: 4 Row
Down Flow Or Cross Flow Type: Down Flow
Tank Material: AA5052 Aluminum
Core Material: AA5052Aluminum
Overall Height: 19 2/3"
Overall Width: 18 5/7"
Core Height: 15 2/3"
Core Width: 14 1/6"
Inlet Location:Passenger
Inlet Diameter: 1 3/8"
Outlet Location: Driver
Outlet Diameter: 1 3/8"
Transmission Oil Cooler: NO
Radiator Cap：CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
Radiator Drain Plug: OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.

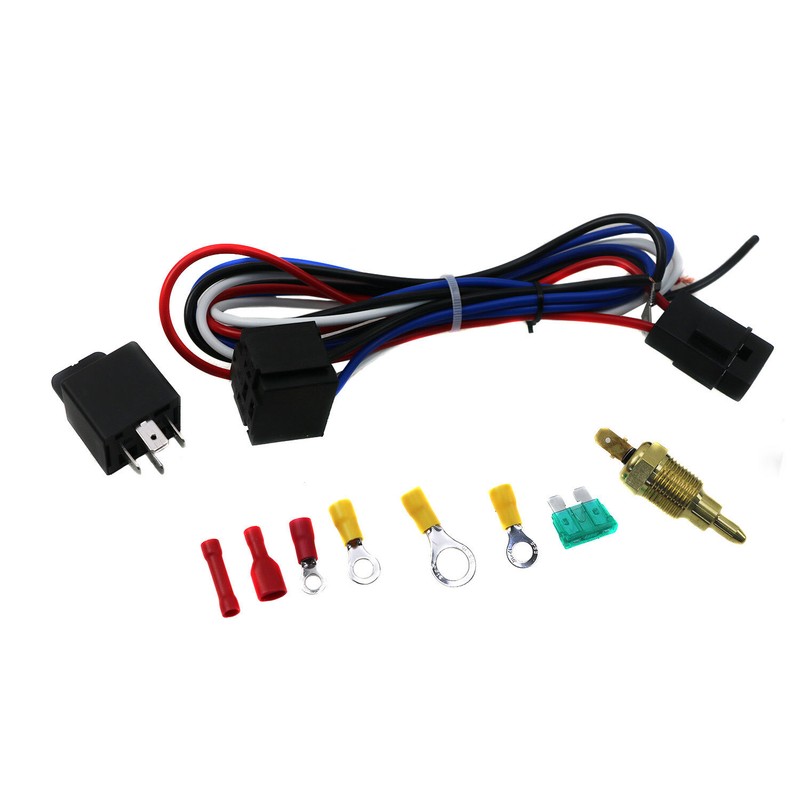

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Reasons for choose our AA5052 Aluminum Radiator：
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
