AC 240V To DC 5V/12V/24V 10W-1000W AC/DC Power Supply Adapter Transformer Driver

Product Description


Note:

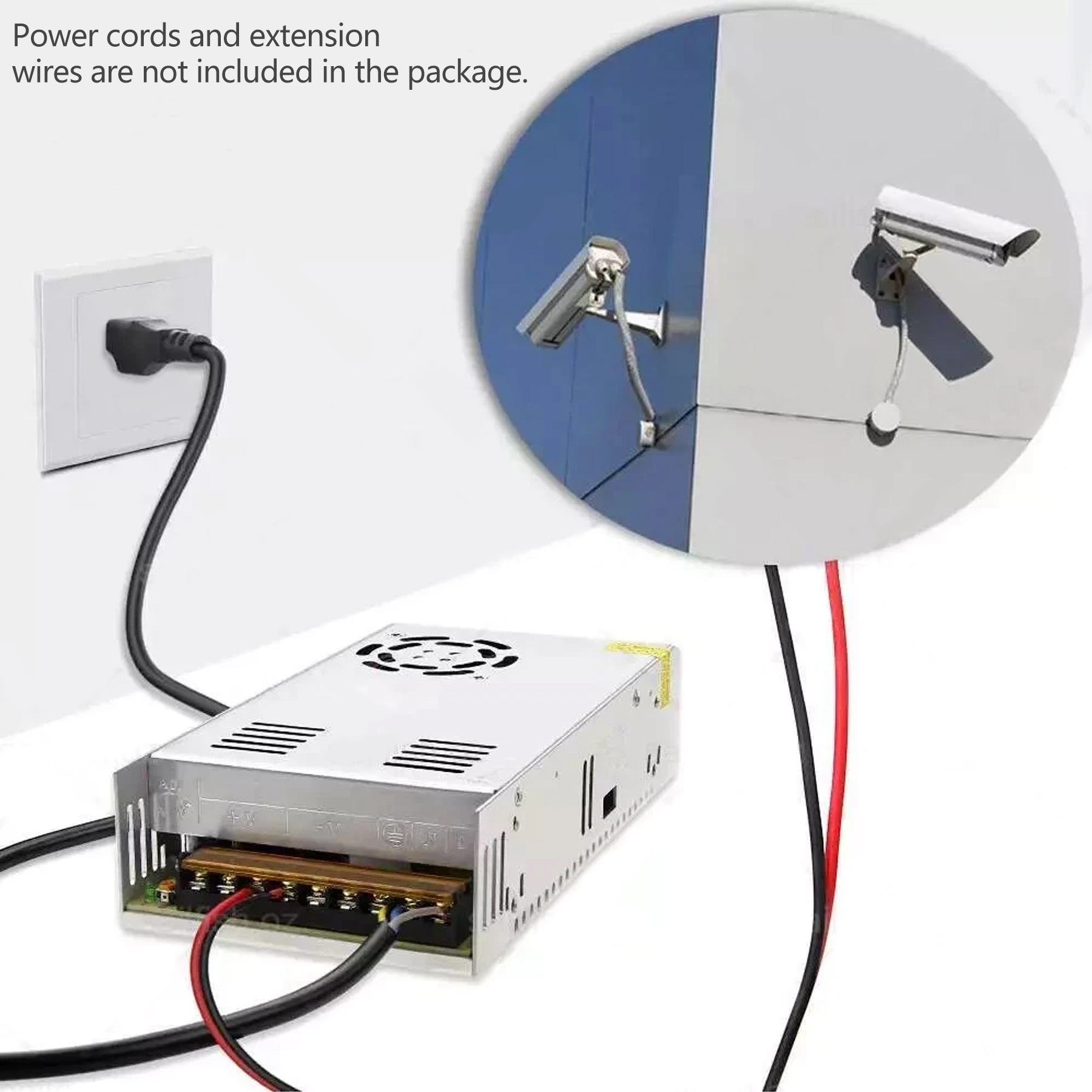

This Power Supply Unit "DOES NOT" come with wiring cable,on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.

  • 100% full load burn-in test
  • Universal AC input / full range
  • It's good quality & high performance
  • Input: AC110-265V 50/60Hz
  • Out put: DC 12V ;DC 24V,DC 5V ;

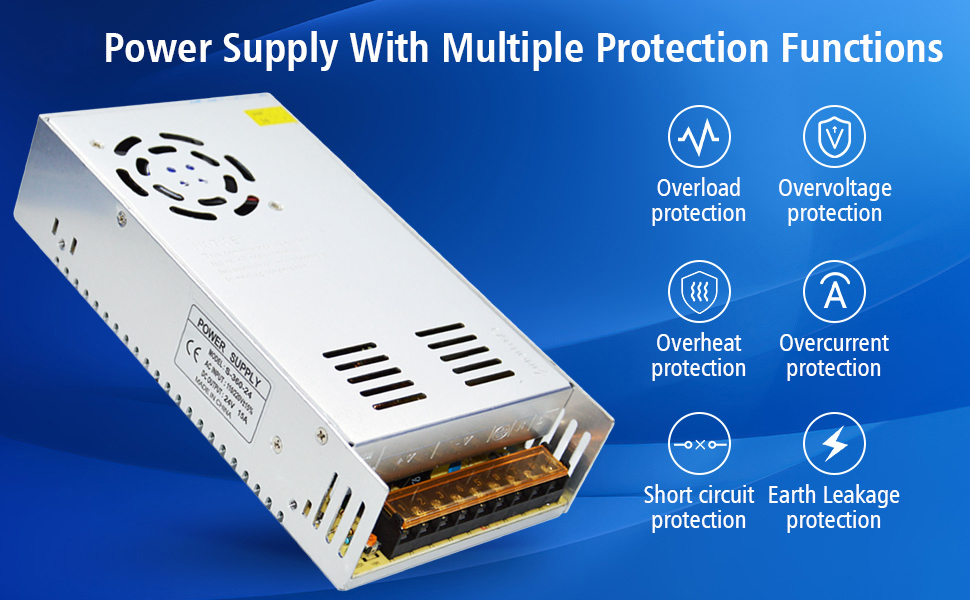

  • Protections: overload/ over voltage/ short circuit
  • Cooling by free air convection
(Not suggest for use in bathroom)

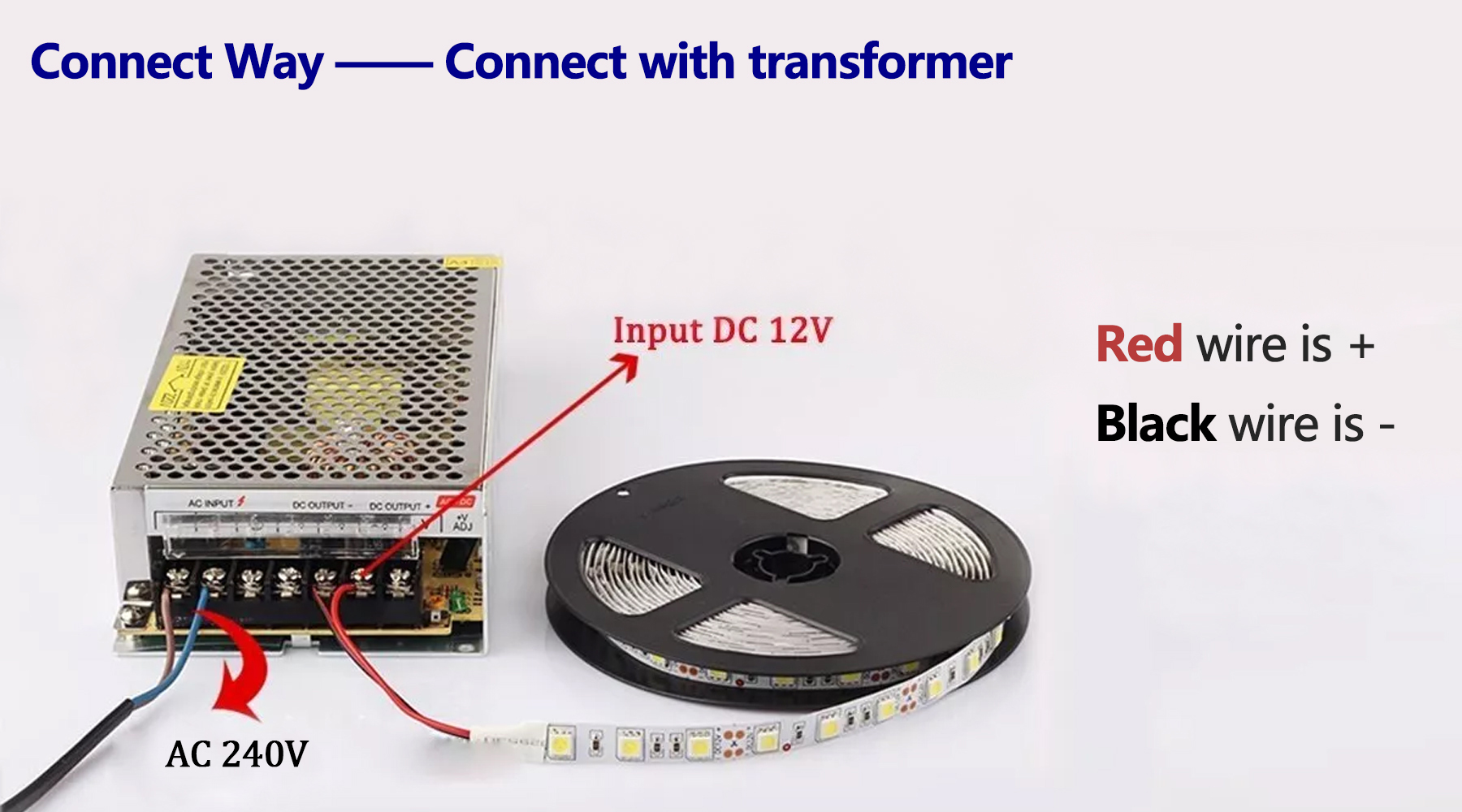

Connection:
※L, N: AC power input
※GND: DC power output "-"
※V: DC power output "+"
※+V / ADJ: Adjust the output voltage
※Safety Compliance: CCC/ FCC / CE
※Working Temperature: 0~40℃
※Storage Temperature: -20~60℃
※Ambient Humidity: 0~95% Non-Condensation
※Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights



How to calculate Support max LED Strip Length
Assumption: Your LED Strip 60LEDs/m, and each LED 0.2W,
then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m light

How to calculate Support max LED Strip Length:
Assumption: Your LED Strip 60LEDs/m, and each LED 0.2W,
then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m light



You'll Receive:
1Pcs Switch Power Supply Adapter for LED Strip (as you choose)


Feature:
Voltage Current Power Size mm
12V 1A 12W 70*39*31
12V 2A 24W 85*58*32
12V 3A 36W 85*58*32
12V 3.2A 40W 85*58*32
12V 4.2A 50W 85*58*32
12V 5A 60W 110*78*35
12V 6A 75W 159*98*42
12V 6.5A 80W 159*98*42
12V 8.5A 100W 159*98*42
12V 10A 120W 198*98*42
12V 12.5A 150W 198*98*42
12V 15A 180W 198*98*42
12V 16.5A 200W 198*98*42
12V 20A 240W 199*110*50
12V 21A 250W 199*110*50
12V 20A 240W 199*98*42
12V 25A 300W 199*110*50
12V 30A 360W 199*110*50
12V 33A 400W 215*115*50
12V 40A 480W 215*115*50
12V 42A 500W 215*115*50
12V 50A 600W 241*125*65
12V 60A 720W 241*125*65
24V 1A 24W 85*58*32
24V 2A 50W 110*78*35
24V 3A 75W 159*98*42
24V 4.2A 100W 159*98*42
24V 5A 120W 198*98*42
24V 8.3A 200W 199*110*50
24V 10A 240W 199*110*50
24V 15A 360W 215*115*50
24V 20A 480W 215*115*50
24V 21A 500W 215*115*50
24V 30A 720W 241*125*65
5V 2A 10W 70*39*31
5V 3A 15W 85*58*32
5V 4A 20W 85*58*32
5V 5A 25W 110*78*35
5V 6A 30W 110*78*35
5V 10A 50W 159*98*42
5V 20A 100W 198*98*42
5V 30A 150W 198*98*42
5V 40A 200W 199*110*50
5V 60A 300W 215*115*50
